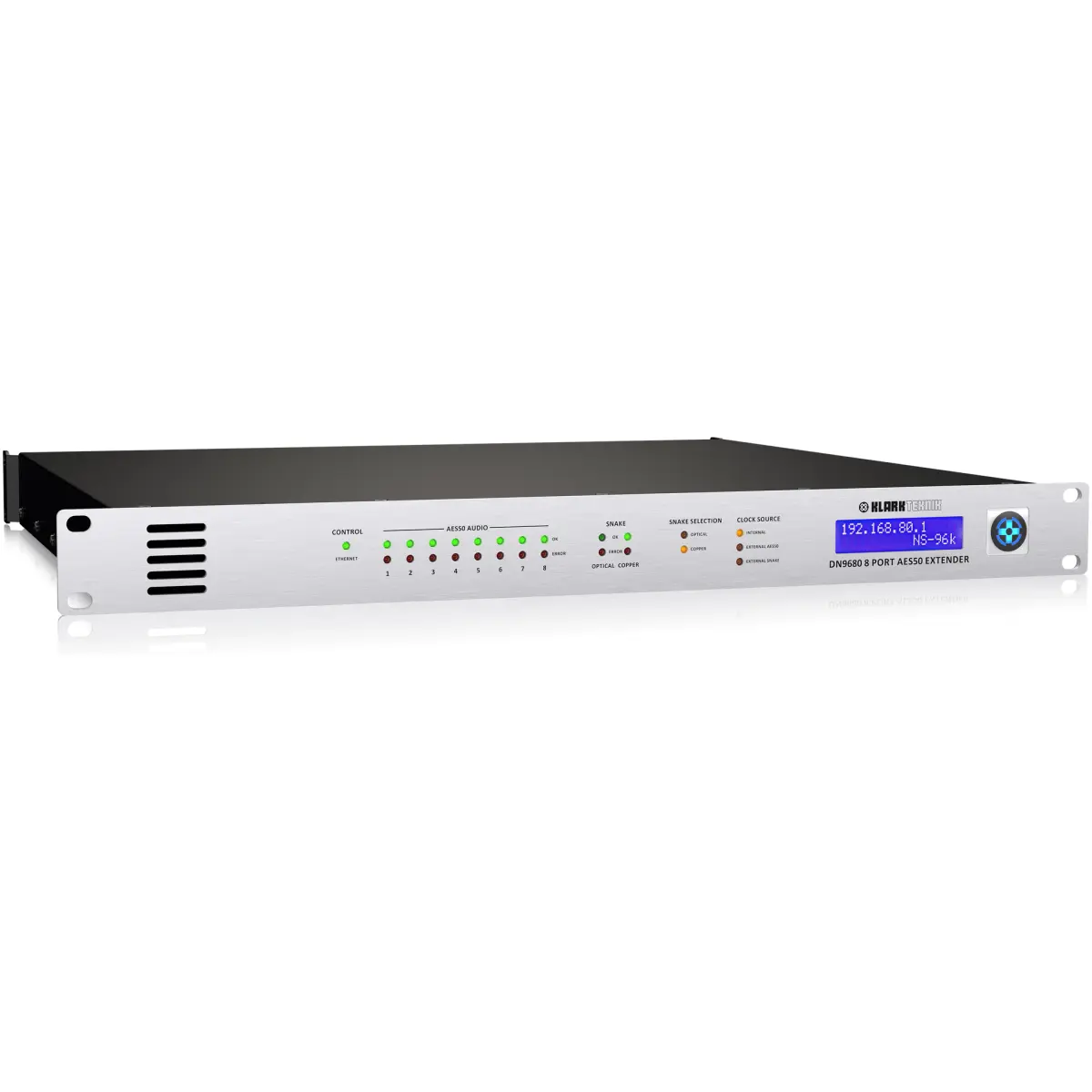

- Multiplexes up to 8 AES50 connections into one optical fibre cable or CAT5 cable
- Extends AES50 connections up to 1,000 m with optical fibre or 100 m with CAT5 cable
- High channel capacity with 192 bidirectional channels @ 96 kHz
- Internal “AES Grade 1” temperature-compensated word clock (1 ppm)
- Industry standard RJ-45 connectors used for AES50 ports and copper snake connection
- Dual-fibre industry standard optical connector used for optical fibre snake connection
- Internal web server allows browser-based configuration via Ethernet control port
- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
AES50 Ports
| Type | Industry-standard RJ45 with LED status indication |
| Sample rate | 96 kHz or 48 kHz |
Ethernet Control Port
| Type | Industry-standard RJ45 with LED status indication |

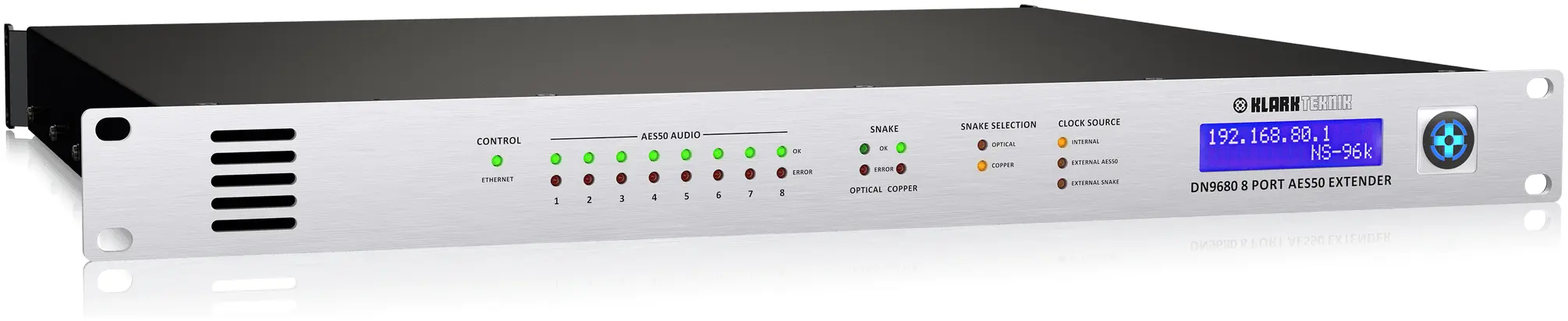

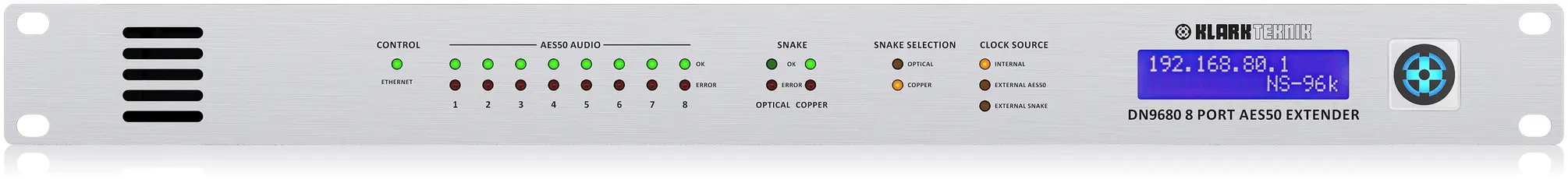

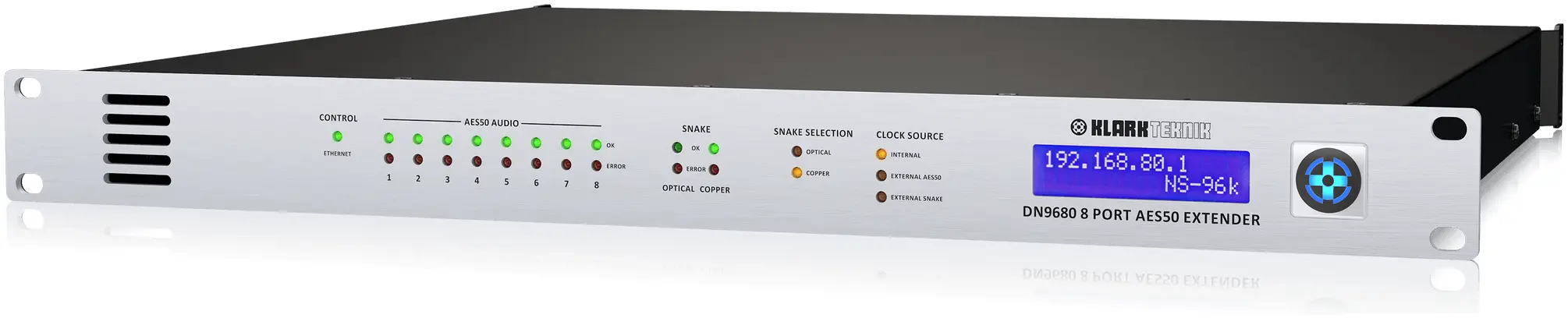

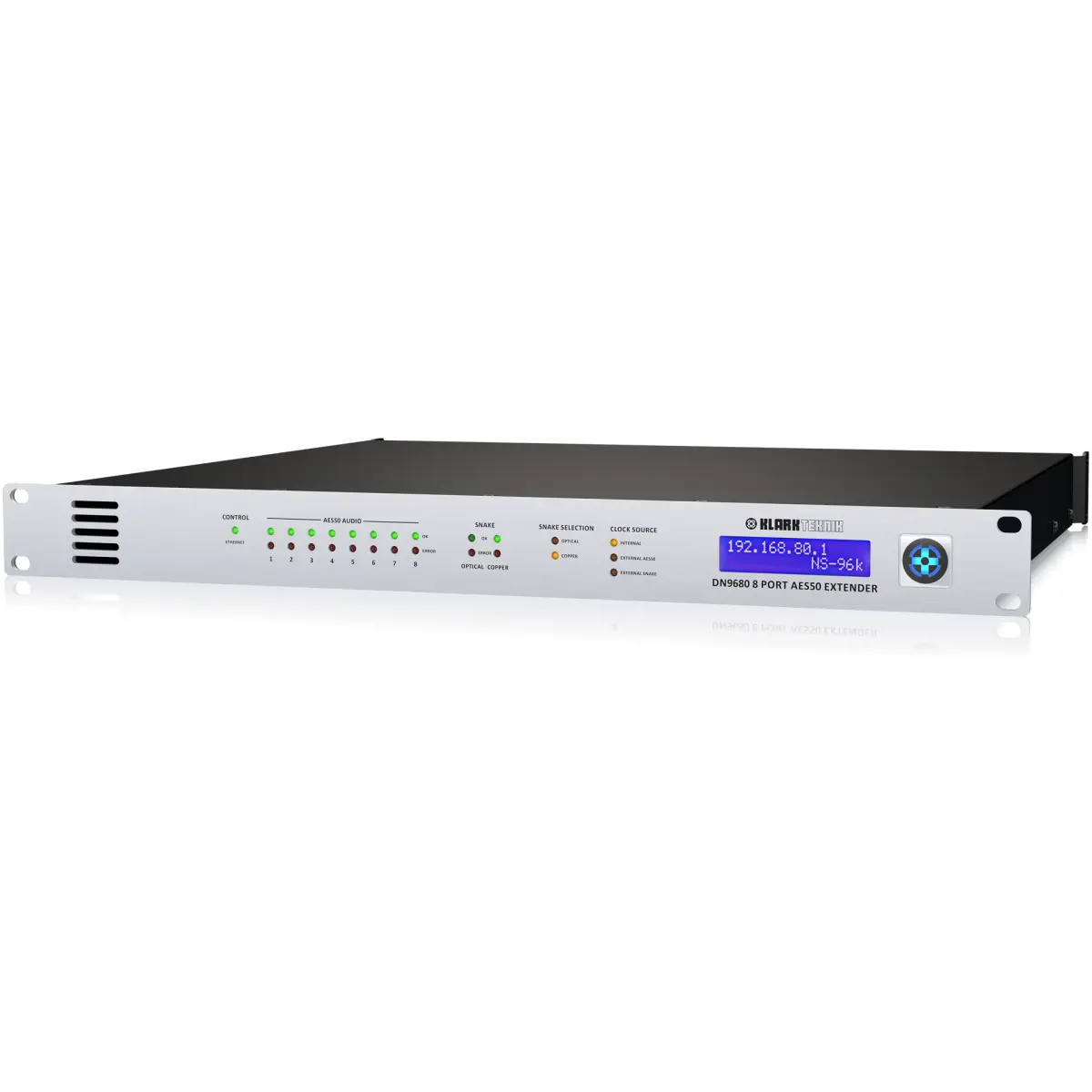

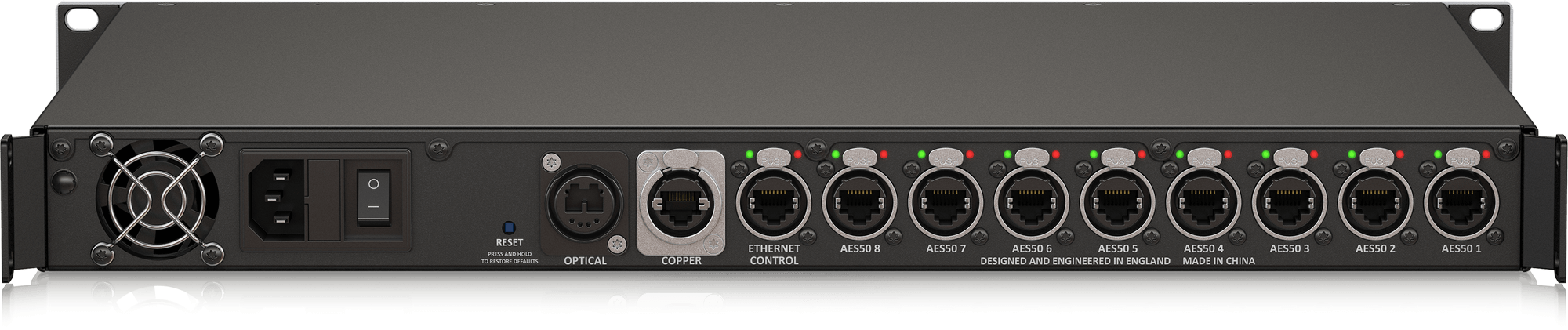

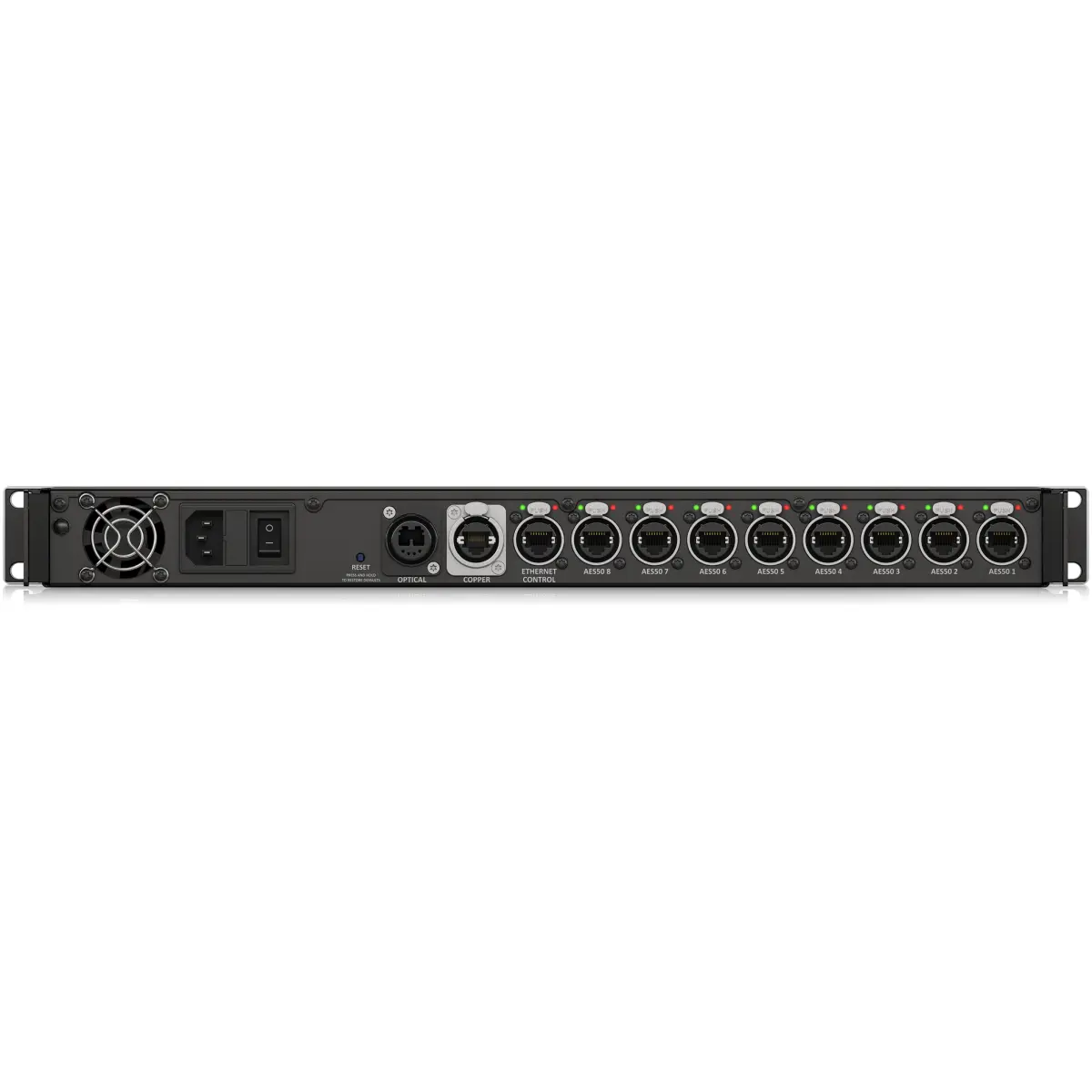

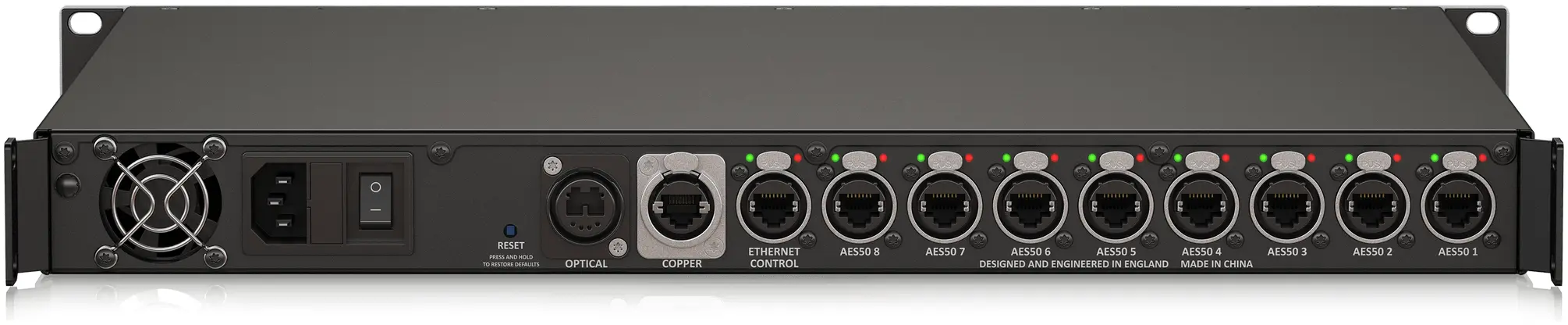

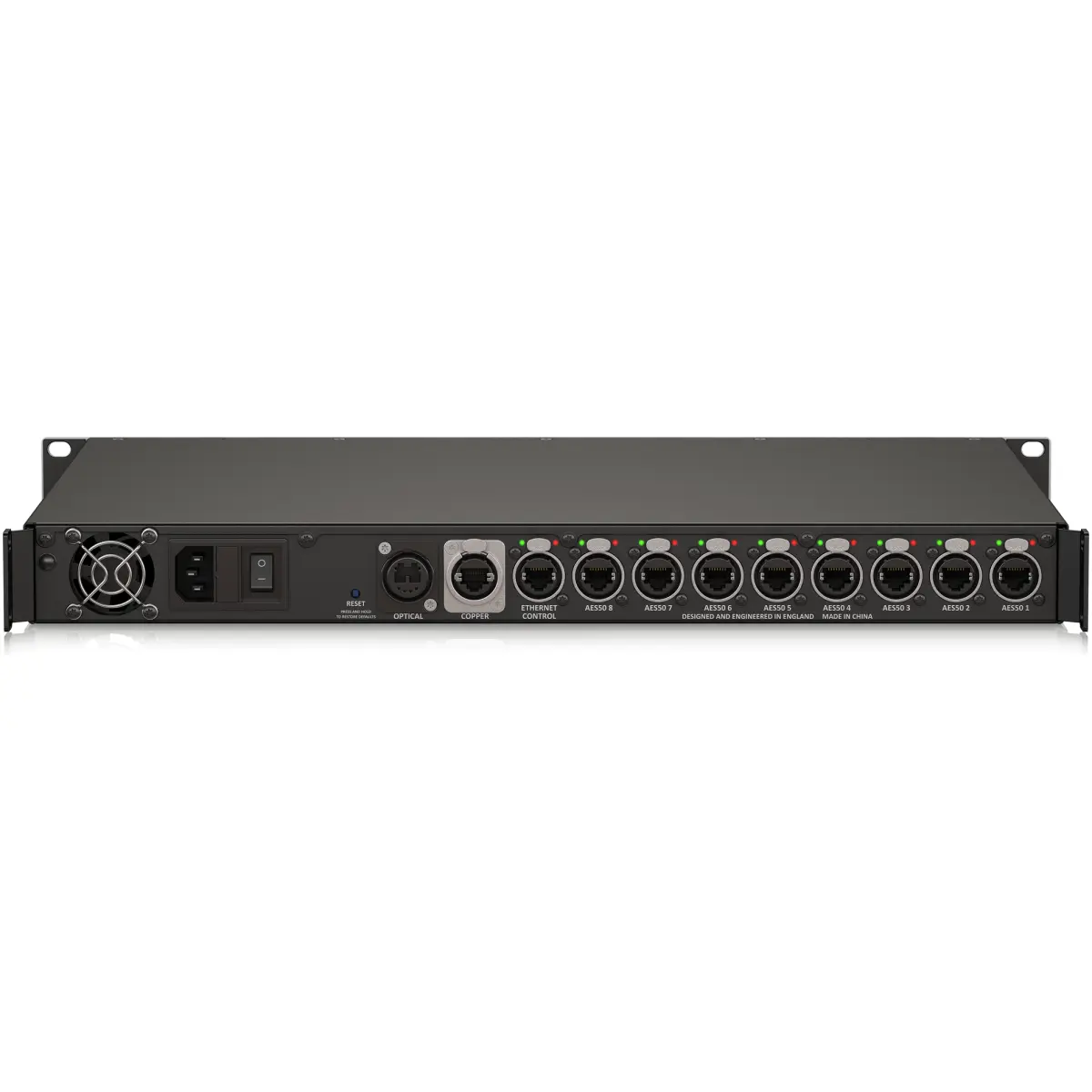

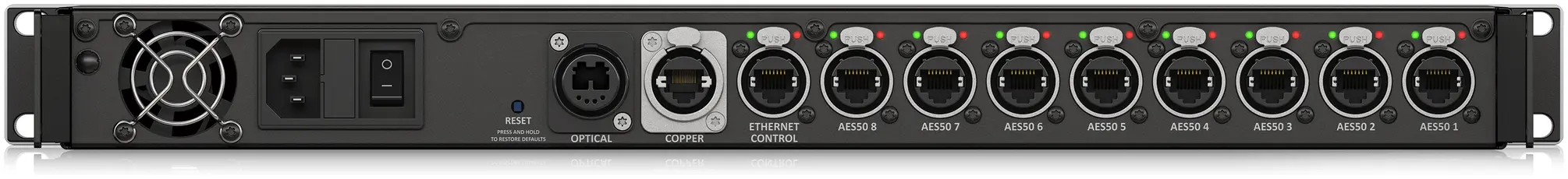

Copper Snake Port
| Type | Industry-standard RJ45 |
Optical Snake Port
| Type | Industry-standard optical connectors |
| Optical fibre | Single-mode dual fibre / Multimode dual fibre (DN9680-MM required for Multi-mode) |
Onboard Clock
| Type | Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability |
Clock Source
| Options | Internal clock External AES50 clock External snake clock |
Other Terminations
| Power | 3-pin IEC |
Power Requirements
| Voltage | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | <50 W |
Dimensions
| Width | 483 mm (19.0″) |
| Depth | 412 mm (16.2″) |
| Height | 44 mm (1.7″) (1U High) |
Weight
| Net | 5.1 kg (11.2 lbs) |
Options
| DN9680-MM | Multi-mode optical fibre module for DN9680 with 500 metre range |
