- Dual network bridge format converter with up to 64 bidirectional channels
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility
- Bidirectional output audio clock inhibit feature for redundant network systems
- 24 bit audio operation with 96 kHz and 48 kHz sample rates
- Video synchronisation in standard and high definition formats
- Internal “AES Grade 1” temperature-compensated word clock (1 ppm)
- Internal web server allows browser-based configuration via Ethernet control port

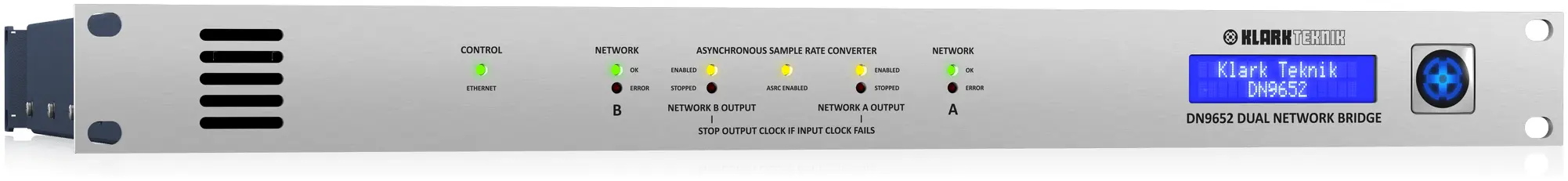

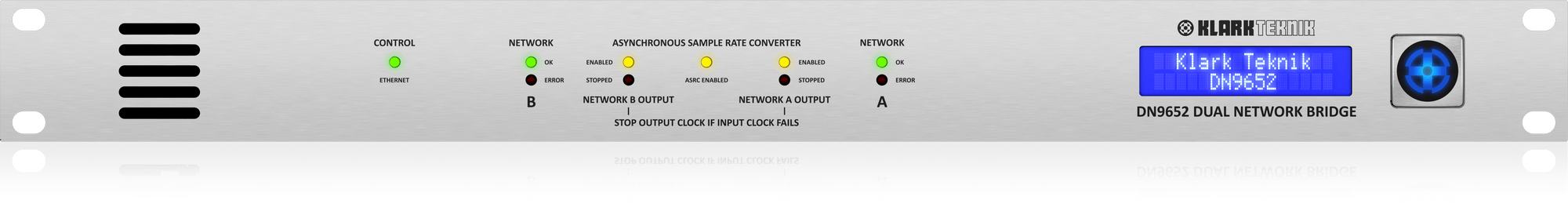

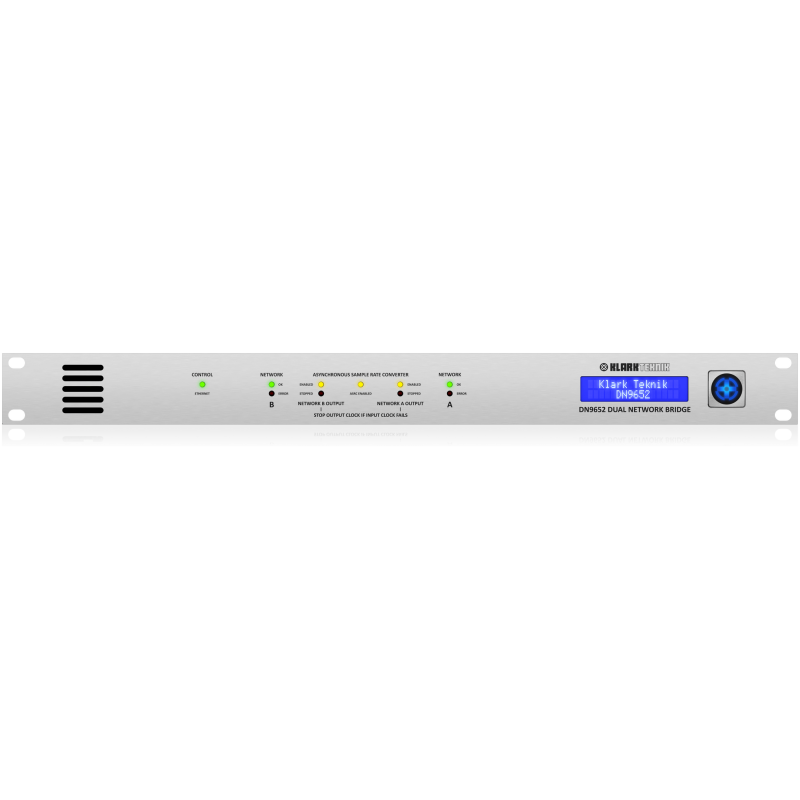

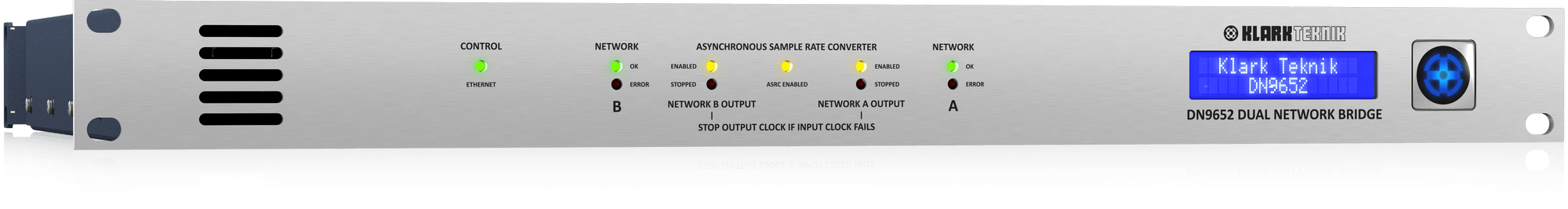

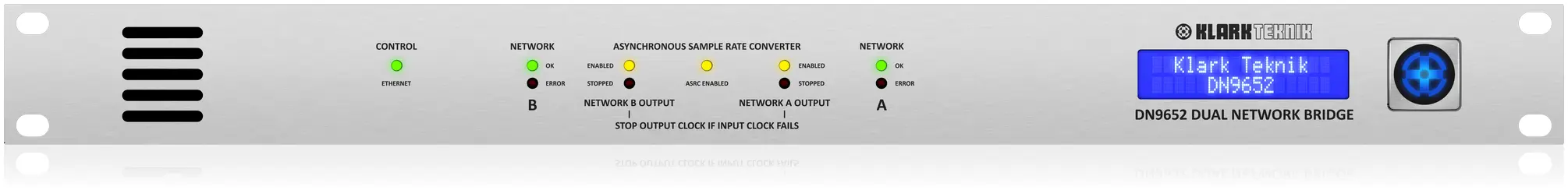

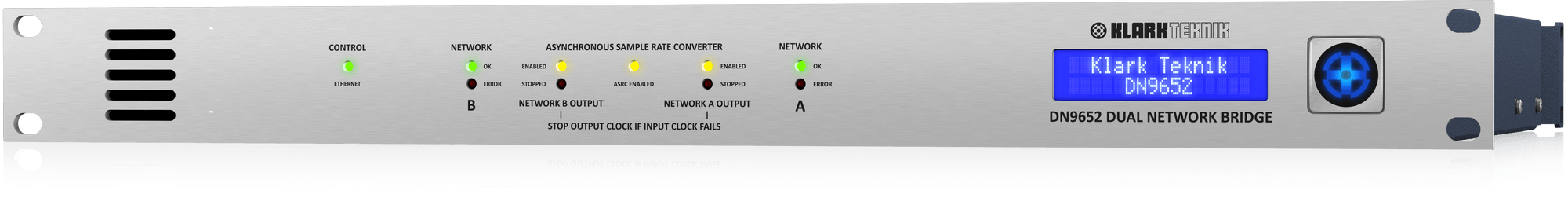

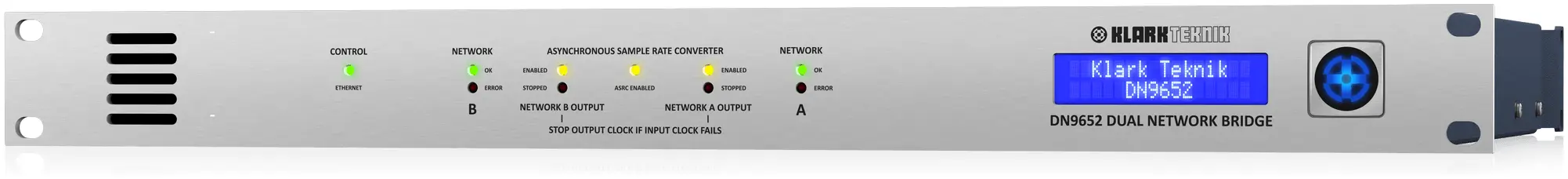

- Status indicator LEDs and LCD display on front panel

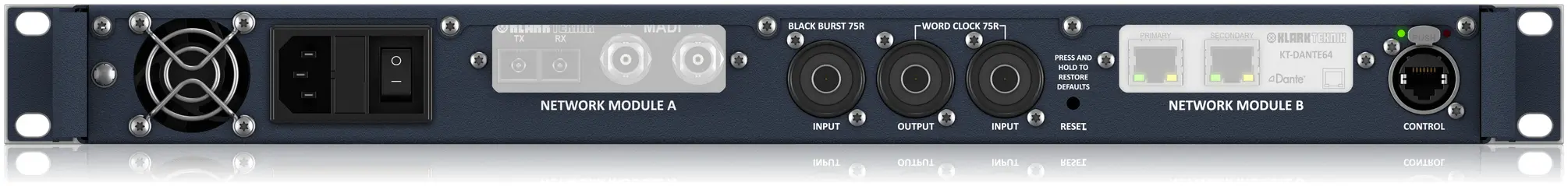

- Features industry standard RJ-45 network ports

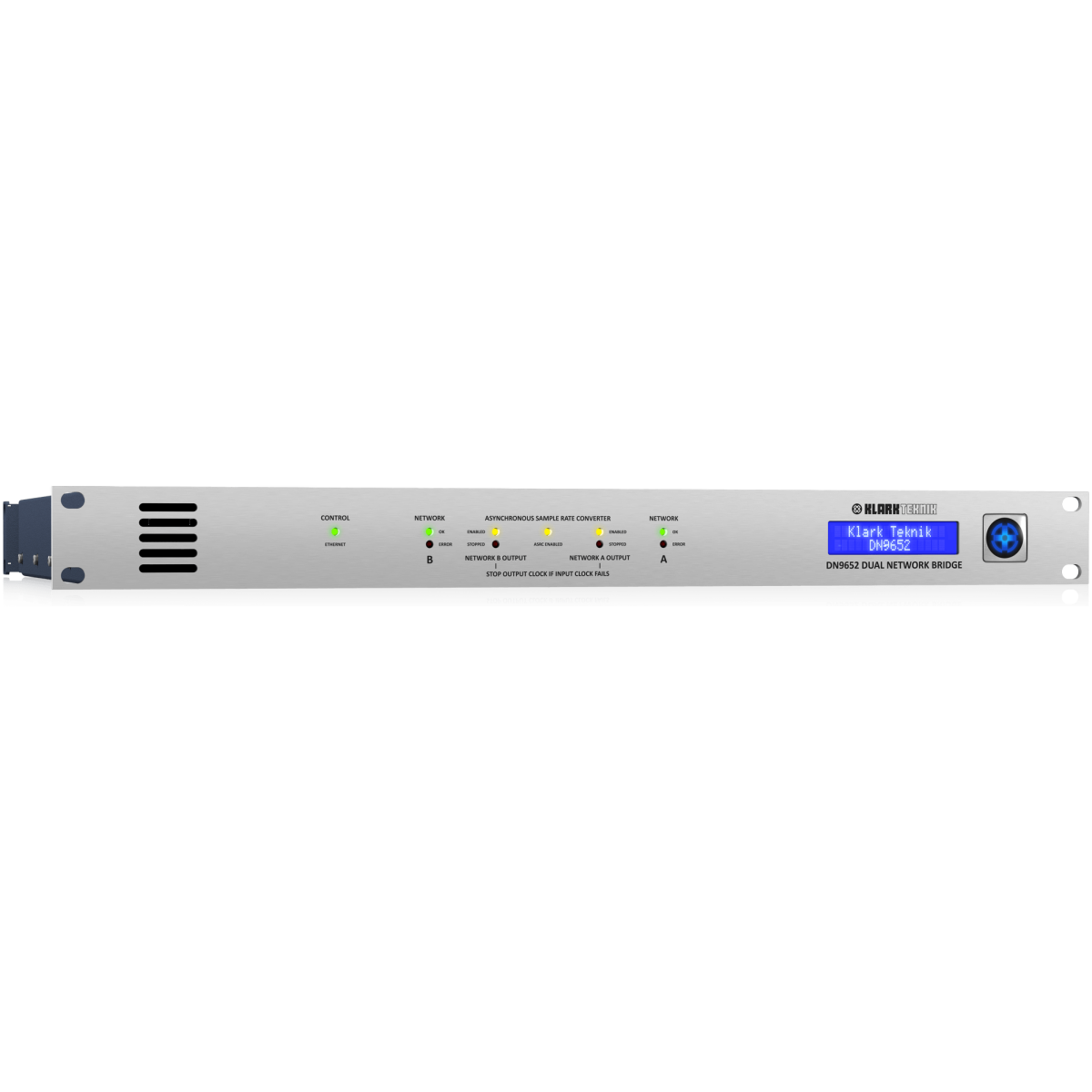

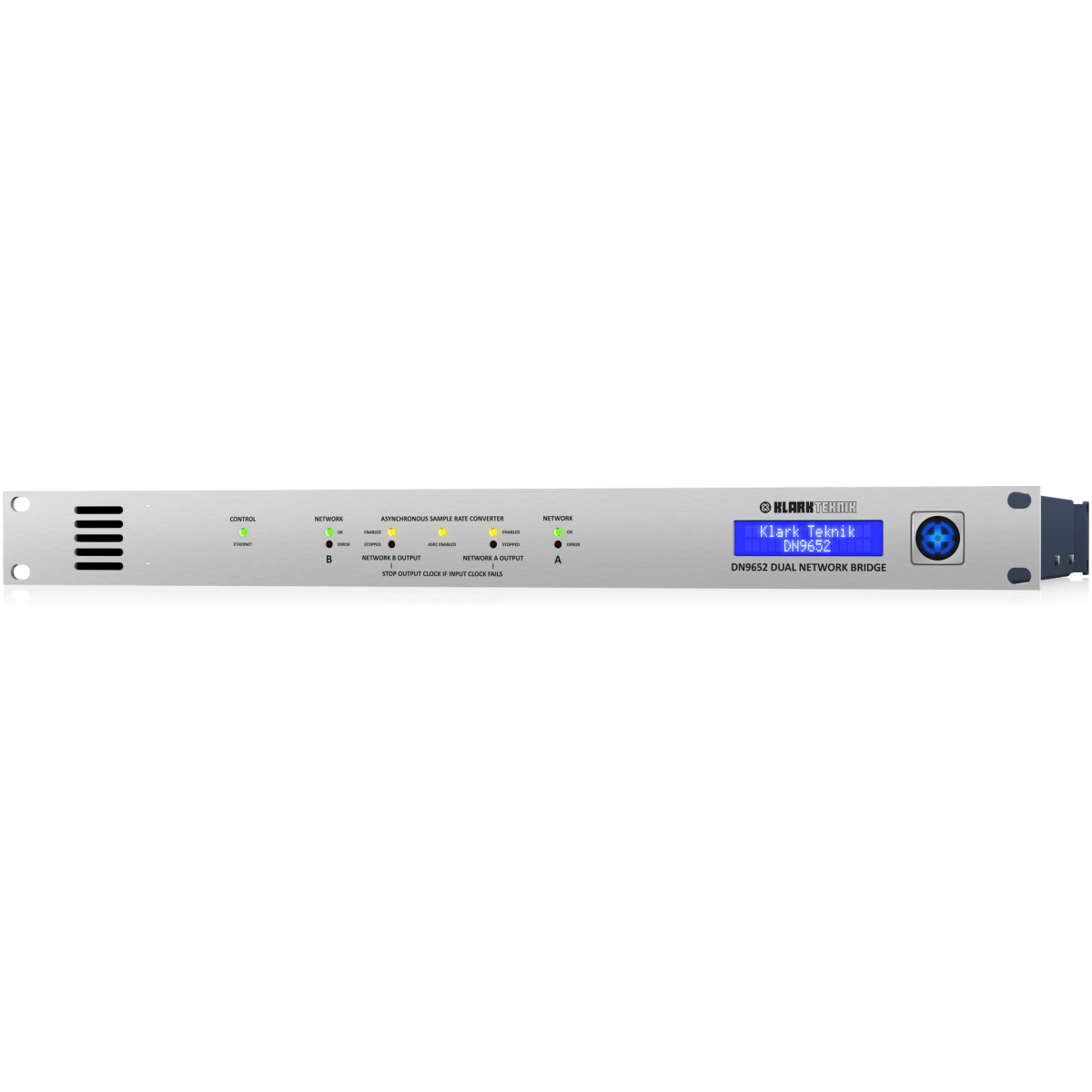

- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Specification
Ethernet Control Port
| Control Port | 1 |
External Synchronisation
| Word Clock Input | 1 |
| Word Clock Output | 1 |
Video
| Black Burst Input | 1 |
Network
| Module Expansion Slot | 2 |
Asynchronous Sample Rate Converter
| Channels | 64 bidirectional |
| Bypass | Bidirectional sync network domain to other network domain (user-selectable) |
| Output Clock Inhibit | Bidirectional stop output clock if input clock fails (user-selectable) |
Onboard Clock
| Type | Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability |
Network Domain Clock Source
| Options | External network clock External network clock with word clock in synchronisation Onboard oscillator Network module onboard clock Clock selection from other network domain Word clock input Video black burst input |
Word Clock Output Source
| Options | Either network clock domain Word clock input |

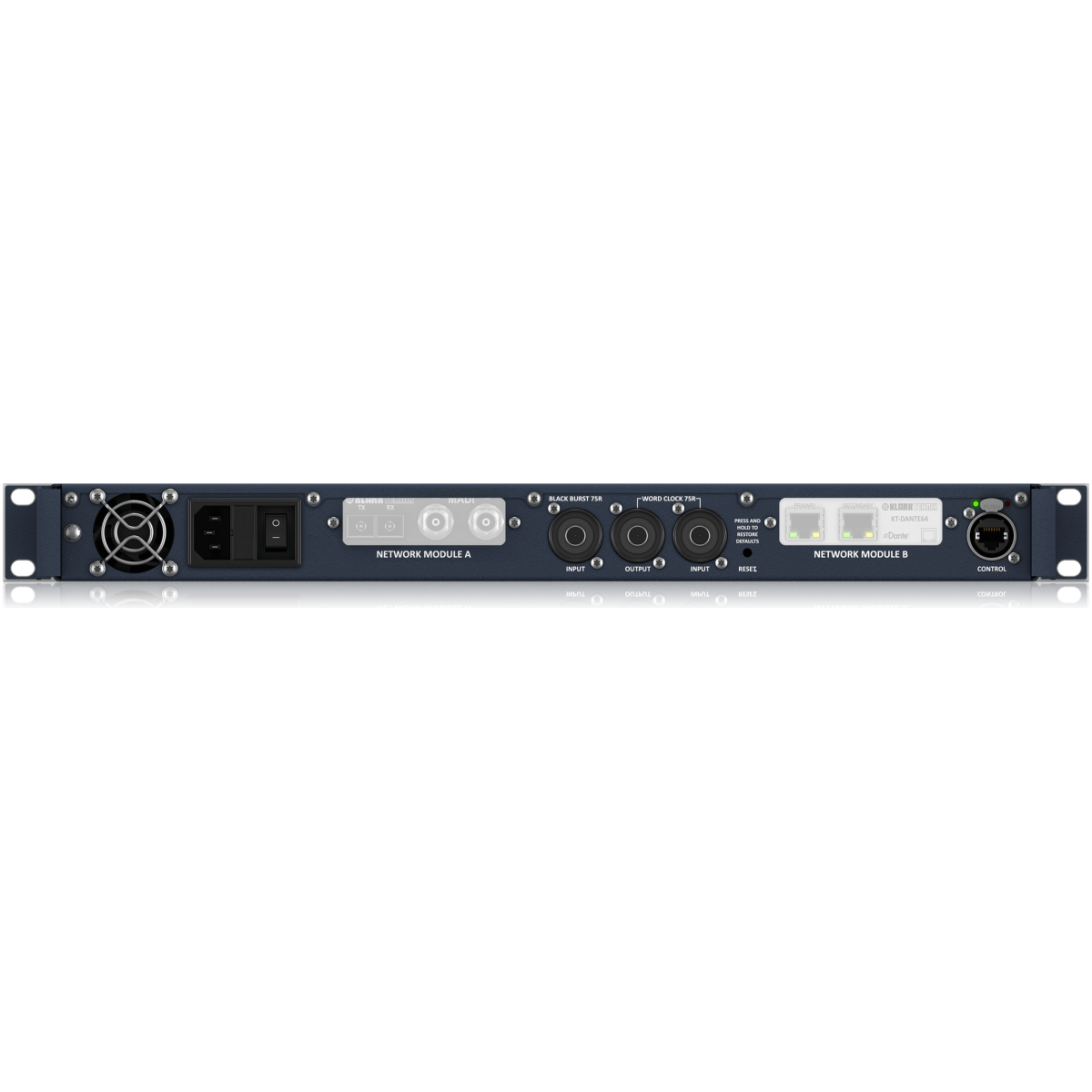

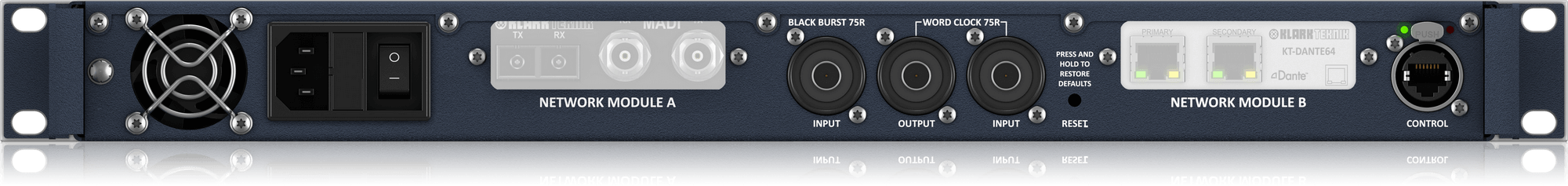

Other Terminations
| Power | 3-pin IEC |
Power Requirements
| Voltage | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | <50W |
Dimensions
| Height | 44 mm (1.7″) (1U High) |
| Width | 483 mm (19.0″) |
| Depth | 411 mm (16.2″) |
Weight
| Net | 5.0 kg (11.0 lbs) |
Options
| KLARK TEKNIK KT-MADI | MADI Network Module with up to 64 Bidirectional Channels |
| KLARK TEKNIK KT-DANTE64 | Audinate Dante Network Module with up to 64 Bidirectional Channels |
