- Network bridge format converter for AES50 networks with up to 64 bidirectional channels
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Asynchronous sample rate conversion on every channel with bypass facility
- Bidirectional output audio clock inhibit feature for redundant network systems
- 24 bit audio operation with 96 kHz and 48 kHz sample rates
- Video synchronisation in standard and high definition formats
- Internal “AES Grade 1” temperature-compensated word clock (1 ppm)
- Internal web server allows browser-based configuration via Ethernet control port

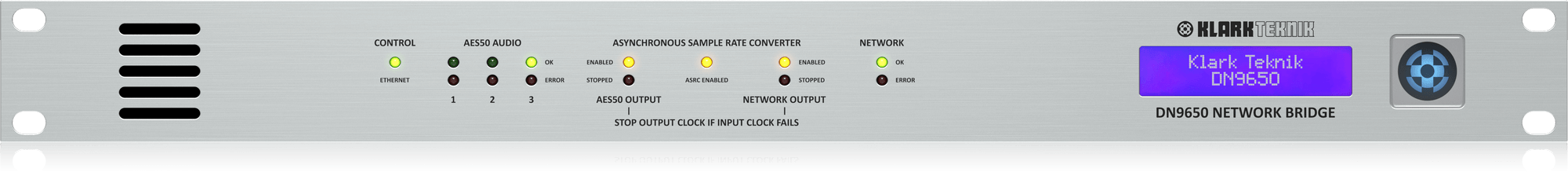

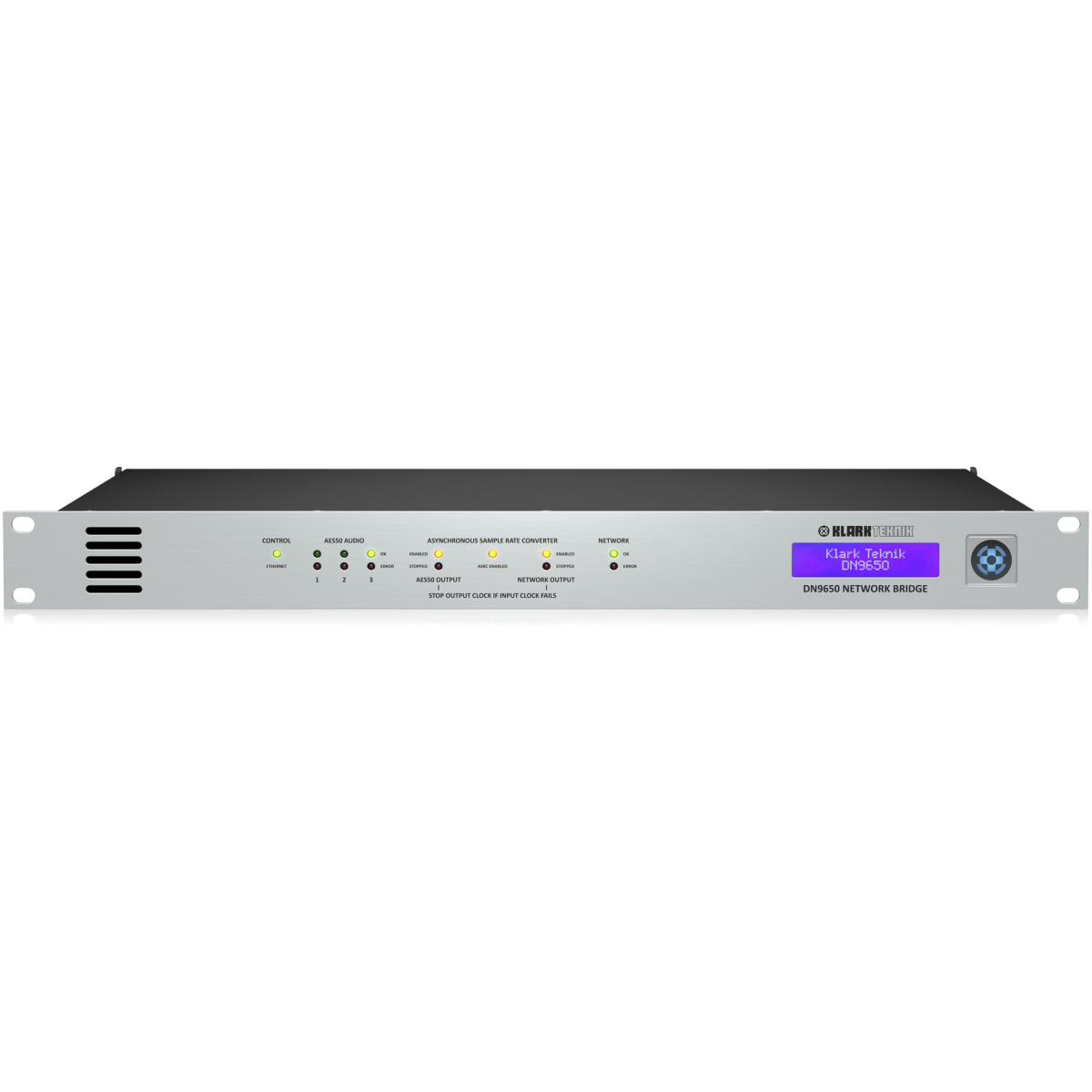

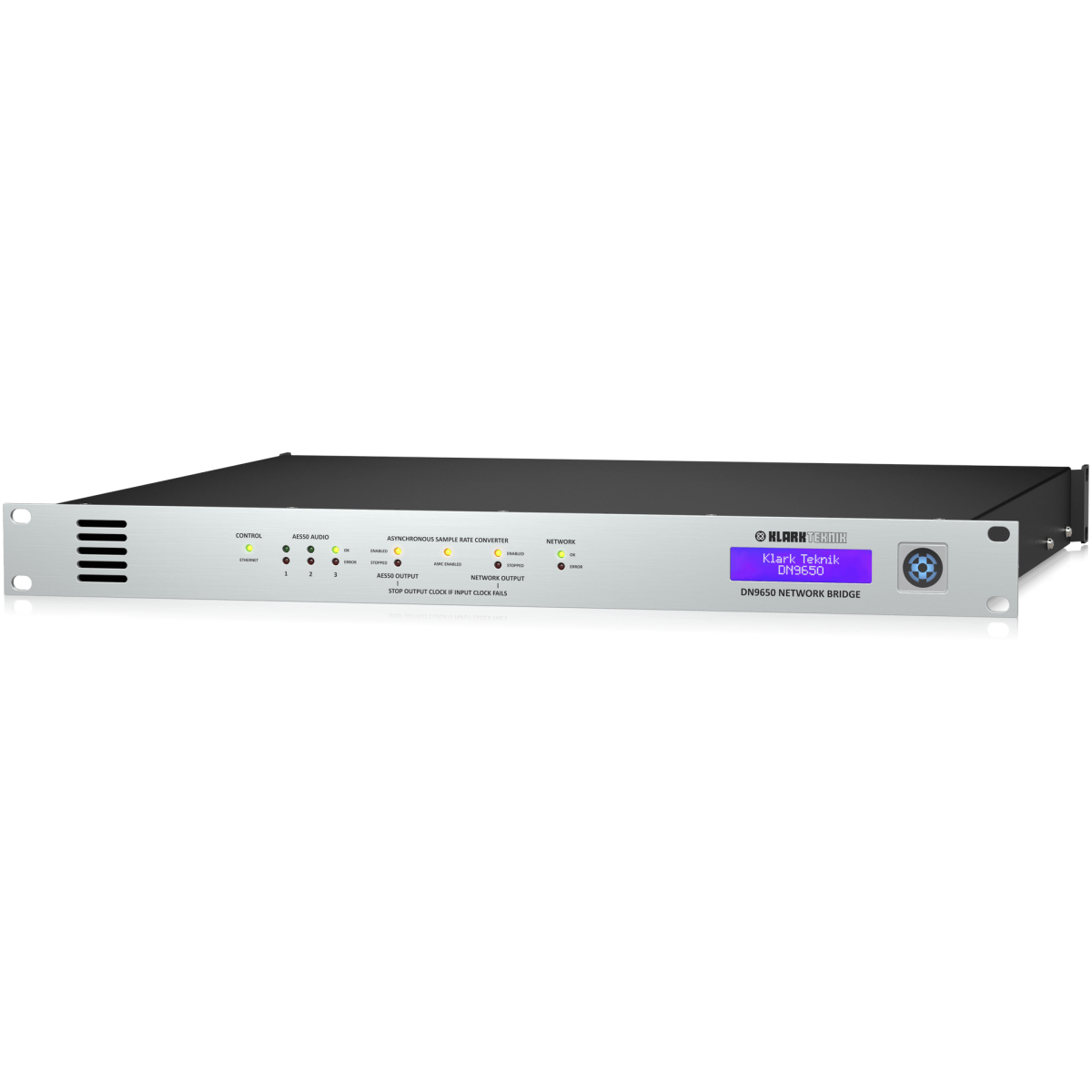

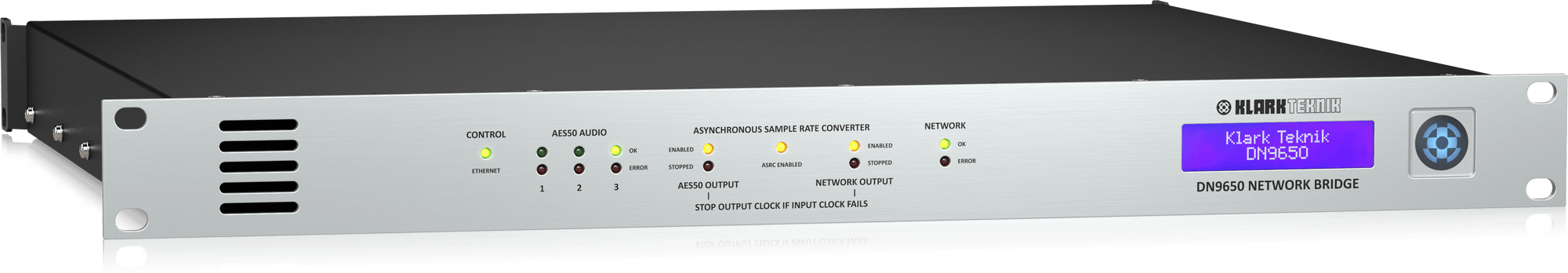

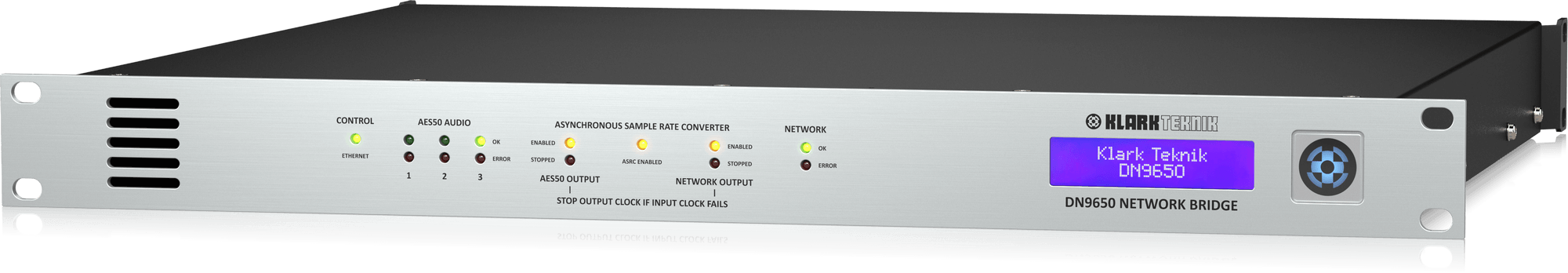

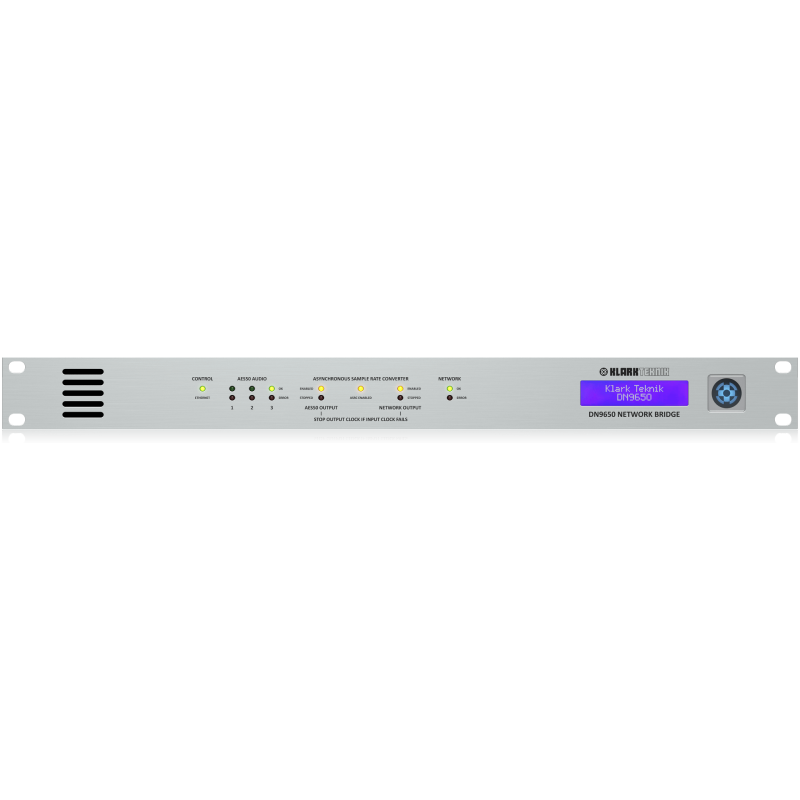

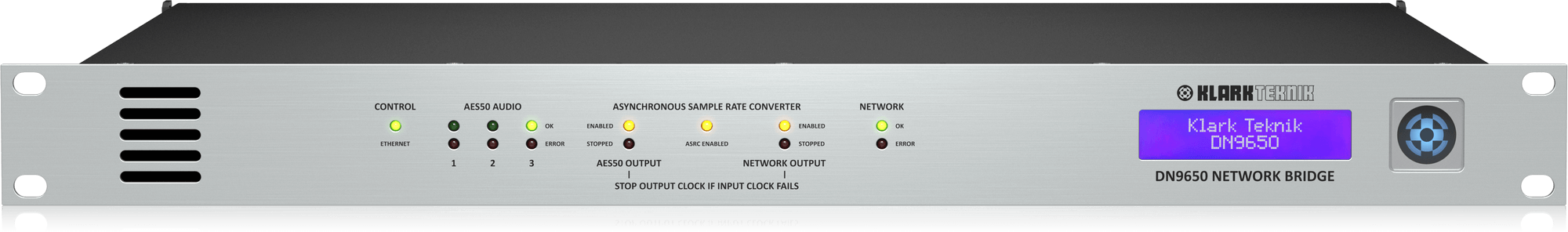

- Status indicator LEDs and LCD display on front panel
- Features industry standard RJ-45 network ports
- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply

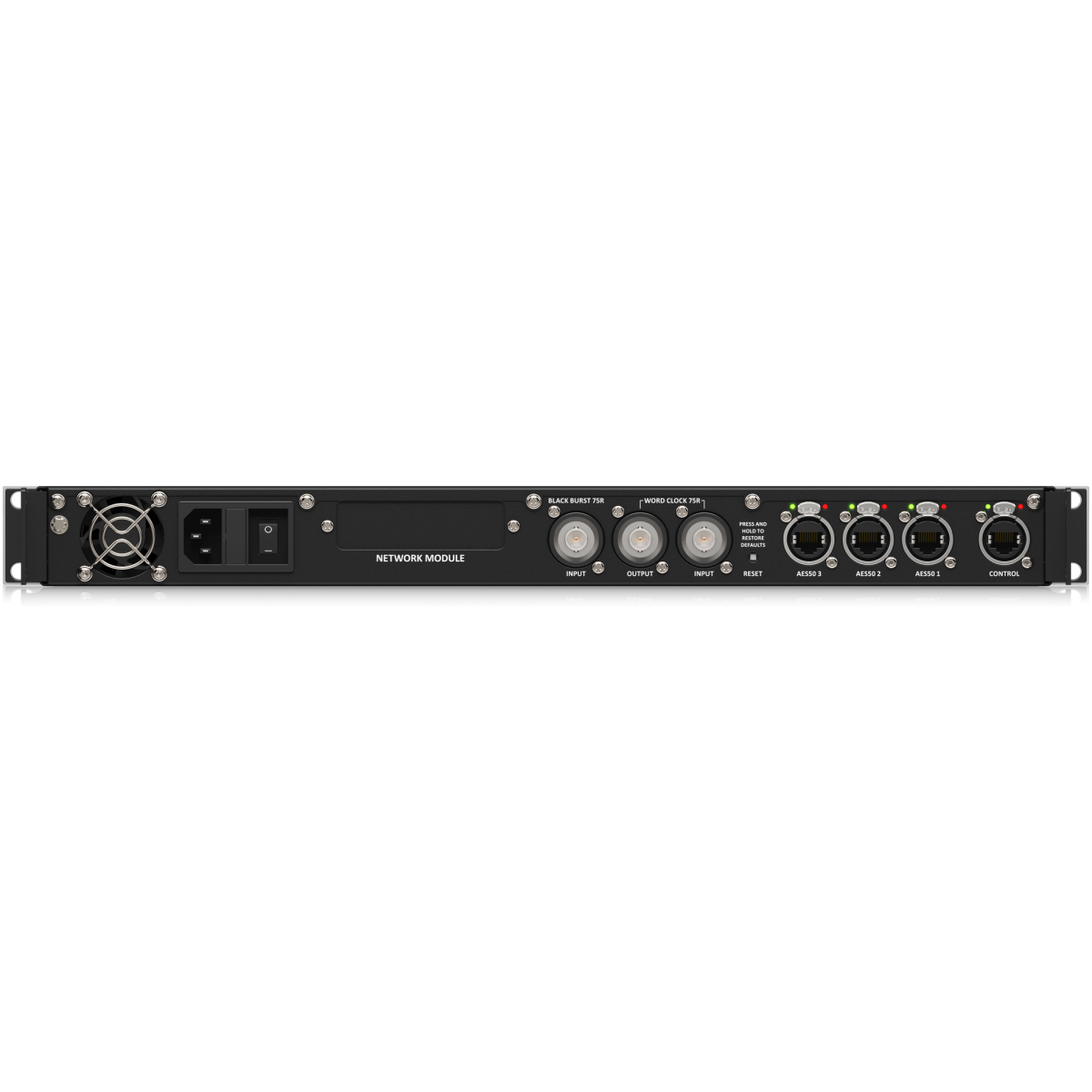

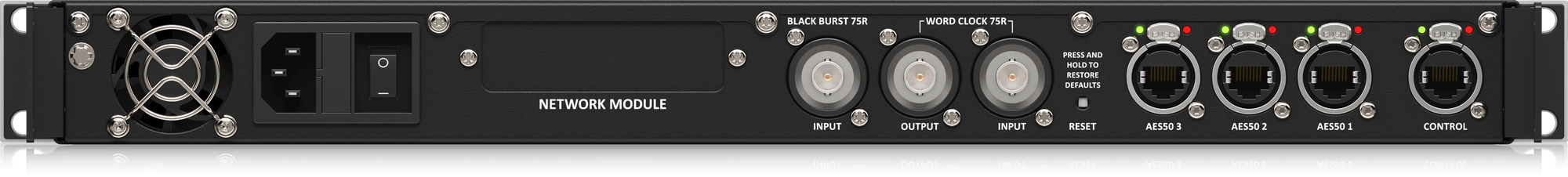

AES50 Ports
| Type | Industry-standard RJ45 with LED status indication |
| Sample rate | 48 kHz, 96 kHz |
Ethernet Control Port
| Type | Industry-standard RJ45 with LED status indication |
External Synchronisation
| Word clock input | |
| Word clock output | |
| Video black burst input |
Network Module Expansion Slot
| Type | Cirrus CM-1 format compatible |
Asynchronous Sample Rate Converter
| Channels | 64 bidirectional |
| Bypass | Sync network domain to AES50 domain (user-selectable) |
| Output clock inhibit | Bidirectional stop output clock if input clockfails (user-selectable) |
Onboard Clock
| Type | Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability |
AES50 Domain Clock Source
| Options | AES50 external clock Onboard oscillator (AES50 internal clock) Word clock input Video black burst input |
Network Domain Clock Source
| Options | External network clock External network clock with word clock in synchronisation Onboard oscillator (AES50 internal clock) Network module onboard clock AES50 clock source Word clock input Video black burst input |
Word Clock Output Source
| Options | AES50 clock domain Network clock domain Word clock input |
Other Terminations
| Power | 3-pin IEC |
Power Requirements
| Voltage | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | <50W |
Dimensions
| Height | 44 mm (1.7″) (1U High) |
| Width | 483 mm (19.0″) |
| Depth | 411 mm (16.2″) |
Weight
| Net | 5.1 kg (11.2 lbs) |
Options
| KLARK TEKNIK KT-MADI | MADI Network Module with up to 64 Bidirectional Channels |
| KLARK TEKNIK KT-DANTE64 | Audinate Dante Network Module with up to 64 Bidirectional Channels |
