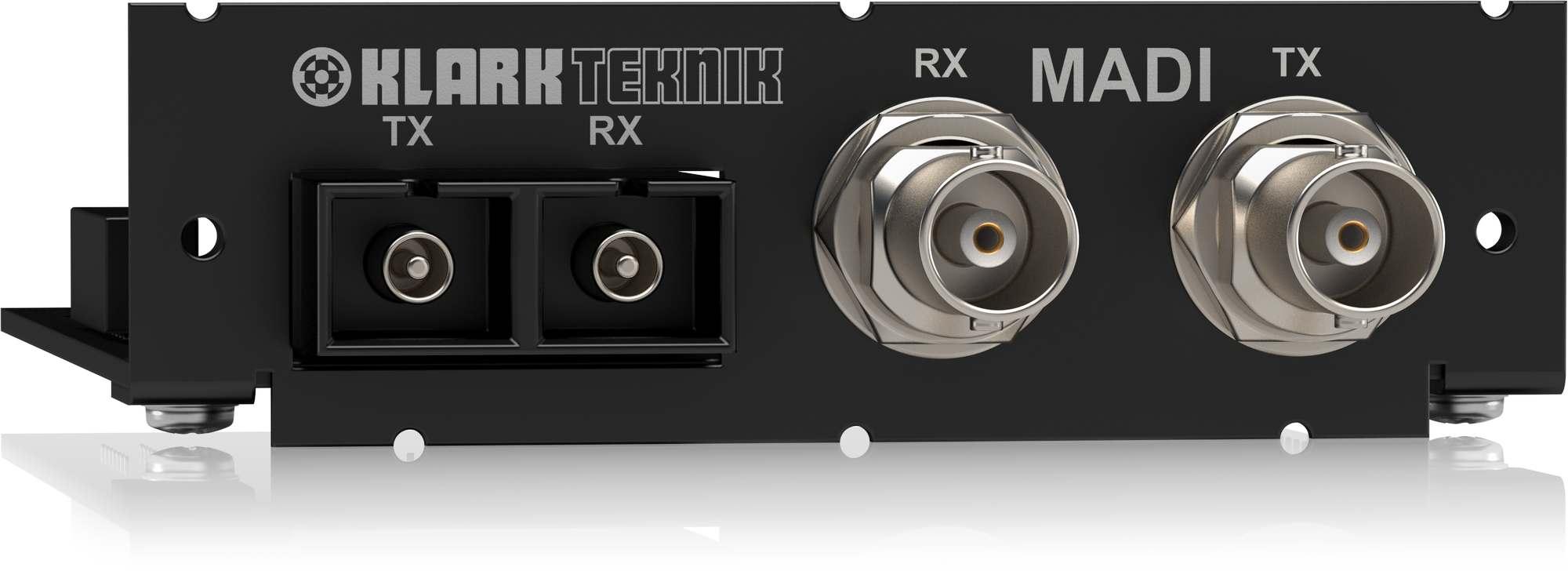

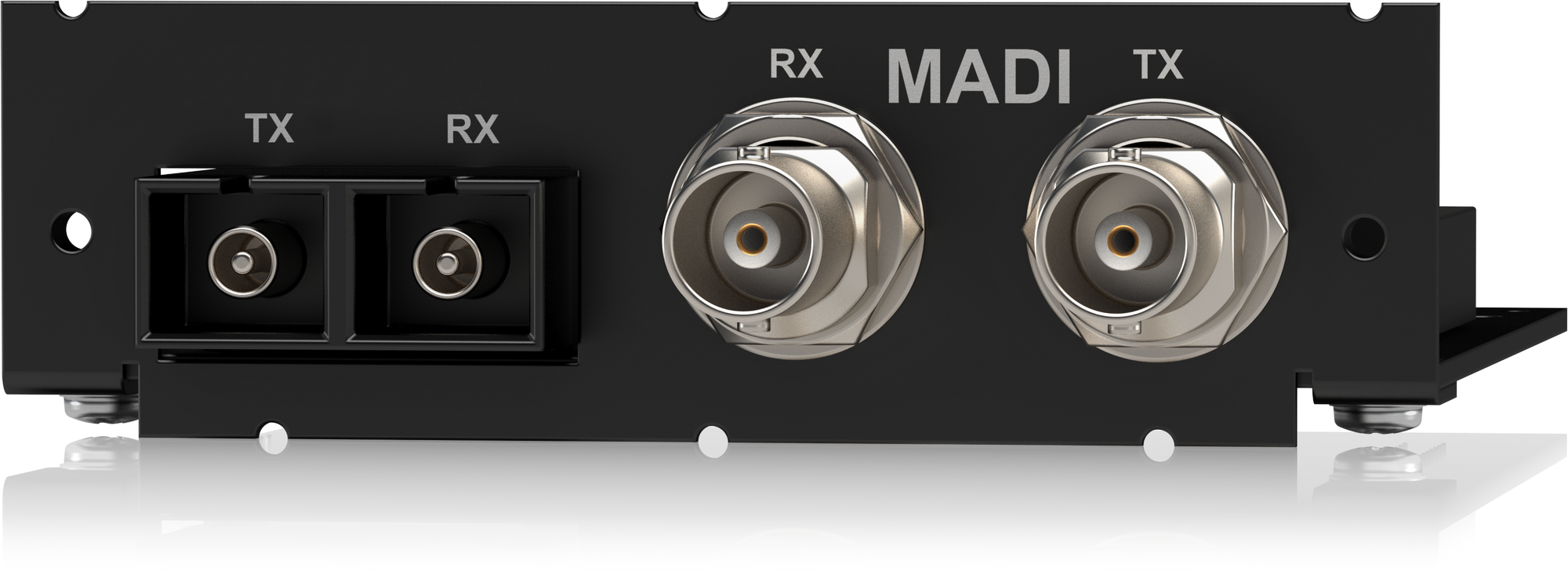

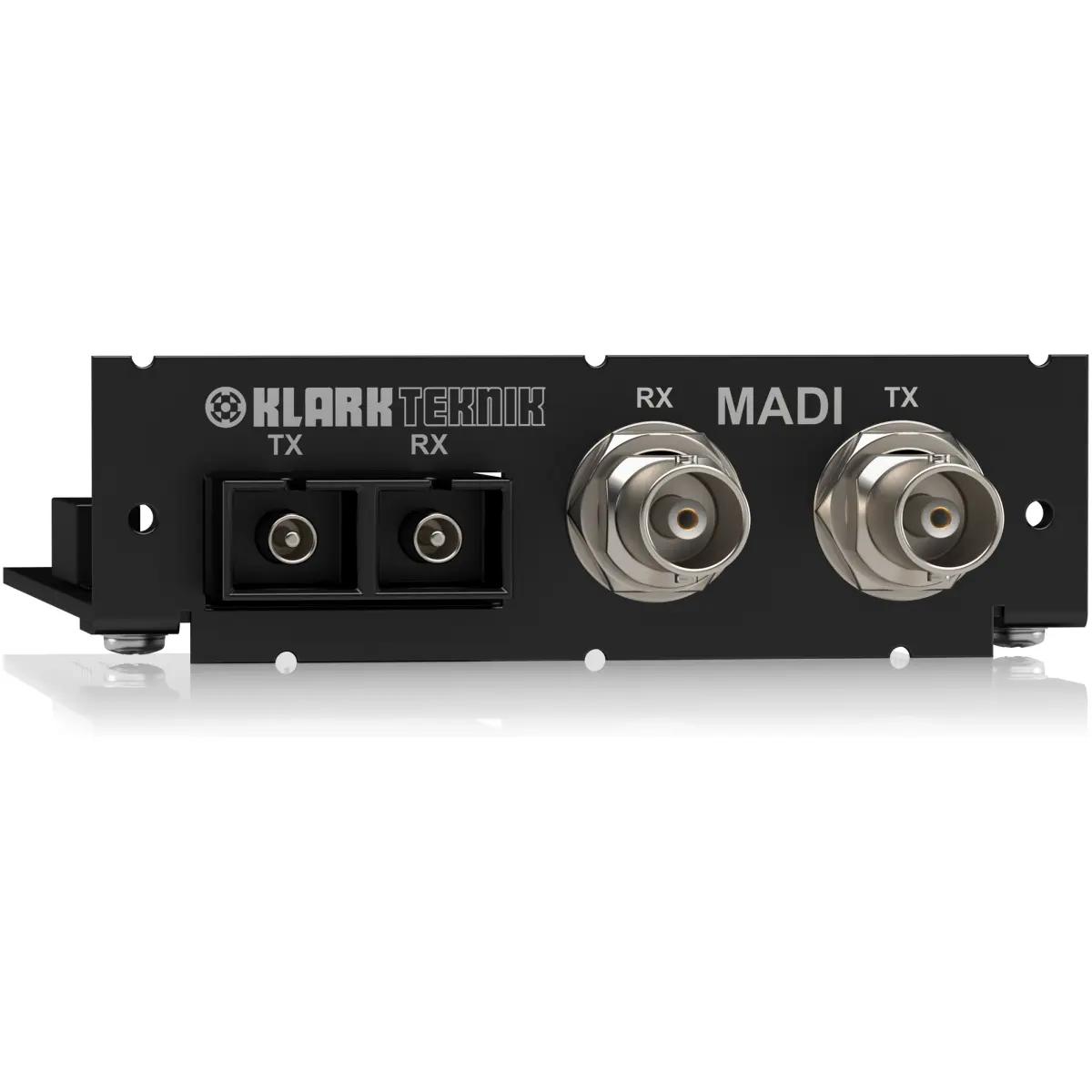

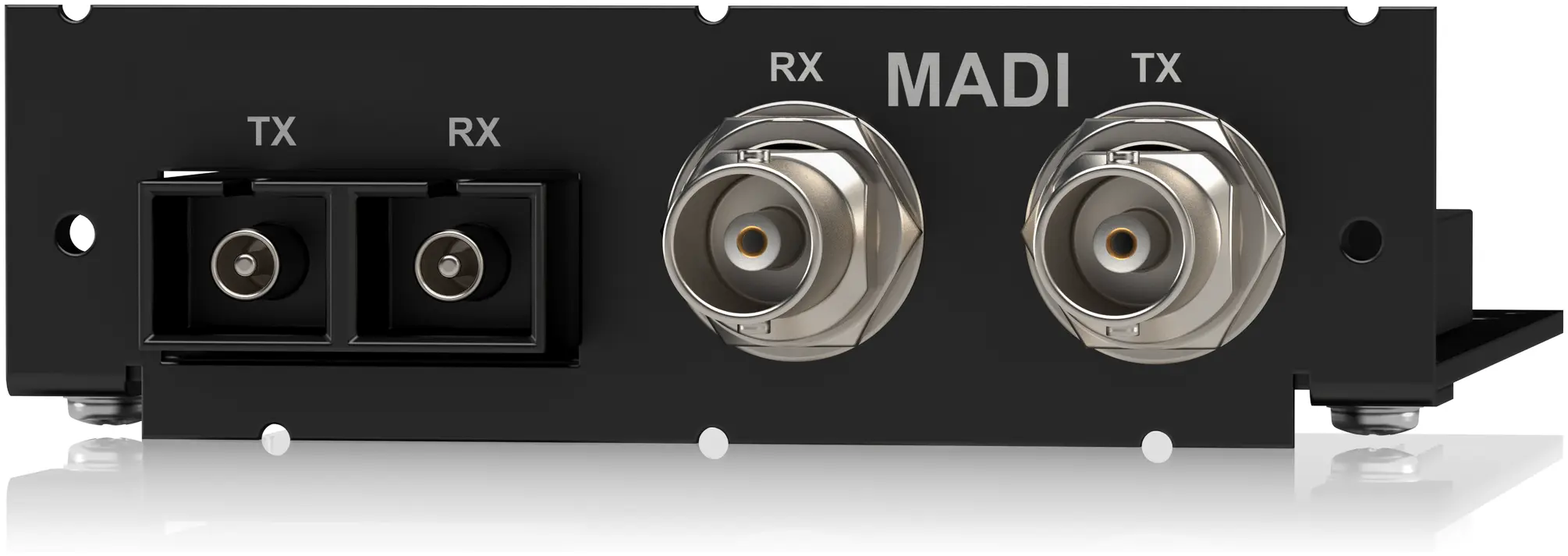

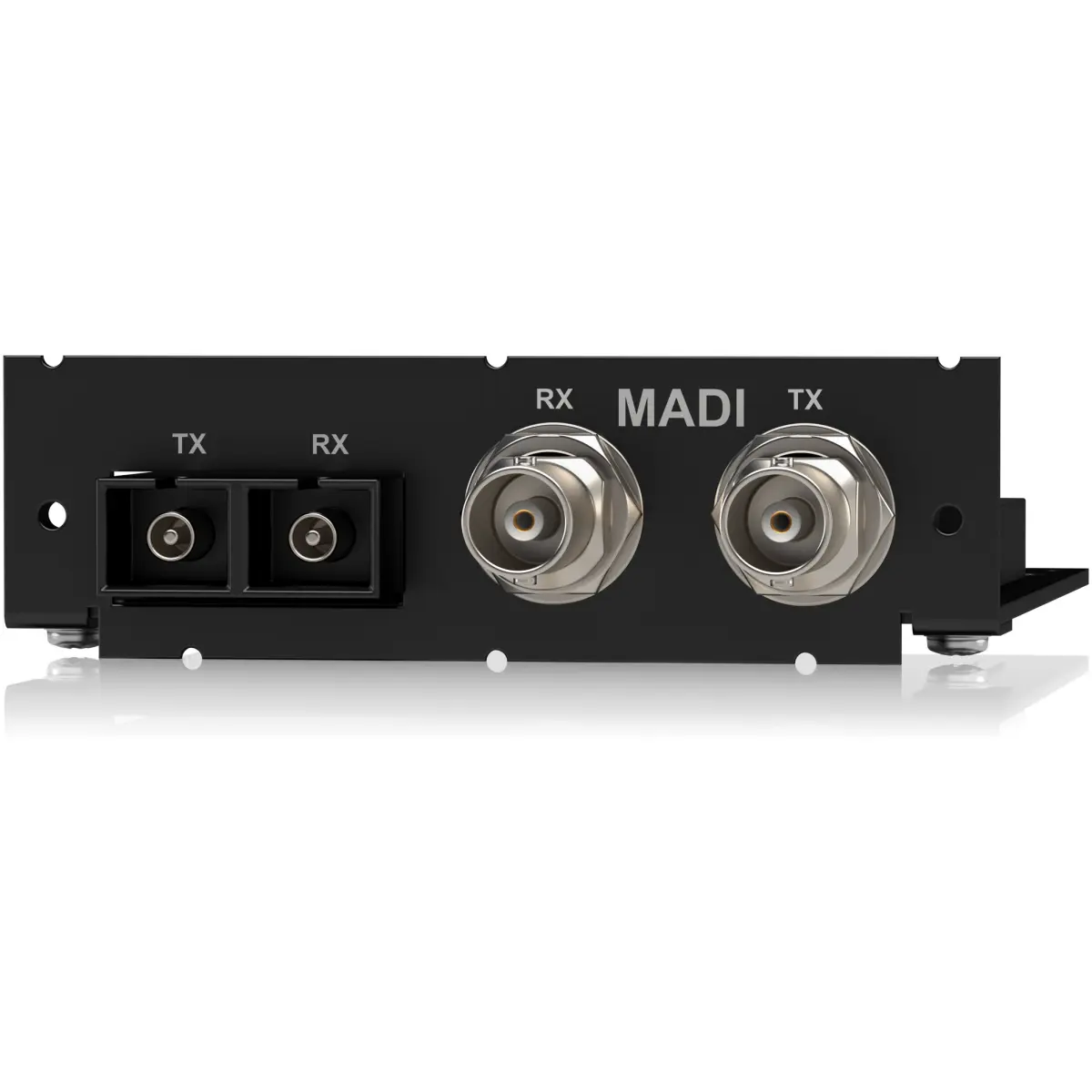

- MADI (AES10-compliant) network module with up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz
- Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module
- Operates up to 500 m over optical fibre link and 200 m over coaxial copper link
- Optical transmission on SC-Duplex connector
- Copper transmission on 75 ohm coaxial BNC connectors
- Dual-redundant operation with failover from optical to copper connections
- Operates as either MADI clock master, MADI clock slave or from external clock via host unit
Architecture & Engineering Specifications
The network module shall conform to the electrical and mechanical specifications of the Cirrus CM-1 format to provide the third party network module interface.
The network module shall provide a MADI interface and conform to the Audio Engineering Society AES10-2008 standard.
The network module include both coaxial copper and optical fibre interfaces and shall support redundant failover from the optical to copper interface.

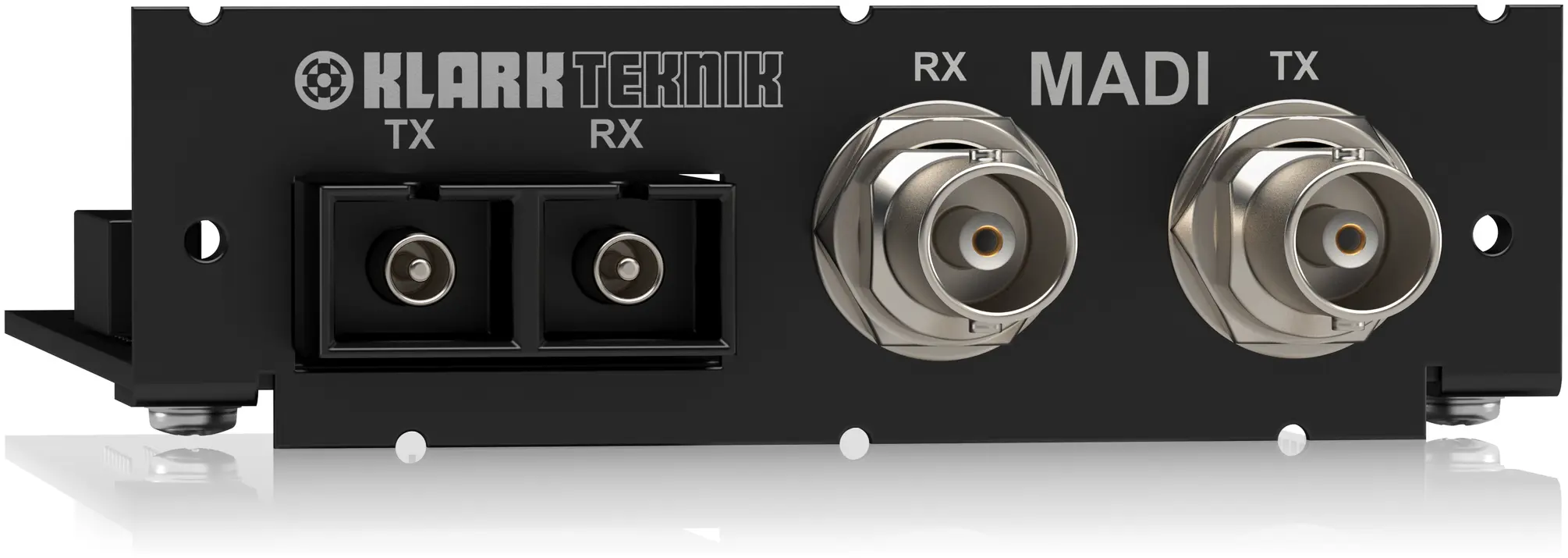

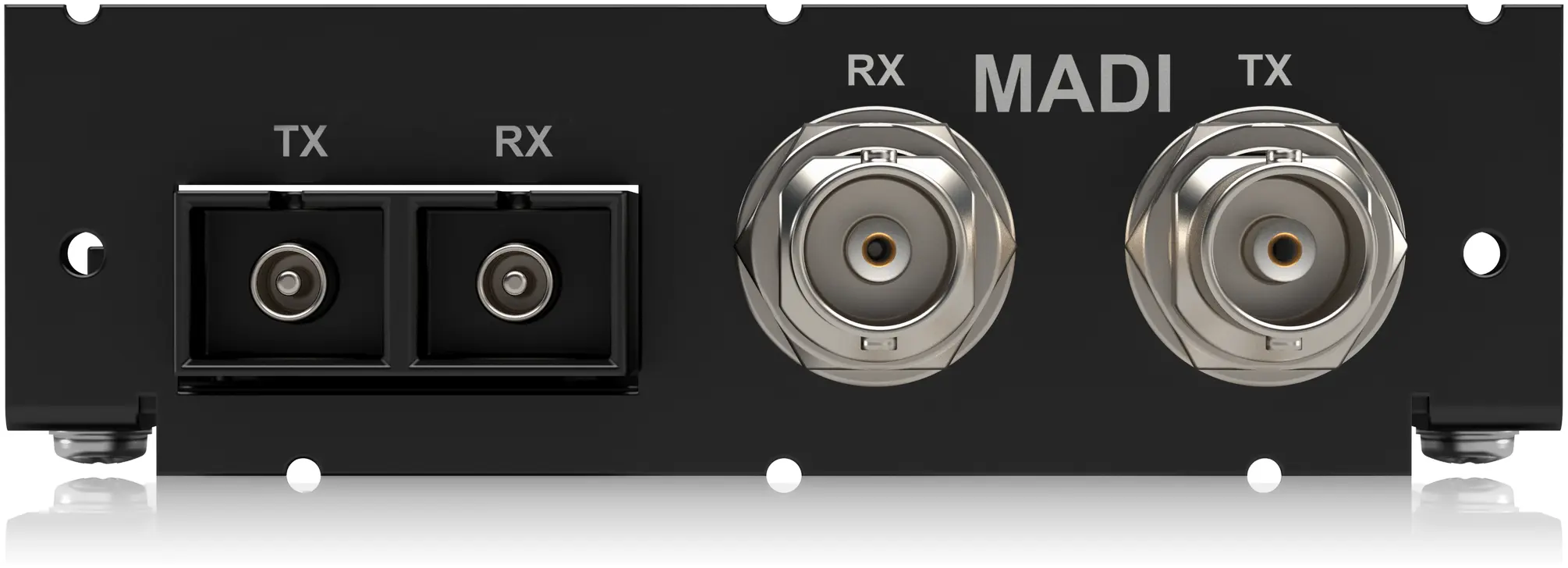

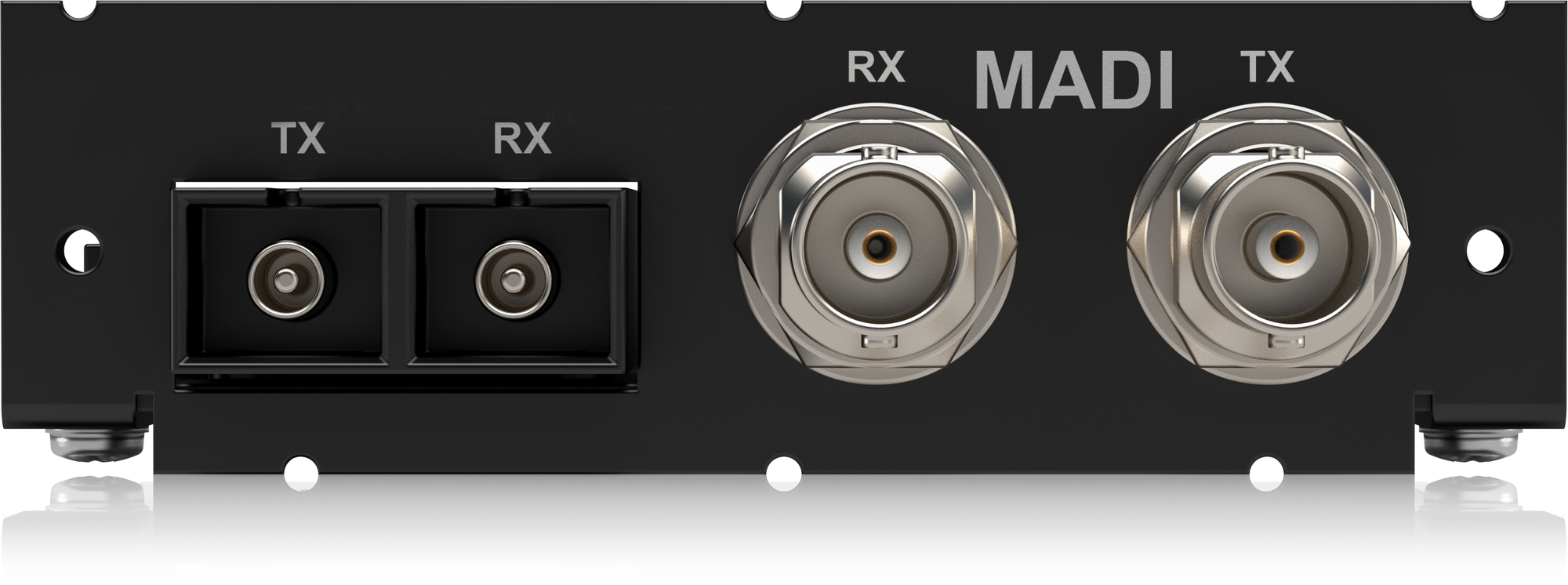

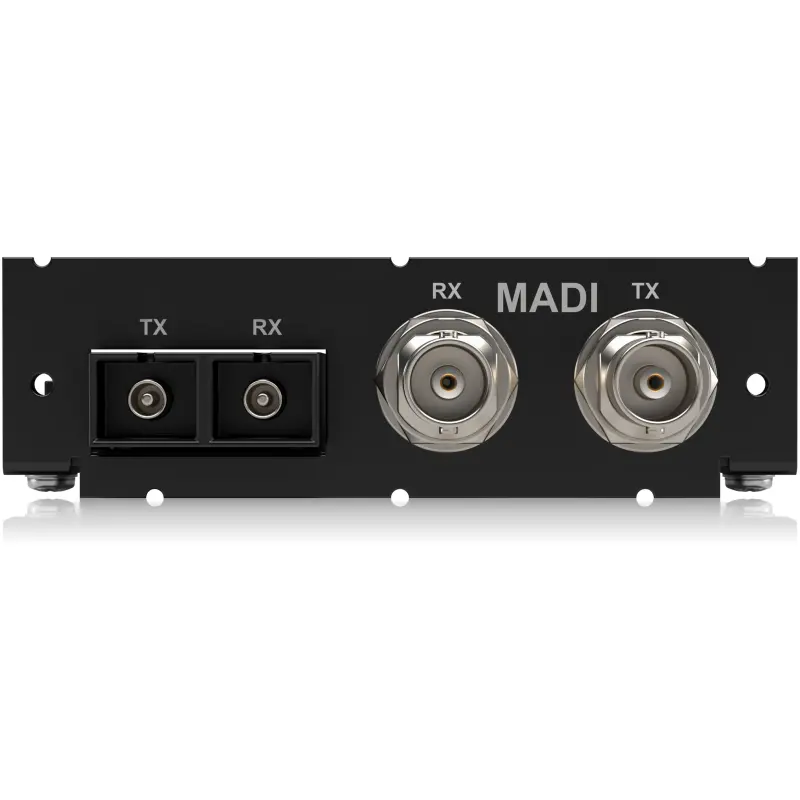

The network module shall include an SC-Duplex connector for the optical interface and 75 Ω BNC connectors for the coaxial copper interface.
The network module shall have provision to select its clock source as MADI clock master, MADI clock slave or from external clock via host unit CM-1 interface.
The network module shall be 110 mm wide x 89 mm deep x 31 mm high (4.3″ x 3.5″ x 1.2″). The network module shall be installed in either a Klark Teknik DN9650 Network Bridge or DN9652 Dual Network Bridge.
The network module shall be the Klark Teknik KT-MADI and no other alternative shall be acceptable.
