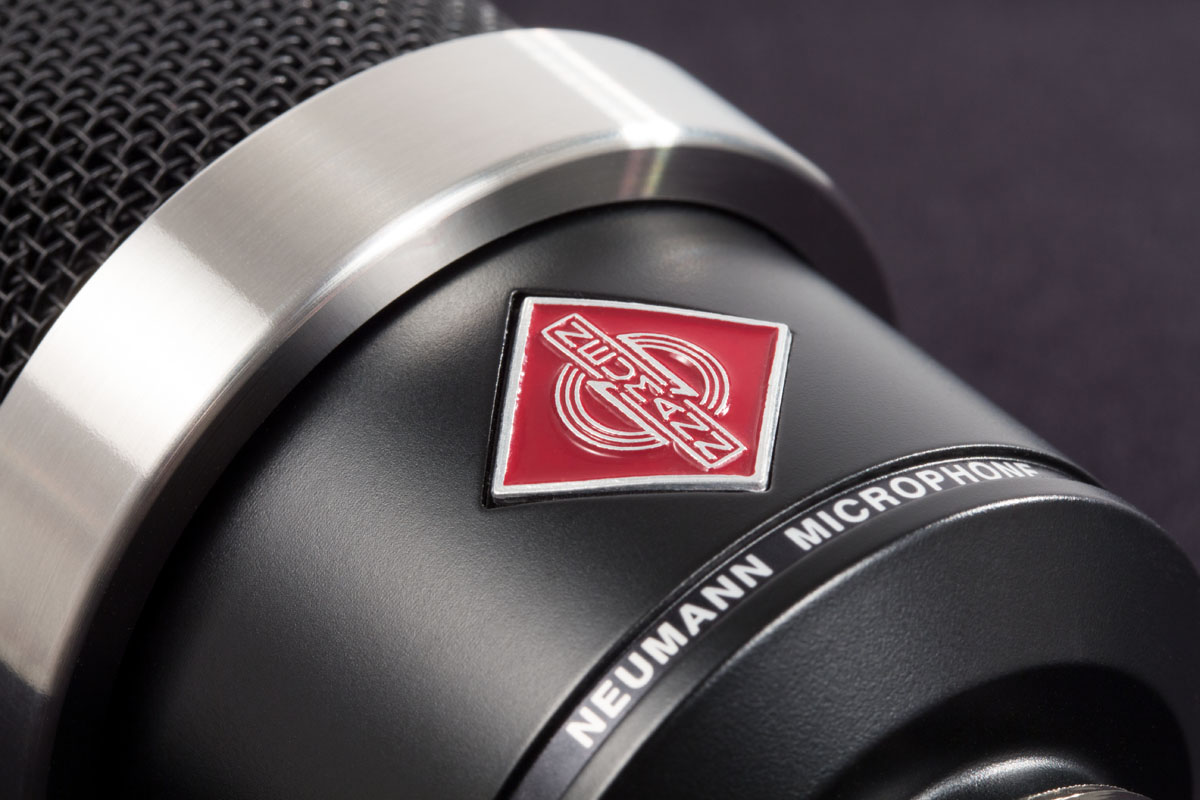

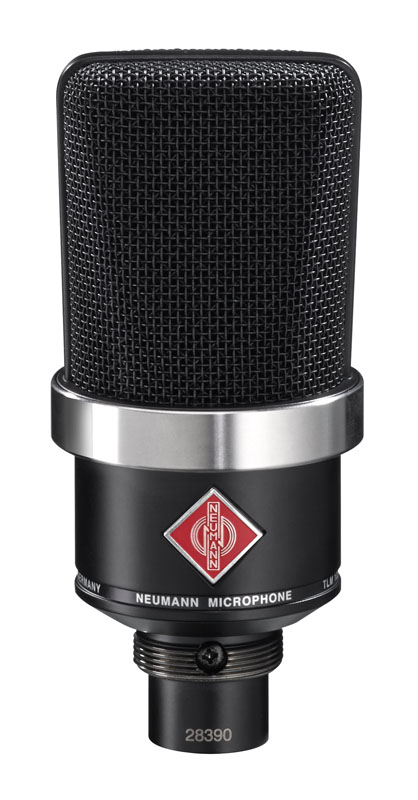

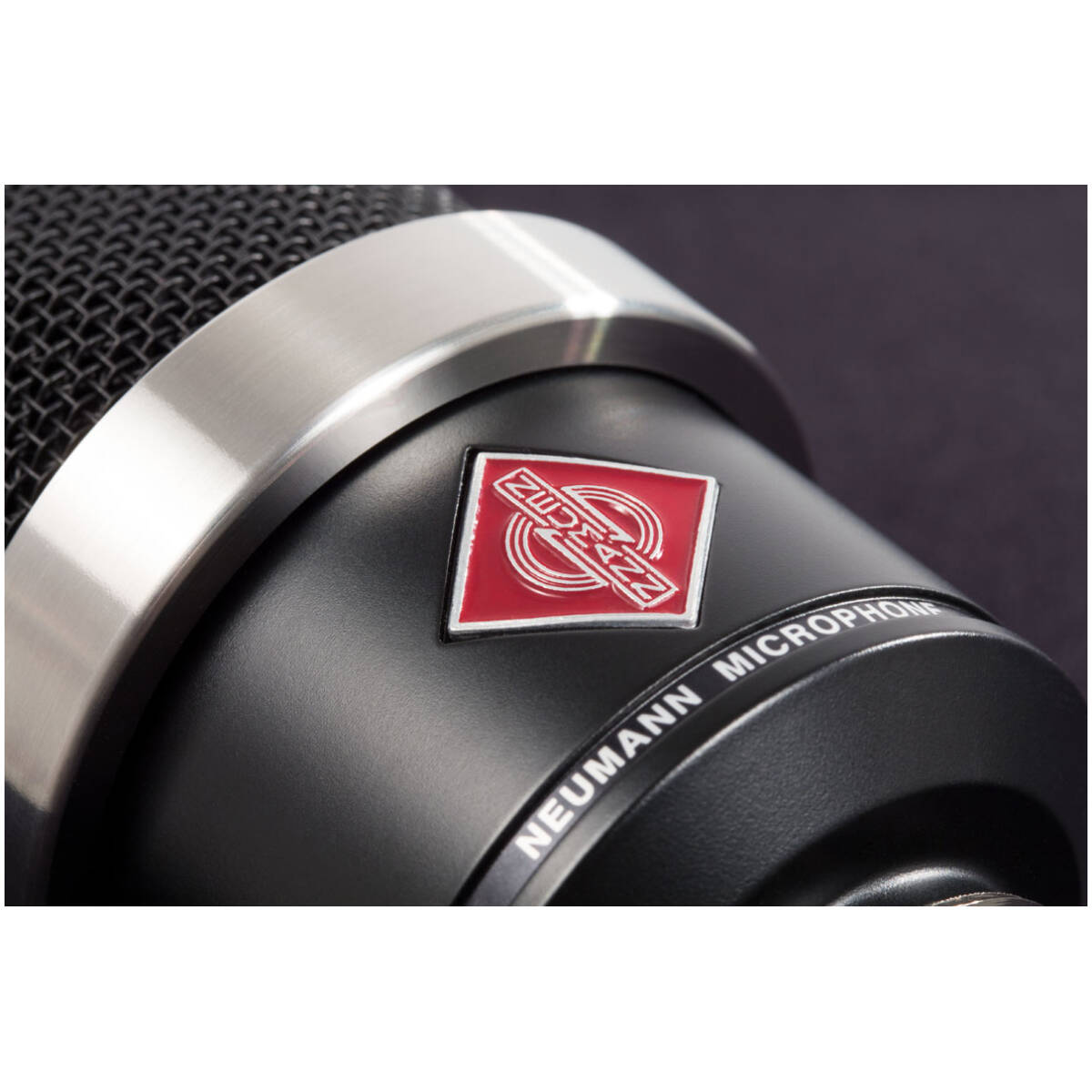

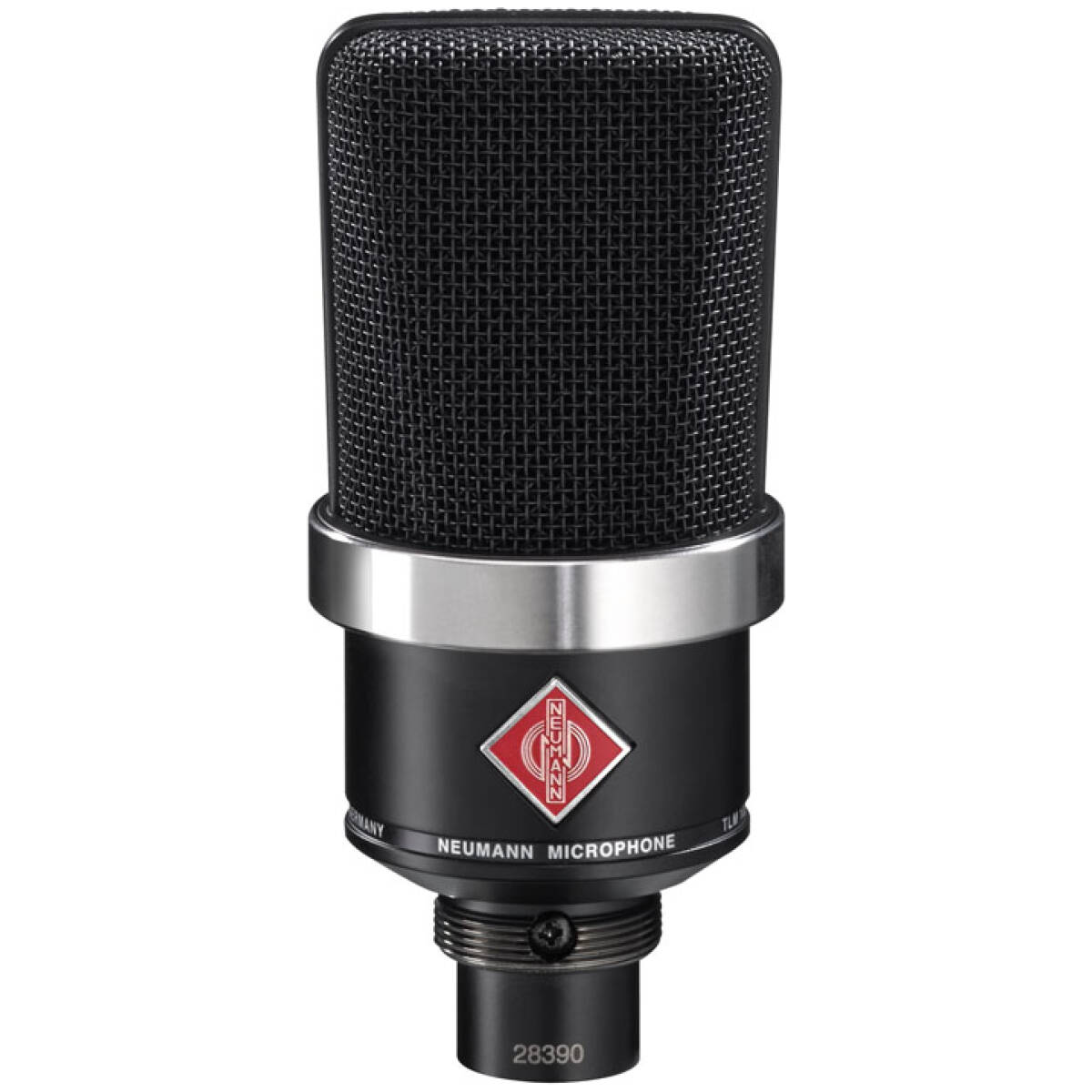

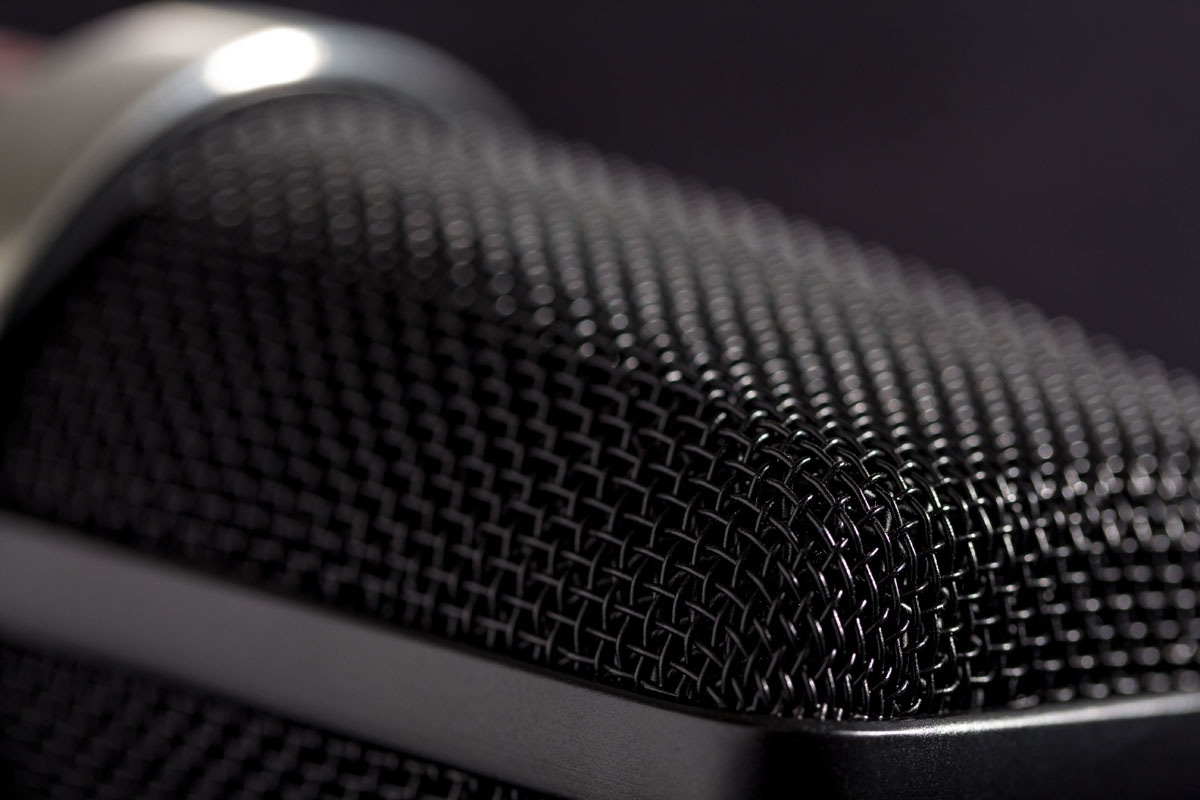

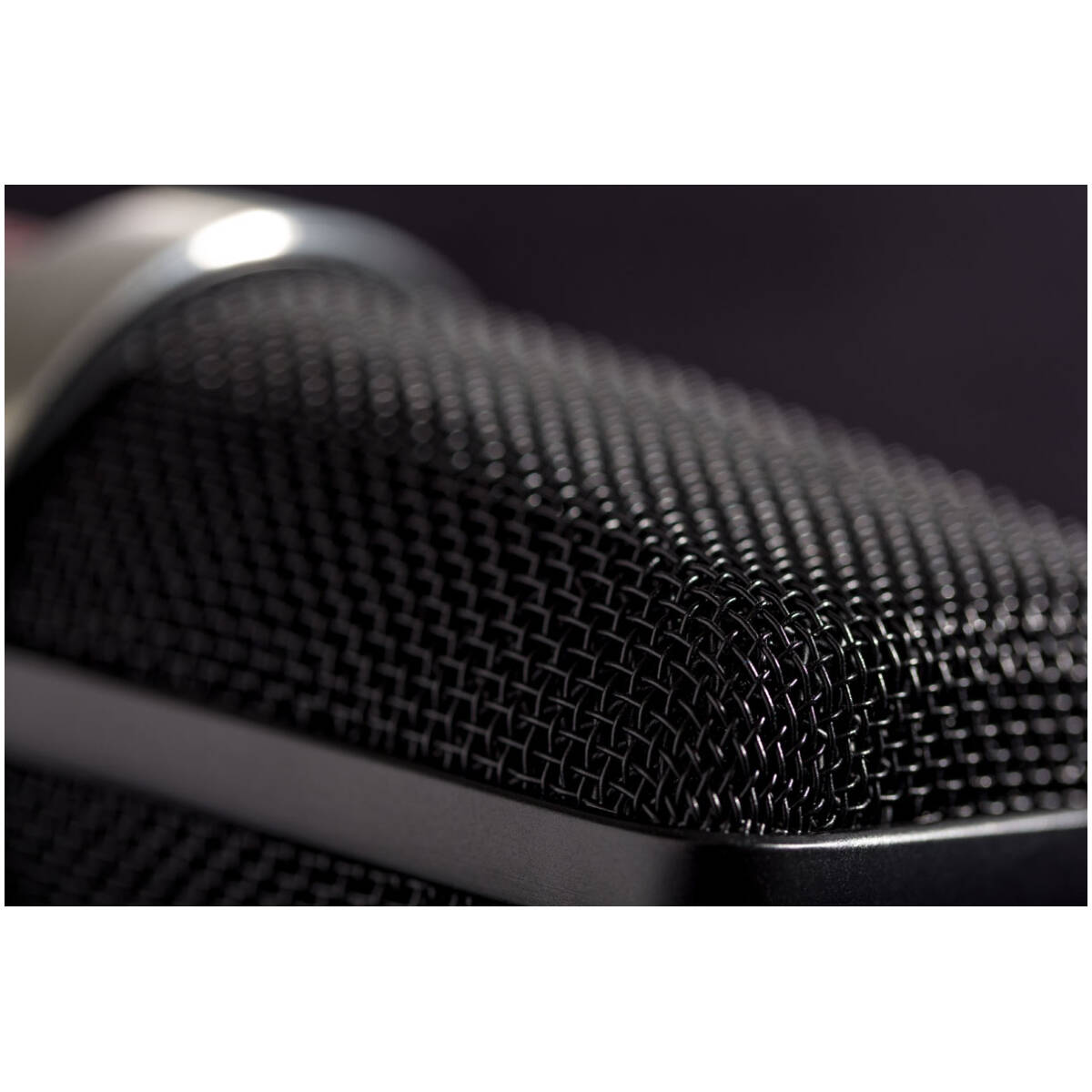

The Neumann TLM 102 is a compact, large-diaphragm condenser microphone designed to bring Neumann recording quality into project studios, home setups, and professional environments. It features a newly developed cardioid capsule, a smooth and balanced frequency response, and a transformerless output stage for high clarity and low distortion. Despite its small size, the TLM 102 delivers detailed vocal reproduction, strong presence, and high maximum SPL handling, making it suitable for both vocals and loud instruments. The black housing provides a modern look while maintaining Neumann’s build standards.
Key Features
-
Large-diaphragm condenser capsule with cardioid directional pattern
-
Smooth high-frequency boost for vocal clarity and presence
-
High SPL capability, suitable for drums, guitar amps and brass
-
Low self-noise for clean recordings
-
Transformerless output for high transparency
-
Compact, lightweight body for easy positioning
-

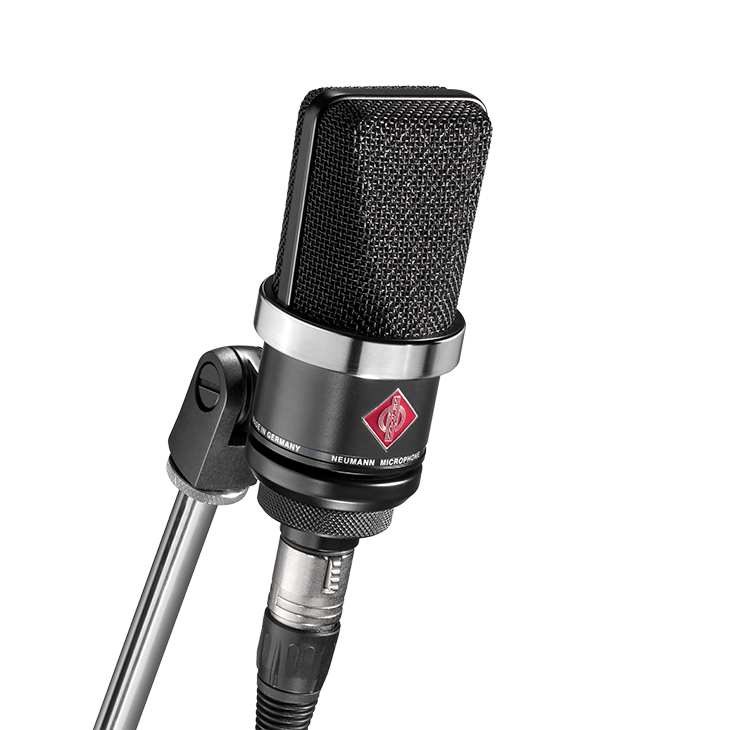

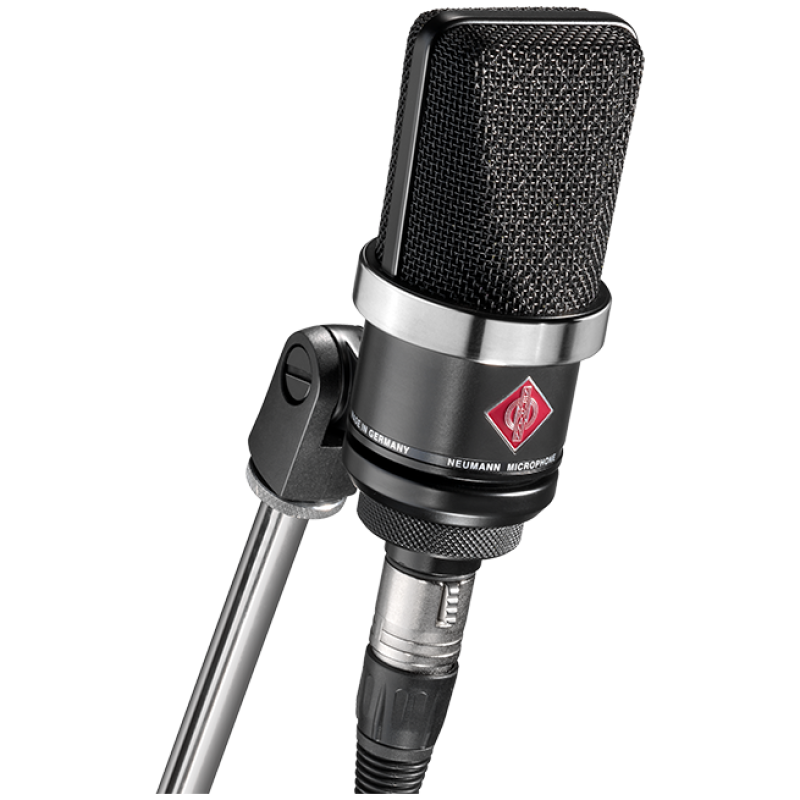

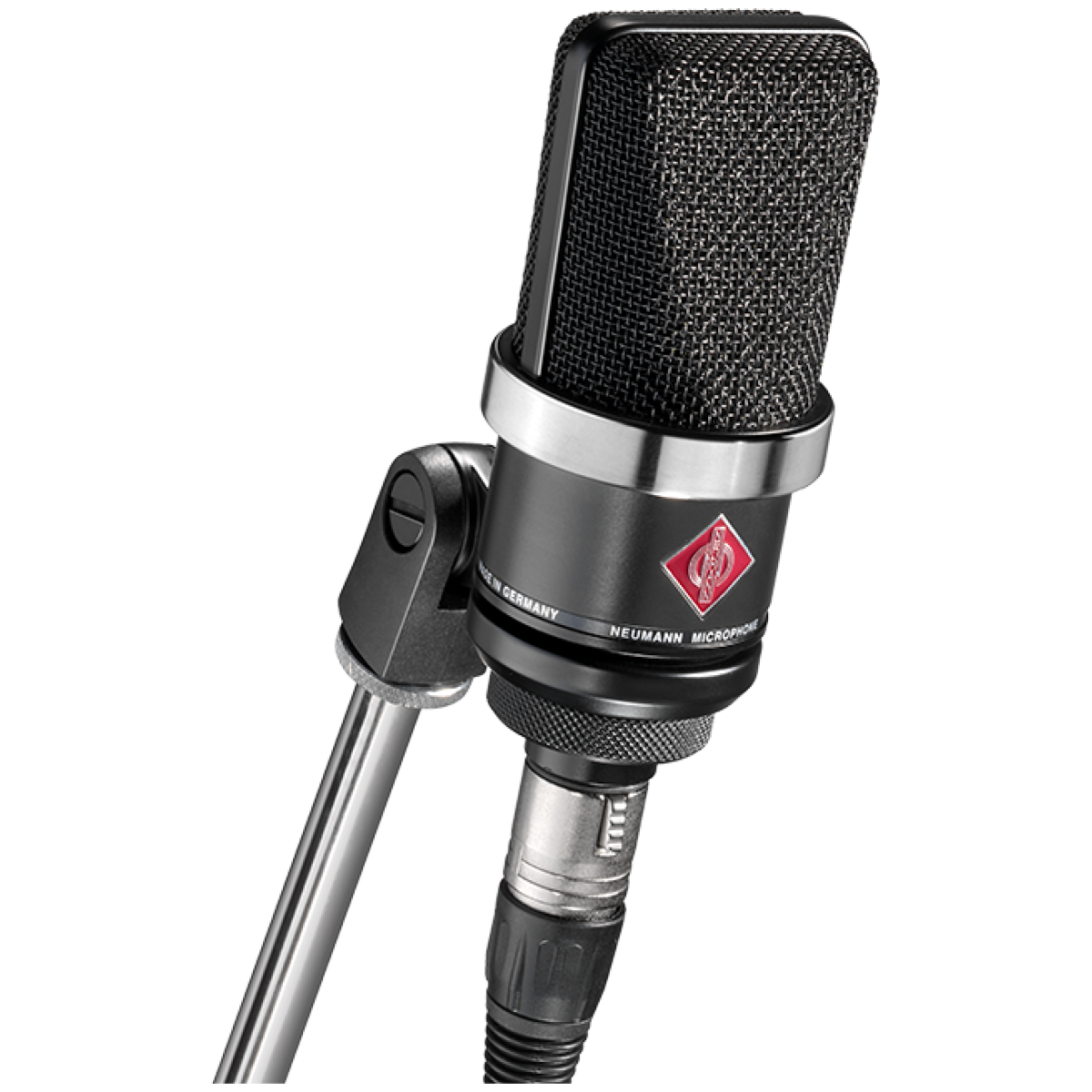

Includes stand mount
Technical Specifications
-
Operating Principle: Pressure gradient transducer
-
Diaphragm: Large diaphragm
-
Polar Pattern: Cardioid
-
Frequency Response: 20 Hz – 20 kHz
-
Sensitivity: 11 mV/Pa
-
Rated Impedance: 50 ohms
-
Equivalent Noise Level: 12 dB(A)
-
Signal-to-Noise Ratio: 82 dB
-
Max SPL (0.5% THD): 144 dB
-
Max Output Voltage: 13 dBu
-
Supply Voltage: 48 V ± 4 V phantom power
-
Current Consumption: 3.5 mA
-
Connector: XLR3F
