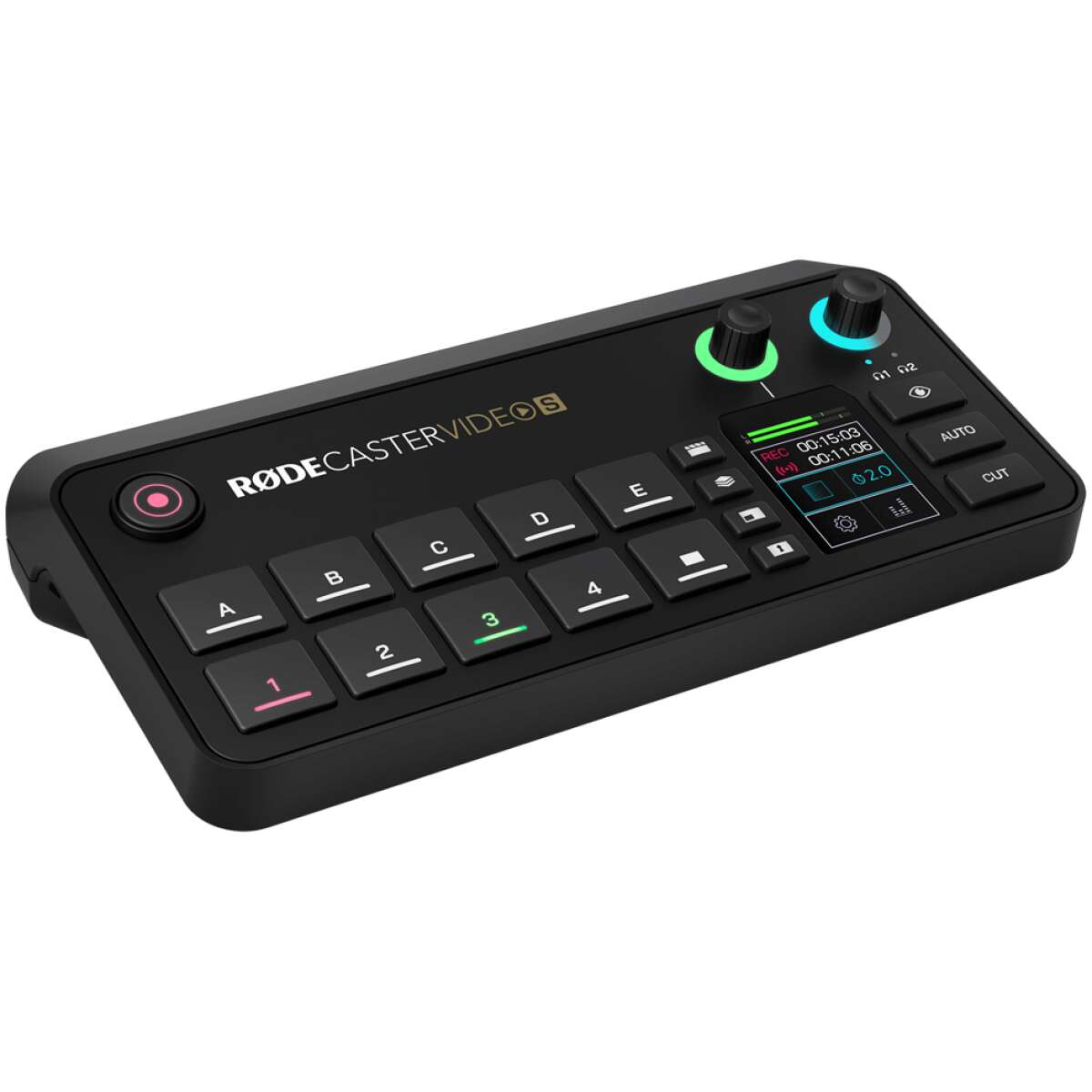

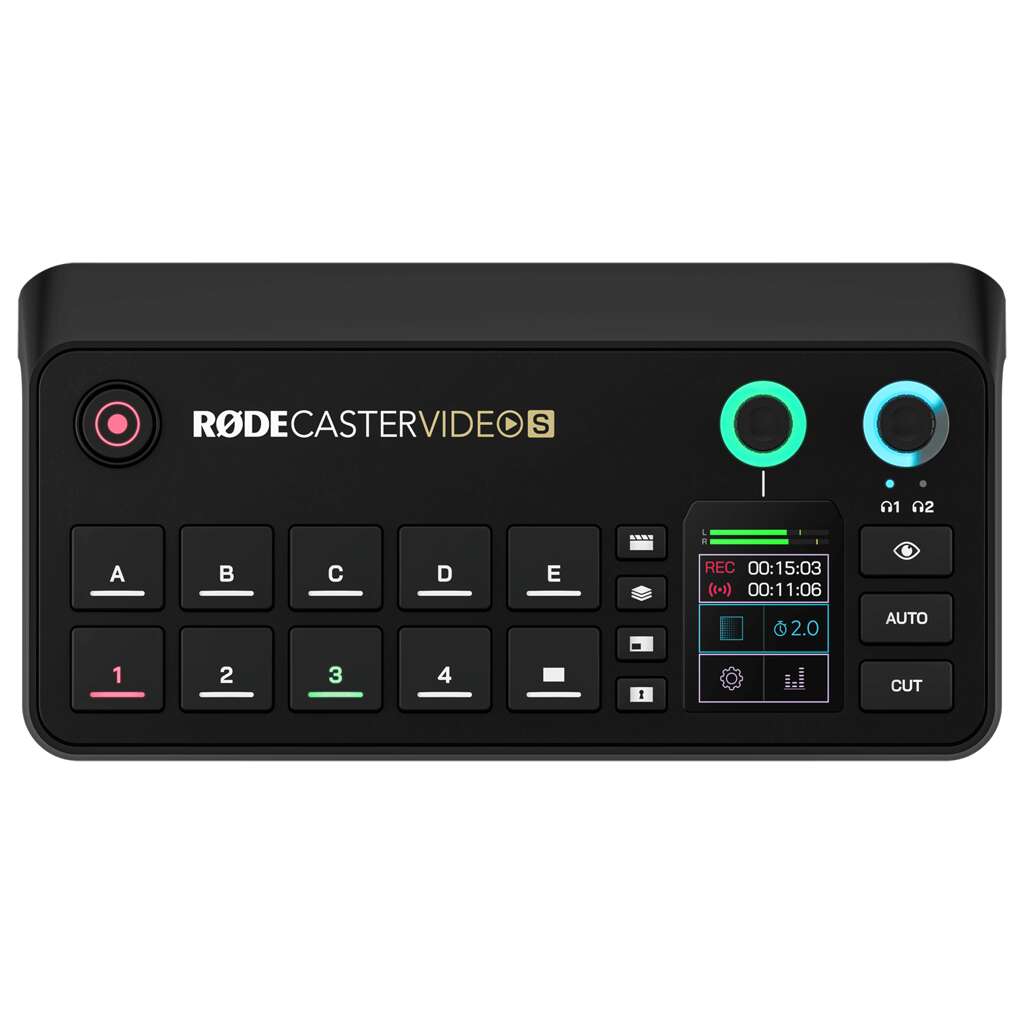

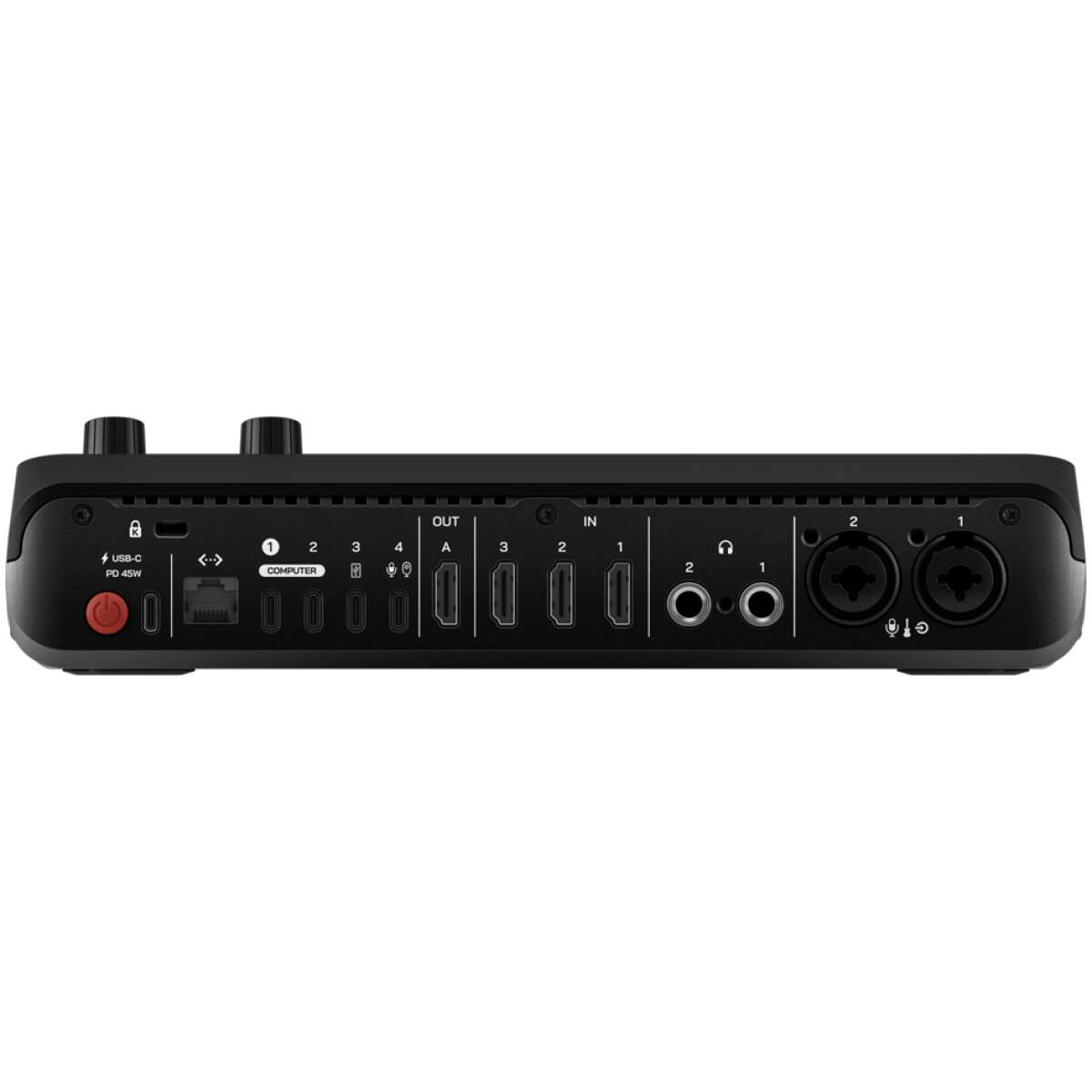

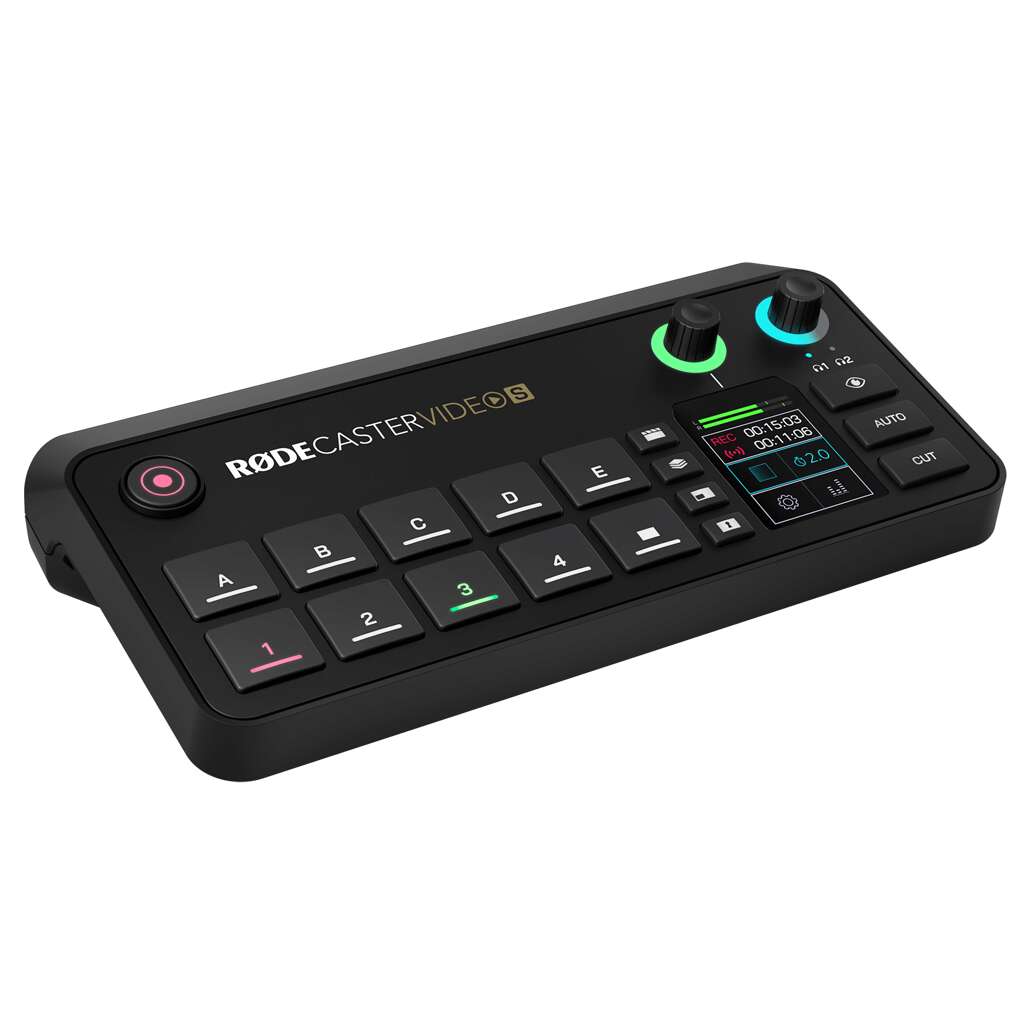

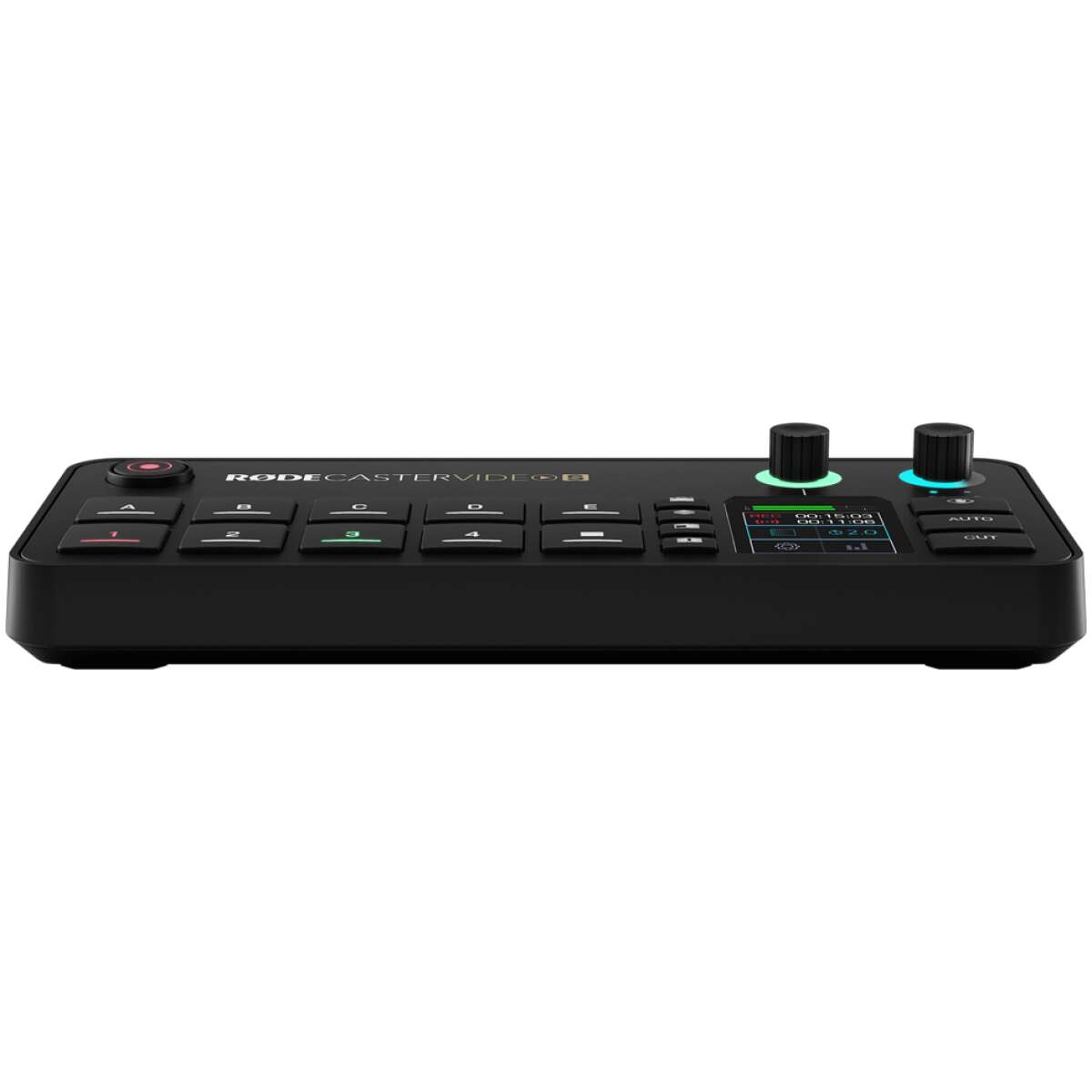

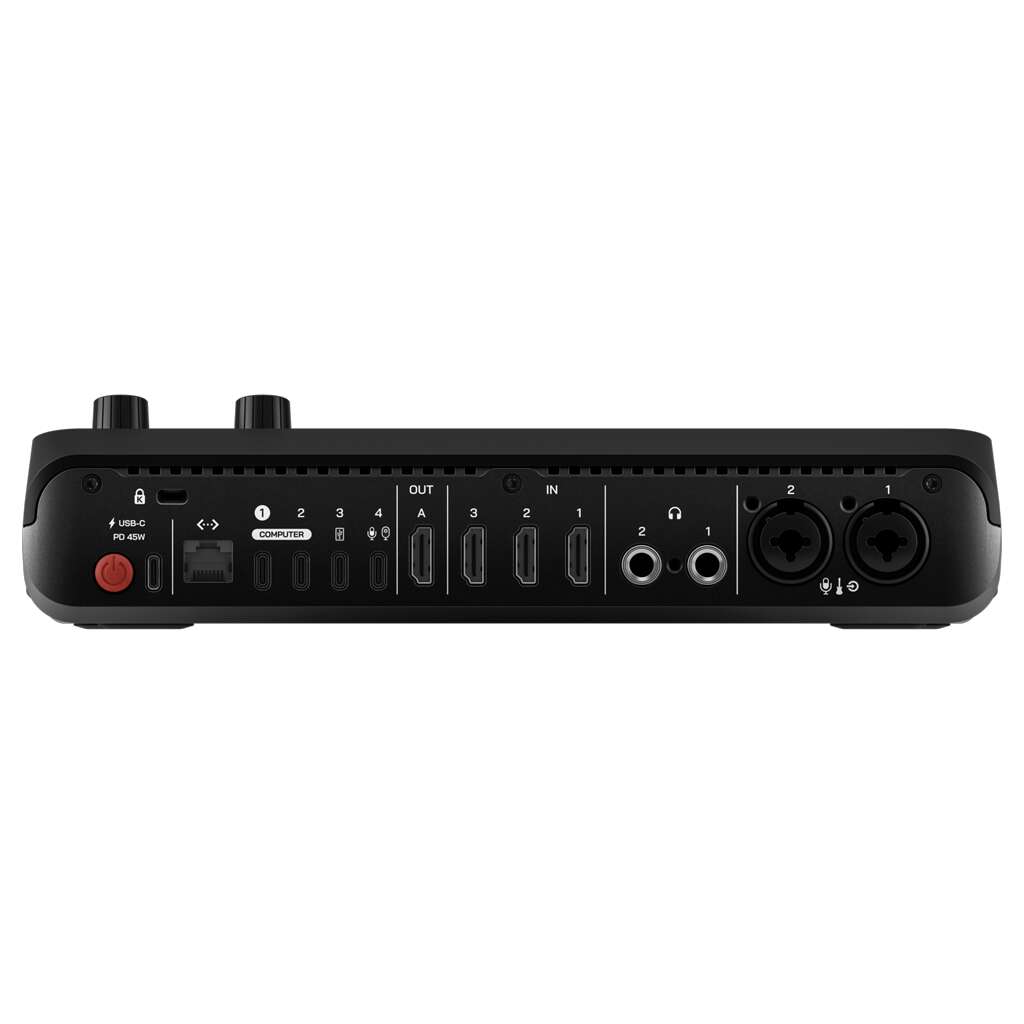

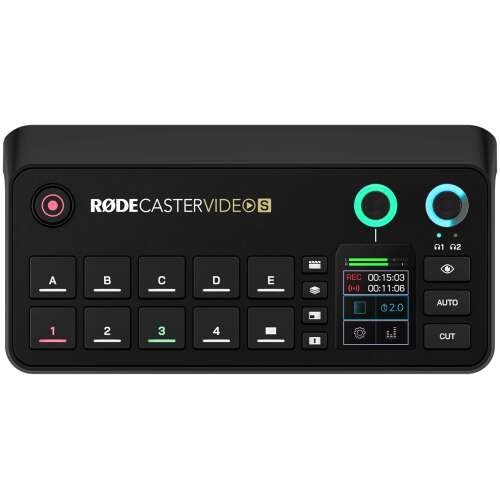

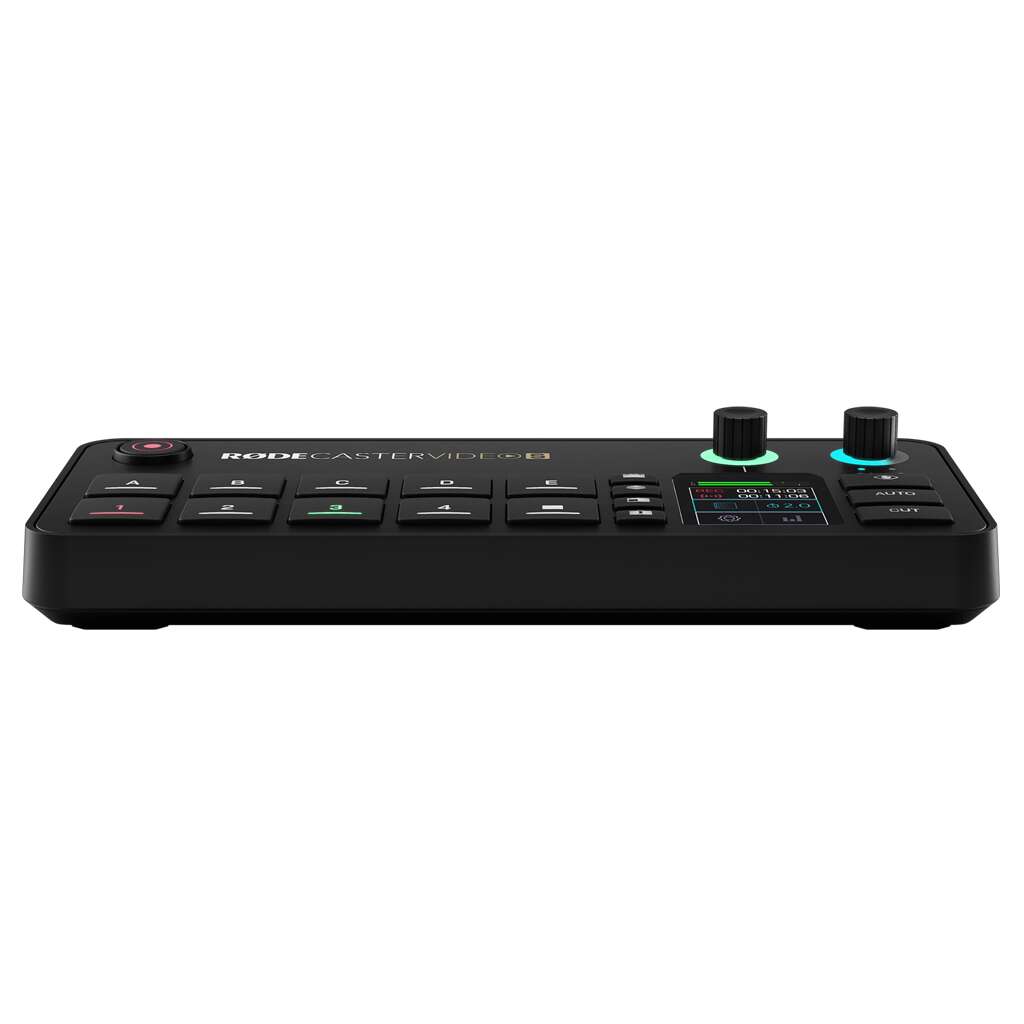

Rode RODECaster Video S Video And Audio Production Console

The RØDE RØDECaster Video S gives solo creators, podcasters and production teams hands-on control over video and audio from one compact desktop console.

Three Full HD HDMI inputs allow cameras, computers and gaming consoles to be connected, while a flexible USB-C input supports compatible webcams, capture devices and RØDE USB audio products. Switch between four video sources and five custom scenes using the dedicated buttons, touchscreen and rotary encoder.

Key Features

• All-in-one video switcher and audio production console
• Three Full HD HDMI video inputs
• One configurable HDMI output
• Flexible USB-C video and audio input
• Switch between four video sources
• Store and recall five custom scenes
• High-resolution touchscreen
• Multi-function rotary encoder
• Custom transitions, overlays and graphics
• Multi-source picture layouts
• Automatic chroma keying
• Automatic camera switching
• Direct RTMP and RTMPS streaming
• Program and isolated source recording
• Up to 1080p60 program recording
• Up to four isolated 1080p30 recordings
• Multiview monitoring
• Wi-Fi, Ethernet and Bluetooth connectivity
• NDI video support
• Internal media storage
• RØDE Capture app integration

Audio Features

• Nine simultaneous stereo audio channels
• Two Neutrik XLR/6.35mm TRS combo inputs
• Ultra-low-noise Revolution Preamps
• Up to 76dB microphone input gain
• 48V phantom power
• Two integrated RØDE Series IV wireless receivers
• One USB audio and video host connection
• Two independent headphone outputs
• 24-bit/48kHz audio recording
• Individual audio routing and processing
• APHEX VoxLab processing
• Compressor, EQ and noise gate
• De-esser and high-pass filter
• Aural Exciter and Big Bottom processing

Specifications

Product Type: Video switcher and audio production console

Simultaneous Video Sources: Four

HDMI Inputs: Three

USB Video Input: One UVC-compatible USB-C input

HDMI Output: One configurable program, preview or multiview output

Maximum Program Resolution: 1920 × 1080 at 60fps

ISO Recording: Up to four video sources at 1080p30

Custom Scenes: Five

Audio Mixer: Nine stereo channels simultaneously

Analogue Inputs: Two XLR/6.35mm TRS combo inputs

Microphone Gain: Up to 76dB

Preamp Frequency Response: 20Hz–20kHz

Equivalent Input Noise: -131.5dBV, A-weighted

Phantom Power: 48V

Headphone Outputs: Two 6.35mm outputs

Audio Resolution: 24-bit/48kHz

Wireless Microphone Support: Two compatible RØDE Series IV transmitters

Network Connectivity: Ethernet and Wi-Fi

Wireless Connectivity: Bluetooth

Internal Storage: 24GB, with approximately 20GB user-configurable

Streaming Protocols: RTMP and RTMPS
