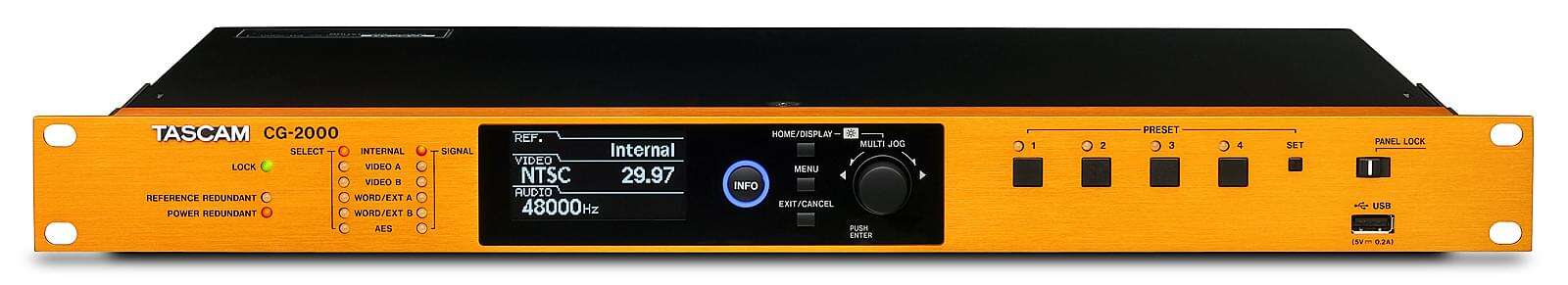

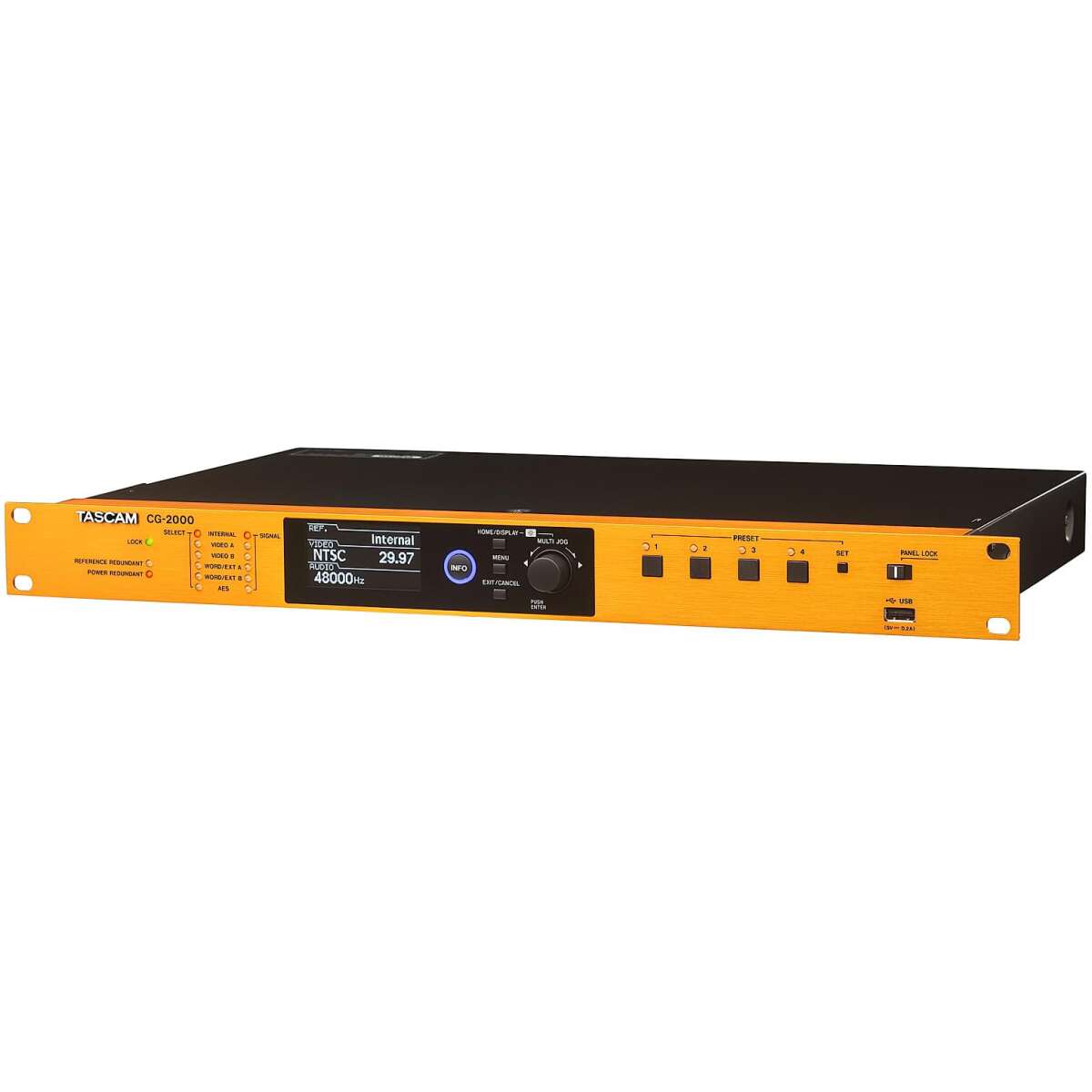

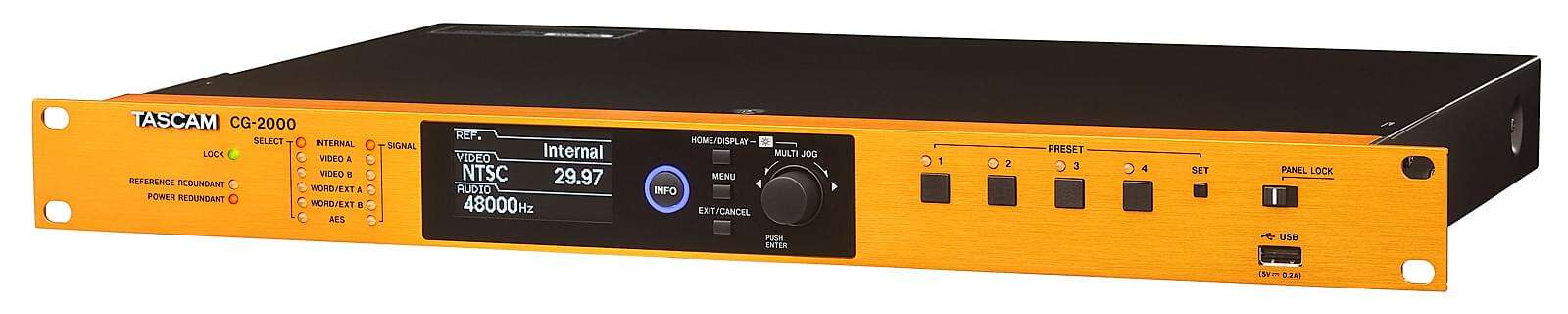

Tascam CG-2000 Master Clock Generator

The TASCAM CG-2000 is a professional master clock generator for broadcast, post-production, recording studios, live sound and large audio/video synchronisation systems. It uses a high-precision OCXO oscillator, jitter management and glitch-free relocking to provide stable clock signals.

Clock and synchronisation
Device Type: Master clock generator
Internal Oscillator: Oven-controlled crystal oscillator (OCXO)
Factory Clock Accuracy: ±0.01 ppm
Daily Frequency Stability: ±0.005 ppm
Annual Frequency Stability: ±0.5 ppm
Supported Word Clock Rates: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz
External Reference Support: Word clock, AES3/AES11, video sync, 10 MHz atomic clock and 10 MHz GPS clock
Pull-Up/Pull-Down: ±0.1% and ±4% at supported 48, 96 and 192 kHz rates
Glitch-Free Relocking: Yes
Jitter Reduction: Yes
Self-Calibration: Yes, using a suitable external 10 MHz or PPS reference.

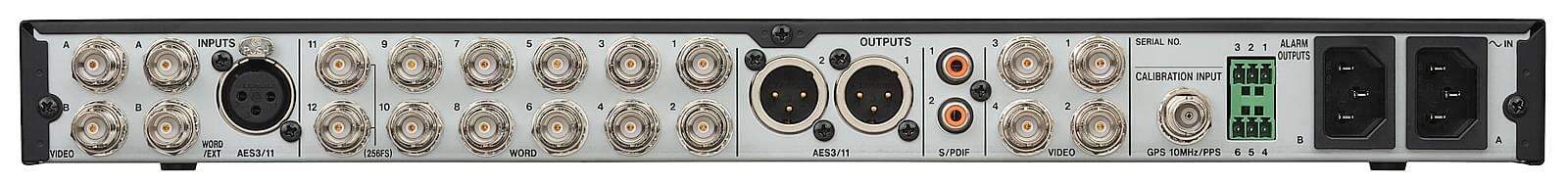

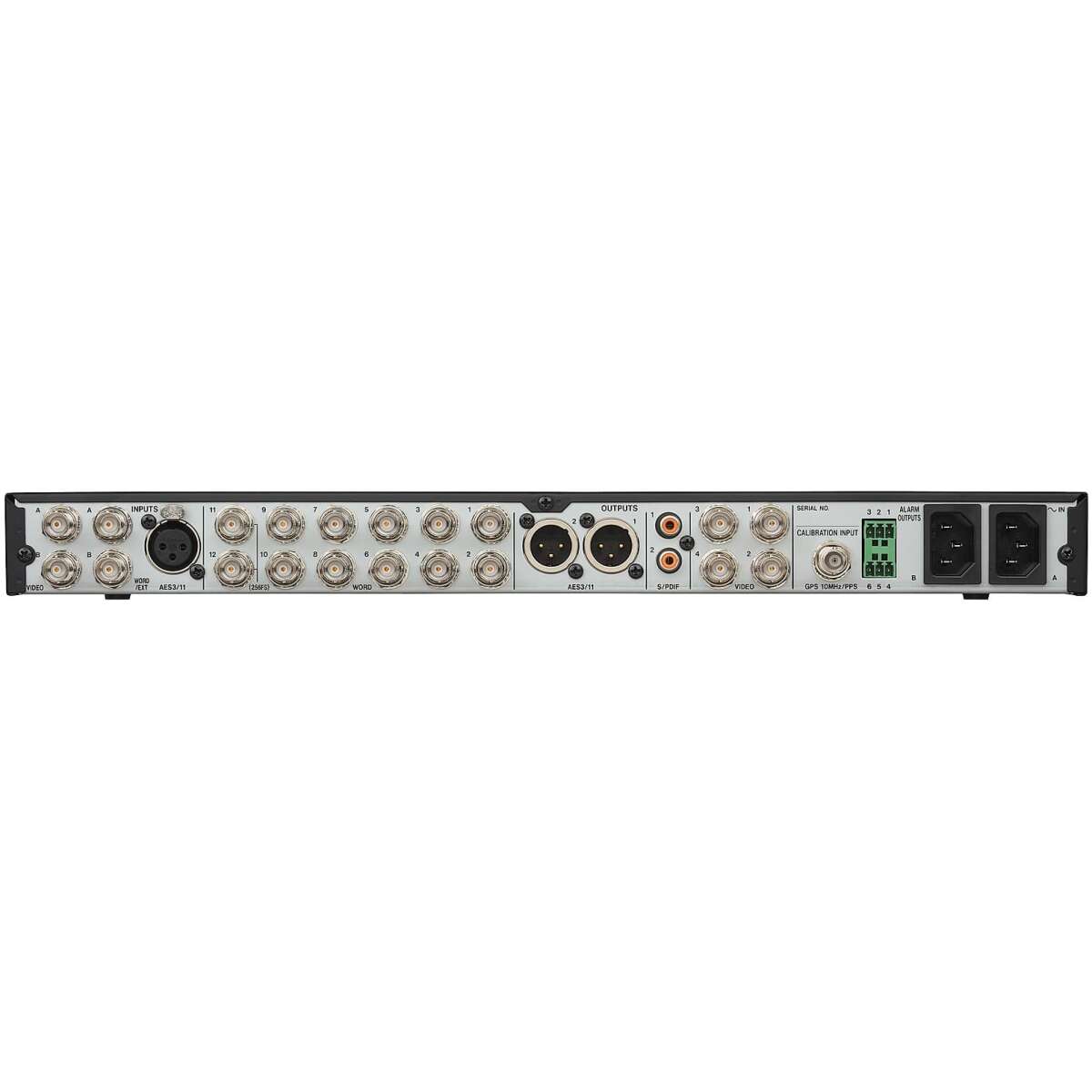

Inputs
Video Sync Input: BNC
Word Clock/External Reference Inputs: Two redundant BNC inputs
AES3/AES11 Input: Balanced XLR
Calibration Input: BNC
Supported Video References: NTSC/PAL black burst, composite sync and HD tri-level sync
10 MHz Reference Input: Supported for compatible GPS or rubidium/atomic clocks.

Outputs
Word Clock Outputs: 12 BNC outputs
Special Word Clock Outputs: Outputs 11 and 12 support Fs/4, Fs/2, 2Fs, 4Fs and 256Fs/Super Clock
Video Sync Outputs: Four BNC outputs
AES3/AES11 Outputs: Two balanced XLR outputs
S/PDIF Outputs: Two RCA coaxial outputs
Alarm/GPO Output: Six-pin Euroblock connector
Adjustable Word Clock Output Level: 1.0–3.5 Vp-p in 0.5V steps.

Reliability and management
Redundant Power Supply: Yes
Redundant Clock Inputs: Yes
Analyzer Function: Measures input frequency, input level and output termination
Event Logging: Yes; logs can be exported as CSV files to a USB flash drive
Preset Memory: Stores up to four system configurations
USB Port: Used for settings import/export, log export and firmware updates
Panel Lock: Yes
Display: Wide-viewing-angle OLED
Built-in Audio Recorder: No
Audio Interface: No
Bluetooth/Wi-Fi: No.

Physical specifications
Rack Size: 1U
Power Requirement: 100–240V AC
Power Consumption: 14W
