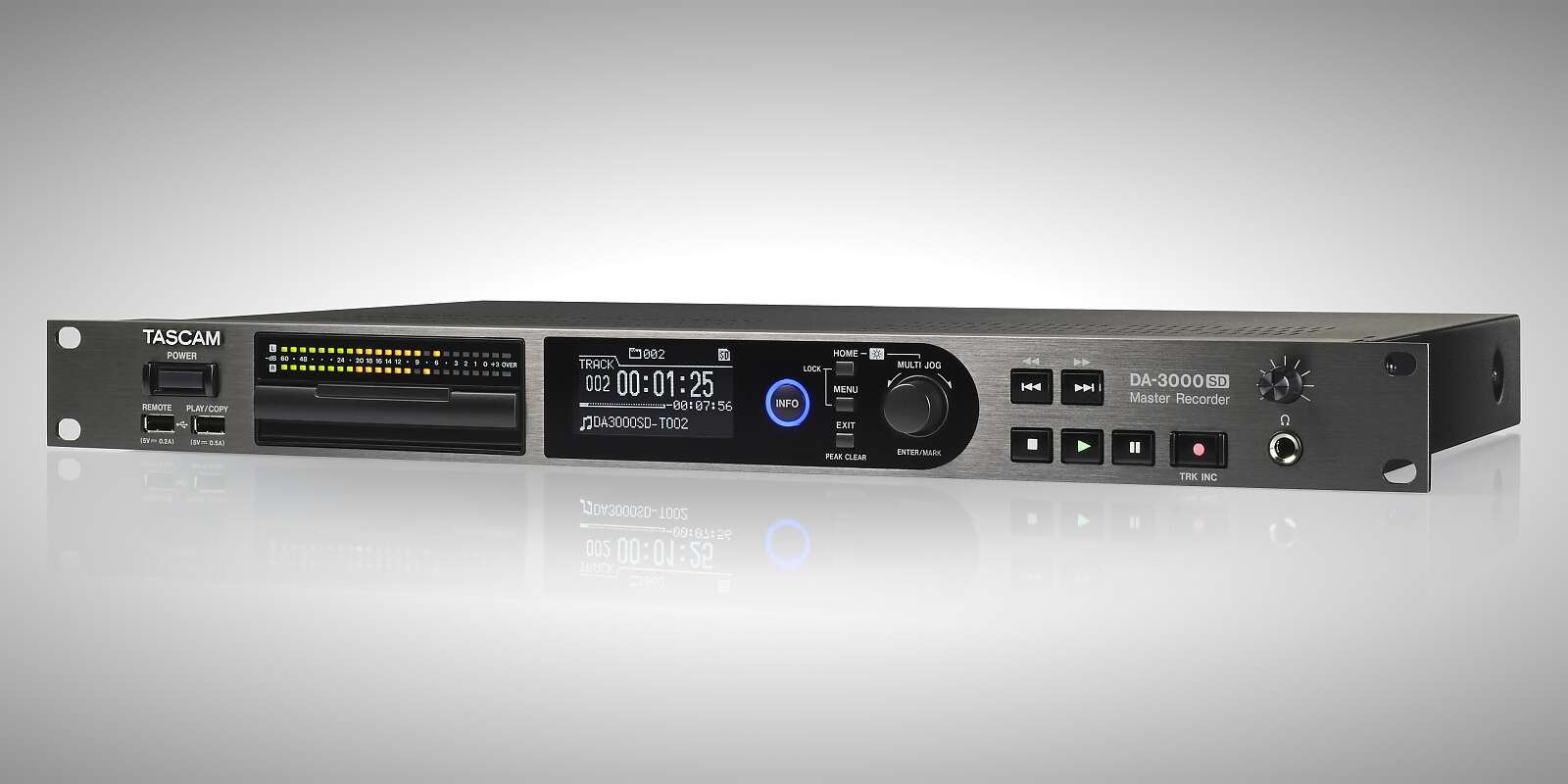

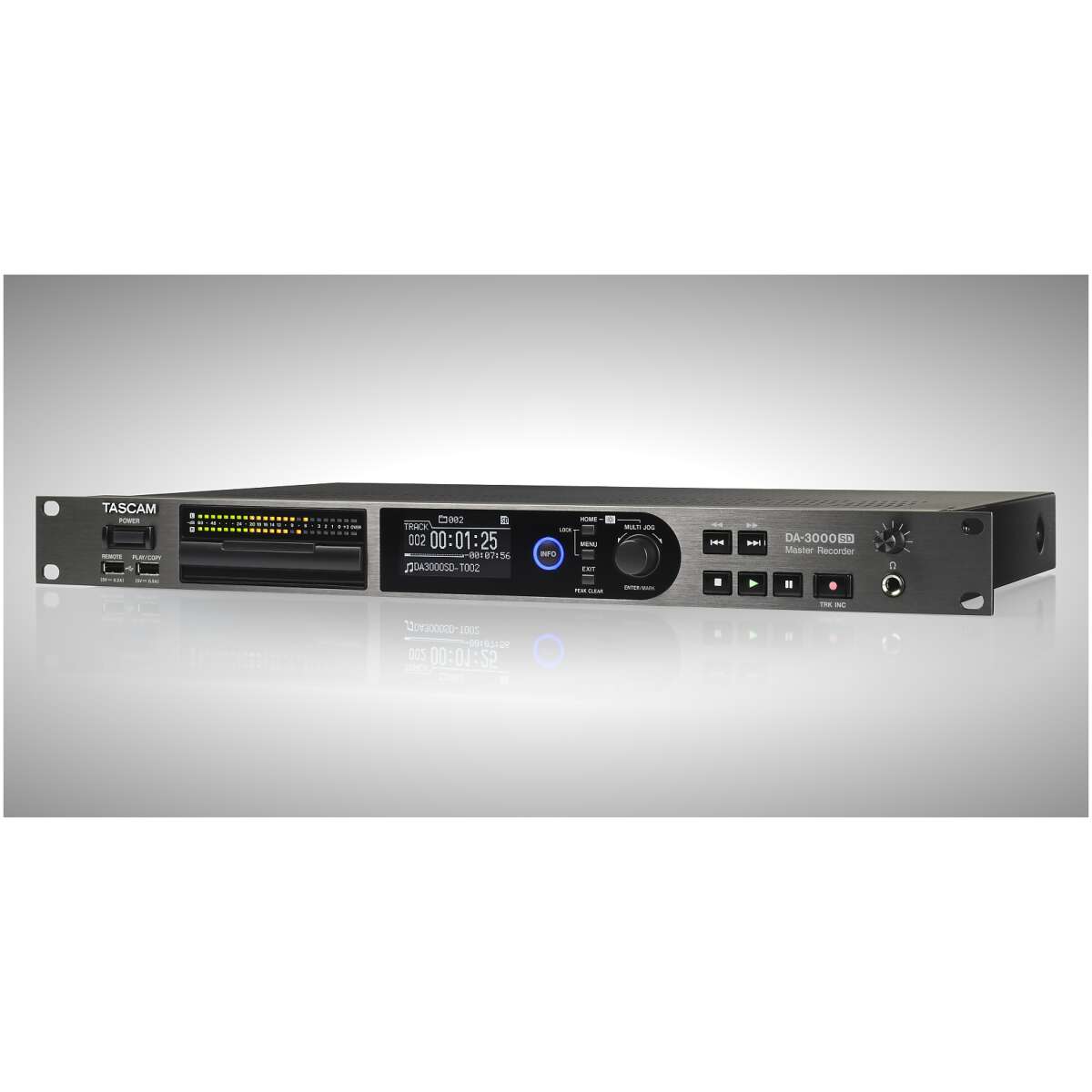

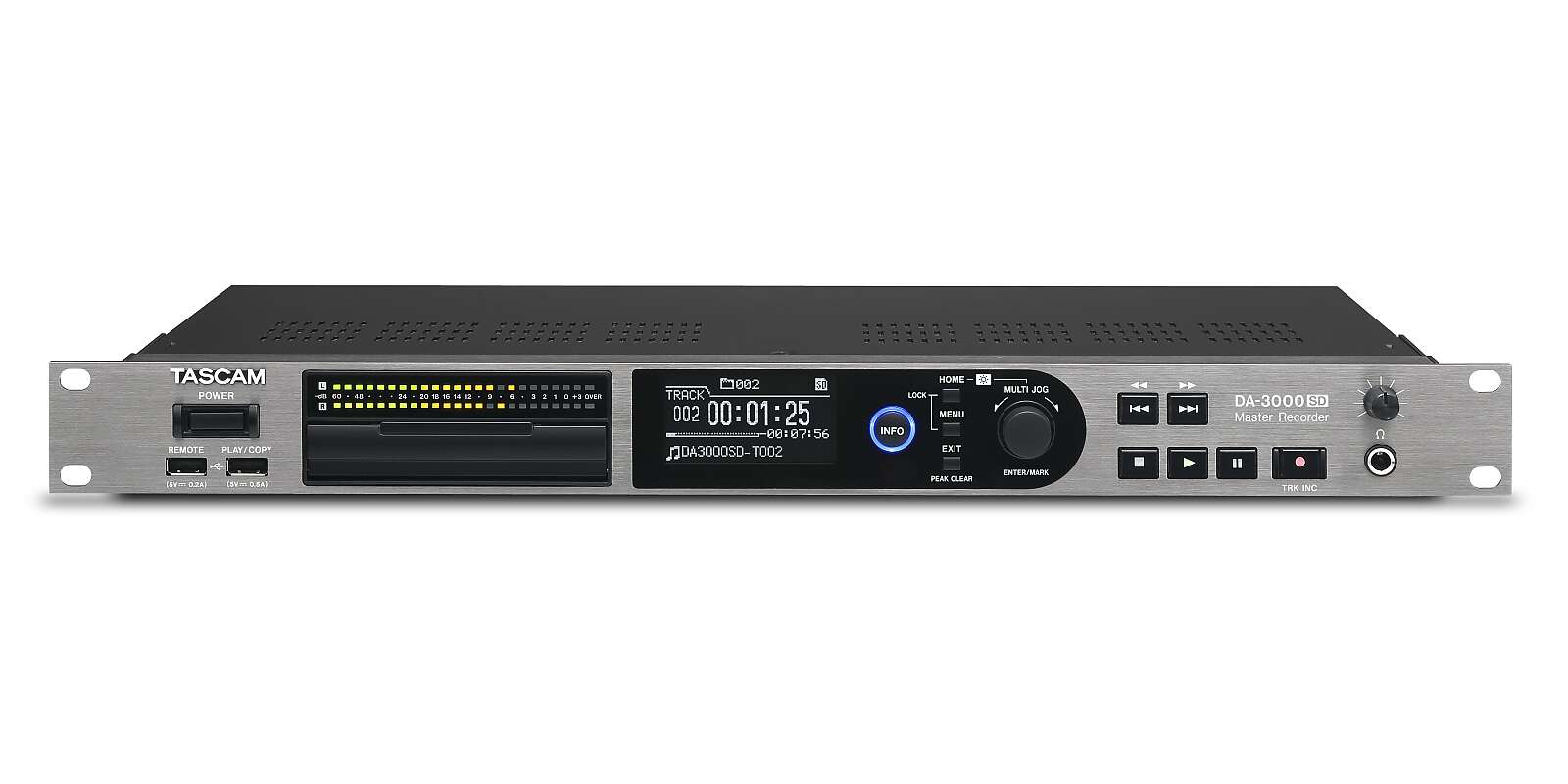

TASCAM DA-3000SD High-Definition PCM/DSD Audio Recorder And AD/DA Converter

The TASCAM DA-3000SD is a professional two-channel stereo master recorder and high-quality standalone AD/DA converter. It is designed for mastering studios, archival recording, live stereo capture and high-resolution monitoring.

Recording specifications

• Recorder Type: High-resolution stereo digital recorder
• Recording Channels: Two mono channels or one stereo channel
• PCM Recording: Up to 24-bit/192 kHz
• PCM Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
• PCM Formats: WAV and BWF
• DSD Recording: 2.8224 MHz and 5.6448 MHz
• DSD Formats: DSDIFF and DSF

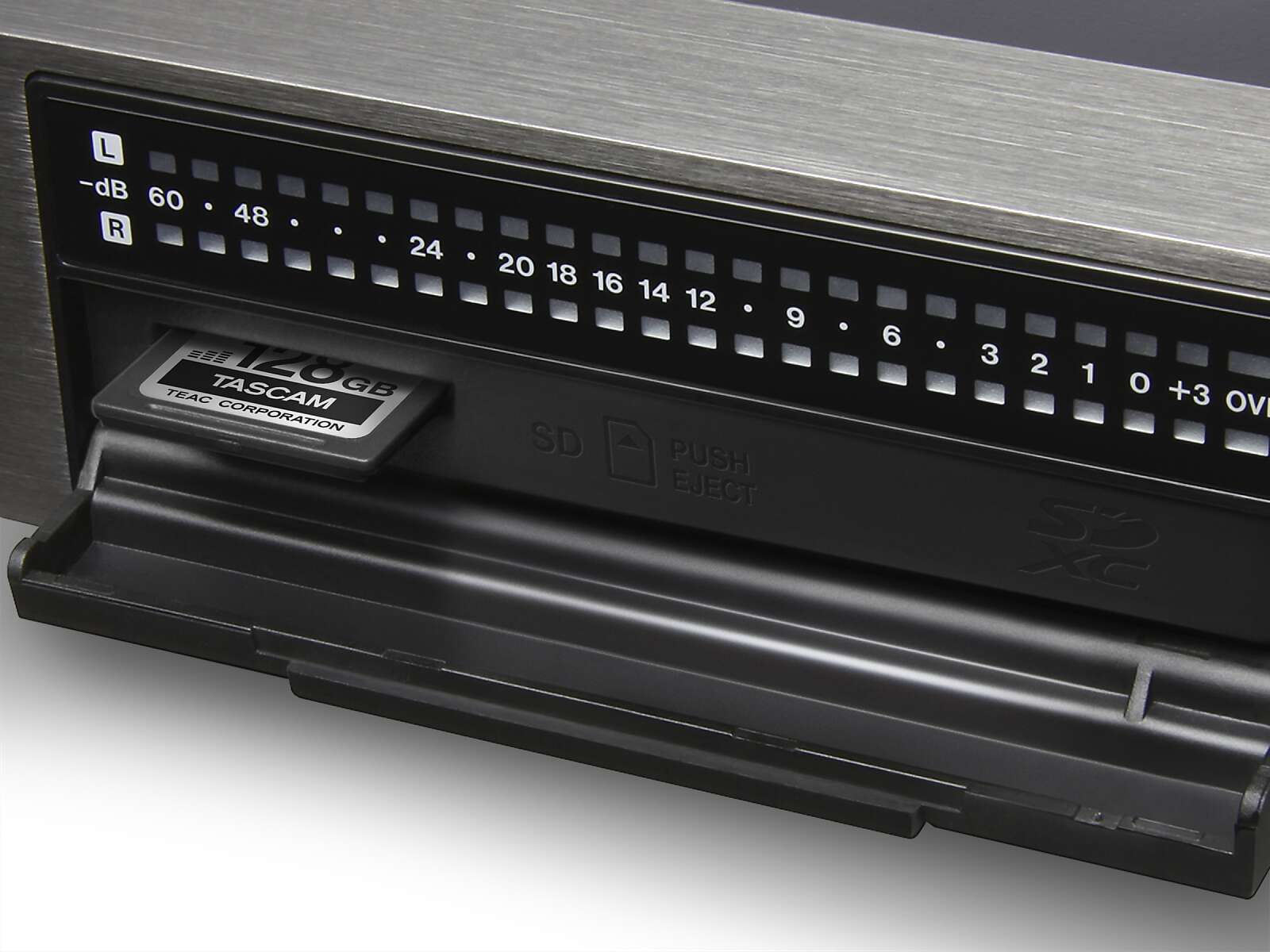

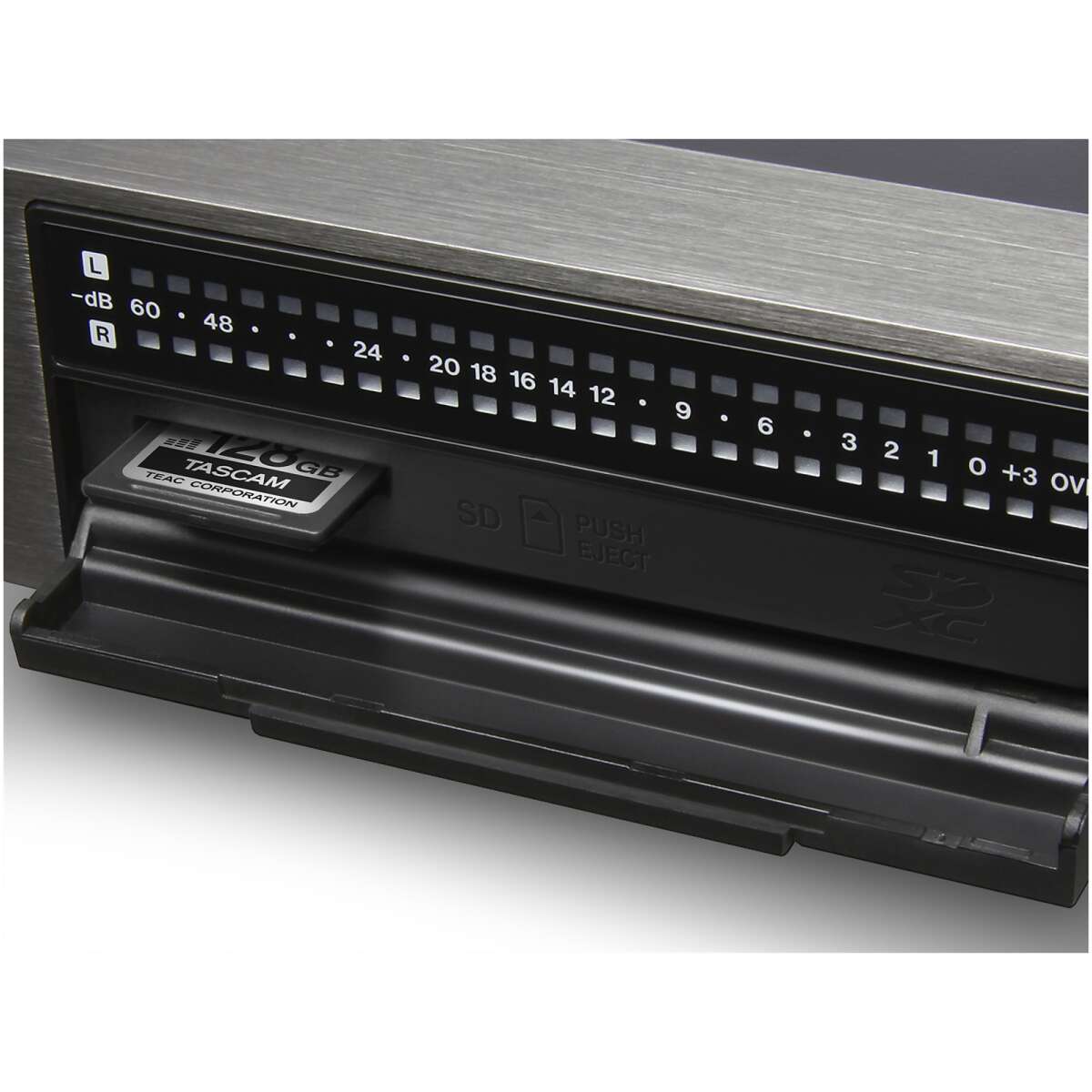

• Recording Media: SD, SDHC and SDXC cards up to 512 GB
• USB Storage Support: USB flash drives can be used for file playback and copying
• Automatic File Saving: Recorded data is secured approximately every 25 seconds
• Standalone Recording: Yes—no computer is required.

AD/DA converter

• Converter Type: High-definition two-channel AD/DA converter
• Standalone Converter Mode: Yes—phase-coherent direct mode
• D/A Converters: Two Burr-Brown PCM1795 converters, one per channel
• Clock: High-precision TCXO with accuracy better than ±1 ppm
• Output Circuit: Dual-monaural, fully balanced design
• Cooling: Fanless for silent operation
• Signal-to-Noise Ratio: Up to 118 dB during balanced PCM playback.

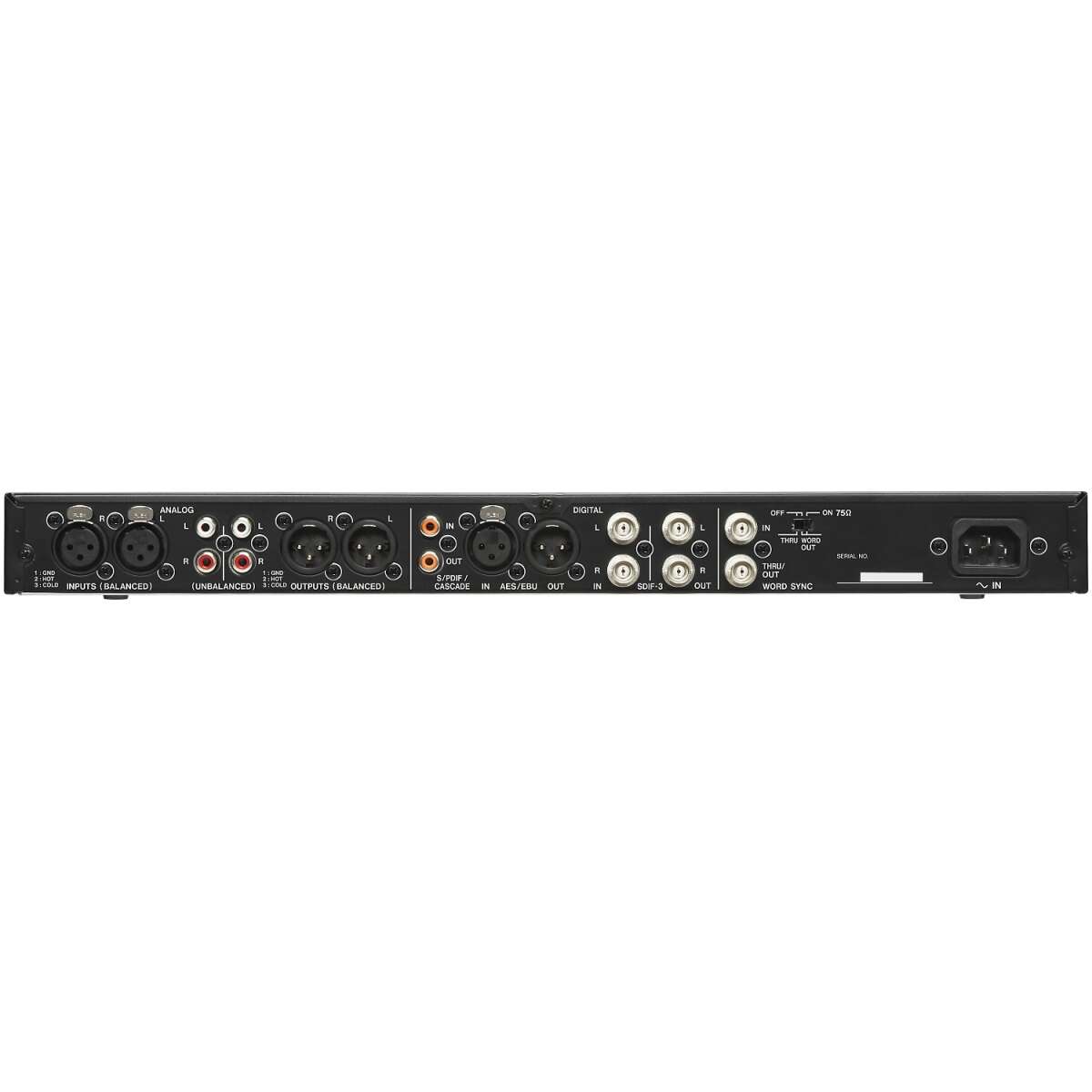

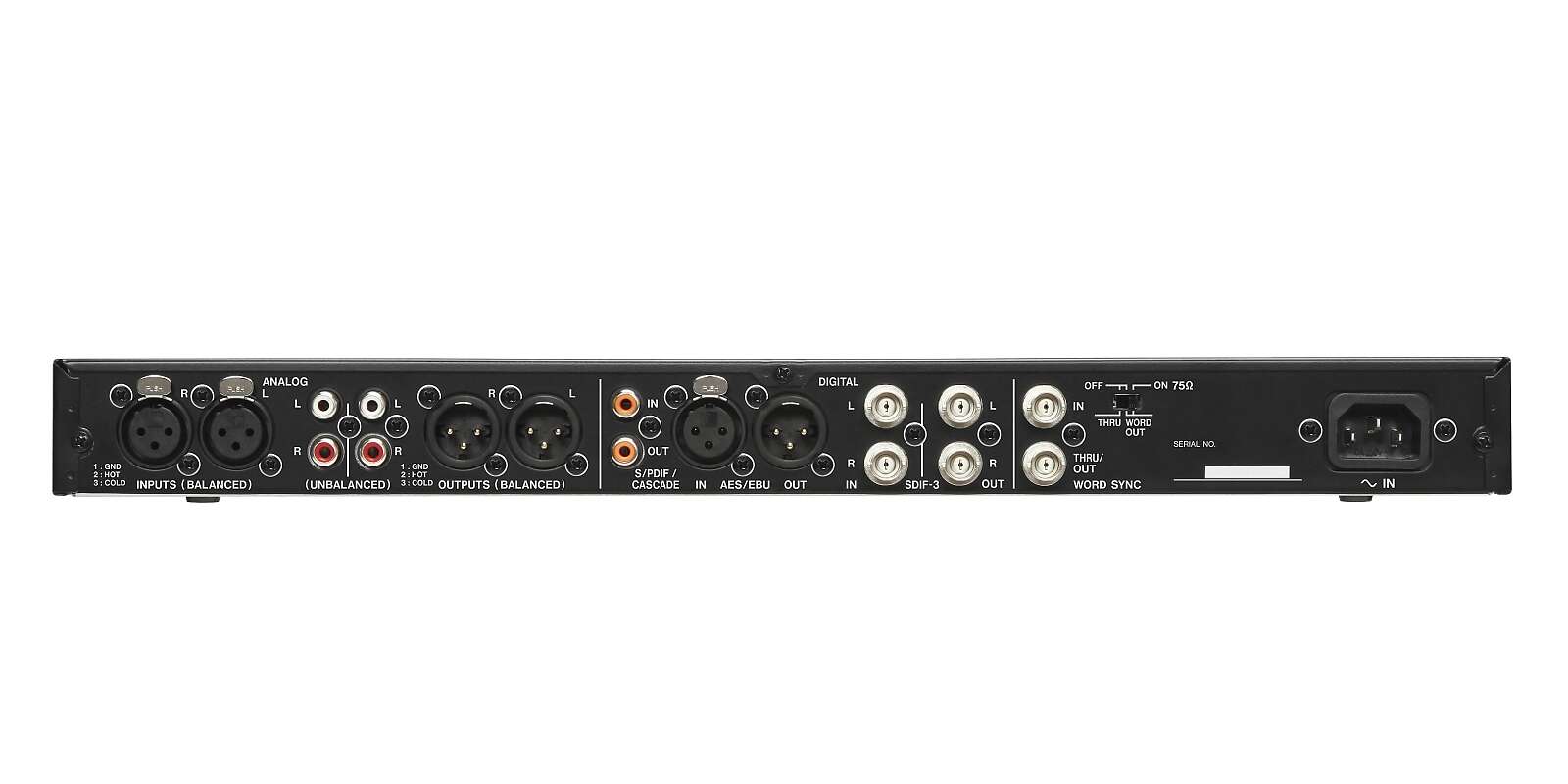

Analogue and digital connectivity

• Balanced Analogue Inputs: Two XLR
• Unbalanced Analogue Inputs: Two RCA
• Balanced Analogue Outputs: Two XLR
• Unbalanced Analogue Outputs: Two RCA
• Headphone Output: 6.35 mm stereo jack
• AES/EBU Digital Input and Output: XLR
• S/PDIF Digital Input and Output: RCA coaxial
• DSD Digital Input and Output: SDIF-3 through BNC connectors
• Word Clock Input and Output: BNC
• Cascade Connection: Supported for synchronising multiple recorders.

Additional attributes

• Multitrack Expansion: Up to eight units can be synchronised for a 16-track DSD recording system
• Built-in Mixer: No
• Microphone Inputs/Preamps: No
• Built-in Effects: No
• USB Audio Interface: No
• Bluetooth: No
• Network Capability: No Ethernet, Dante, AVB or Wi-Fi
• Remote Control: Supports the optional TASCAM RC-10 wireless/wired remote
• Display: 128 × 64-dot OLED
• Level Meter: 24-segment LED meter
• Rack Size: 1U
• Power Consumption: 24W
