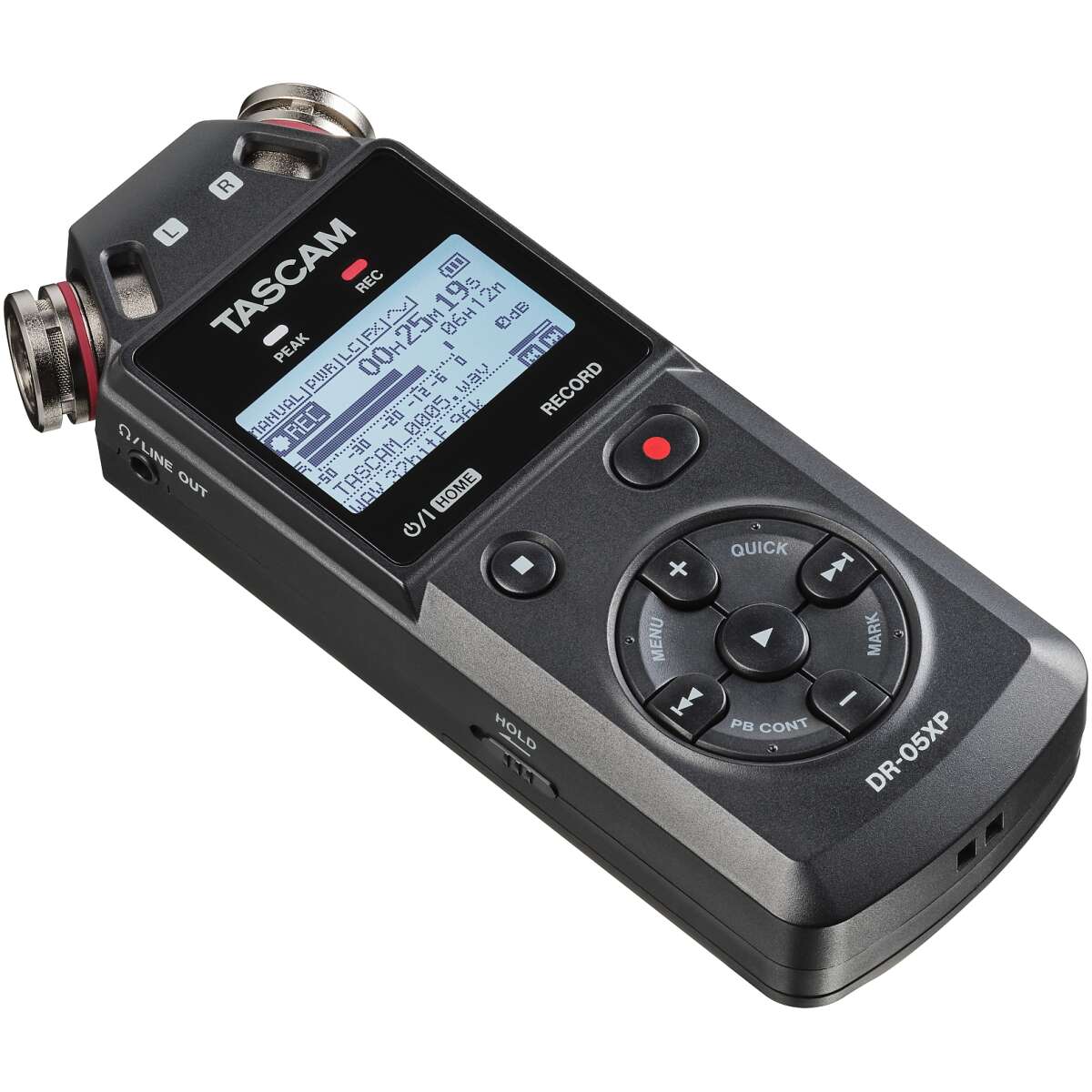

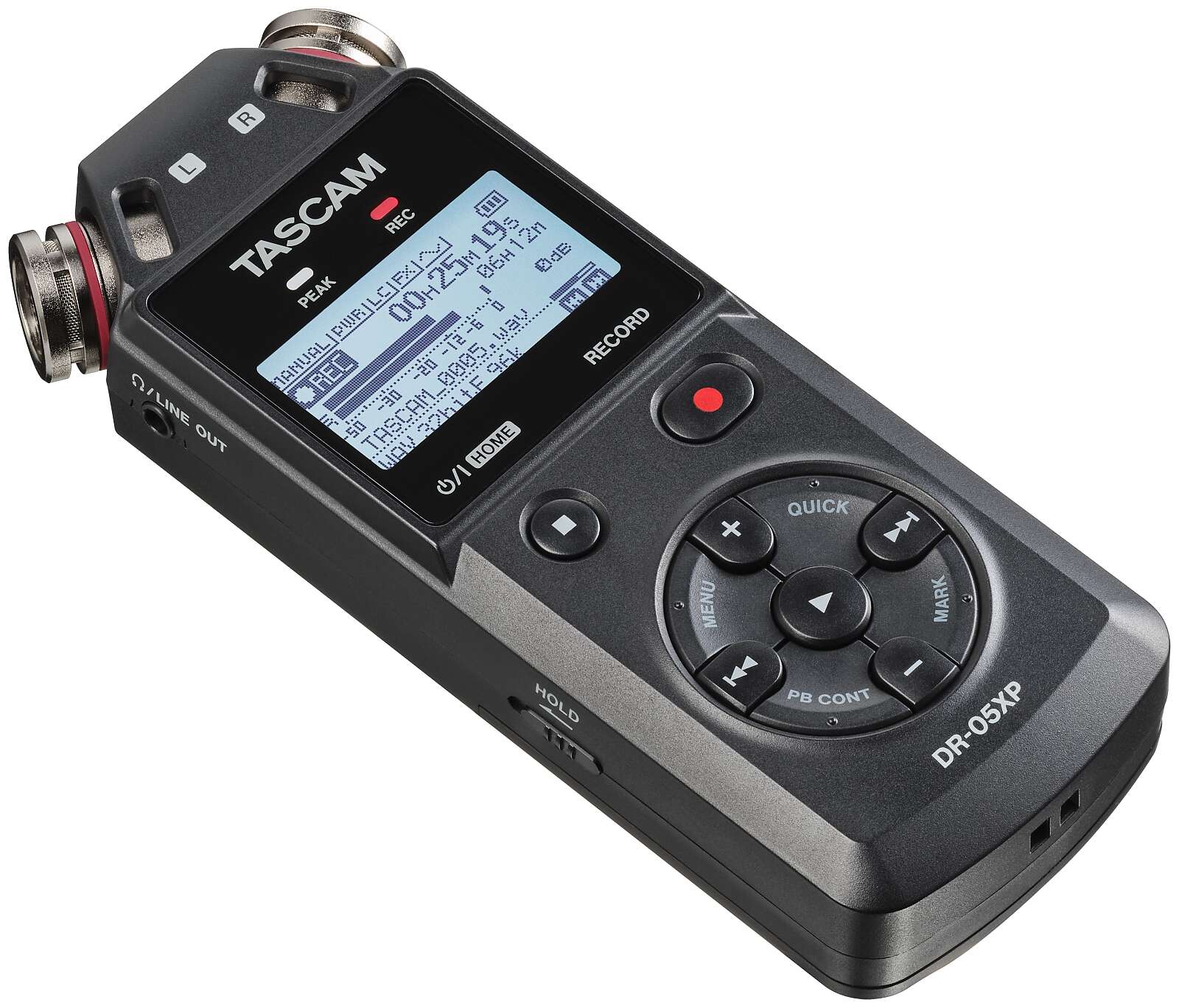

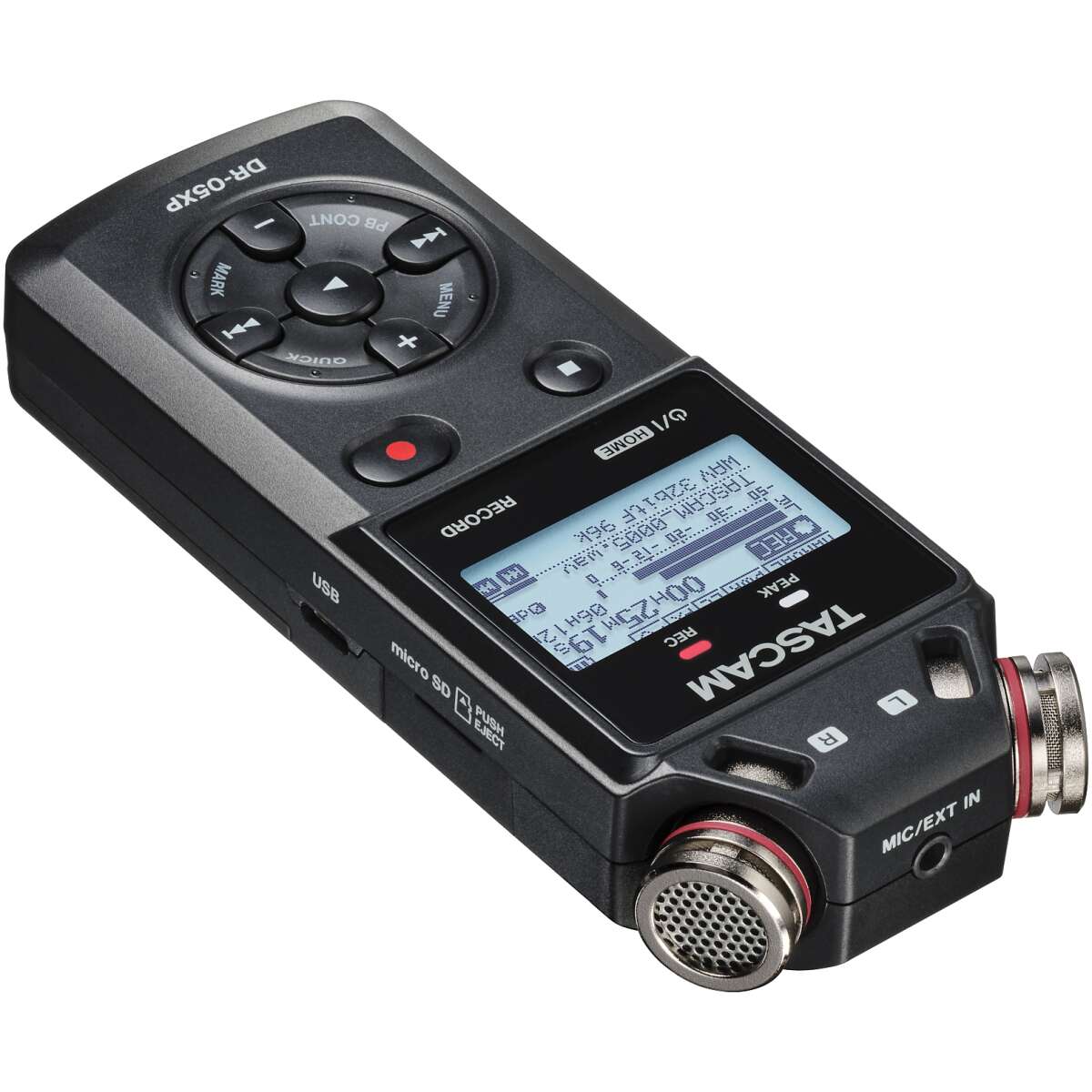

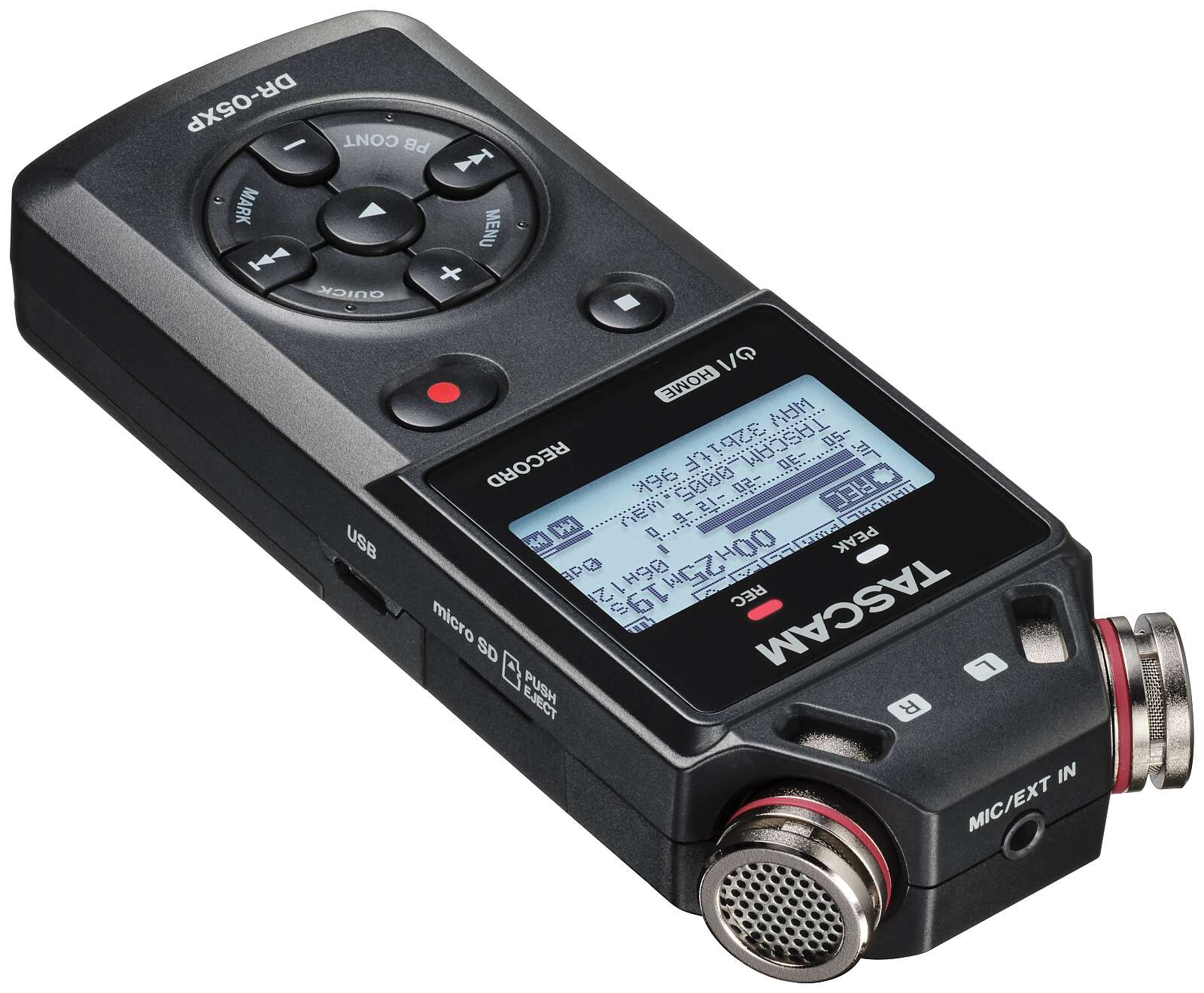

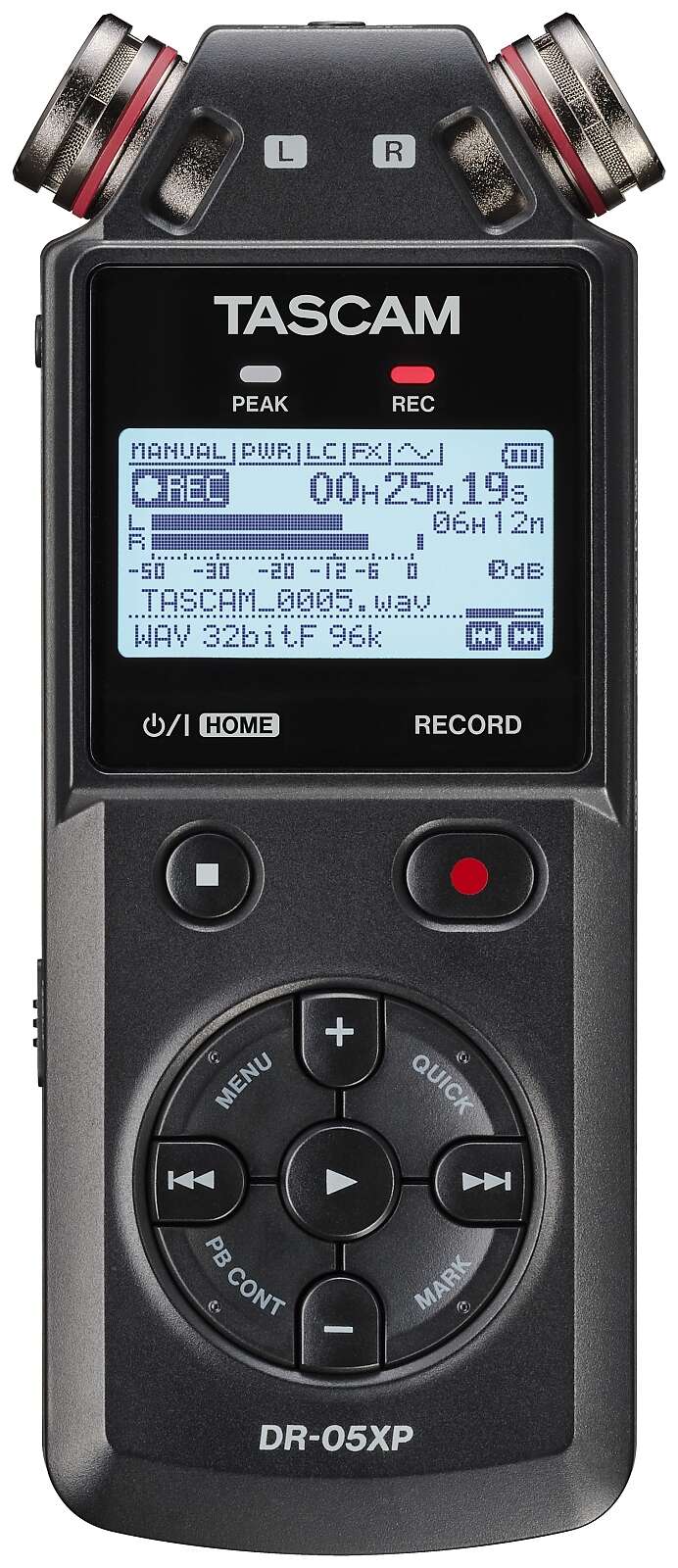

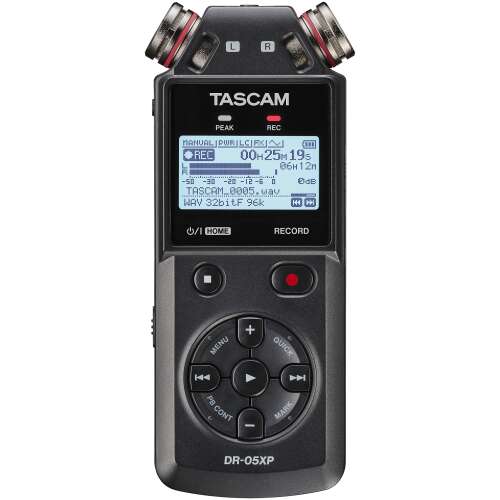

Tascam DR-05XP Stereo Handheld Audio Recorder And USB Audio Interface

This compact stereo audio recorder is designed for high-quality music, speech, interview and field recording. It supports WAV recording at up to 96 kHz with 16-bit, 24-bit or 32-bit float resolution, helping capture detailed audio while reducing the risk of distortion caused by incorrect recording levels.

Recording Media
microSD, microSDHC or microSDXC card, up to 512 GB

Recording and Playback Formats

WAV

• Sampling frequencies: 44.1, 48 and 96 kHz
• Bit depths: 16-bit, 24-bit and 32-bit float

MP3

• Sampling frequencies: 44.1 and 48 kHz
• Bit rates: 32, 64, 96, 128, 192, 256 and 320 kbit/s

Channels

• Input channels: 2-channel stereo
• Recording tracks: 2-channel stereo

Analogue Inputs and Outputs

Microphone/External Input

• Connector: 3.5 mm stereo mini jack
• Plug-in power: Supported
• Input impedance with plug-in power off: 18 kΩ or higher
• Input impedance with plug-in power on: 2 kΩ or higher
• Nominal input level: −20 dBV
• Maximum input level: −4 dBV

Headphone/Line Output

• Connector: 3.5 mm stereo mini jack
• Output impedance: 12 Ω
• Nominal output level: −14 dBV with a 10 kΩ load
• Maximum output level: +2 dBV with a 10 kΩ load
• Maximum output power: 20 mW + 20 mW with a 32 Ω load
• Supported headphone impedance: 16–250 Ω

Built-in Speaker

• Output power: 0.3 W
• Configuration: Mono

USB Connectivity

• Connector: USB Type-C
• USB 2.0 High-Speed mass-storage class
• USB 1.1 Full-Speed audio class

USB Audio

• Sampling frequencies: 44.1 and 48 kHz
• Bit depth: 24-bit
• Audio inputs: 2 channels
• Audio outputs: 2 channels

Audio Performance

Frequency Response

• 20 Hz–20 kHz, +0/−1 dB at 44.1 kHz
• 20 Hz–22 kHz, +0/−1 dB at 48 kHz
• 20 Hz–40 kHz, +0/−1.5 dB at 96 kHz

Total Harmonic Distortion and Noise

• THD+N: 0.01% or less

Measurements conform to the JEITA CP-2150 standard.

Power Supply

• Two AA alkaline or NiMH batteries, sold separately
• USB bus power from a computer
• Compatible AC adapter: TASCAM PS-P520U, sold separately
• Adapter power requirement: DC 5 V, 2 A
