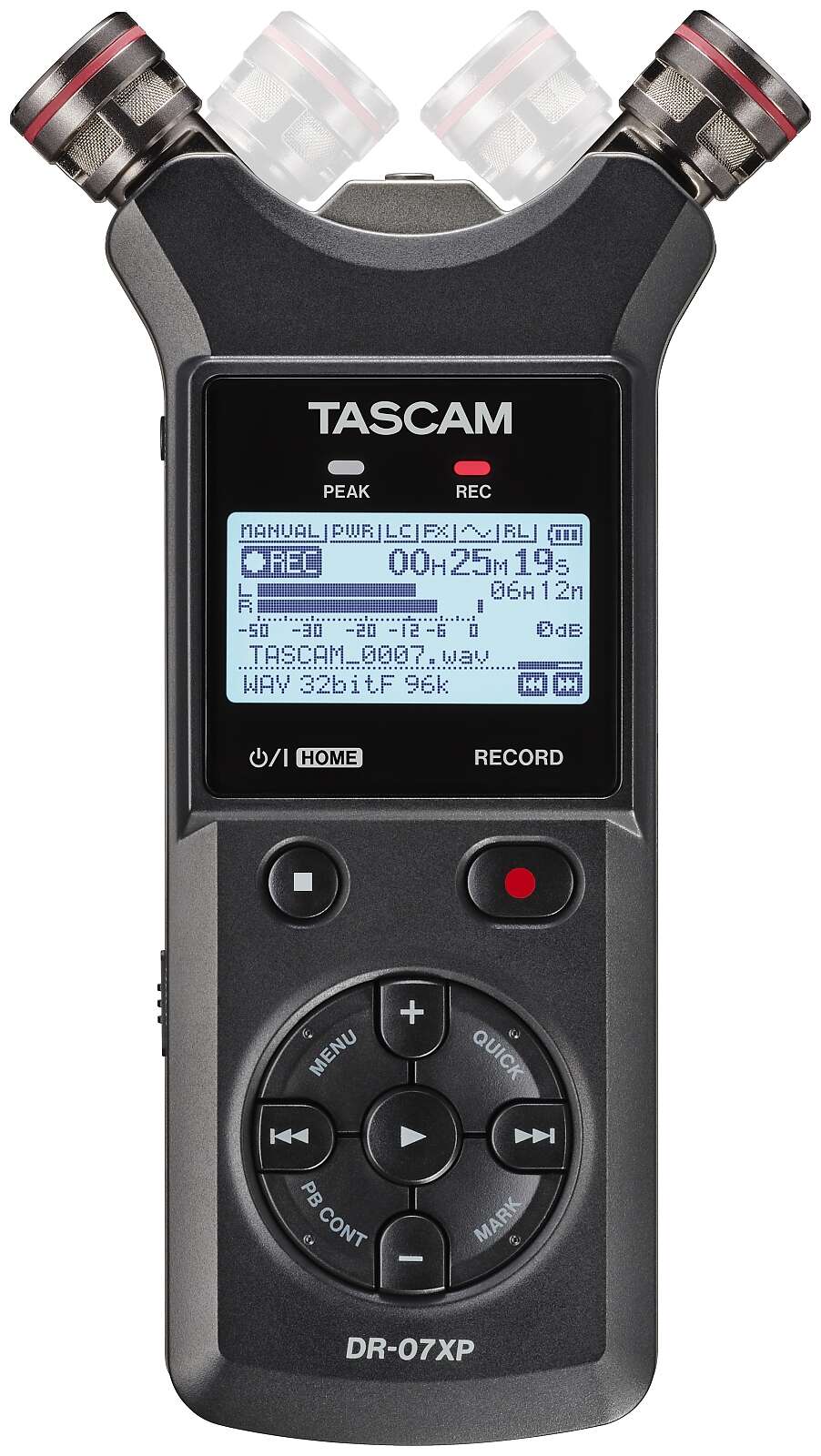

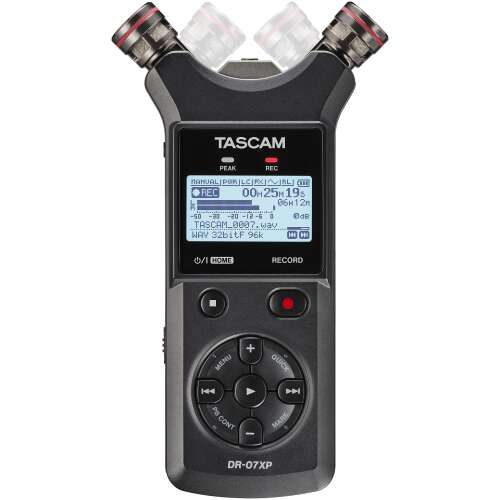

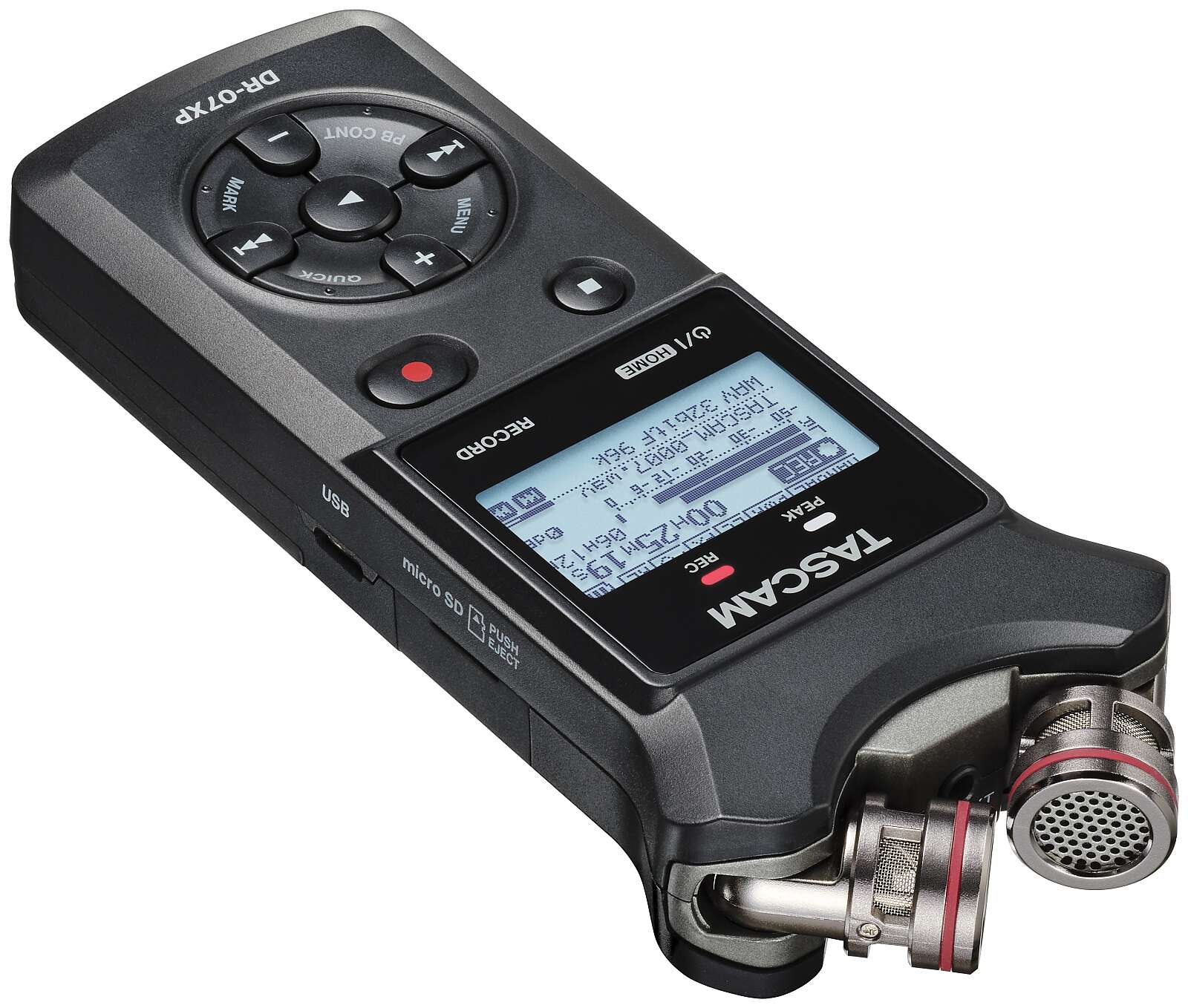

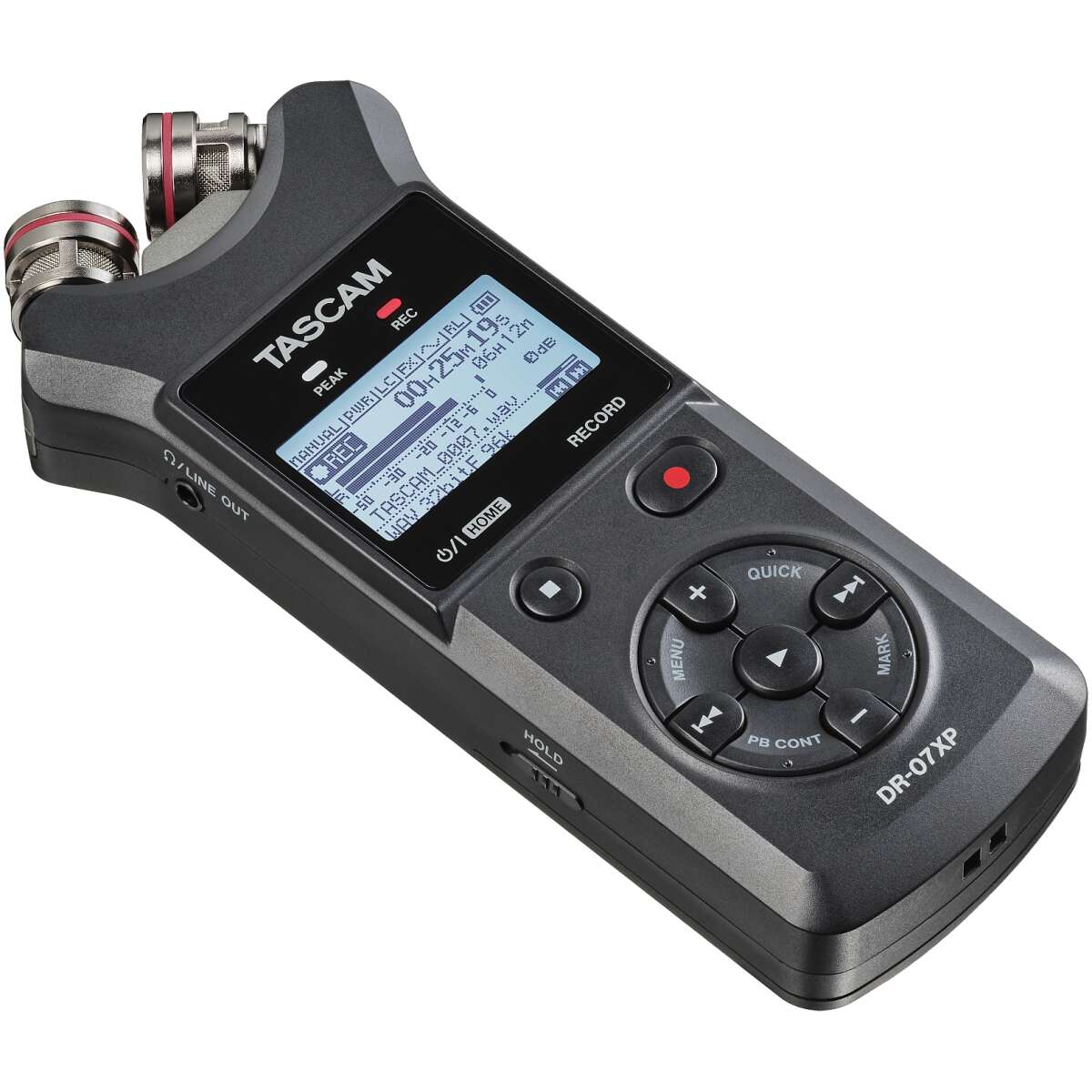

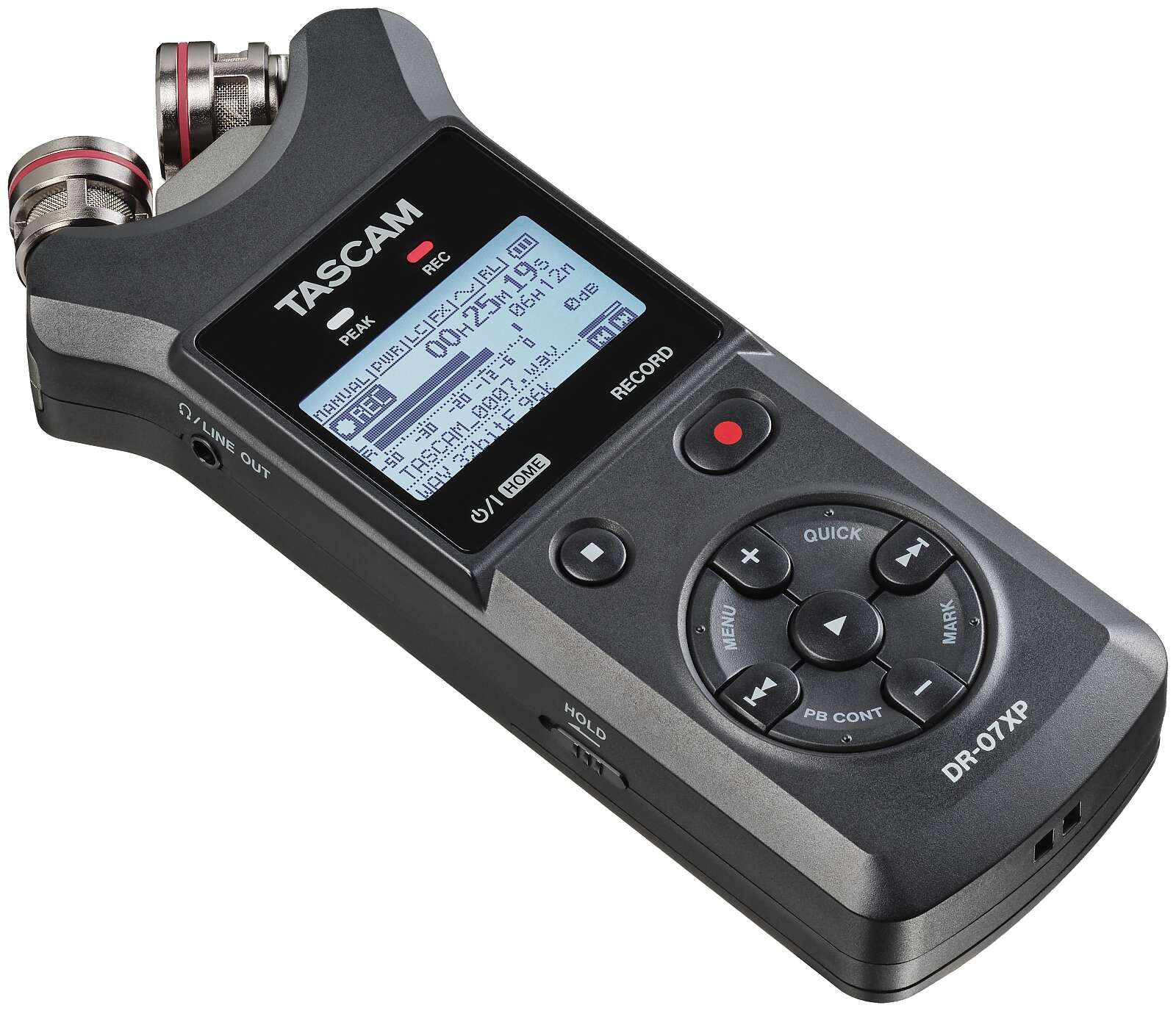

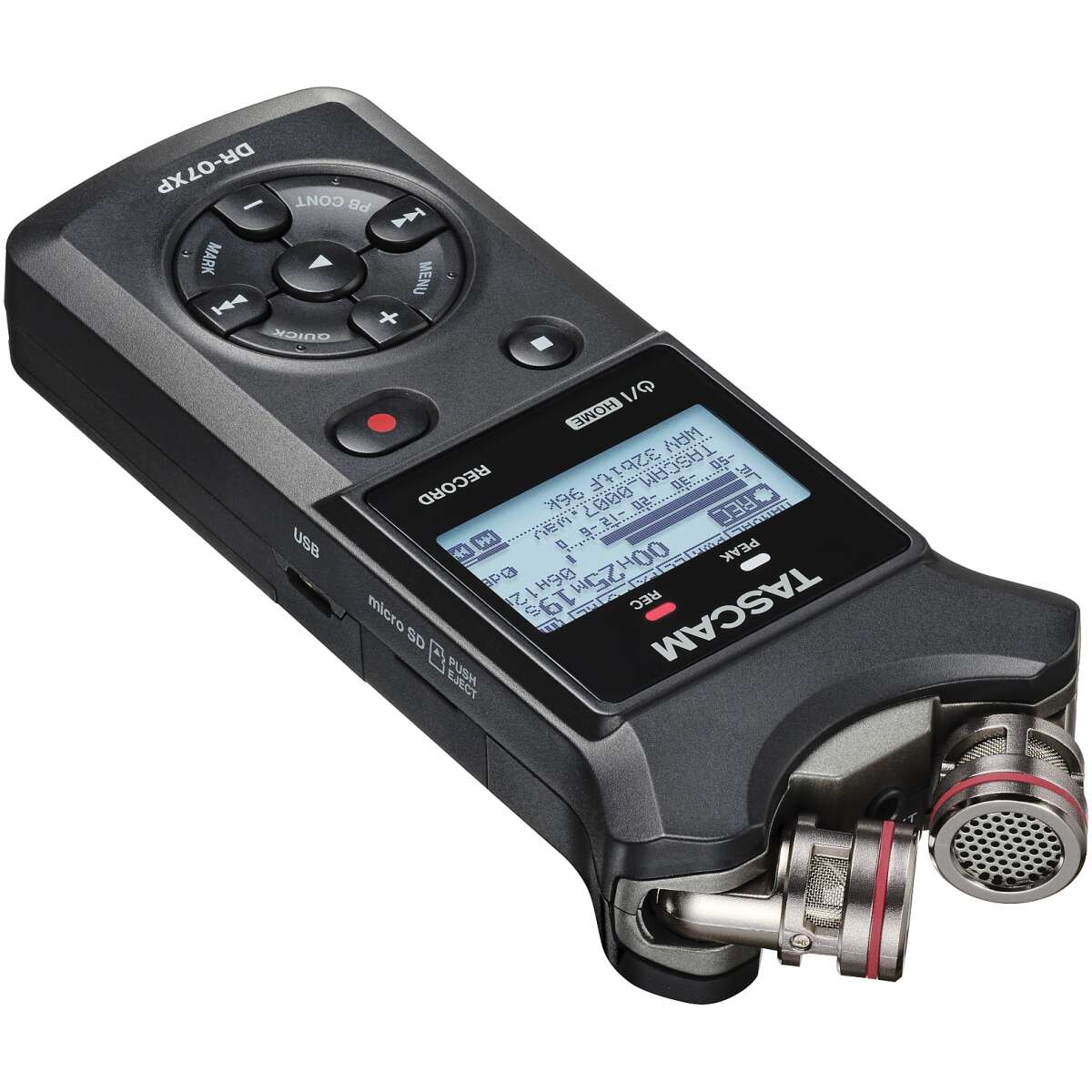

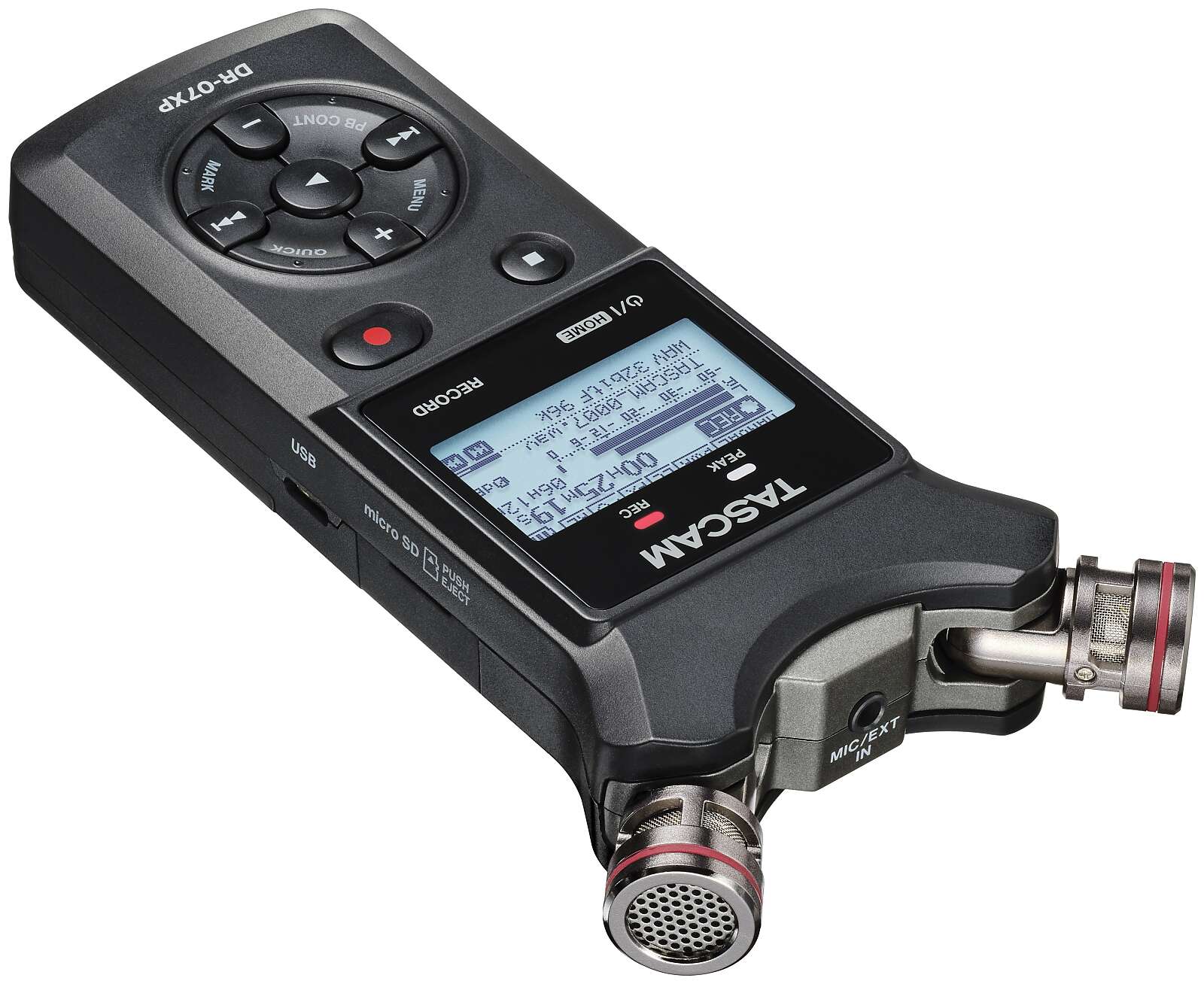

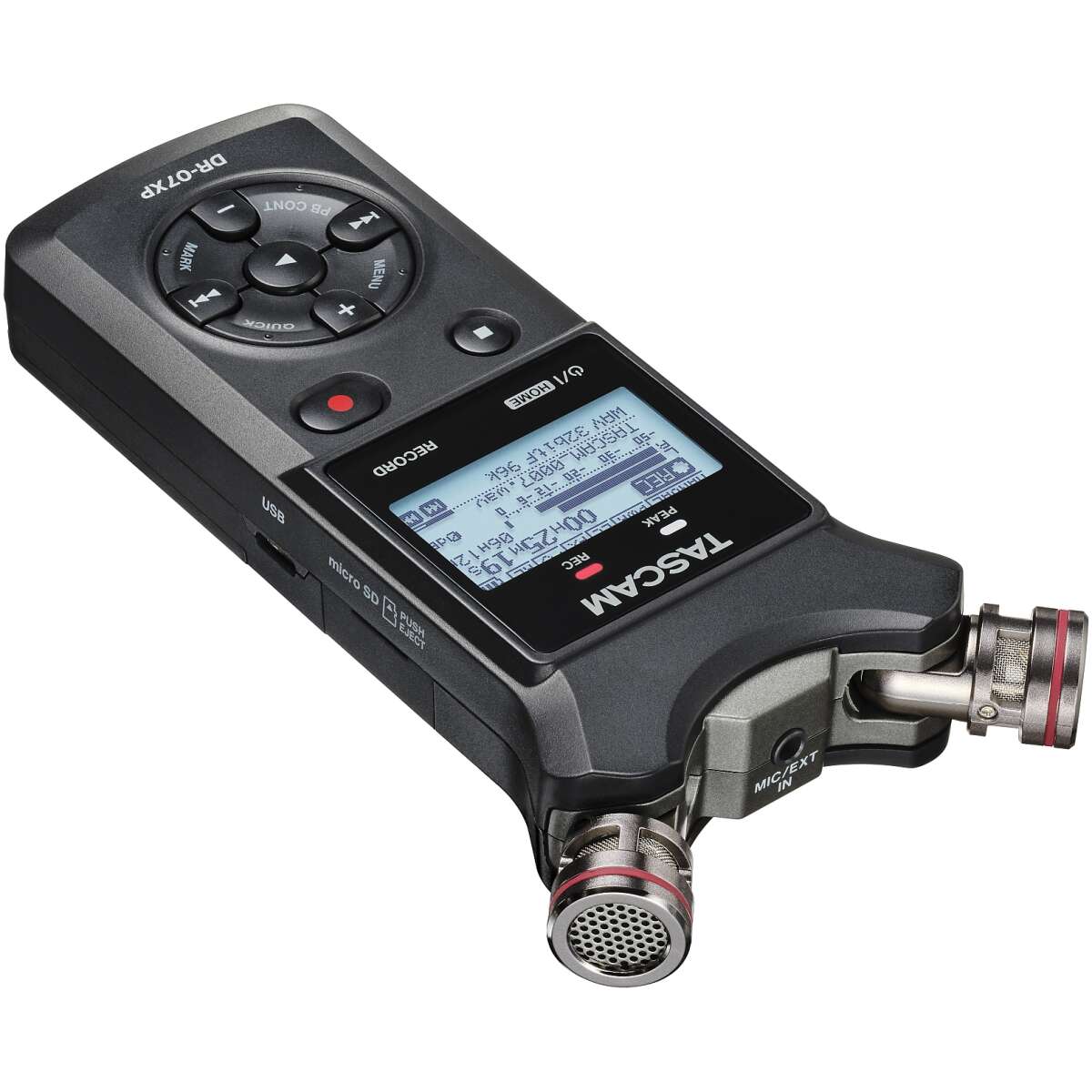

Tascam DR-07XP Stereo Handheld Audio Recorder With USB Audio Interface And Adjustable Microphones

General

Recording Media: microSD, microSDHC or microSDXC card, up to 512 GB

Recording and Playback Formats:

WAV:

• Sampling Frequencies: 44.1 kHz, 48 kHz or 96 kHz
• Bit Depth: 16-bit, 24-bit or 32-bit float

MP3:

• Sampling Frequencies: 44.1 kHz or 48 kHz
• Bit Rates: 32, 64, 96, 128, 192, 256 or 320 kbps

Input Channels: 2-channel stereo
Recording Tracks: 2-channel stereo

Analogue Inputs and Outputs

Microphone/External Input:

• Connector: 3.5 mm stereo mini jack
• Plug-in Power: Supported
• Input Impedance: ≥18 kΩ with plug-in power off
• Input Impedance: ≥2 kΩ with plug-in power on
• Nominal Input Level: −20 dBV
• Maximum Input Level: −4 dBV

Headphone/Line Output:

• Connector: 3.5 mm stereo mini jack
• Output Impedance: 12 Ω
• Nominal Output Level: −14 dBV with a 10 kΩ load
• Maximum Output Level: +2 dBV with a 10 kΩ load
• Maximum Output Power: 20 mW + 20 mW with a 32 Ω load
• Compatible Headphone Impedance: 16–250 Ω

Built-in Loudspeaker:

• Output Power: 0.3 W mono

USB Connectivity

Connector: USB Type-C

USB Modes:

• USB 2.0 High-Speed mass-storage class
• USB 1.1 Full-Speed audio class

USB Audio:

• Sampling Frequencies: 44.1 kHz or 48 kHz
• Bit Depth: 24-bit
• Audio Inputs: 2 channels
• Audio Outputs: 2 channels

Audio Performance

Frequency Response:

• 20 Hz–20 kHz, +0/−1 dB at 44.1 kHz
• 20 Hz–22 kHz, +0/−1 dB at 48 kHz
• 20 Hz–40 kHz, +0/−1.5 dB at 96 kHz

Measured from microphone/external input to line output according to JEITA CP-2150.

Total Harmonic Distortion and Noise:

• ≤0.01% at 44.1, 48 or 96 kHz

Power Supply

• 2 × AA alkaline or NiMH batteries, sold separately
• USB bus power from a computer
• TASCAM PS-P520U AC adapter, sold separately
• Adapter Rating: DC 5 V, 2 A
• Maximum Power Consumption: 1.7 W
• Maximum Current Consumption: 5 V, 0.5 A
