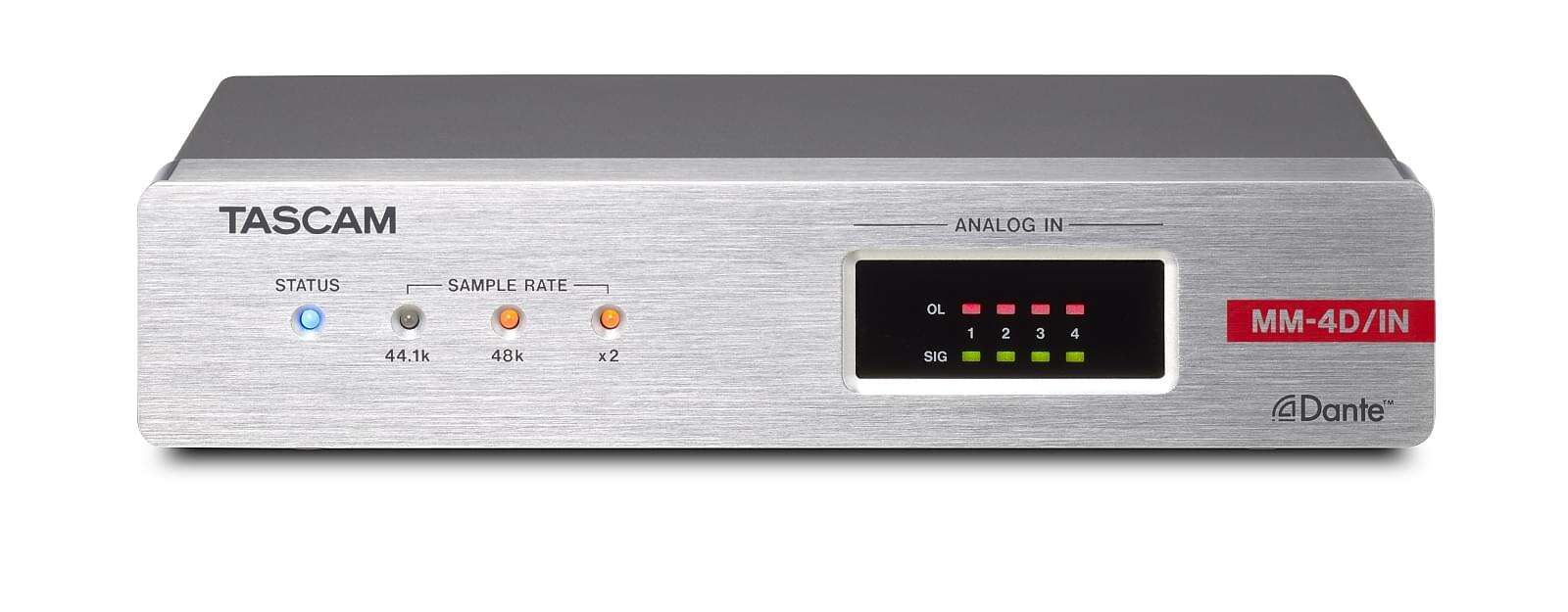

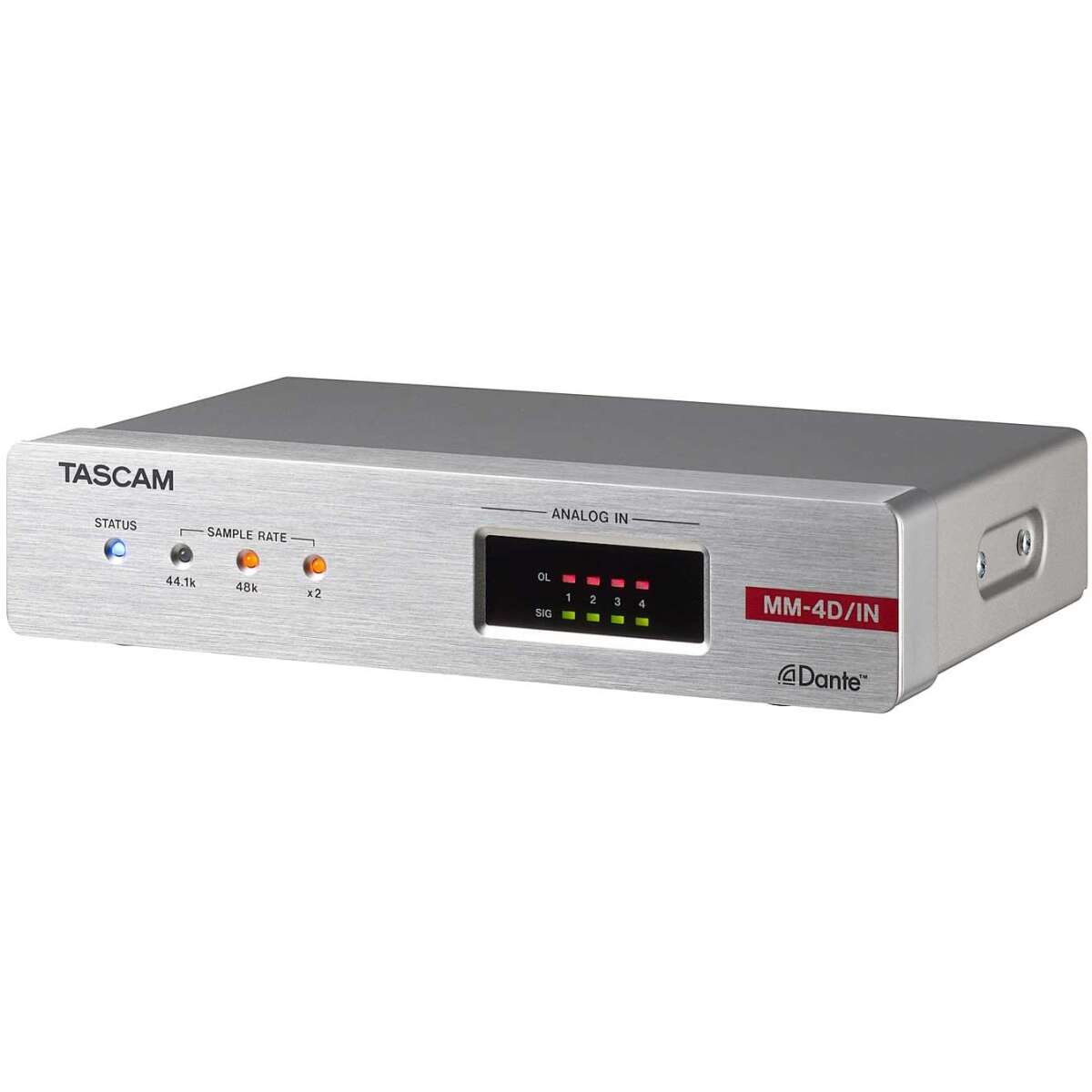

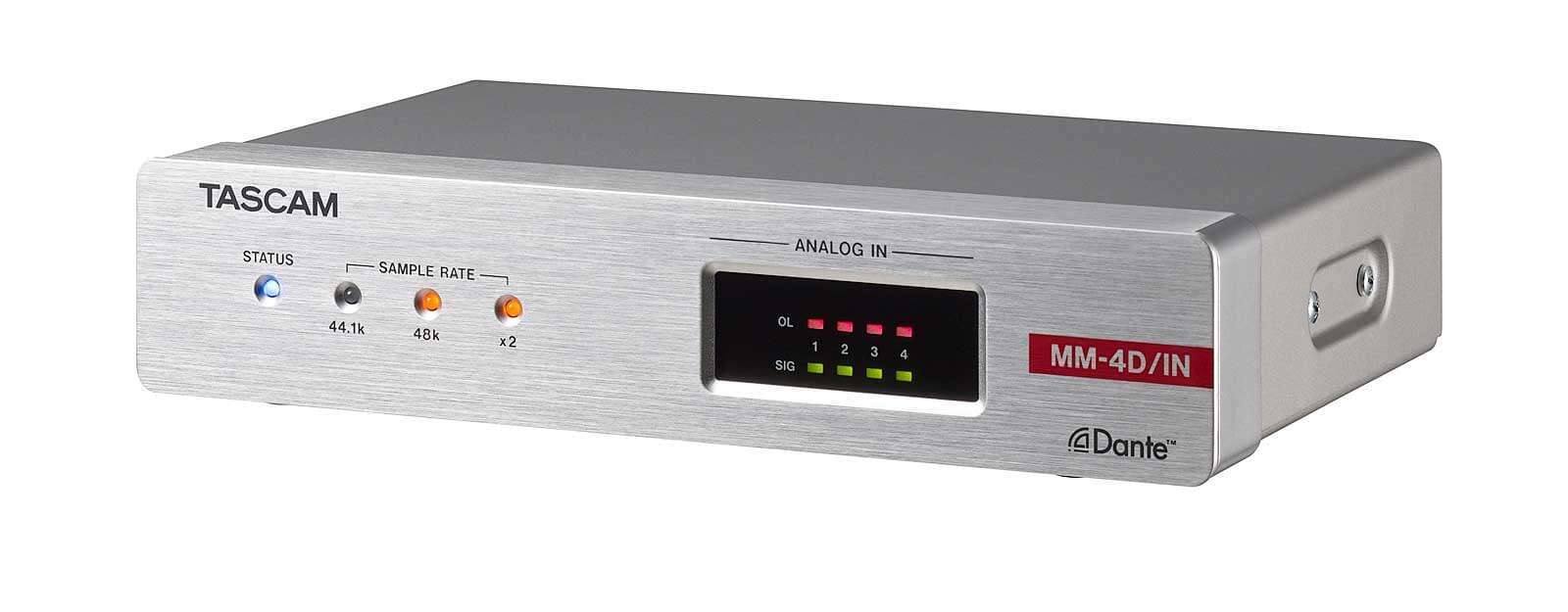

The TASCAM MM-4D/IN is a compact professional converter that converts four balanced analogue microphone or line-level inputs into Dante network audio.

It also receives four Dante input channels and includes an 8-input/4-output DSP matrix mixer, allowing the four analogue inputs and four Dante sources to be mixed, processed and routed to four Dante output channels.

Available Versions

MM-4D/IN-E

• Four balanced Euroblock microphone/line inputs
• External switch and LED-control connections
• Designed primarily for permanent installations

MM-4D/IN-X

• Four balanced female XLR microphone/line inputs
• Designed for systems requiring standard XLR connections

Both models provide the same Dante networking, DSP mixing, audio conversion and PoE capabilities.

Key Features

• Four balanced analogue mic/line inputs
• Four Dante input channels
• Four Dante output channels
• Built-in 8-input/4-output DSP matrix mixer
• Individually switchable 48V phantom power
• Remotely adjustable microphone gain
• Maximum resolution of 96 kHz/24-bit
• Input EQ, compression and automatic level control
• Automatic ducking
• Ambient Noise Compensator
• Output EQ, delay and limiting
• Up to 50 scene presets
• Dante AES67 mode
• Dante Domain Manager compatibility
• Gigabit Ethernet
• Dante daisy-chain support
• Power over Ethernet
• Optional AC-adapter operation
• Compact half-rack enclosure
• Installation brackets included

Channel Configuration

Analogue inputs:

• Four balanced mic/line channels

Dante audio:

• Four Dante input channels
• Four Dante output channels

Internal mixer:

• Eight input sources
• Four output mixes

The eight mixer sources consist of the four analogue mic/line inputs and four Dante input channels. These sources can be combined into four independently configured mixes and routed to the Dante outputs.

Analogue Inputs

MM-4D/IN-E

• Four balanced Euroblock connectors
• 3.81 mm terminal pitch

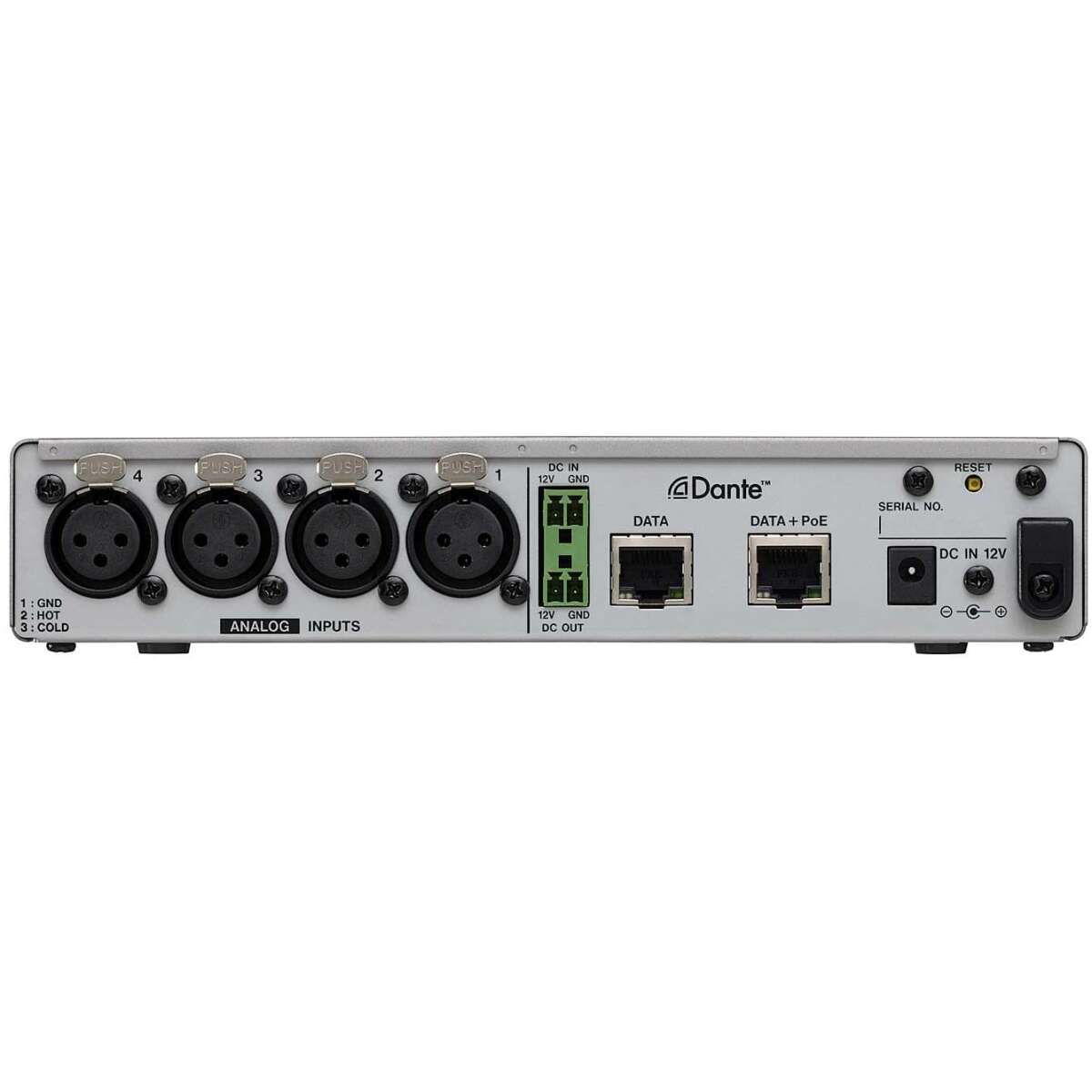

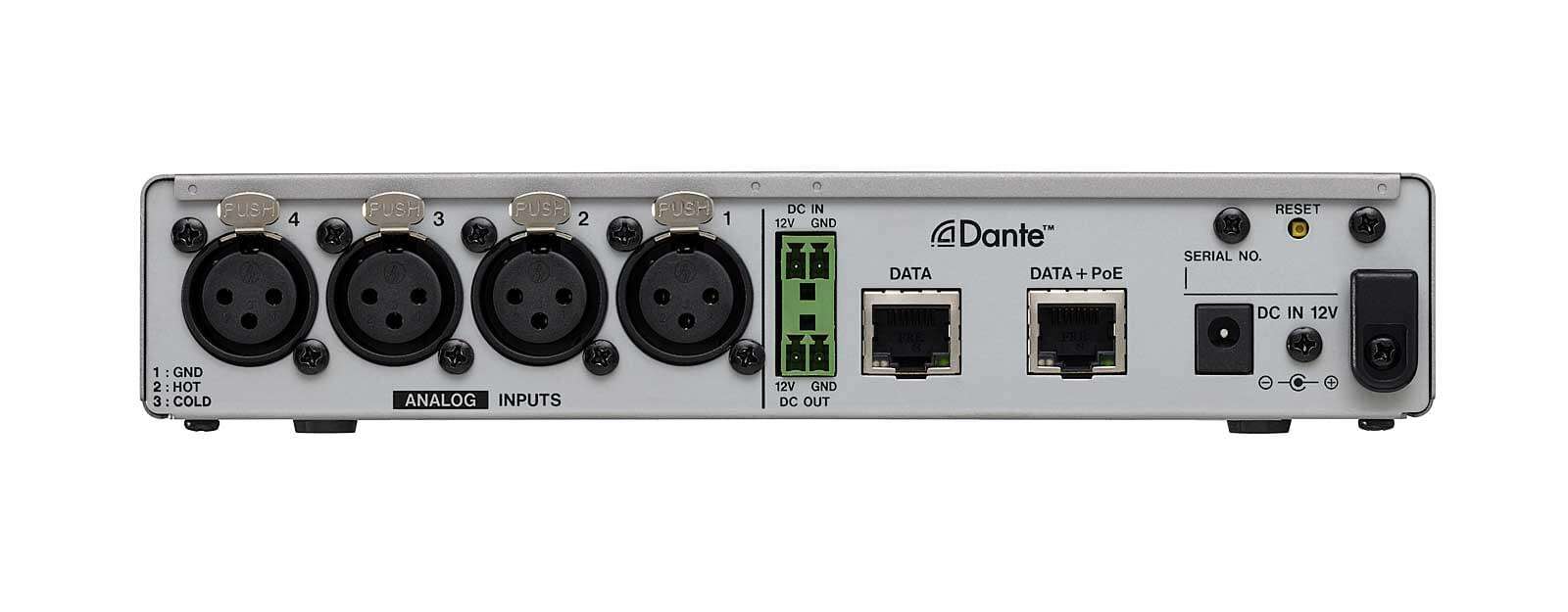

MM-4D/IN-X

• Four XLR-3-31 female connectors
• Pin 1: Ground
• Pin 2: Hot
• Pin 3: Cold

Input specifications:

• Minimum input level: −70 dBu
• Maximum input level: +26 dBu
• Input impedance: 2 kΩ or higher
• Phantom power: 48V
• Input type: Microphone or line level

Input DSP Processing

Available input processing includes:

• Microphone or line selection
• Microphone preamp gain
• Input trim
• Individually switchable phantom power
• Phase inversion
• Four-band equaliser
• Compressor
• Automatic level control
• Digital fader
• Mute

These settings can be configured remotely through TASCAM DCP Connect.

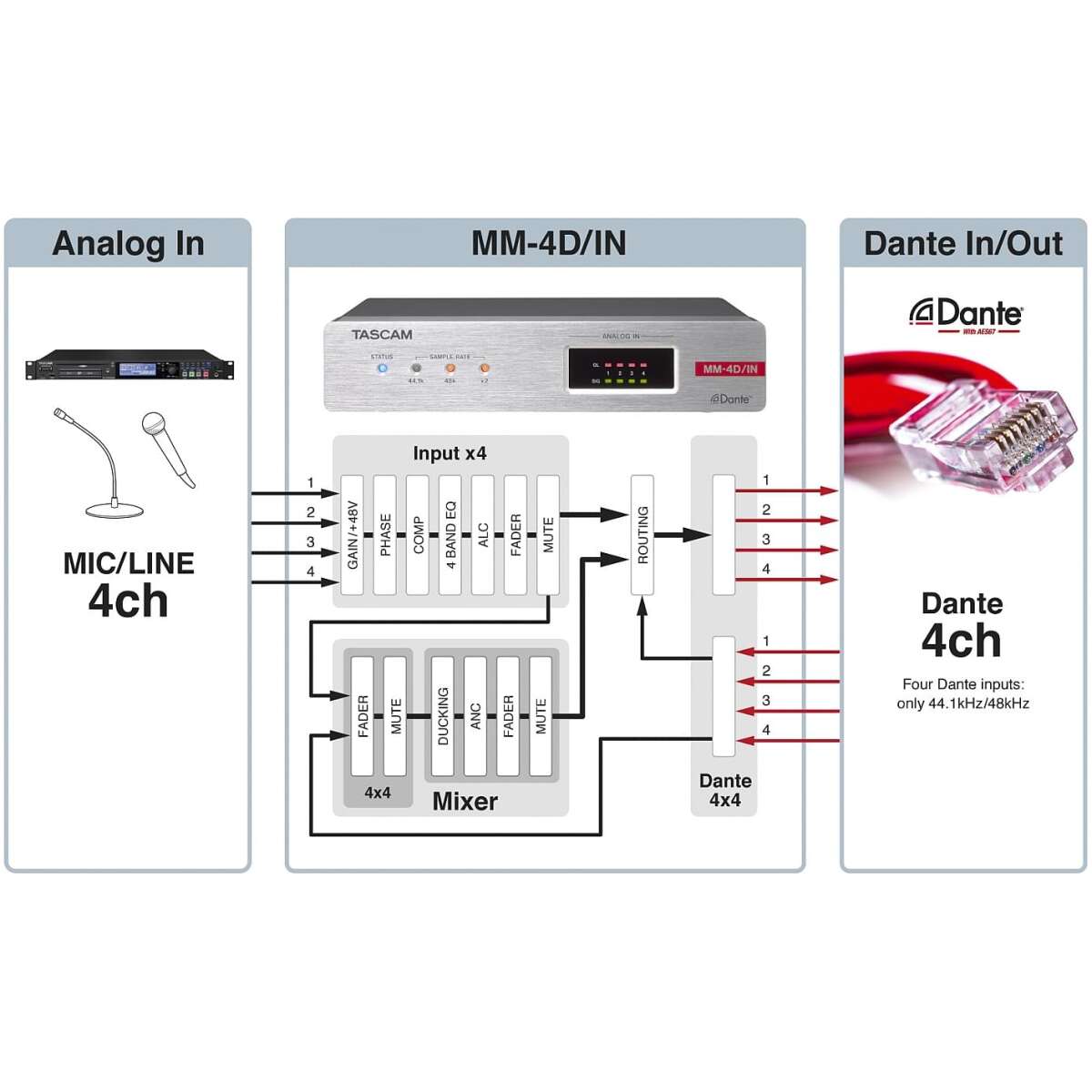

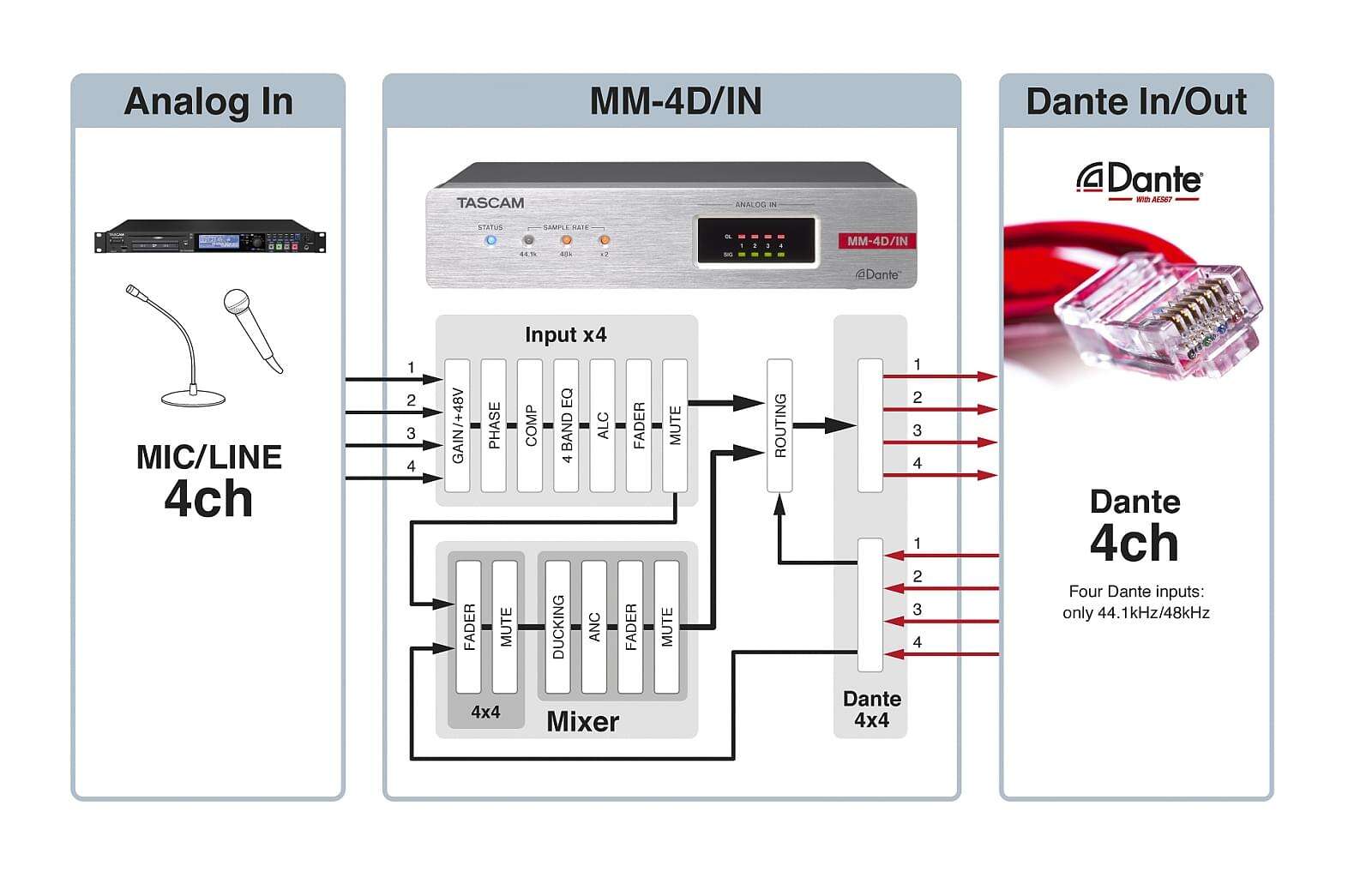

DSP Matrix Mixer

The built-in 8-input/4-output matrix mixer can combine:

• Analogue Inputs 1–4
• Dante Inputs 1–4
