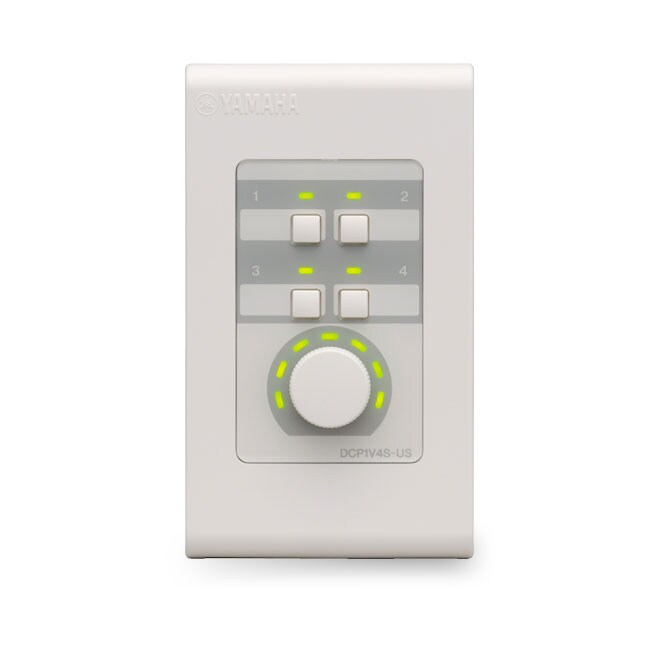

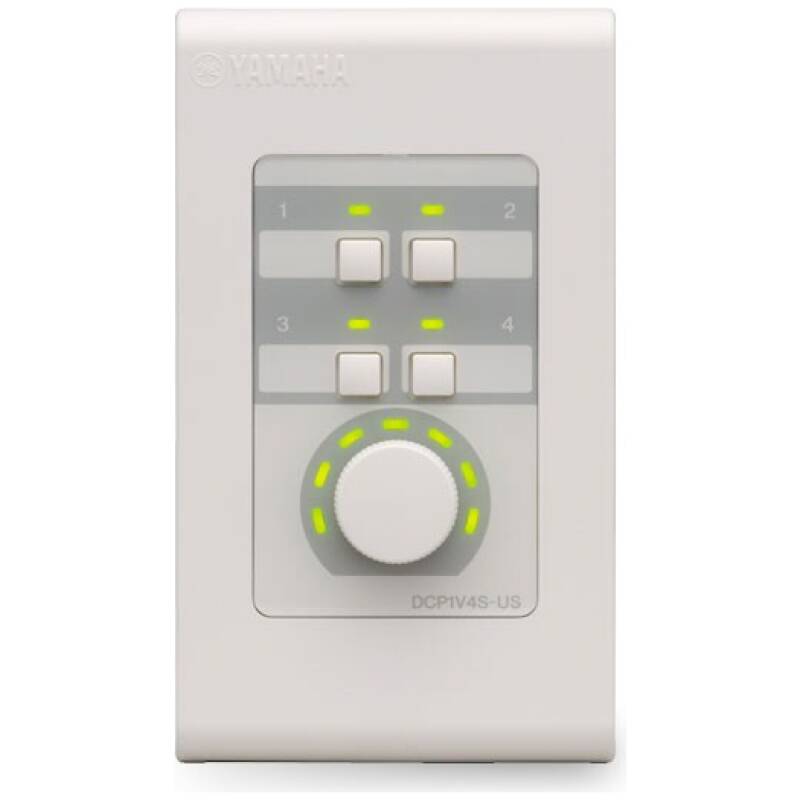

Yamaha DCP1V4S-EU //Y Digital Control Panel

The Yamaha DCP1V4S-EU is a compact wall-mounted control panel designed for simple and intuitive control of Yamaha MTX and MRX system processors. Ideal for commercial audio installations, it allows users to adjust volume and control system functions without needing access to the main DSP or amplifier.

Featuring one rotary volume knob and four programmable buttons, the DCP1V4S provides flexible control for source selection, preset recall, mute functions, and more. Its clean and minimal design makes it suitable for installation in retail spaces, restaurants, classrooms, and corporate environments.

Powered and connected via a single network cable, the DCP1V4S integrates seamlessly into Yamaha’s control ecosystem.

Key Features

• Wall-mounted control panel for Yamaha MTX/MRX systems
• 1 rotary volume control
• 4 programmable control buttons
• Customizable functions (source select, mute, presets)
• Clean and professional design
• Simple user interface
• Easy installation with single cable connection

Technical Specifications

General

• Product Type: Wall control panel
• Colour: White (EU version)
• Controls:
  • 1 × Volume knob
  • 4 × Programmable buttons

Control Functions

• Volume control
• Source selection
• Preset recall
• Mute / unmute
• Custom assignable functions

Connectivity

• Control connection via Yamaha system network
• Powered via connected system (no external PSU required)
