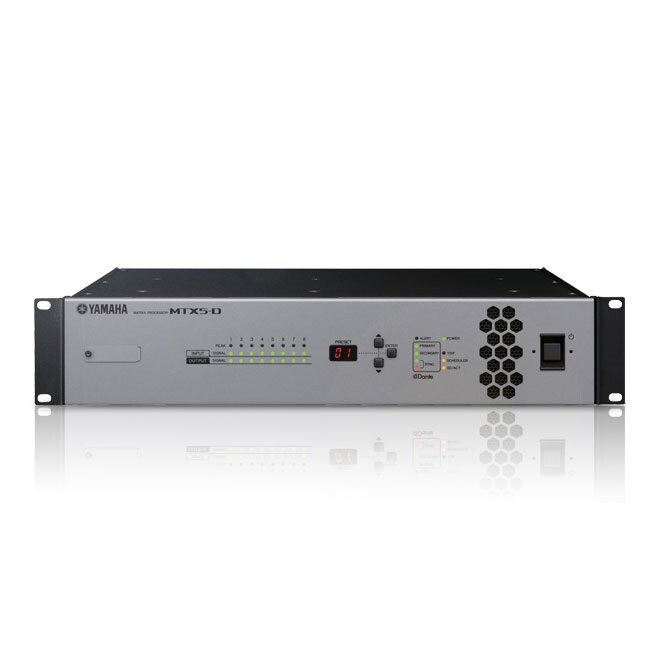

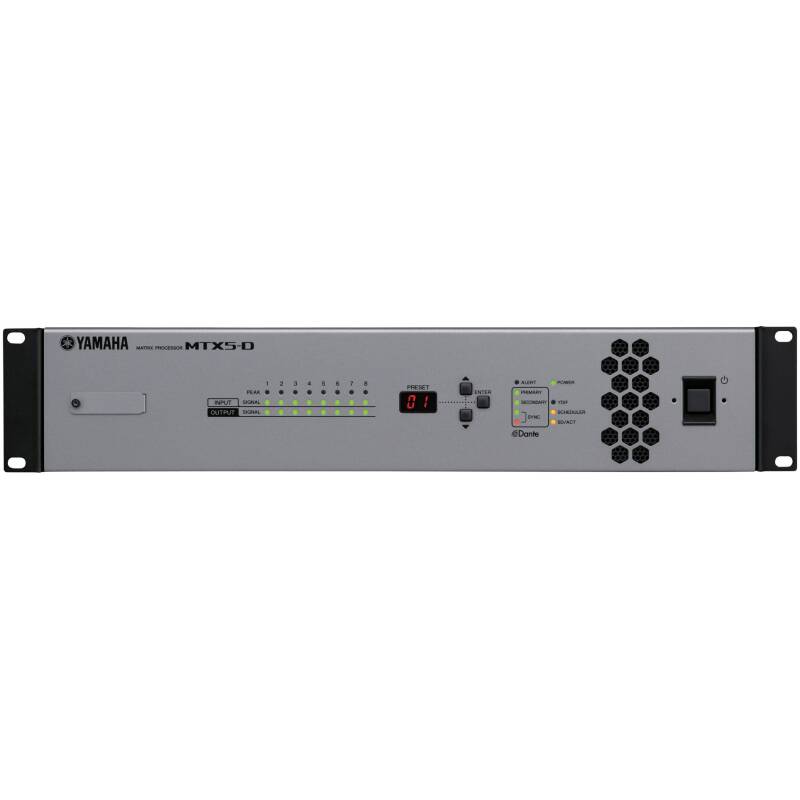

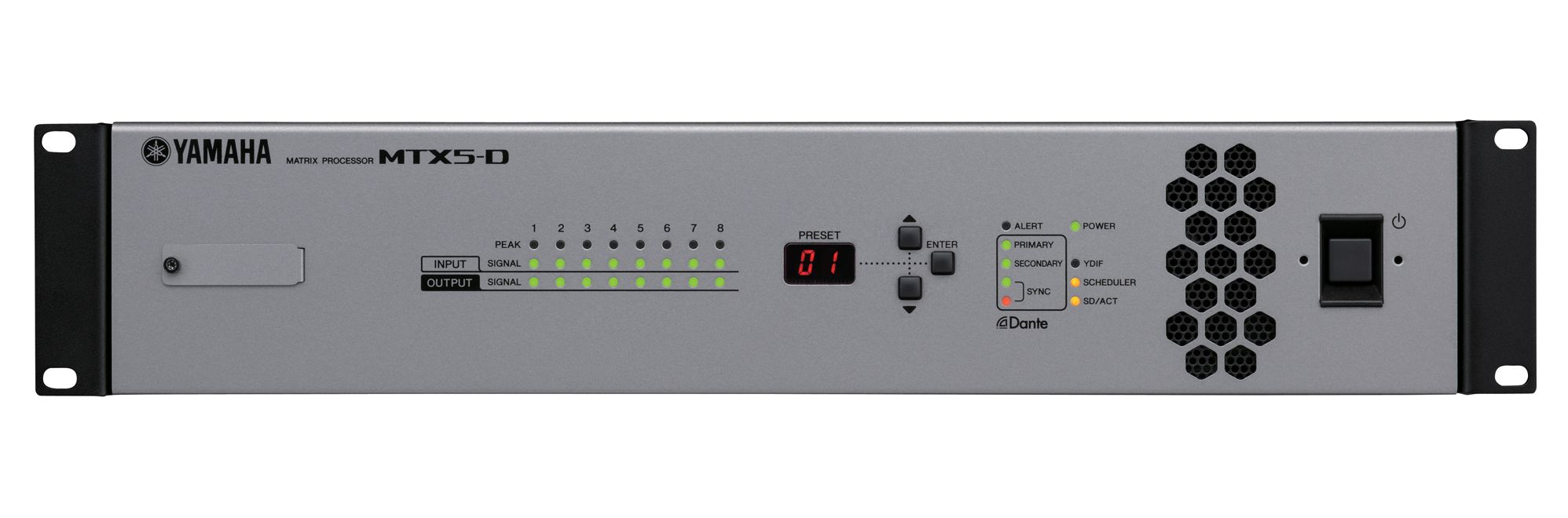

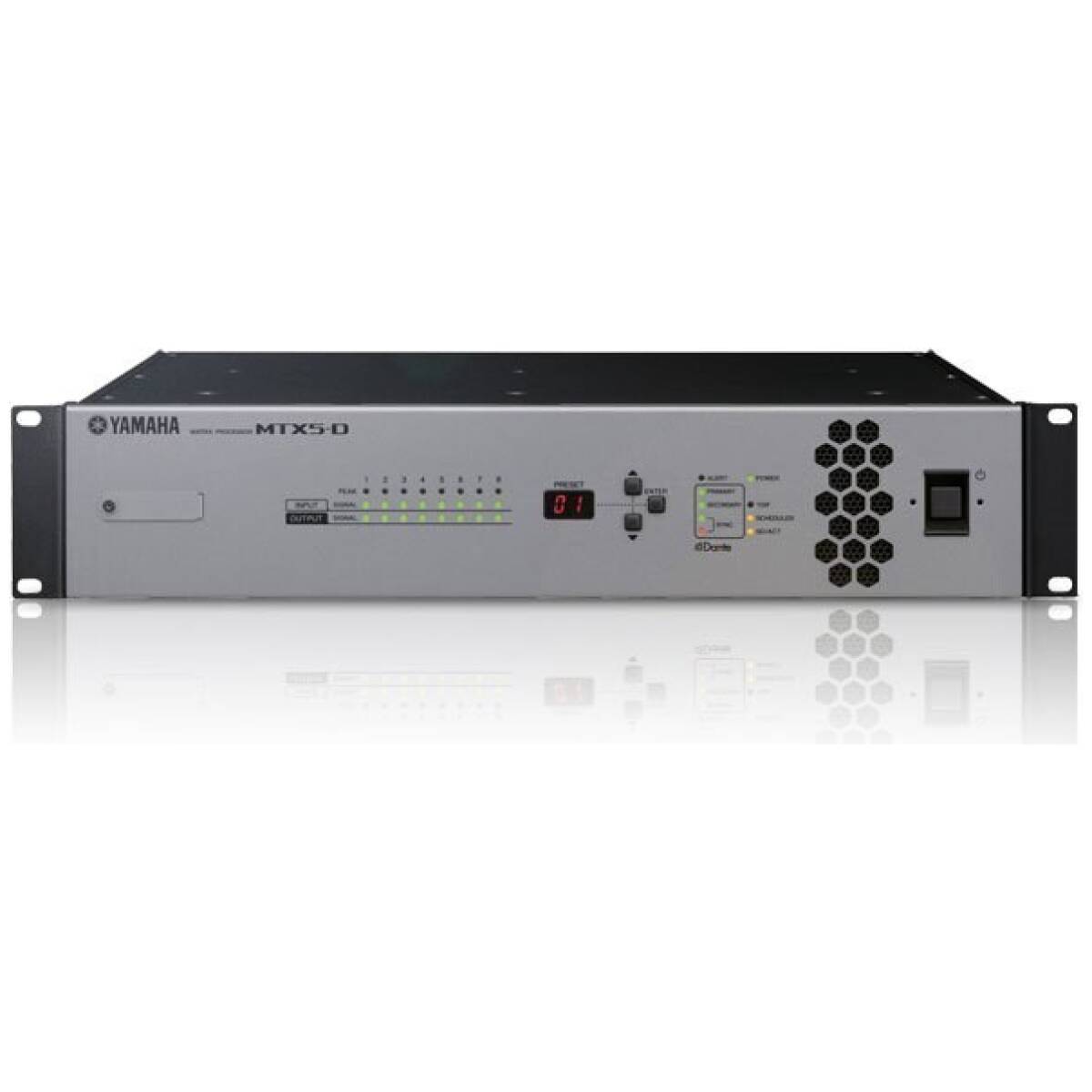

Yamaha MTX5-D //E Matrix Processor

The Yamaha MTX5-D is a high-performance matrix processor designed for advanced multi-zone and networked audio systems. With a powerful 34 × 16 matrix architecture, it enables flexible routing, mixing, and processing of multiple audio sources across large and complex installations.

Equipped with 8 mic/line inputs, 8 analog outputs, and extensive digital connectivity—including 16 channels of Dante and 16 channels of YDIF—the MTX5-D is ideal for scalable AV systems in corporate, hospitality, education, and worship environments.

A built-in SD card slot allows playback of announcements or background music, while the MY card expansion slot provides additional flexibility for system integration. Combined with Yamaha’s advanced DSP processing and MTX Editor software control, the MTX5-D serves as the central control hub for professional audio installations.

Key Features

• 34 × 16 matrix mixer and signal processor
• 8 mic/line inputs and 8 analog outputs
• 16-channel Dante digital I/O
• 16-channel YDIF digital I/O
• MY card slot for expansion
• SD card playback for BGM and announcements
• Advanced DSP: EQ, dynamics, feedback suppression
• Network control via MTX Editor software
• Designed for large, multi-zone installations

Technical Specifications

Matrix & Processing

• Matrix Size: 34 inputs × 16 outputs
• DSP Processing:
  • Parametric EQ
  • Dynamics processing
  • Feedback suppression
  • Signal routing and mixing

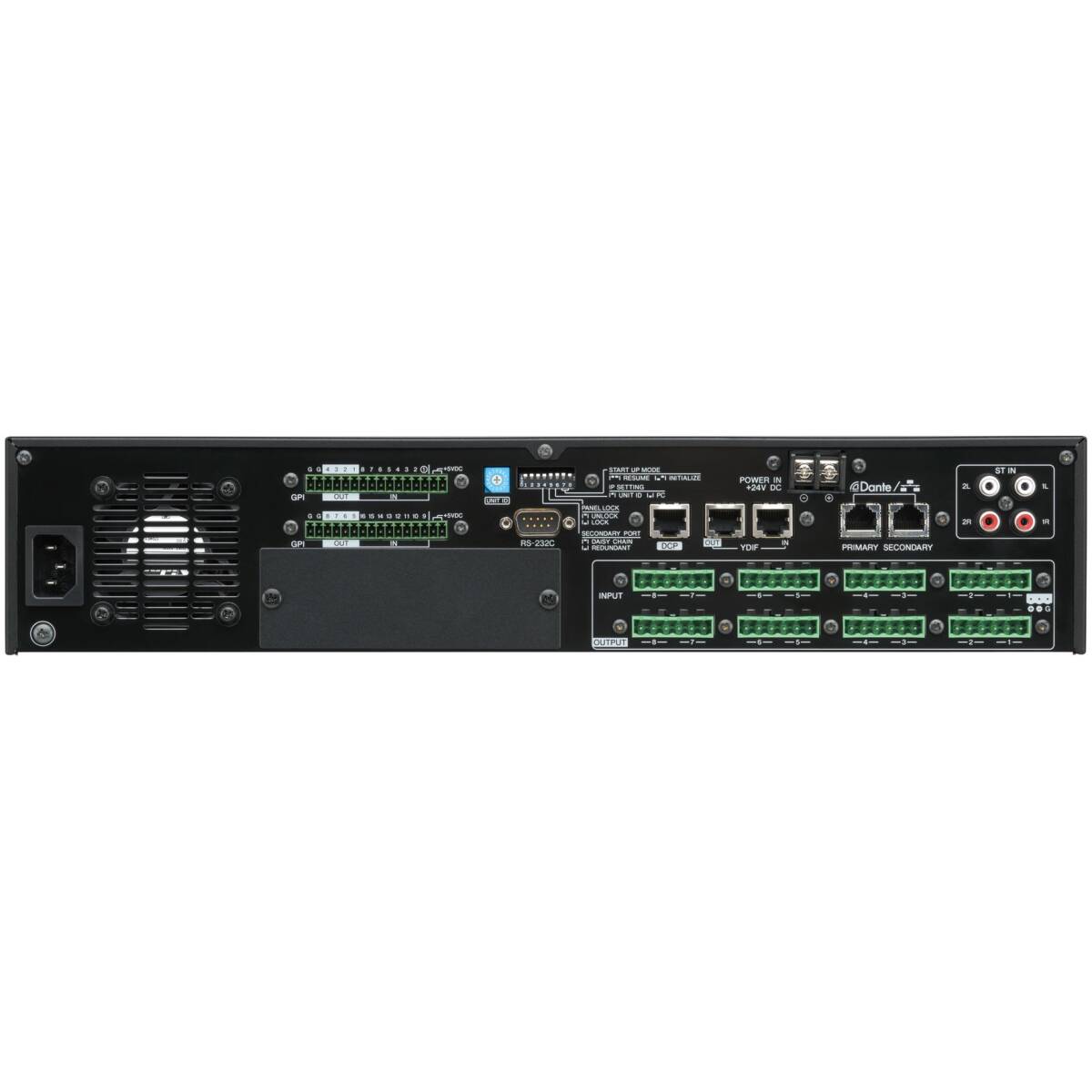

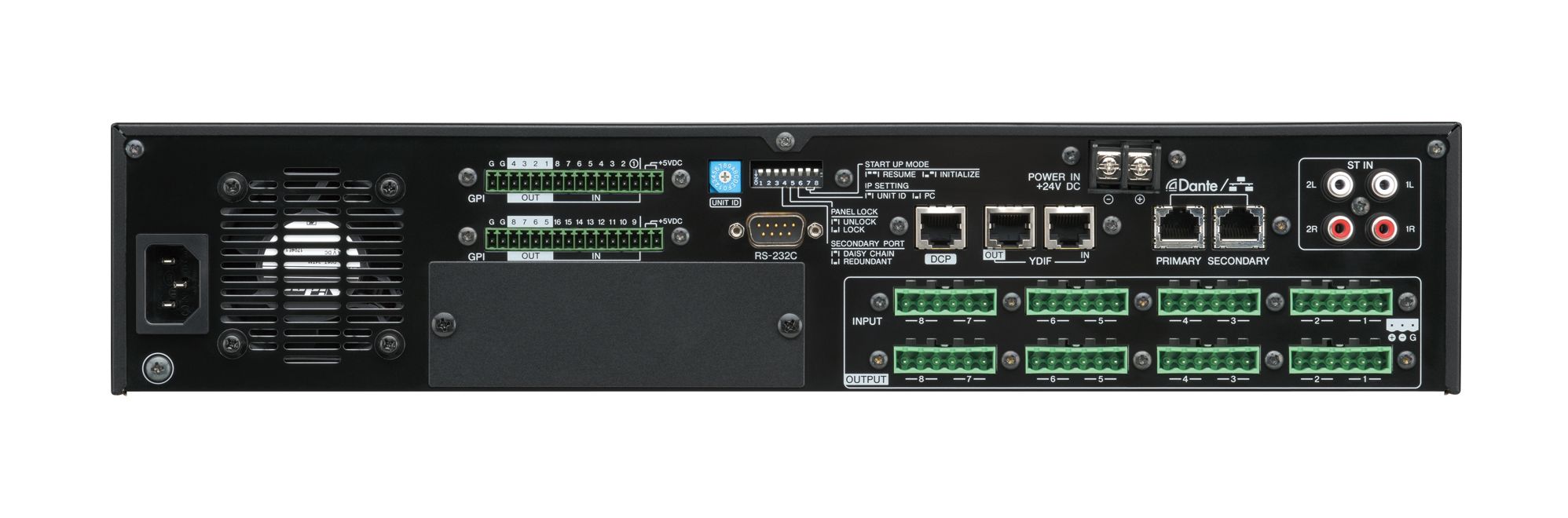

Inputs / Outputs

• Analog Inputs: 8 mic/line inputs
• Analog Outputs: 8 line outputs
• Digital I/O:
  • 16 channels Dante
  • 16 channels YDIF

Expansion

• 1 × MY card slot for additional I/O or system integration

Playback

• SD card slot for audio playback (background music / announcements)

Control & Networking

• Ethernet control
• MTX Editor software
• Compatible with Yamaha control panels

General

• Rack Size: 1U
• Installation: Rack mount
• Power Supply: AC mains
