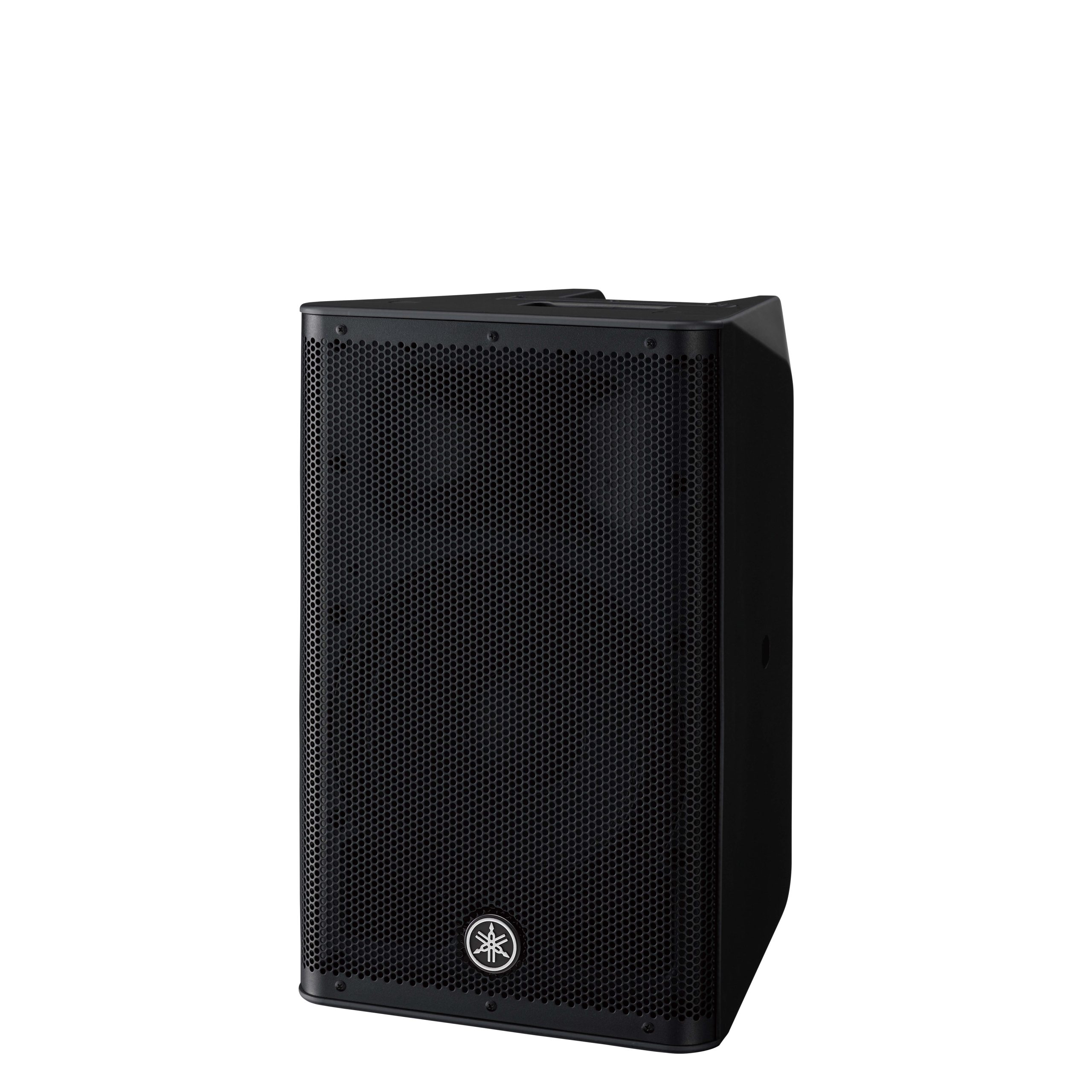

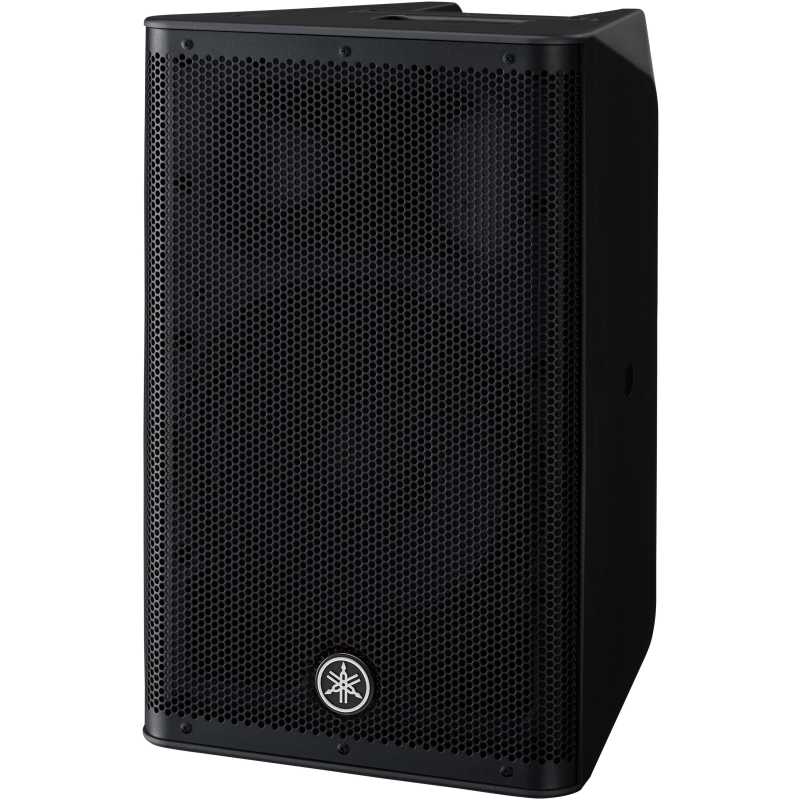

Yamaha DXR10mkII 10″ 2-way Powered Loudspeaker

The Yamaha DXR10mkII is a compact, high-performance powered loudspeaker that delivers an impressive 132 dB SPL of clear, distortion-free sound. Designed for versatility, it’s ideal for live sound reinforcement, stage monitoring, or fixed installations. Combining precision DSP, a powerful Class-D amplifier, and Yamaha’s acoustic engineering, the DXR10mkII ensures professional sound in a portable form factor.

Features

• 10″ 2-way bi-amped powered loudspeaker

• Output SPL: 132 dB (maximum)

• High-efficiency Class-D amplifier for superior power with minimal heat

• FIR-X tuning for precise crossover and phase correction

• Intelligent D-CONTOUR processing for optimized sound at any volume

• Multi-purpose enclosure for FOH or floor monitoring use

• 3-channel onboard mixer with Mic/Line input control

• Built-in protection circuits for amplifier and transducers

• Durable, lightweight ABS cabinet

• Pole-mountable, riggable, and floor-wedge capable

Specifications

• Speaker Type: 2-way bi-amped powered speaker

• LF Driver: 10″ cone

• HF Driver: 1.4″ compression driver

• Frequency Response: 56 Hz – 20 kHz

• Maximum SPL: 132 dB

• Amplifier Power: 1100 W (LF: 950 W + HF: 150 W, Dynamic)

• Crossover Frequency: 2.1 kHz

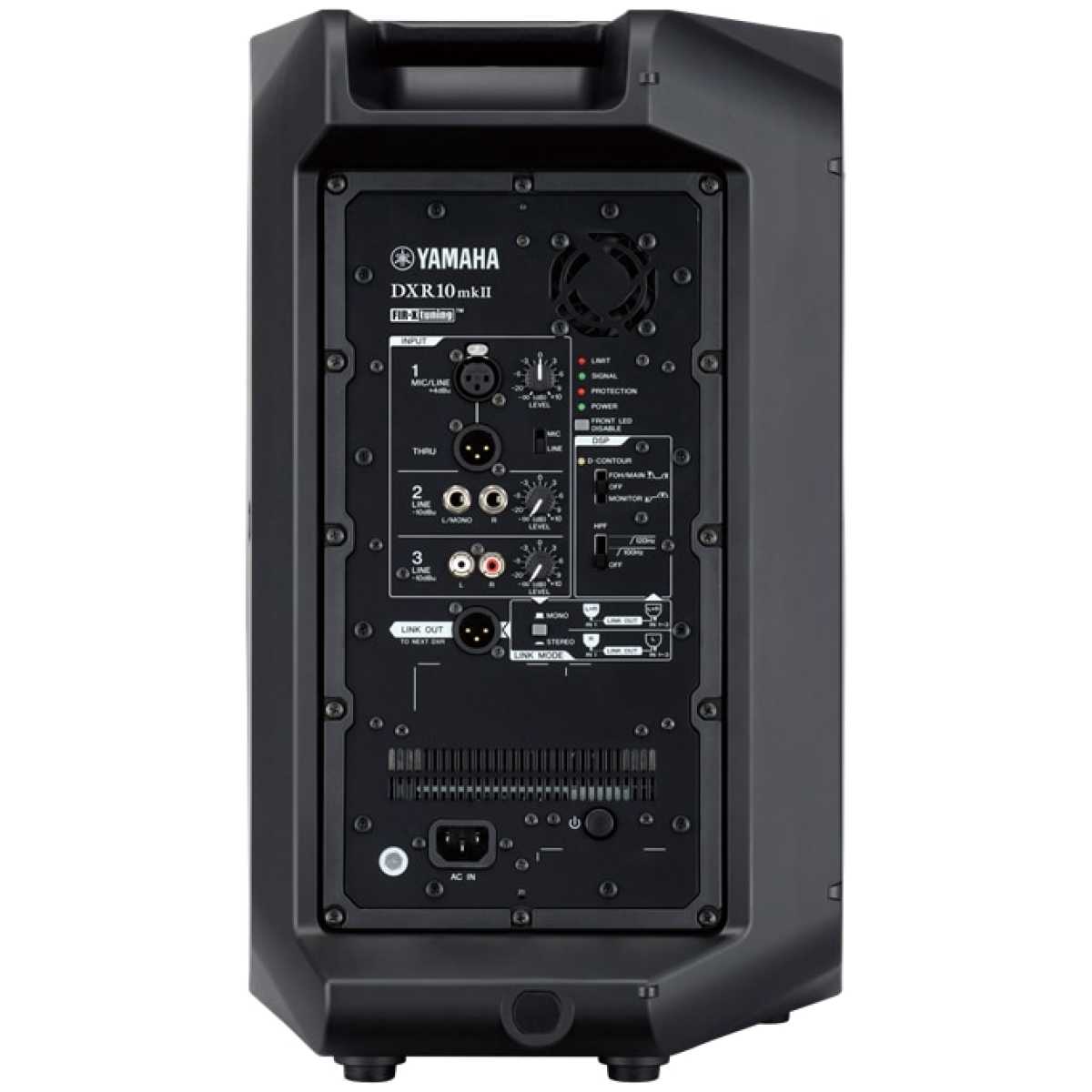

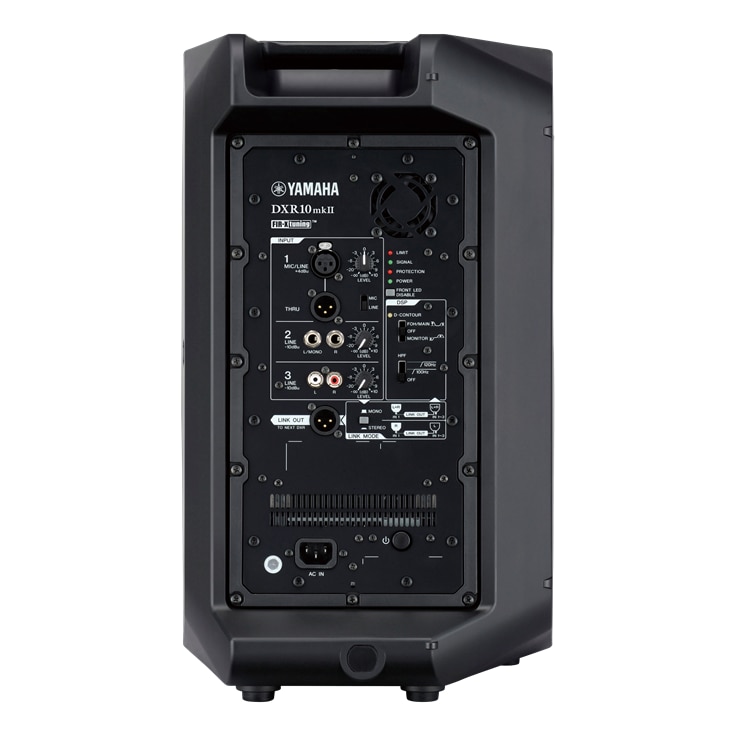

• Inputs: 2 × Combo (XLR/TRS), 1 × RCA (Stereo)

• Outputs: 1 × XLR (Mix Out)

• Mounting Options: Pole mount, rigging points, floor wedge position
