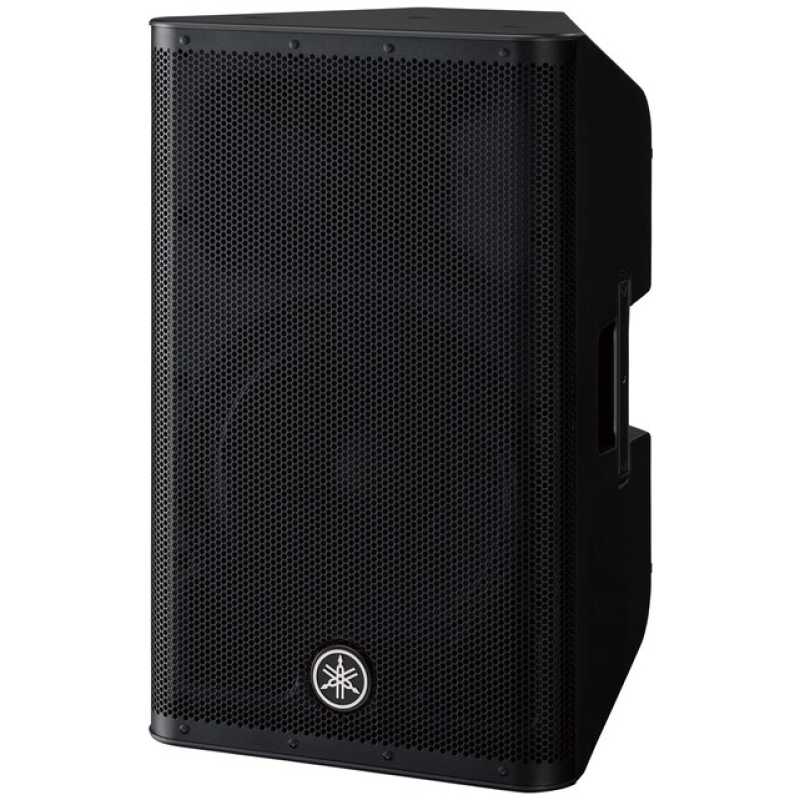

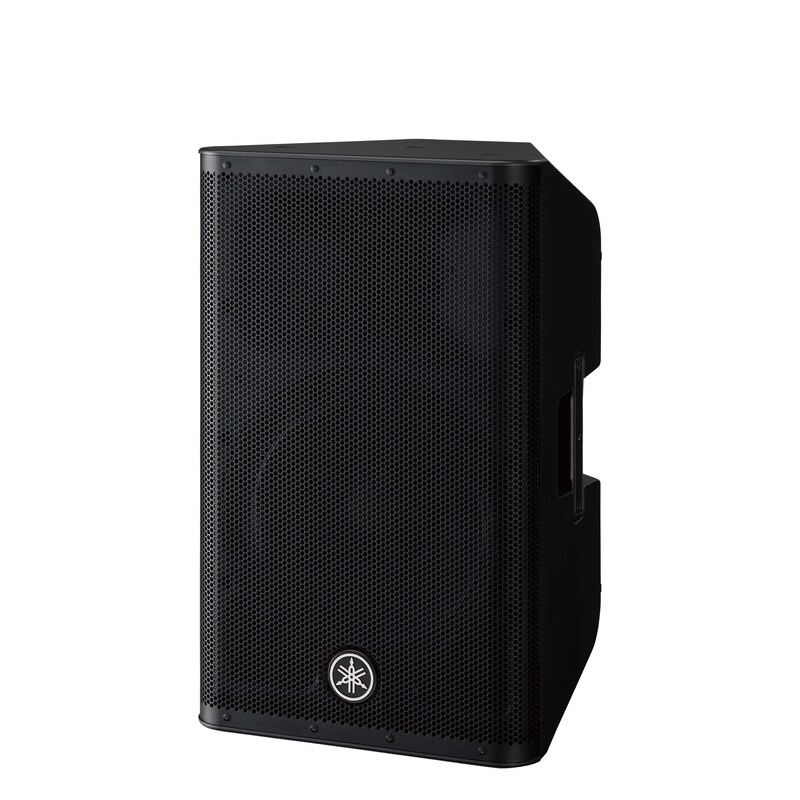

Yamaha DXR12mkII 12″ 2-way Powered Loudspeaker

The Yamaha DXR12mkII is a powerful, full-range 12″ powered loudspeaker built for professional live sound. Delivering an impressive 134 dB SPL with a 1100W Class-D amplifier, it provides pristine, high-resolution audio and deep, controlled low-end. Perfect for front-of-house, floor monitoring, or fixed installations, the DXR12mkII combines Yamaha’s precision DSP processing with tour-grade reliability and versatility.

Features

• 12″ 2-way bi-amped powered loudspeaker

• Maximum SPL: 134 dB

• 1100W Class-D amplifier for outstanding power efficiency

• FIR-X tuning for precise crossover and phase alignment

• D-CONTOUR intelligent multiband compressor for balanced sound at any volume

• Multi-purpose enclosure: FOH, stage monitor, or rigged setup

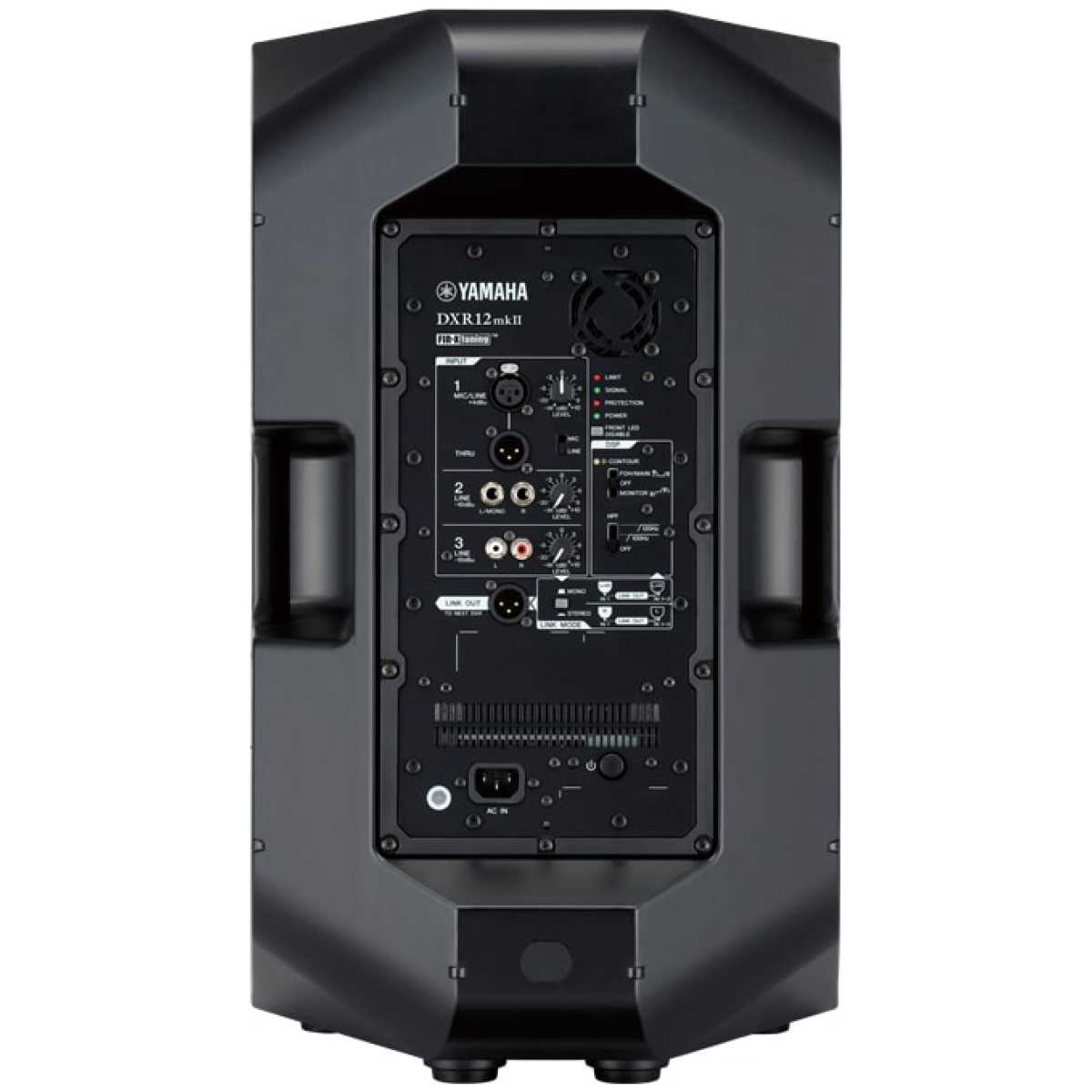

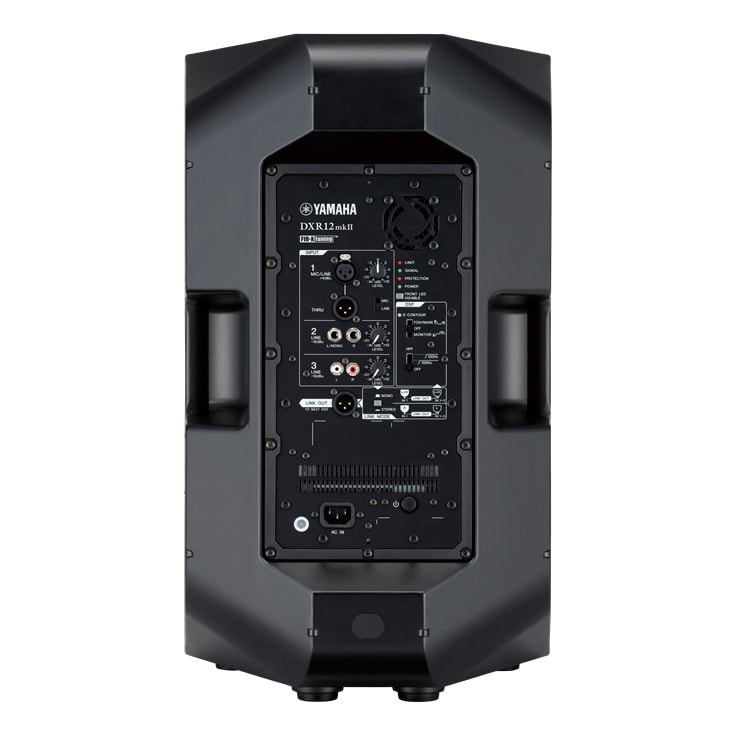

• 3-channel onboard mixer with Mic/Line input flexibility

• Extensive protection circuits for driver and amplifier reliability

• Rugged ABS cabinet with steel grille for durability

• Compatible with pole mounting, rigging, and floor wedge positioning

Specifications

• Speaker Type: 2-way bi-amped powered speaker

• LF Driver: 12″ cone

• HF Driver: 1.75″ compression driver

• Frequency Response: 52 Hz – 20 kHz

• Maximum SPL: 134 dB

• Amplifier Power: 1100 W (LF: 950 W + HF: 150 W, Dynamic)

• Crossover Frequency: 2.1 kHz

• Inputs: 2 × Combo (XLR/TRS), 1 × RCA (Stereo)

• Outputs: 1 × XLR (Mix Out)

• Mounting Options: Pole mount, rigging points, floor wedge
