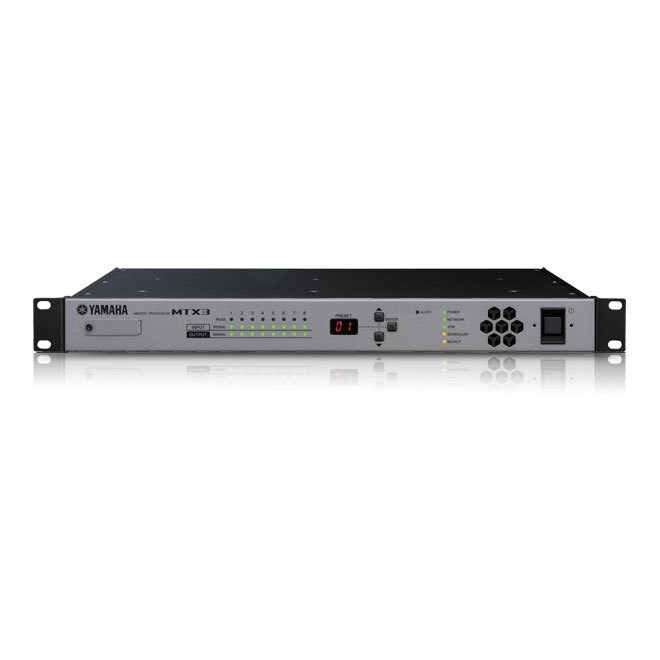

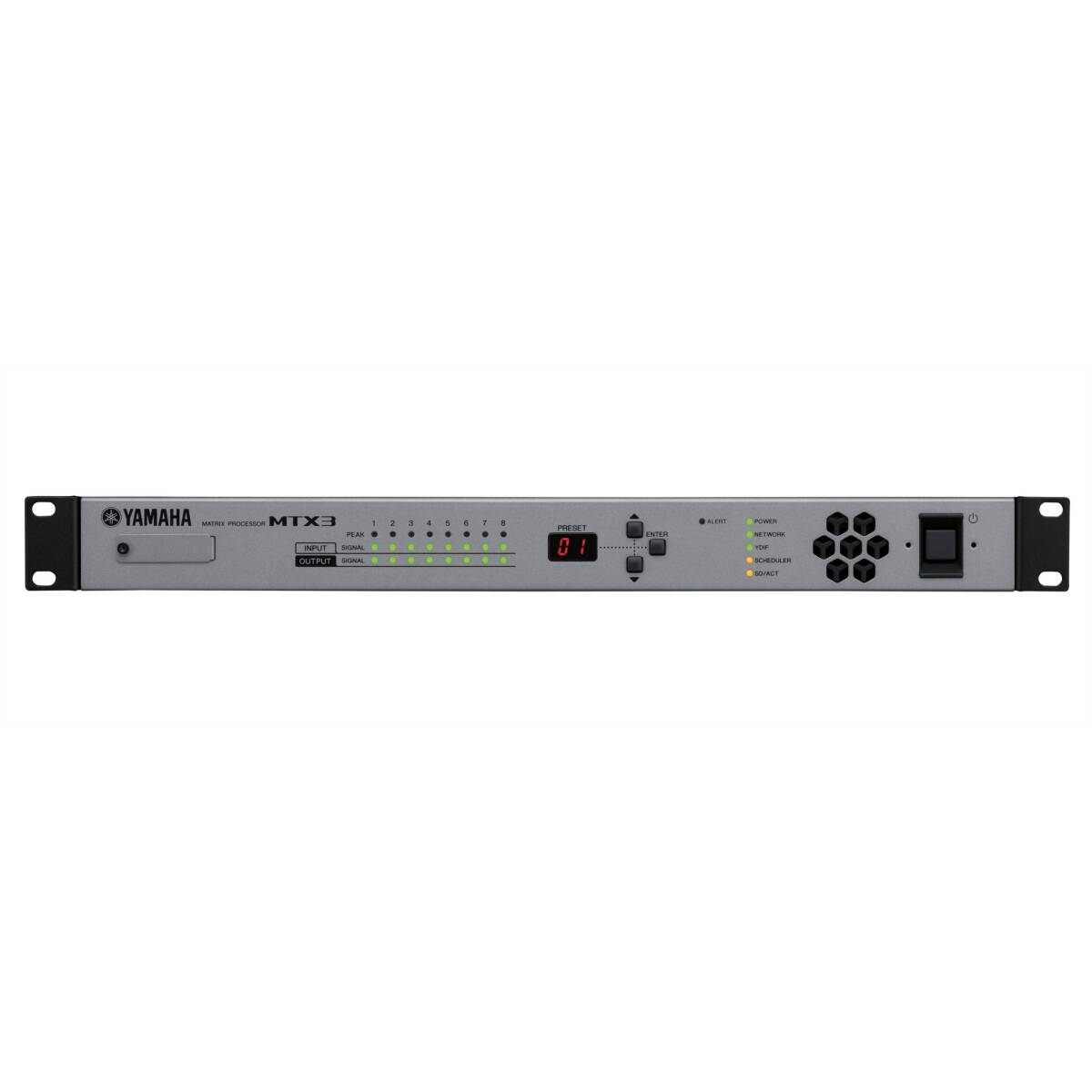

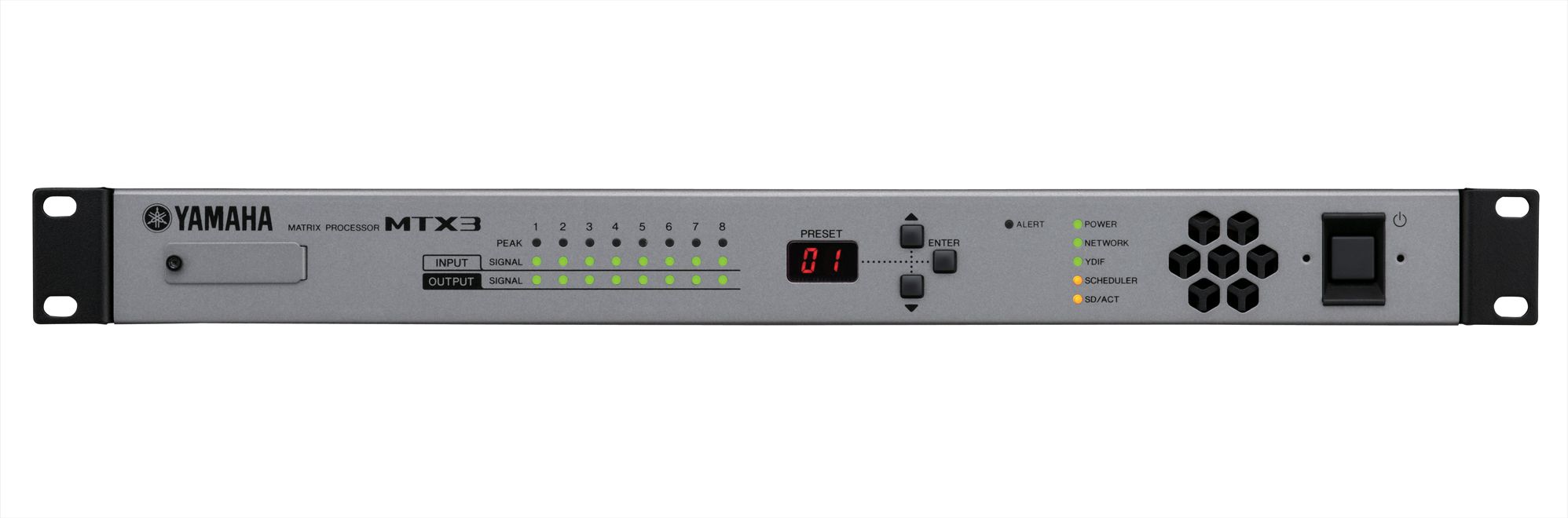

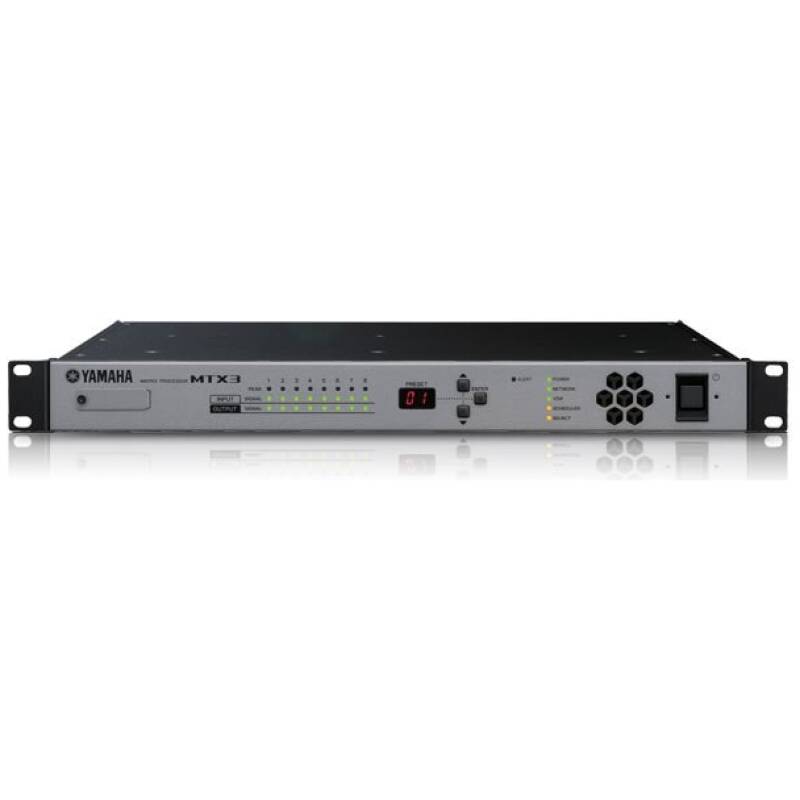

Yamaha MTX3 //E Matrix Processor

The Yamaha MTX3 is a professional-grade matrix processor designed for advanced multi-zone audio systems in commercial and installed environments. With a powerful 26 × 8 matrix architecture, it allows flexible routing, mixing, and processing of multiple audio sources across different zones.

Featuring 8 mic/line inputs and 8 analog outputs, along with 16 channels of YDIF digital I/O, the MTX3 provides extensive connectivity for scalable system design. Built-in DSP includes EQ, dynamics, feedback suppression, and routing control, ensuring high-quality and reliable audio performance.

An integrated SD card slot enables playback of stored audio content such as announcements or background music, making it ideal for retail, hospitality, education, and corporate applications.

Key Features

• 26 × 8 matrix mixer and signal processor
• 8 mic/line inputs and 8 analog outputs
• 16-channel YDIF digital I/O
• Built-in DSP: EQ, dynamics, feedback suppression
• SD card slot for audio playback
• Network control via MTX Editor software
• Designed for multi-zone commercial audio systems
• Compact 1U rack design

Technical Specifications

Matrix & Processing

• Matrix Size: 26 inputs × 8 outputs
• DSP Processing:
  • Parametric EQ
  • Dynamics processing
  • Feedback suppression
  • Signal routing and mixing

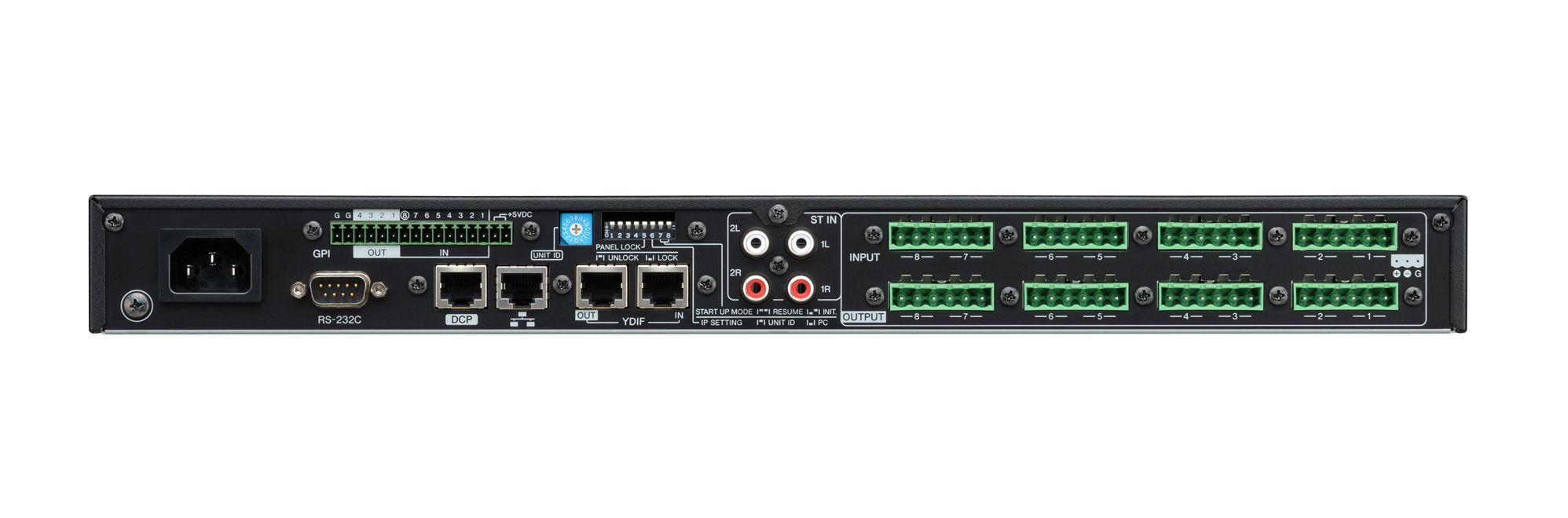

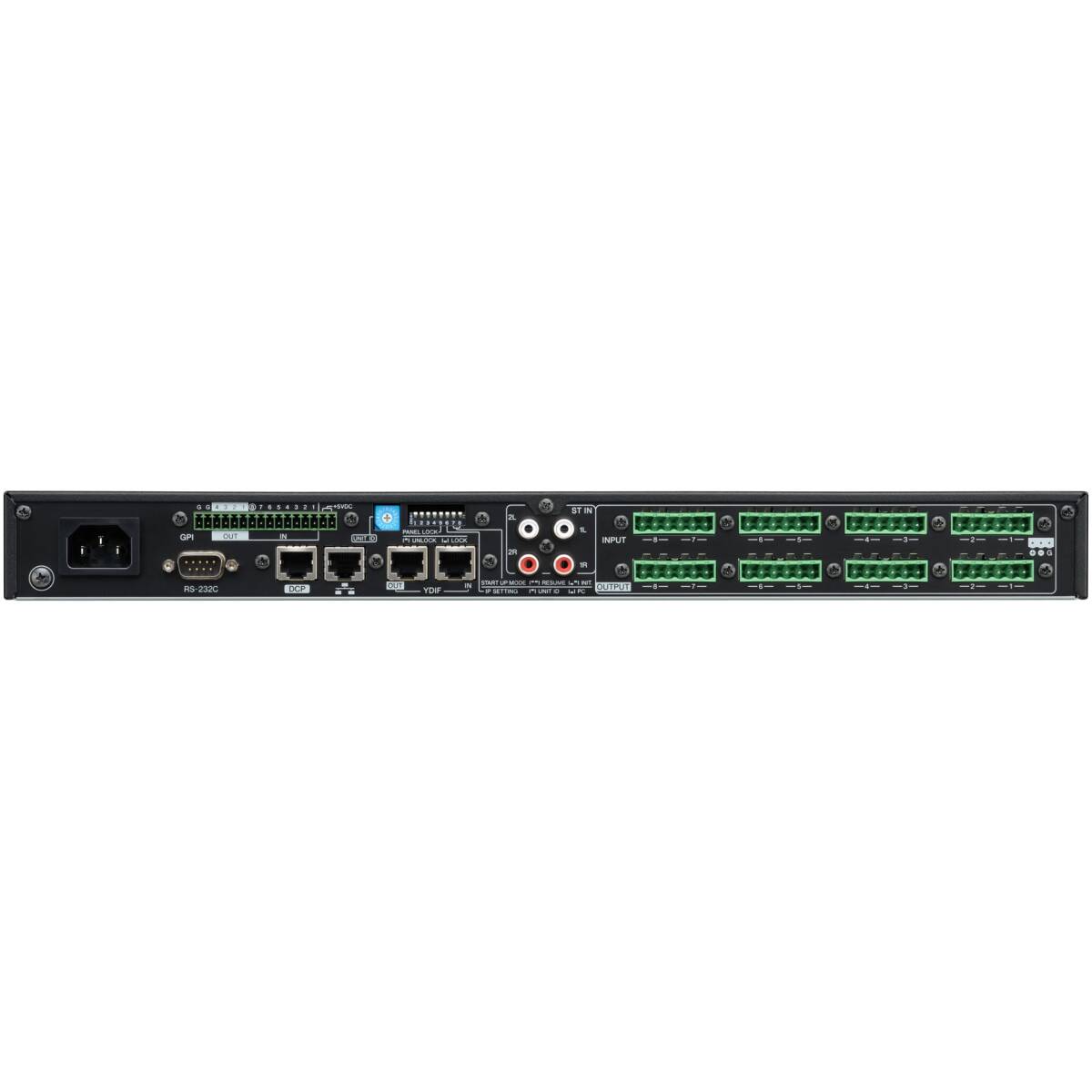

Inputs / Outputs

• Analog Inputs: 8 mic/line inputs
• Analog Outputs: 8 line outputs
• Digital I/O: 16 channels via YDIF

Playback

• SD card slot for audio playback (BGM / announcements)

Control & Networking

• Ethernet control
• MTX Editor software
• Compatible with Yamaha control panels

General

• Rack Size: 1U
• Installation: Rack mount
• Power Supply: AC mains
