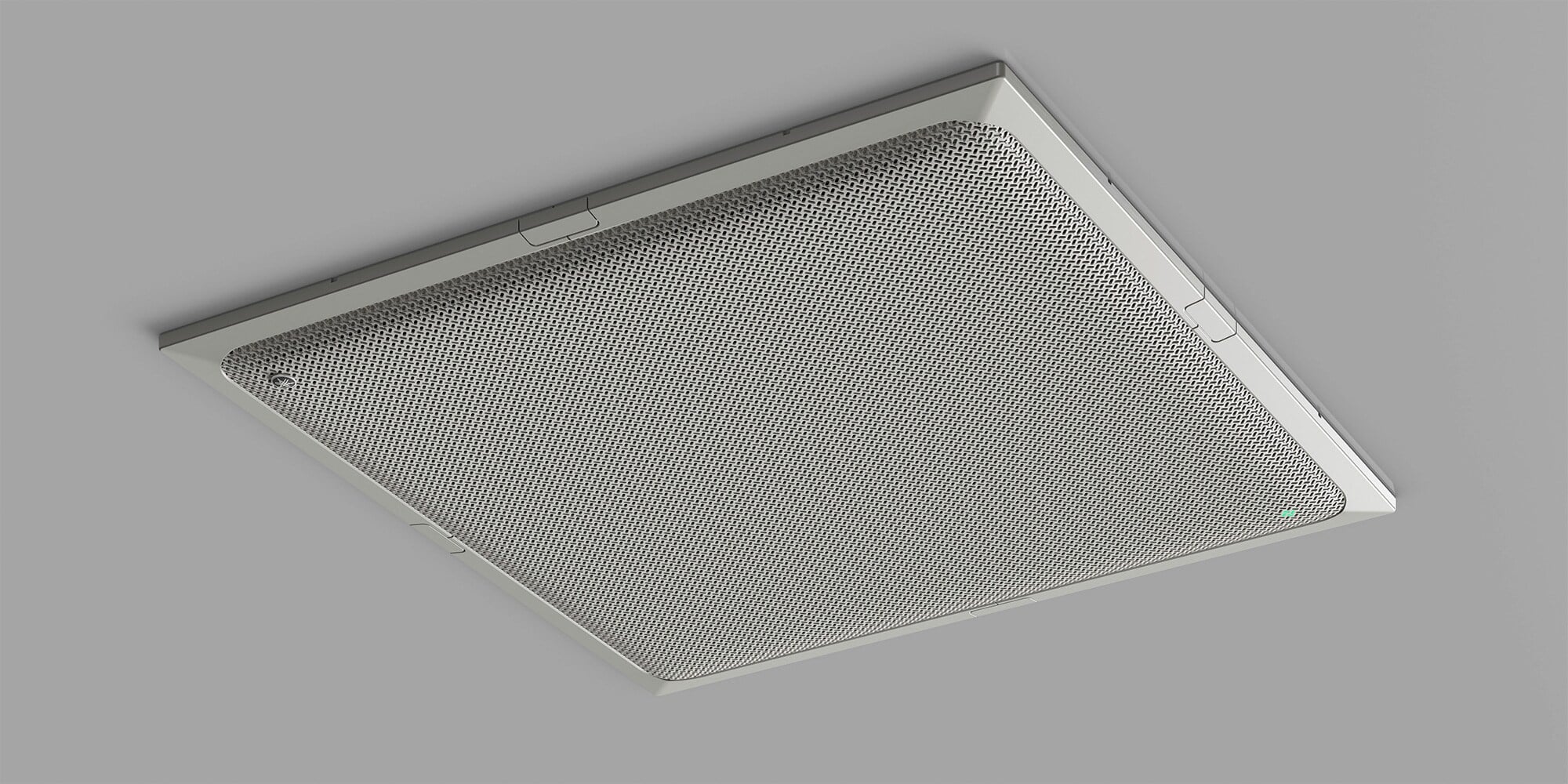

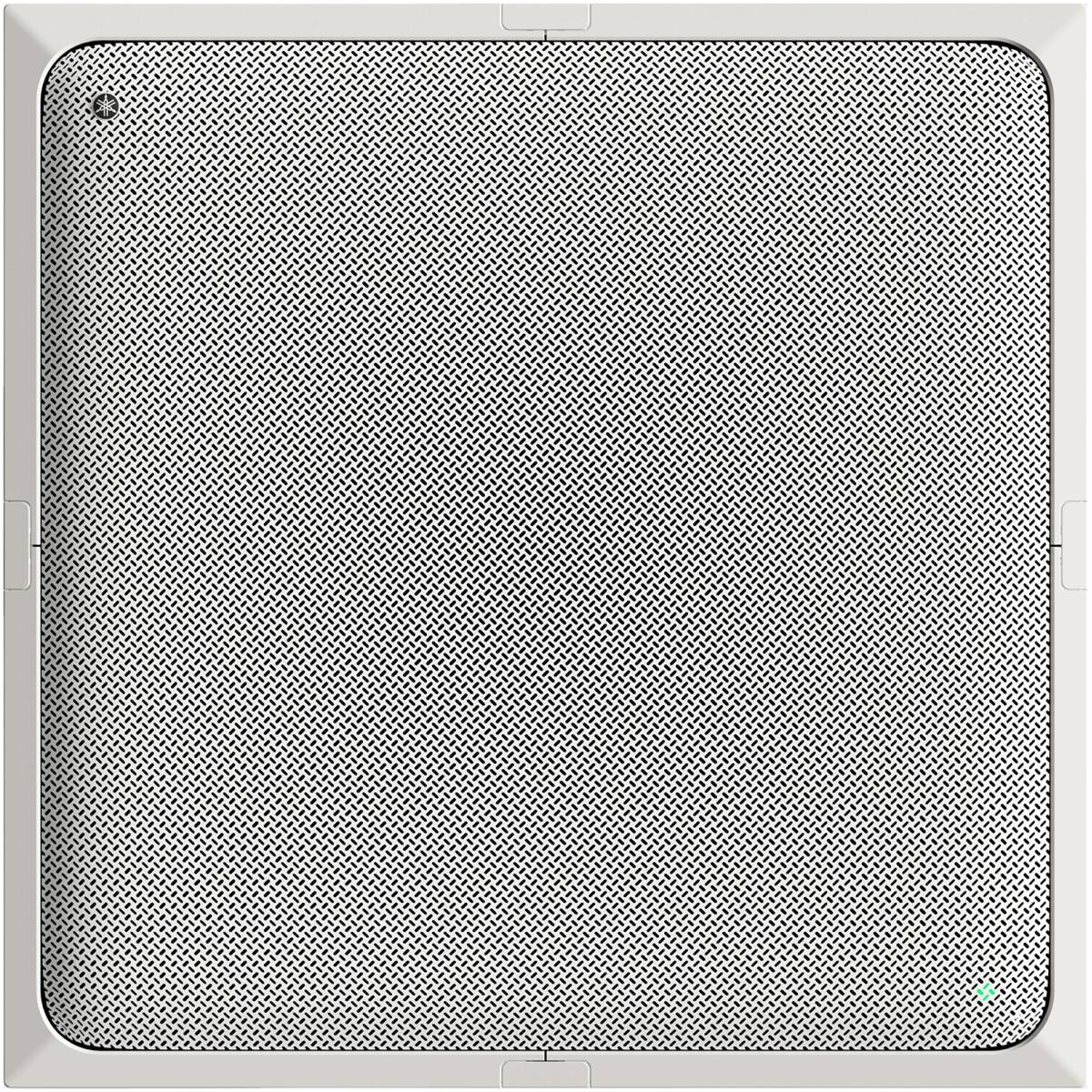

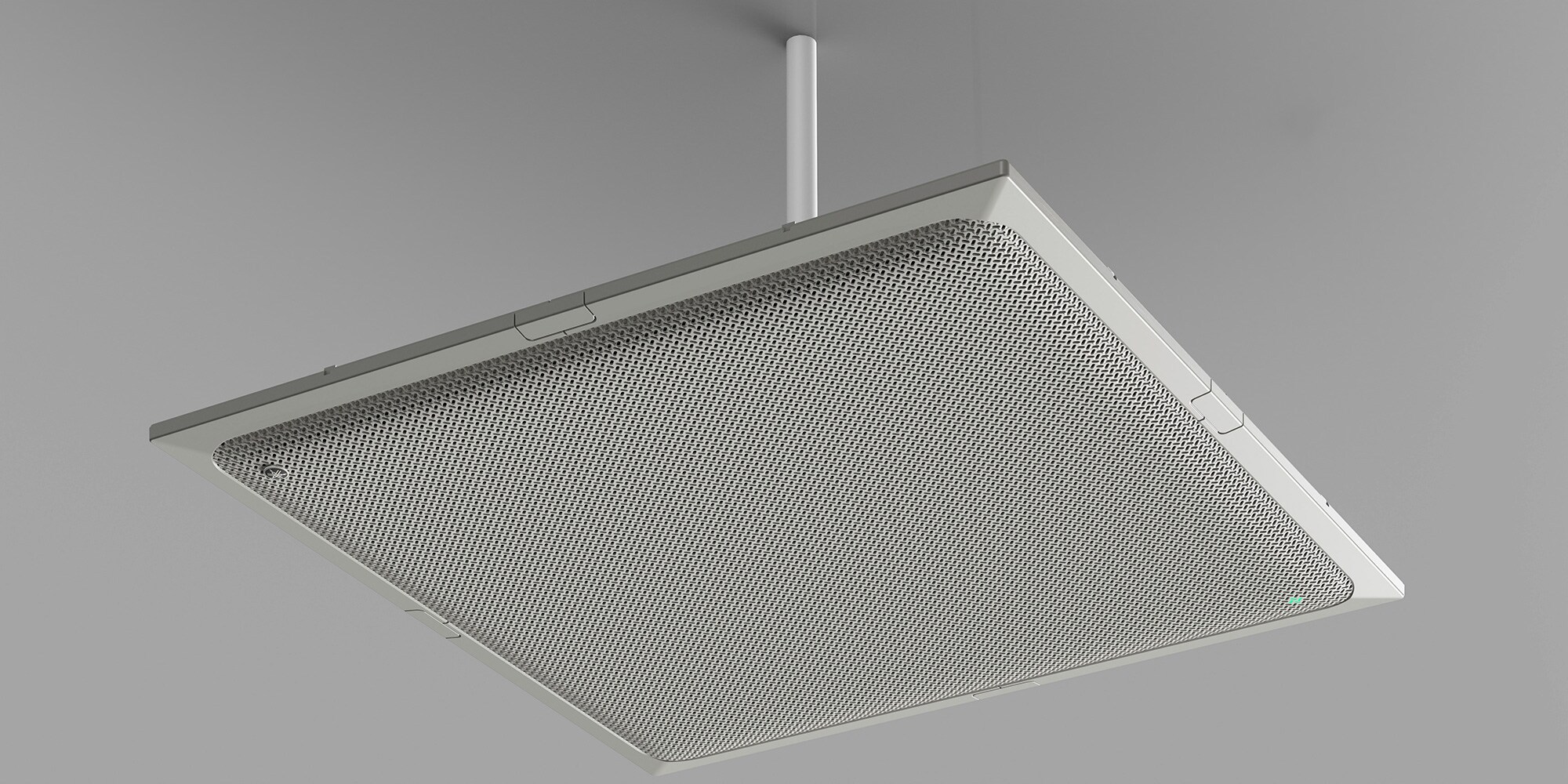

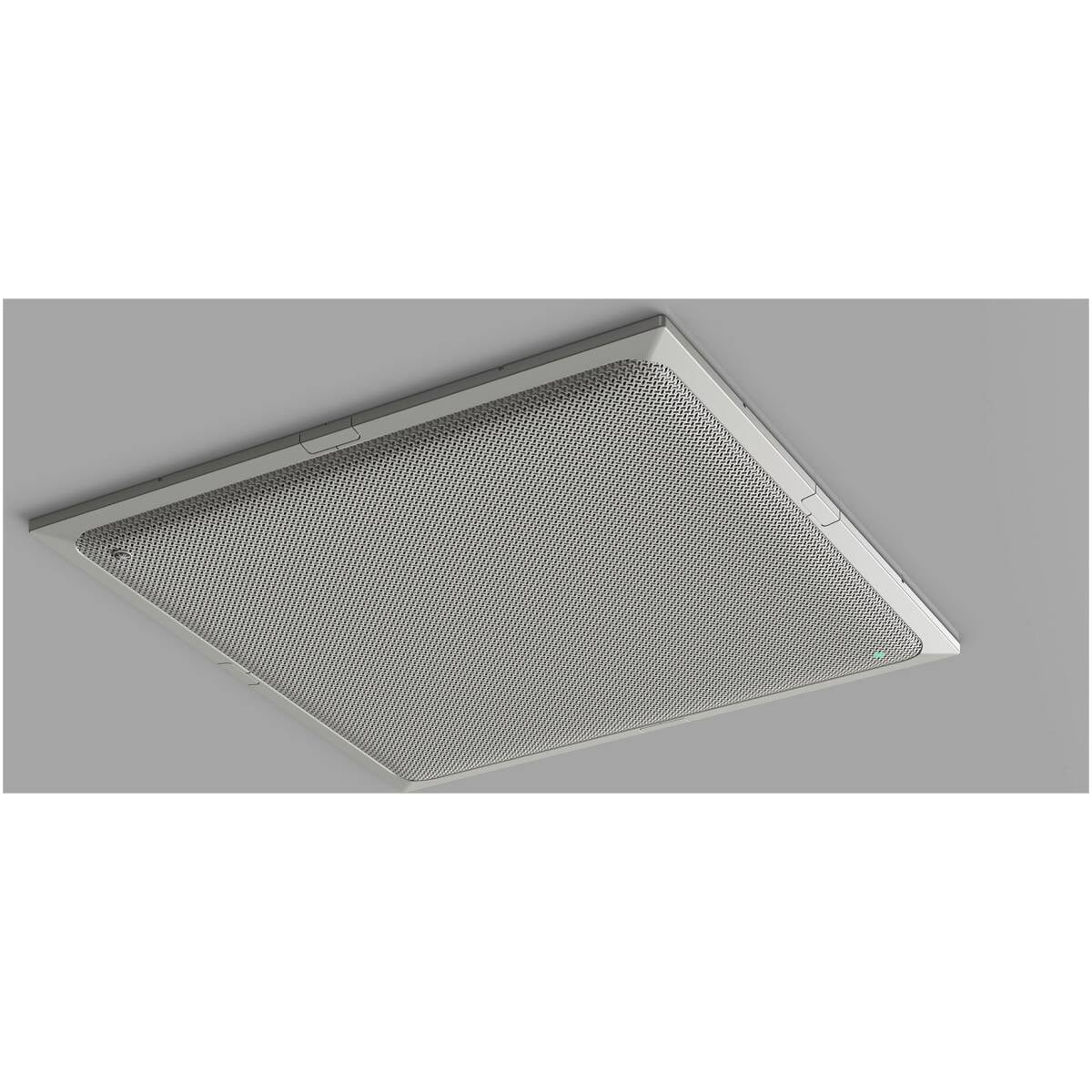

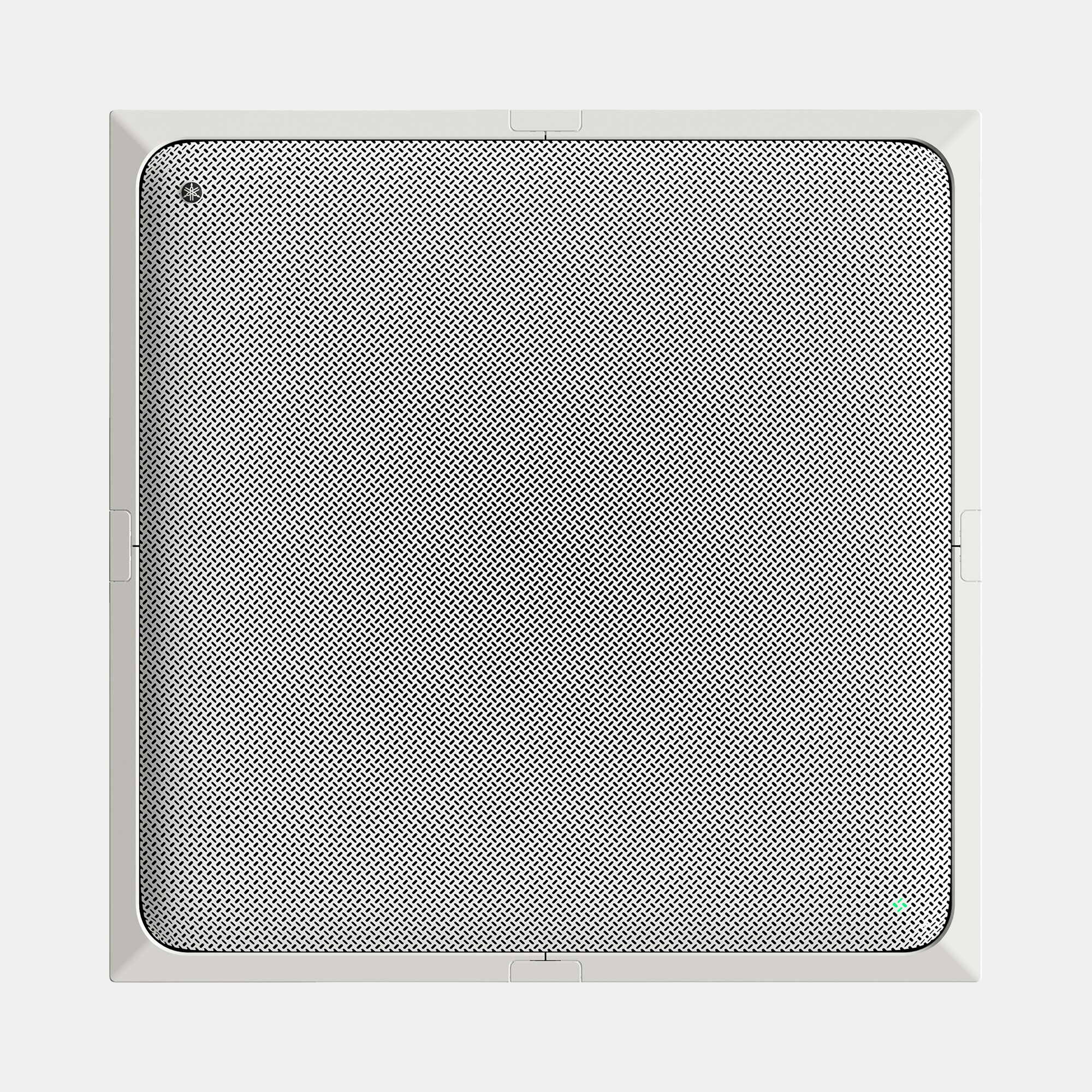

Yamaha RM-CG //Y White Ceiling Array Microphone

The Yamaha RM-CG is a professional Dante-enabled ceiling array microphone designed for modern conferencing and collaboration environments. Engineered for boardrooms, classrooms, and hybrid meeting spaces, it delivers exceptional speech clarity through advanced beamforming technology.

With multi-beam tracking, the RM-CG automatically detects and follows active speakers, ensuring consistent audio pickup across the room. Integrated DSP processing including echo cancellation, noise reduction, and auto gain control provides a seamless conferencing experience without the need for external processing.

Powered via PoE and connected through a single network cable, installation is clean and efficient. Flexible mounting options and a low-profile design make it ideal for discreet ceiling integration.

Key Features

• Multi-beam tracking for automatic speaker detection
• Built-in DSP: AEC, noise reduction, dereverberation
• Dante audio networking with PoE (single cable solution)
• High speech intelligibility for conferencing environments
• Multiple mounting options (ceiling, wire, VESA)
• Low-profile, professional black finish
• Compatible with Yamaha ADECIA system

Technical Specifications

• General
  Dimensions: 560 × 560 × 90 mm

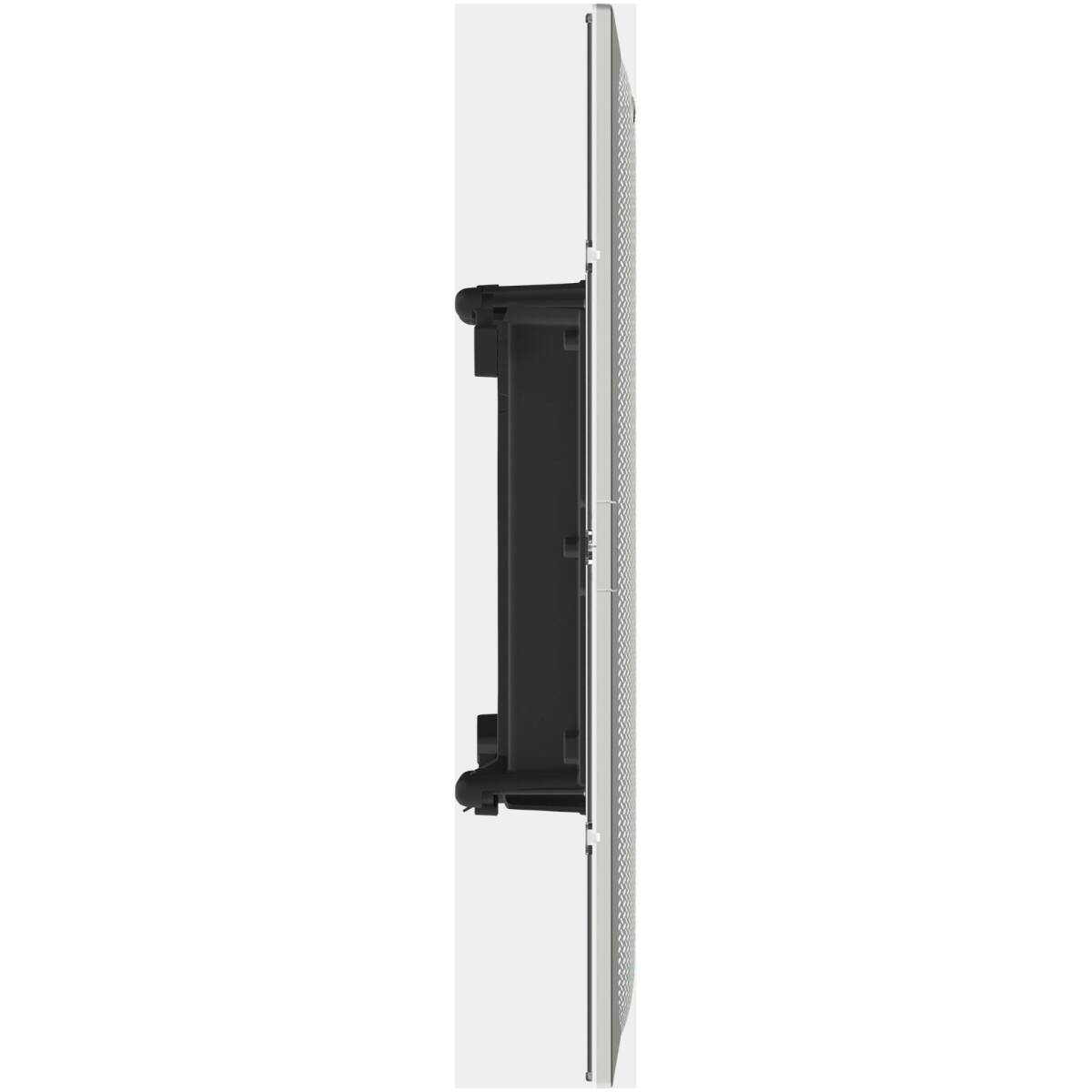

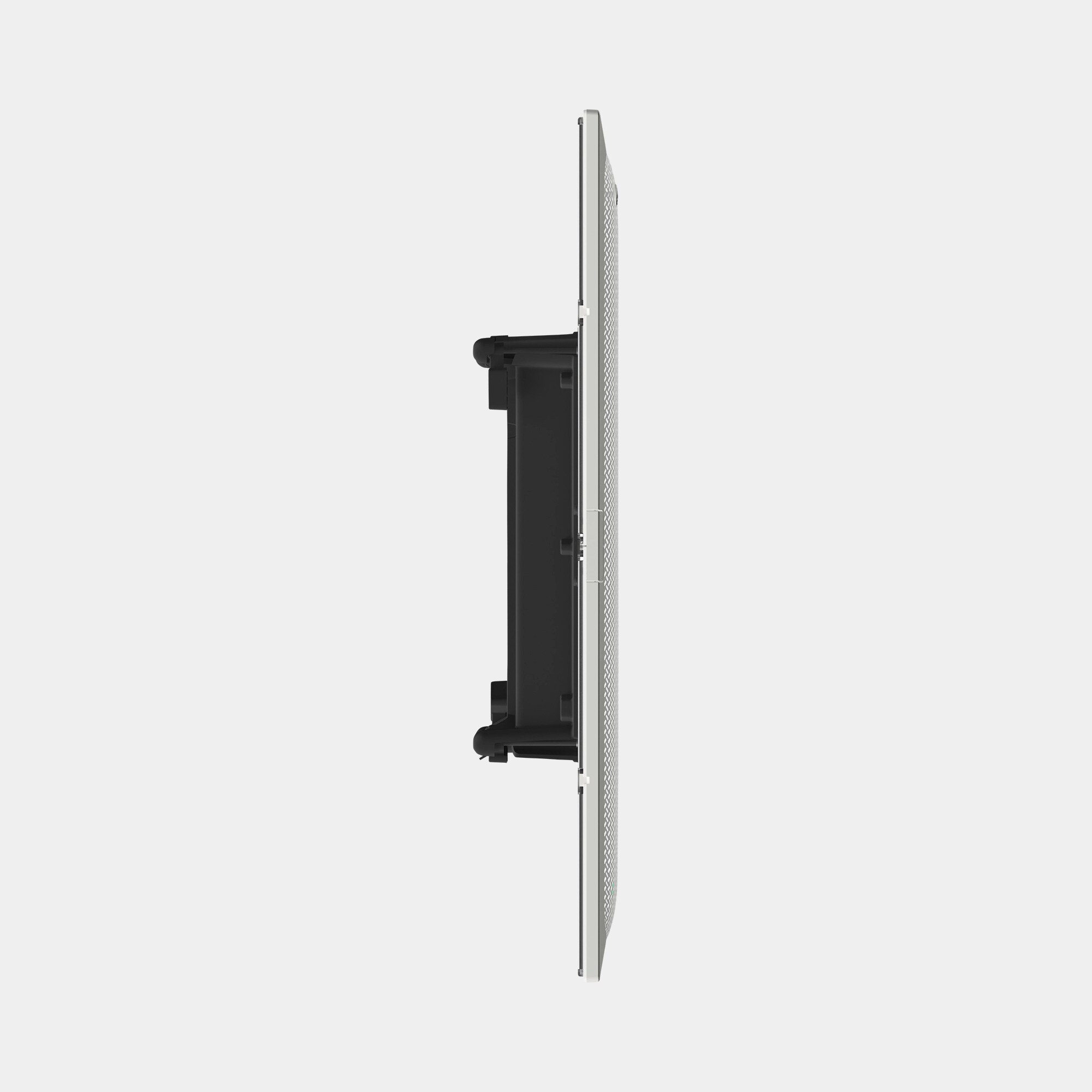

• Microphone panel protrusion: 22 mm
• Weight: 5.6 kg
• Power: PoE (IEEE 802.3af)
• Power Consumption: 7.2 W
• Connector: RJ45

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 30% – 90% (no condensation)
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 20% – 90% (no condensation)

Indicators

• Front indicator: Mute/Unmute & statusNetwork port indicator

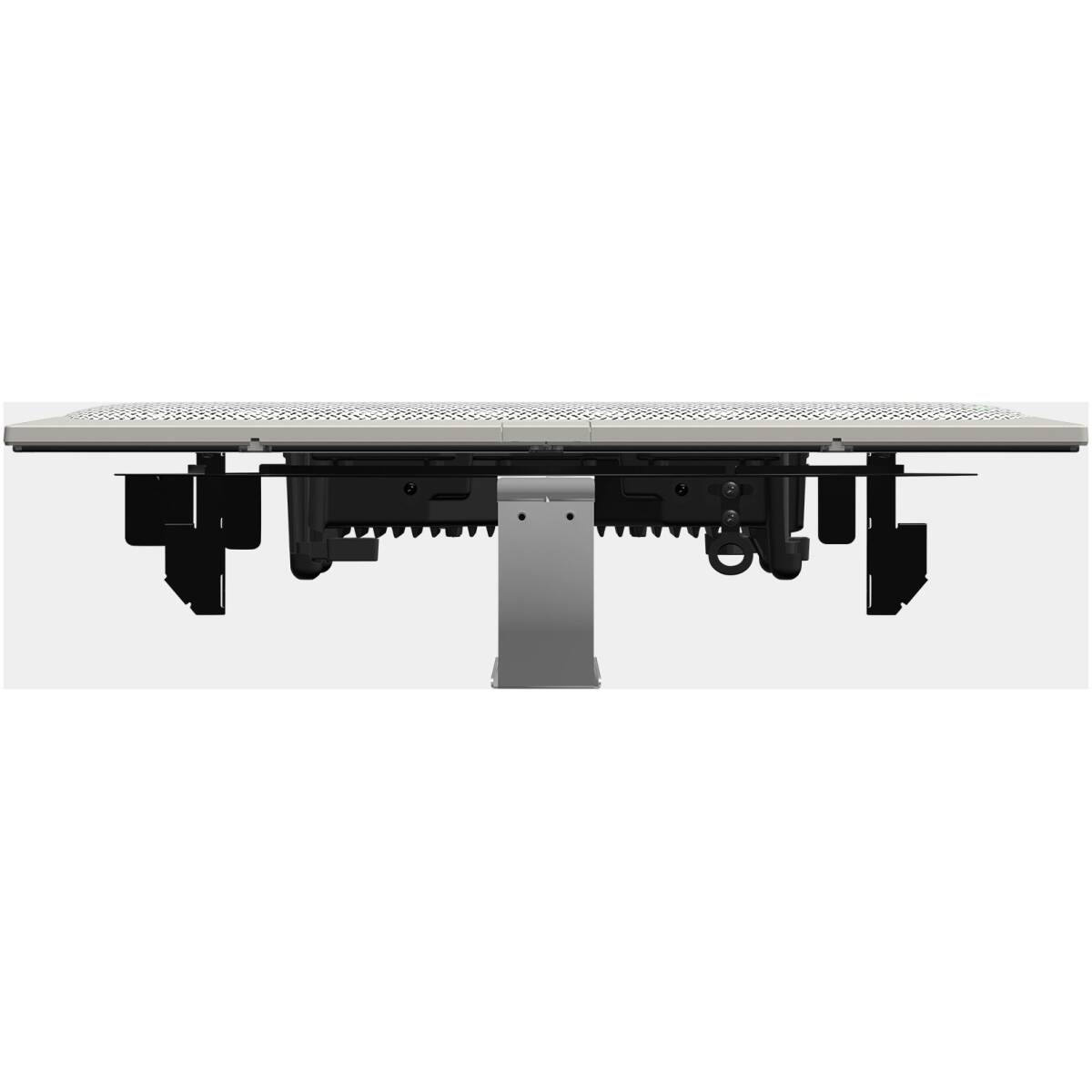

• Mounting Options

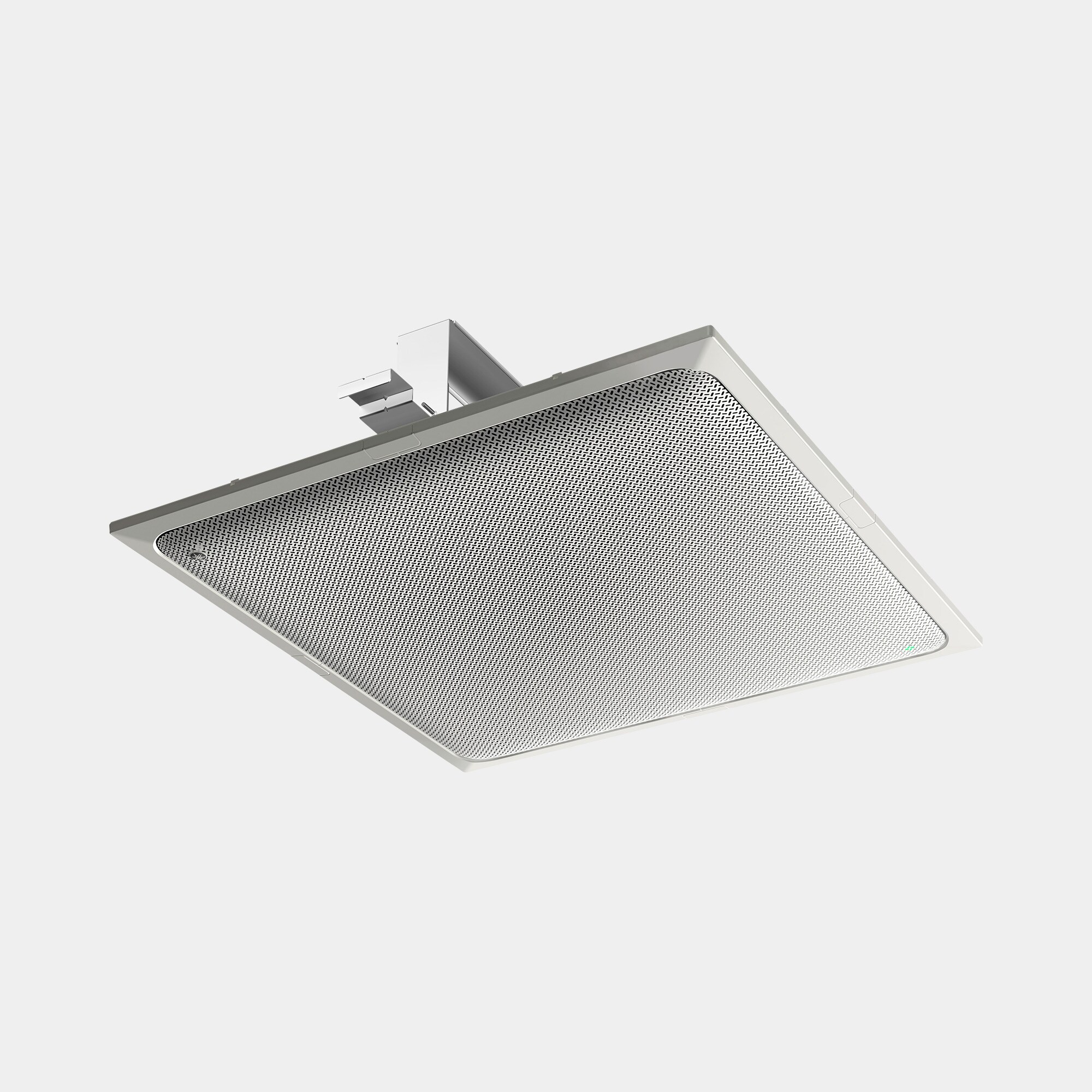

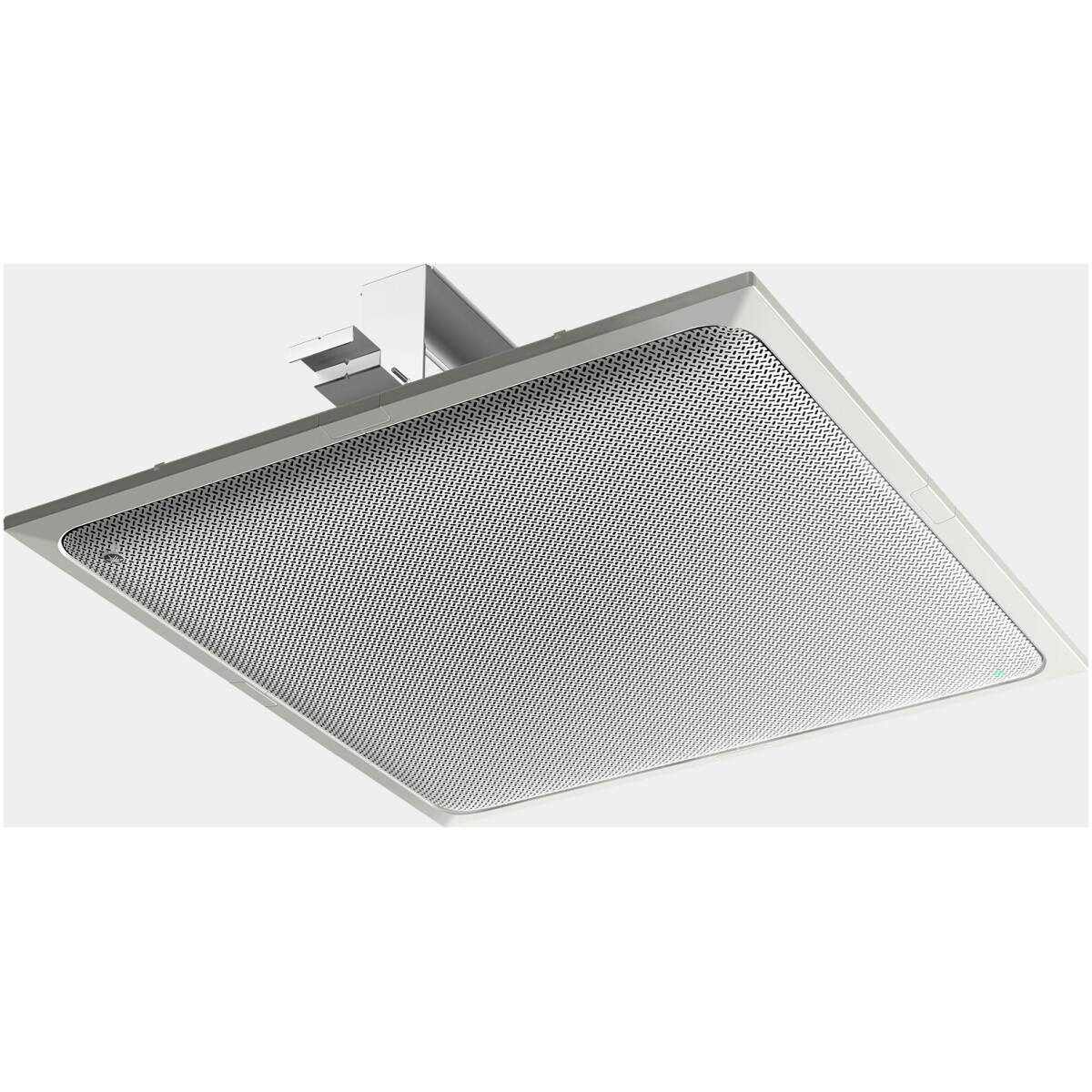

• Ceiling mount

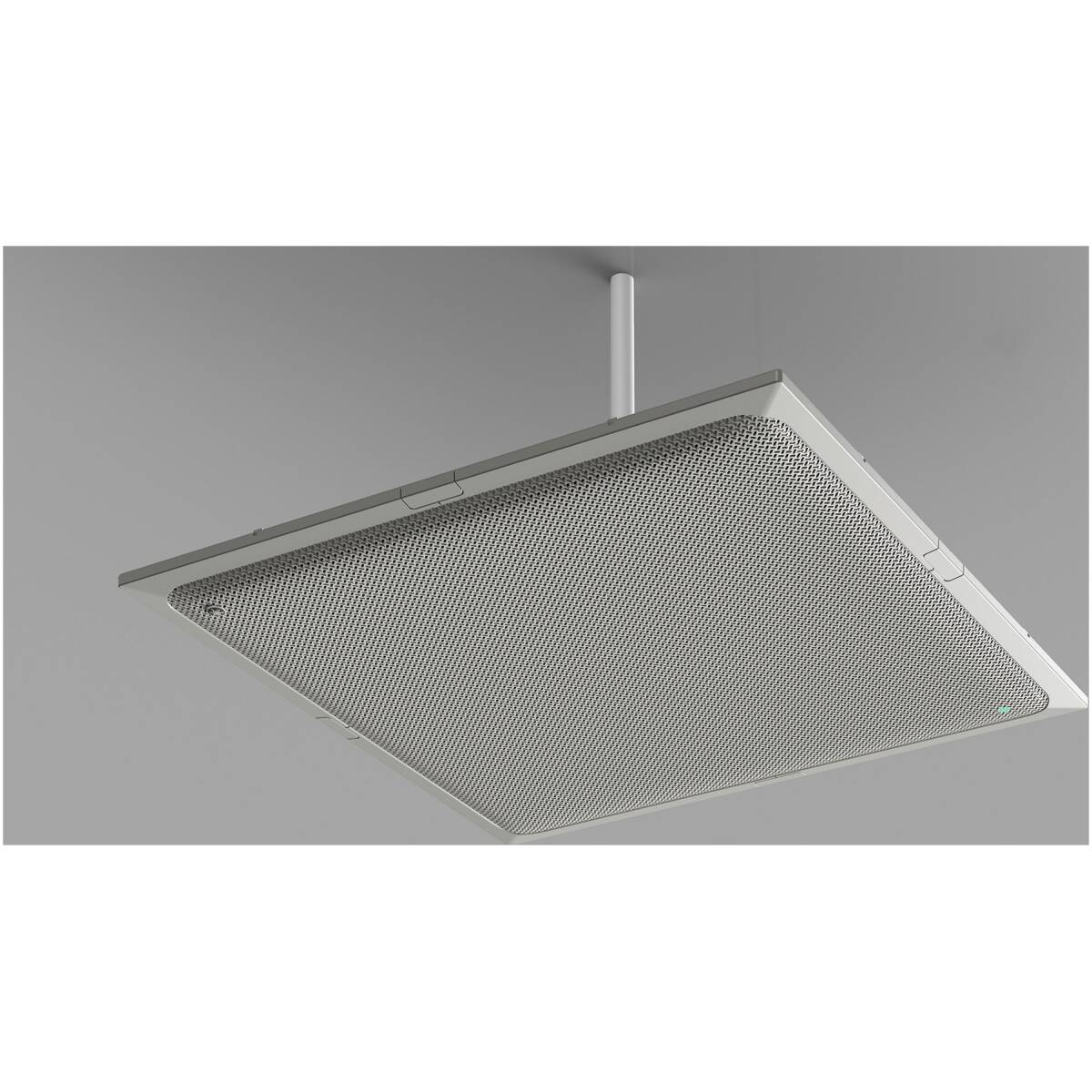

• Wire suspension
• VESA mount

System Compatibility

• RM-CR V2.8 or earlier: Up to 14 units (16 without VXL1-16P)
• RM-CR V3.0 or later: Up to 16 units
• Protection & Compliance
• Dust Protection: IP5X (with terminal cover)
• Plenum Rated: UL2043

Network

• Dante audio, remote control, Web UI, PoE
• Cable Requirement: Cat5e or higher (STP recommended)

Audio Specifications

• Audio I/O: Dante (1 input / 2 outputs)
• In: AEC reference signal
• Out 1: Beam mix output
• Out 2: Processed beam mix output
• Sampling Rate: 48 kHz
• Bit Depth: 24-bit

Latency:

• 58 ms (standard)
• 22 ms (low latency mode)
