Yamaha VXL1W-16P Column Loudspeaker (White)

Dante PoE powered speaker with 16 x 1.5″ drivers

Features:
1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
Slim design complements any interior décor
Available in white
Enclosures can be painted to match surroundings

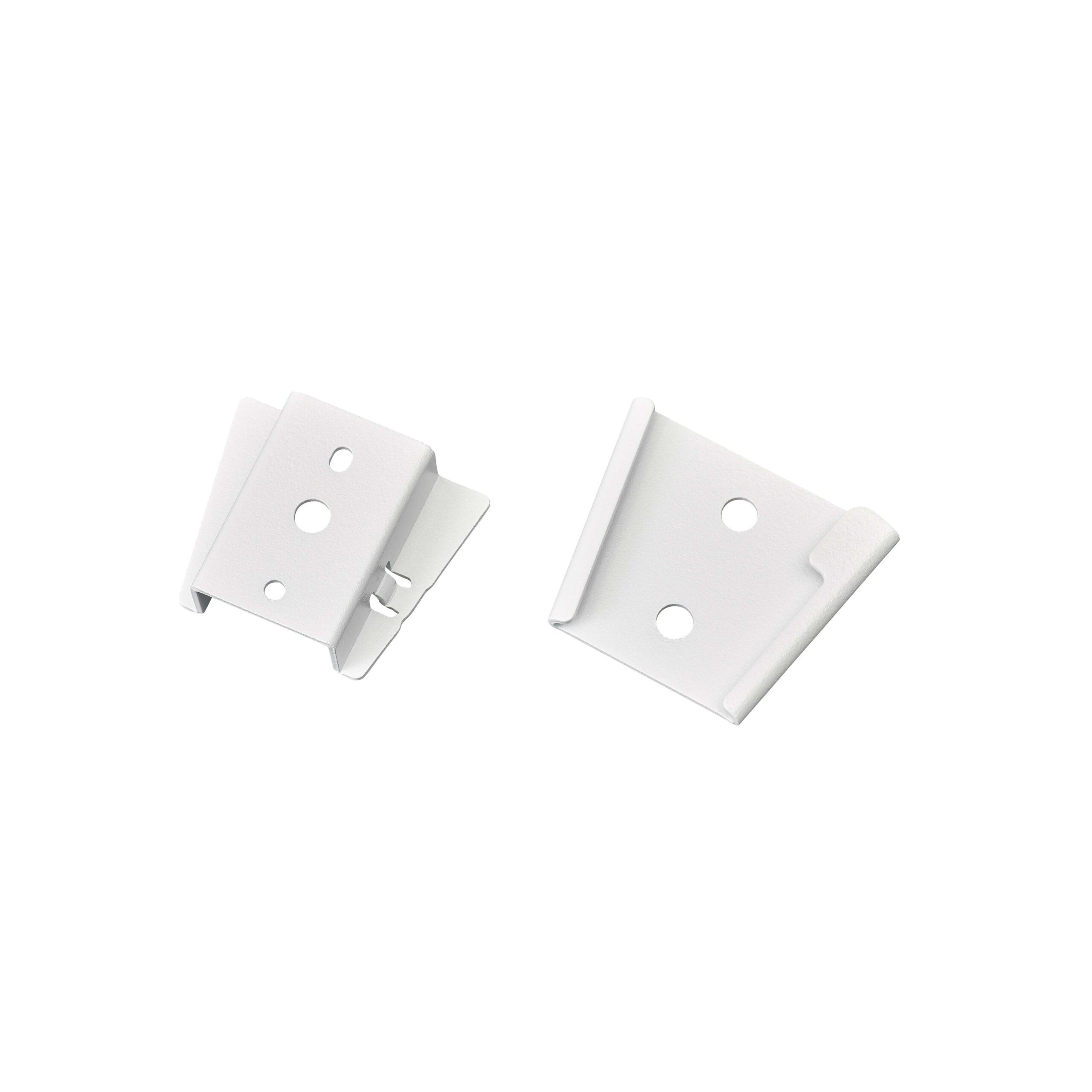

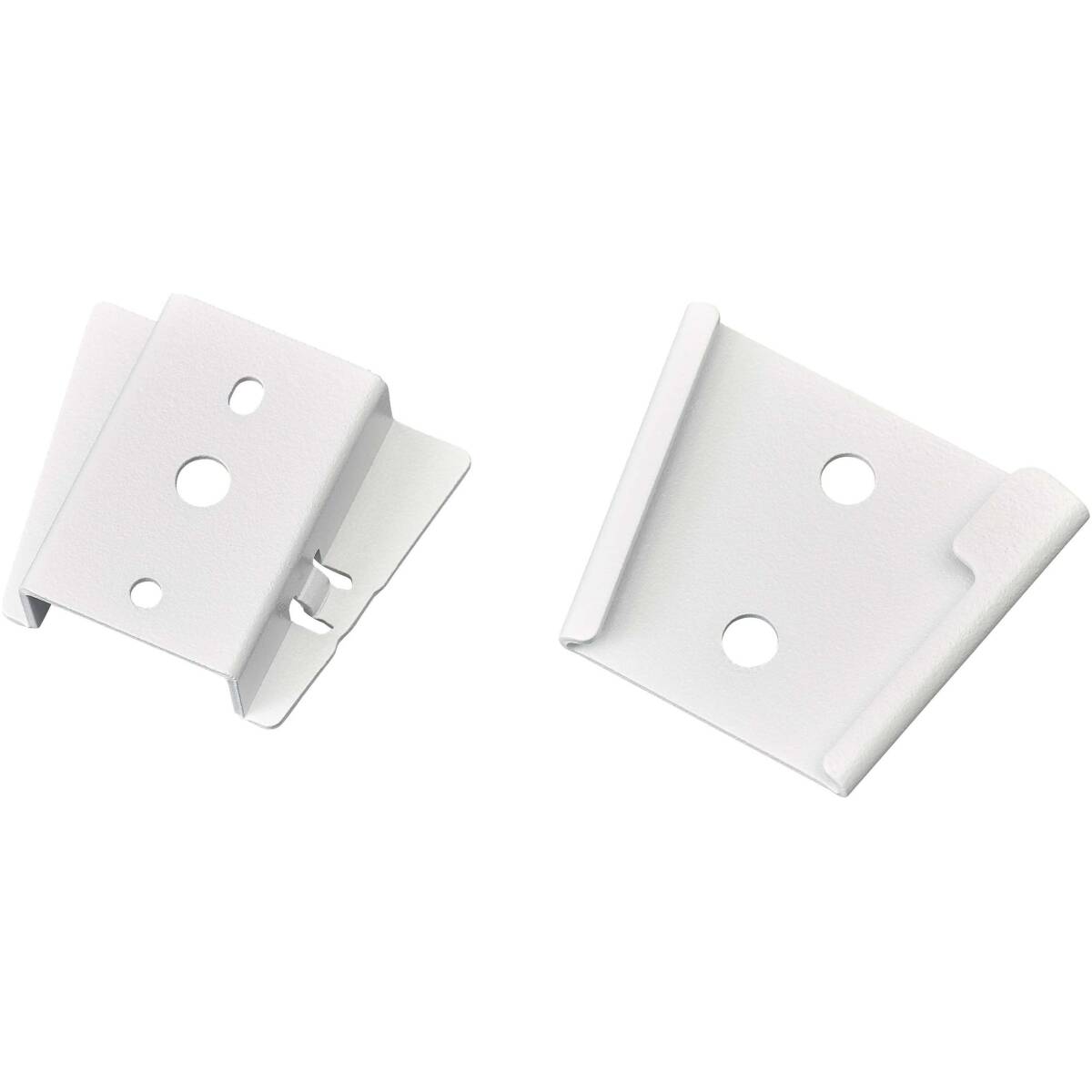

Wall mount bracket supplied
Optional hardware for a wide range of installation needs

Specifications:
VXL1W-16P
General specifications
Speaker type Full-range, powered speaker, bass reflex
Frequency range (-10dB) 80Hz – 20kHz *1
Nominal coverage H 170°
V 25° (+12.5° – -12.5°)
Effective coverage (-10dB) H 180°
V 30° (+15° – -15°)
Components LF-HF 1.5″(3.75cm) Cone x 16
Maximum output level (1m; on axis) 102 dB SPL (when using PoE+(IEEE 802.3at)) *2
Power rating Dynamic 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
Continuous 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
I/O connectors RJ-45 (Dante) x１
Protection circuit Speaker processing Clip limiting, Integral power protection
Amplifier protection Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
Power supply protection Over load protection, Over voltage protection, Under voltage lock out
Cooling Natural convection
Power requirements PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
Power consumption Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
Finish VXL1B-16P: Black painting (approximate value: Munsell N3.0), VXL1W-16P: White painting (approximate value: Munsell N9.0)
Magnetic shielding No
Dust and water resistant No
Accessories Mounting bracket x2, Bracket base x2, Safety wire x1, Machine screws (M5x10) x2, Template x1, Owner’s manual
Options WMB-L1B (W), HCB-L1B, PA-L1B
Packaging Packaged in 1 pc
Dimensions (W x H x D) W54 x H1120 x D104 mm (Speaker only)
Weight 5.0kg (Speaker only)
