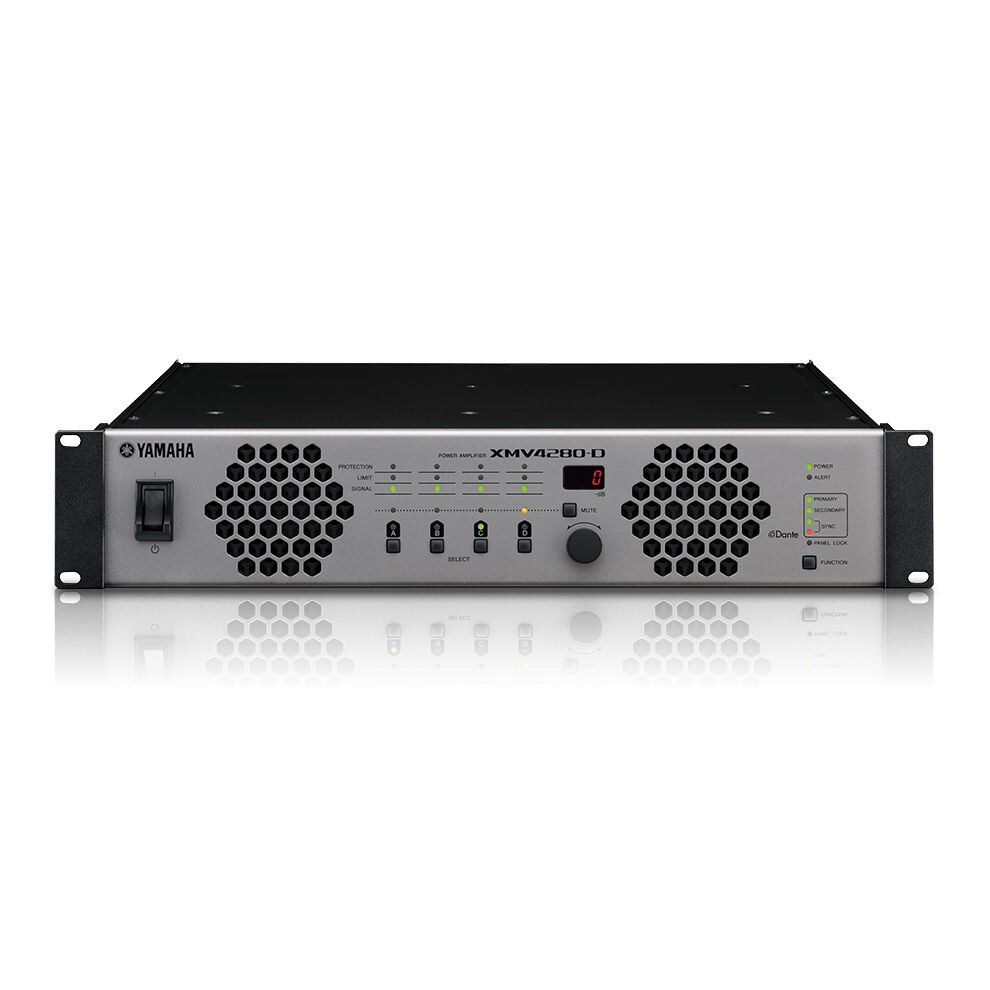

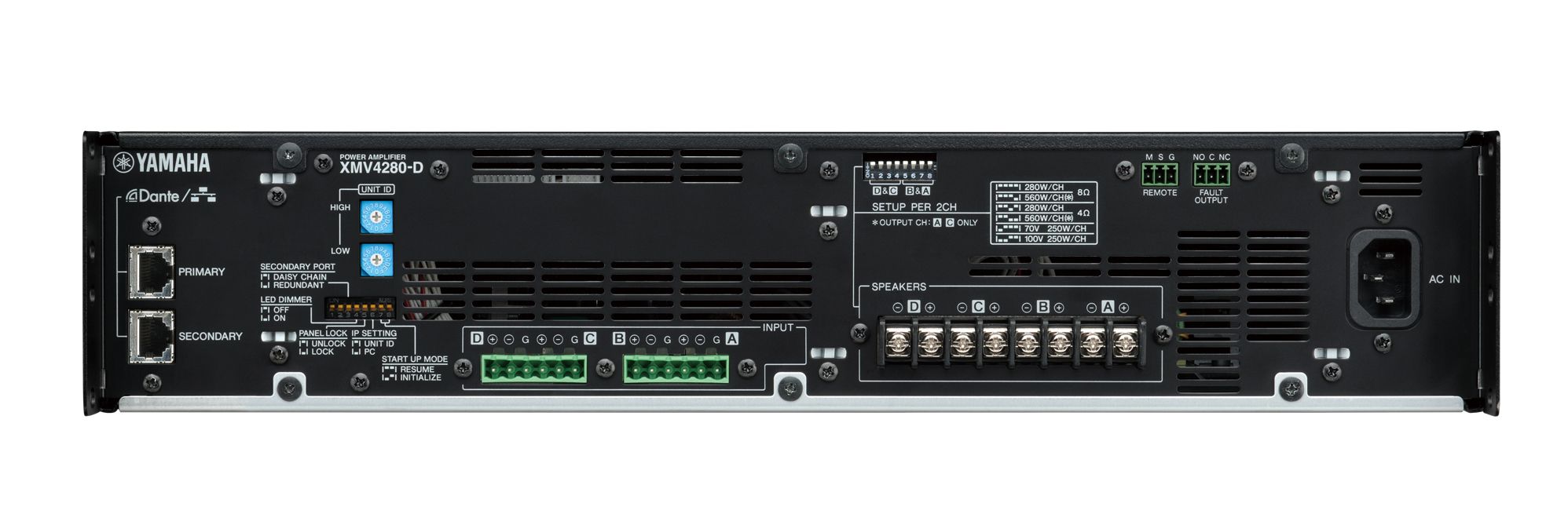

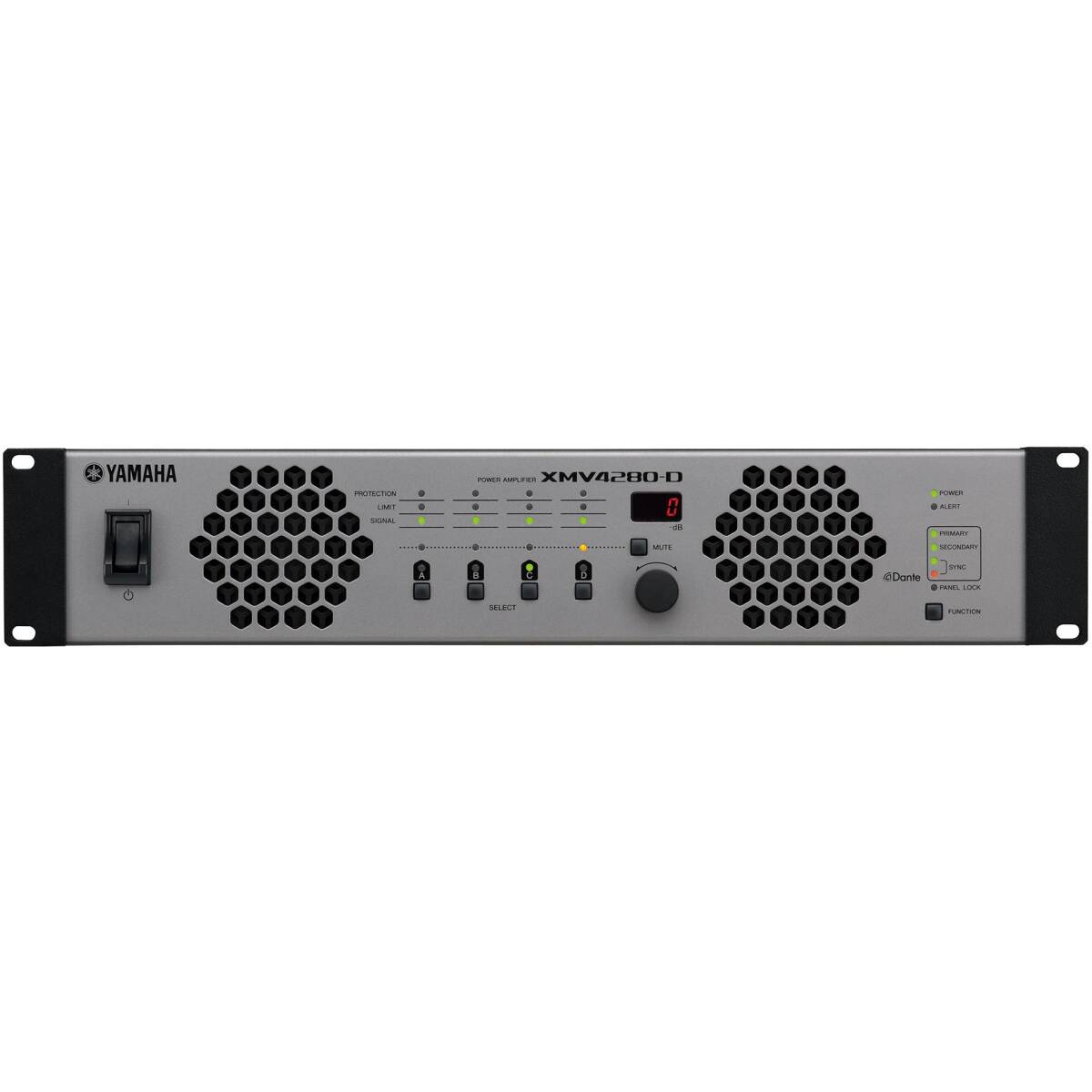

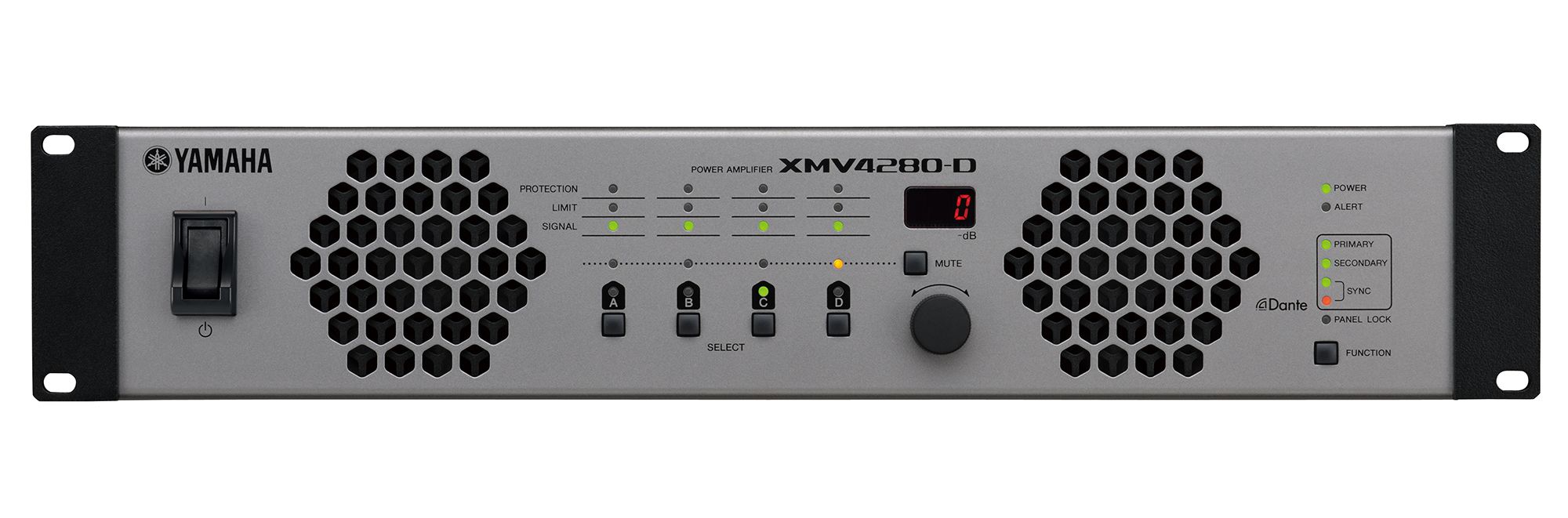

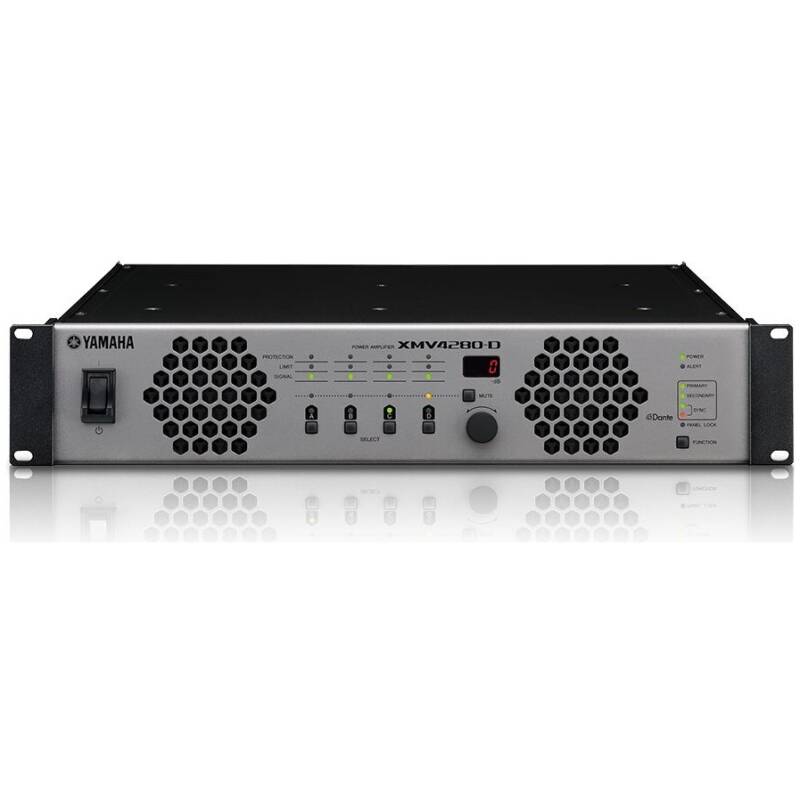

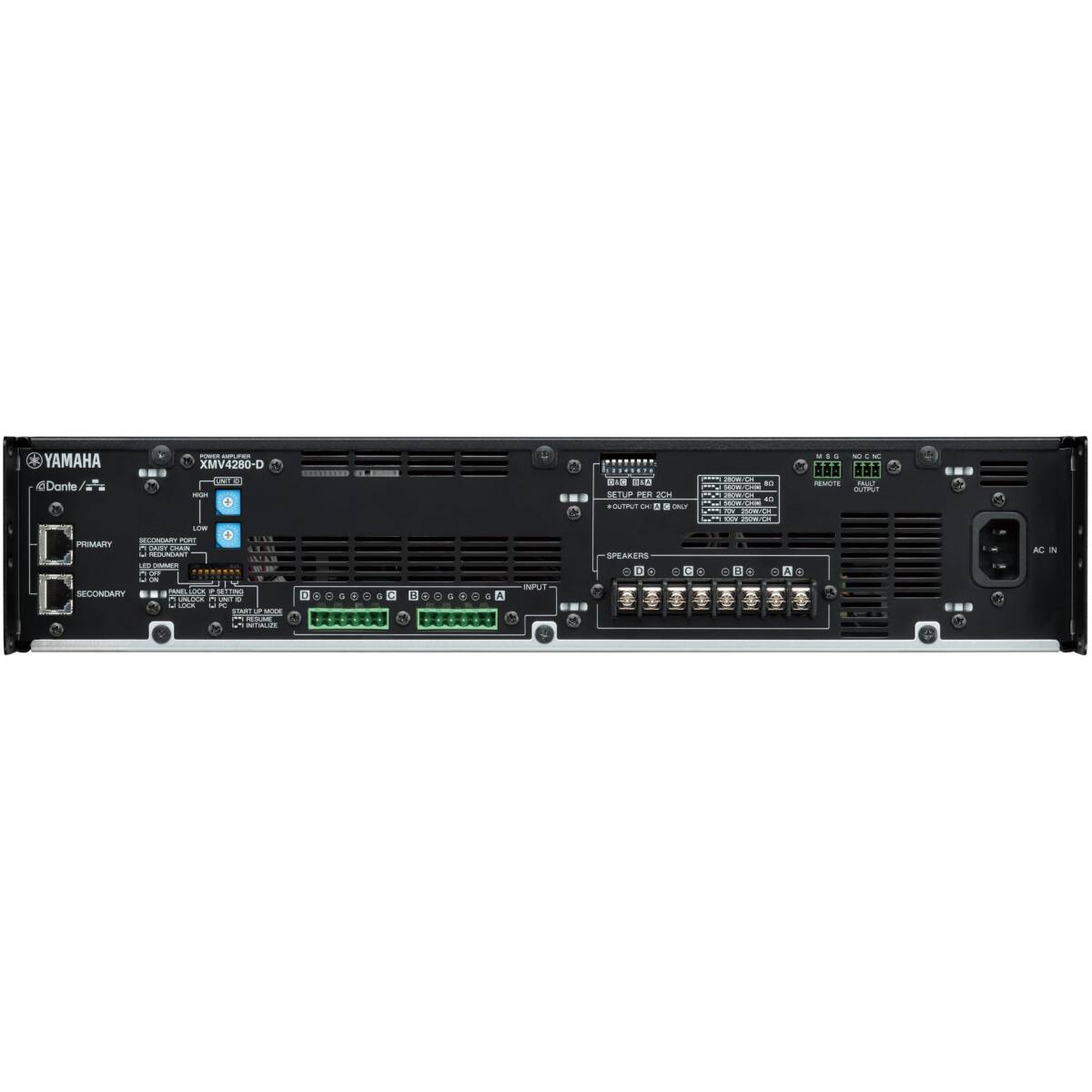

Yamaha XMV4280-D 4CH Dante Power Amplifier

The Yamaha XMV4280-D is a high-power 4-channel Class-D amplifier with built-in Dante networking, designed for professional AV and commercial audio installations. It delivers 280W per channel and supports both low-impedance and high-impedance (70V/100V) speaker systems, making it ideal for larger and more demanding environments.

With integrated DSP processing, including EQ, crossover, delay, and Yamaha speaker presets, the XMV4280-D ensures optimal sound performance and system protection. The addition of Dante allows audio signals to be distributed over standard network infrastructure, reducing cabling complexity and enabling scalable, centralized system designs.

Its compact 1U rack design and efficient operation make it perfect for installations where space, performance, and flexibility are critical.

Key Features

• 4-channel Class-D power amplifier
• Built-in Dante network audio
• High output power (280W per channel)
• Lo-Z and Hi-Z (70V/100V) operation
• Integrated DSP (EQ, crossover, delay)
• Yamaha speaker presets
• Network-based audio distribution
• Compact 1U rack design

Technical Specifications

Amplifier

• Channels: 4
• Amplifier Class: Class-D
• Output Modes:
  • Low impedance (Lo-Z)
  • High impedance (70V / 100V line)

Power Output

• 280 W × 4 @ 8Ω
• 280 W × 4 @ 4Ω
• 250 W × 4 @ 3Ω
• Hi-Z: 280 W × 4 (70V/100V)

Networking

• Dante Audio: Yes
• Network Ports: RJ45
• Supports audio over IP distribution

DSP & Processing

• Parametric EQ
• Crossover (HPF/LPF)
• Delay
• Limiter and protection
• Speaker presets (Yamaha series)
