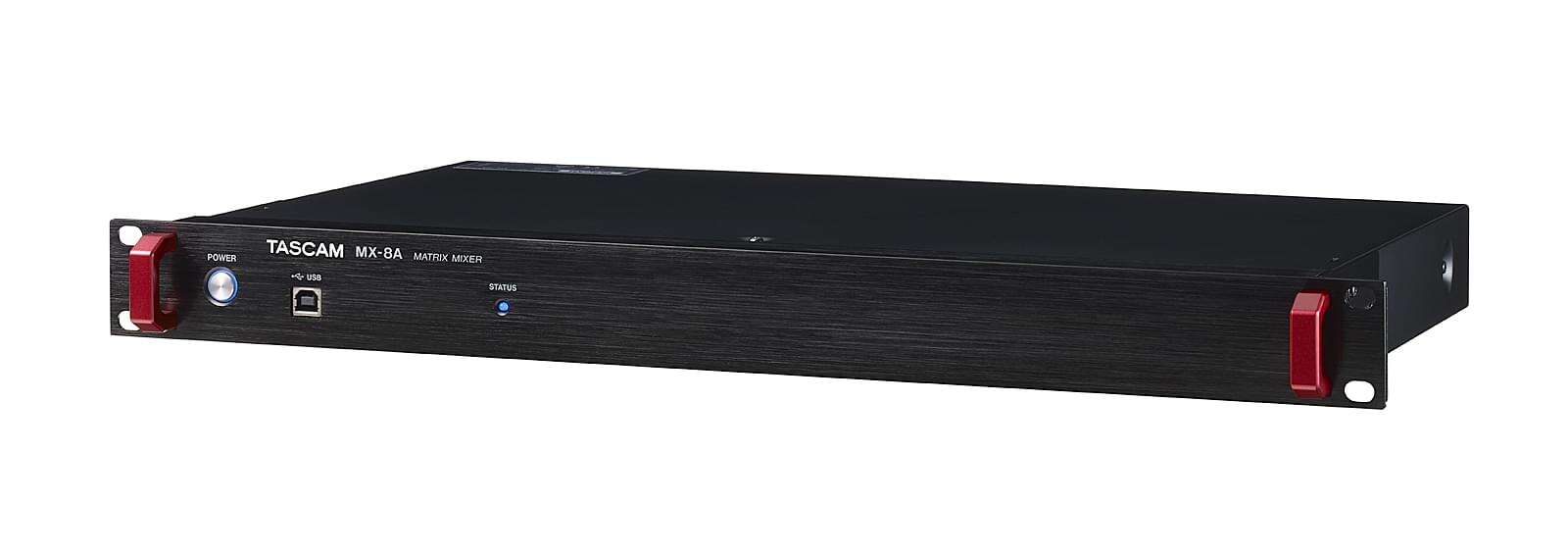

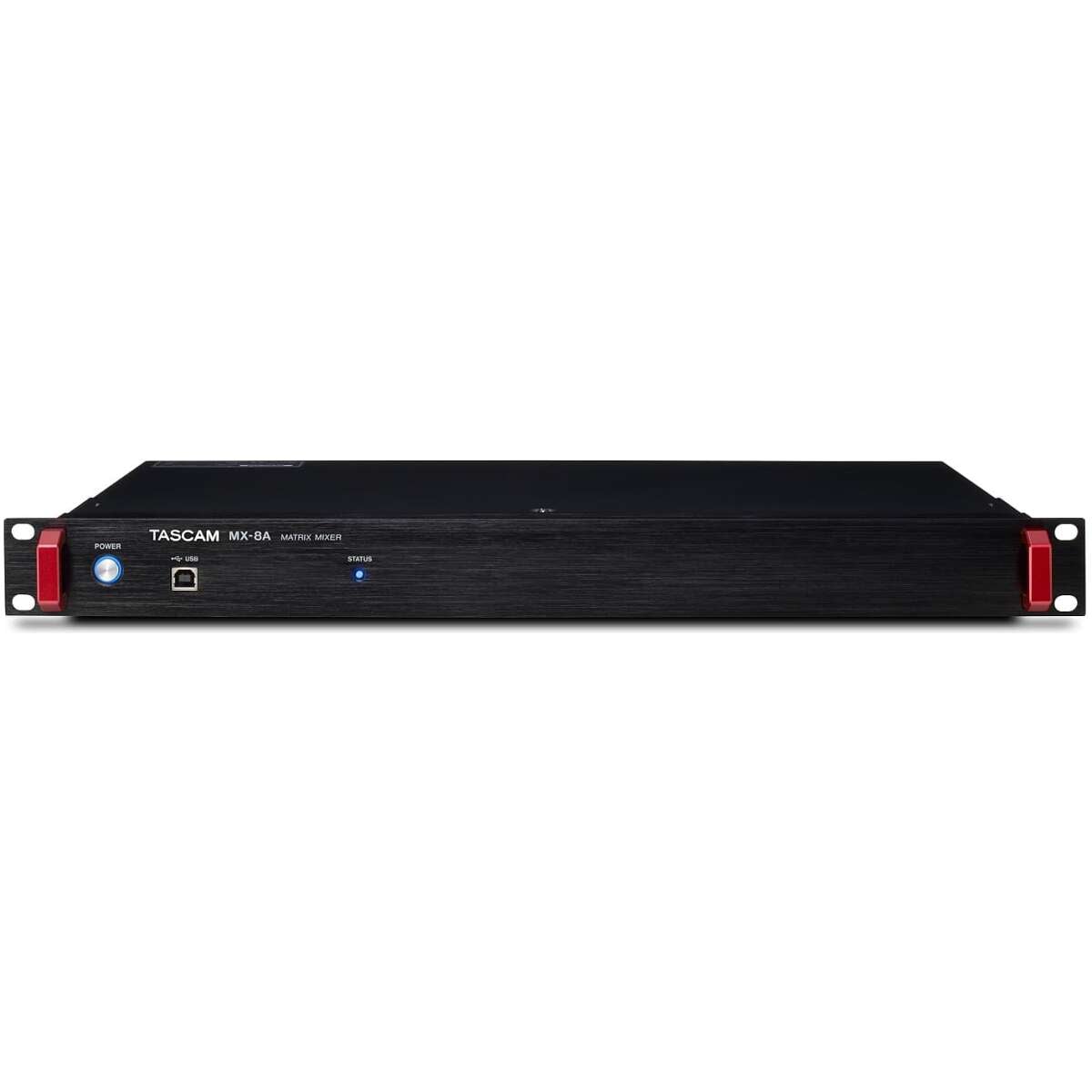

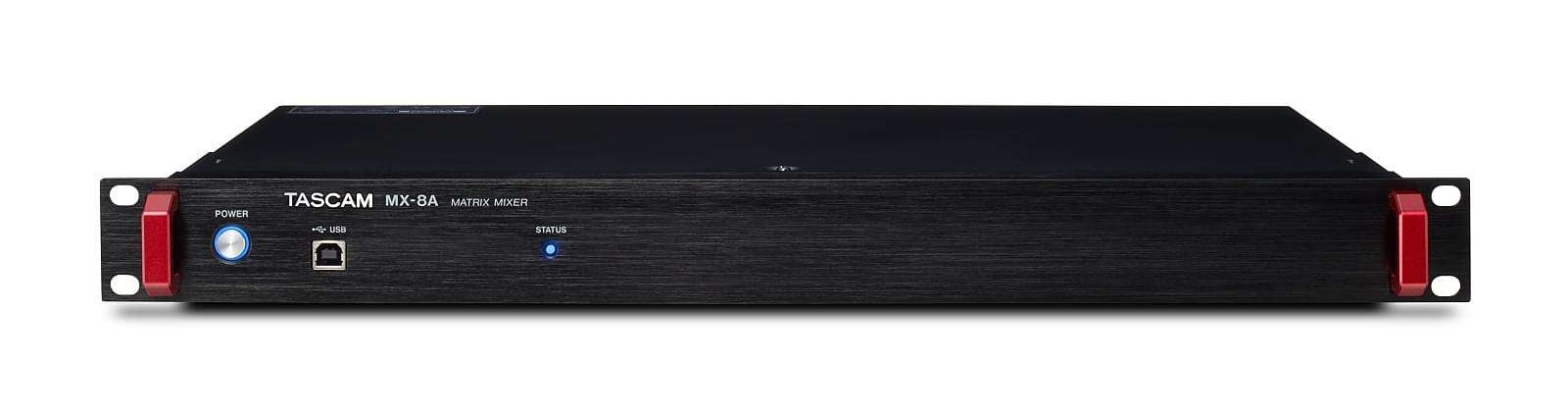

The TASCAM MX-8A is a professional digital matrix mixer and DSP processor designed for permanent audio installations. It provides eight balanced mic/line inputs, eight balanced line outputs and stereo USB audio input and output.

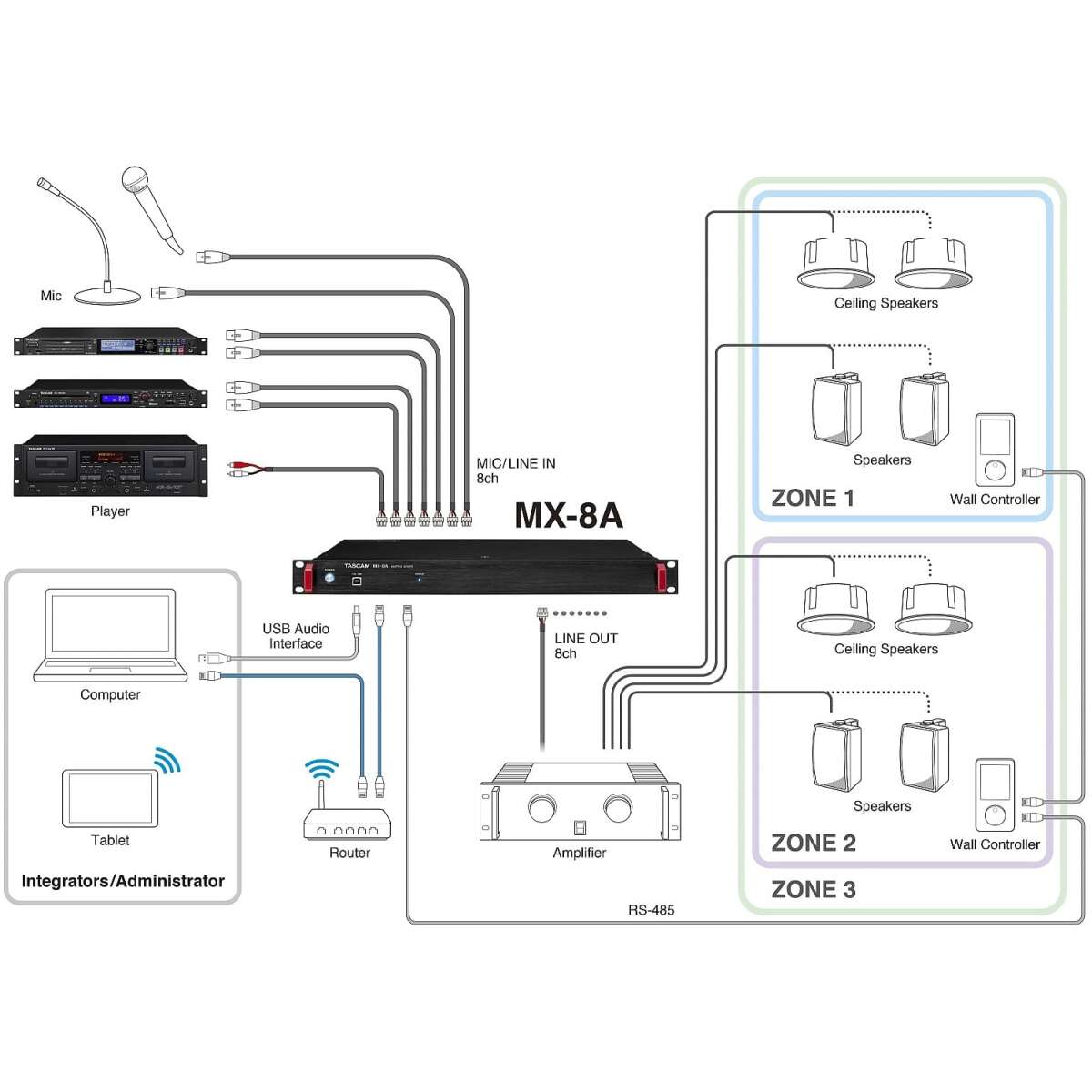

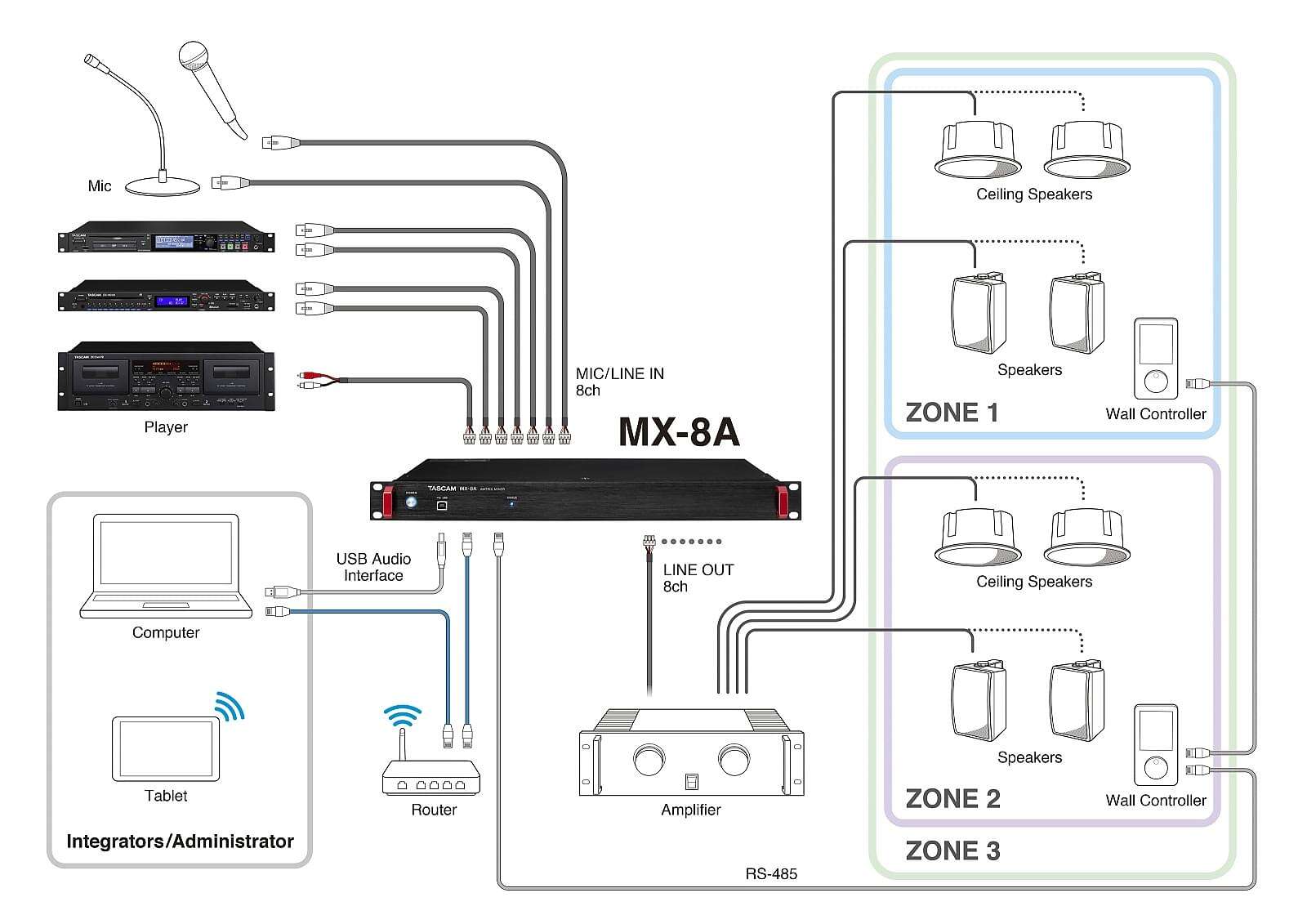

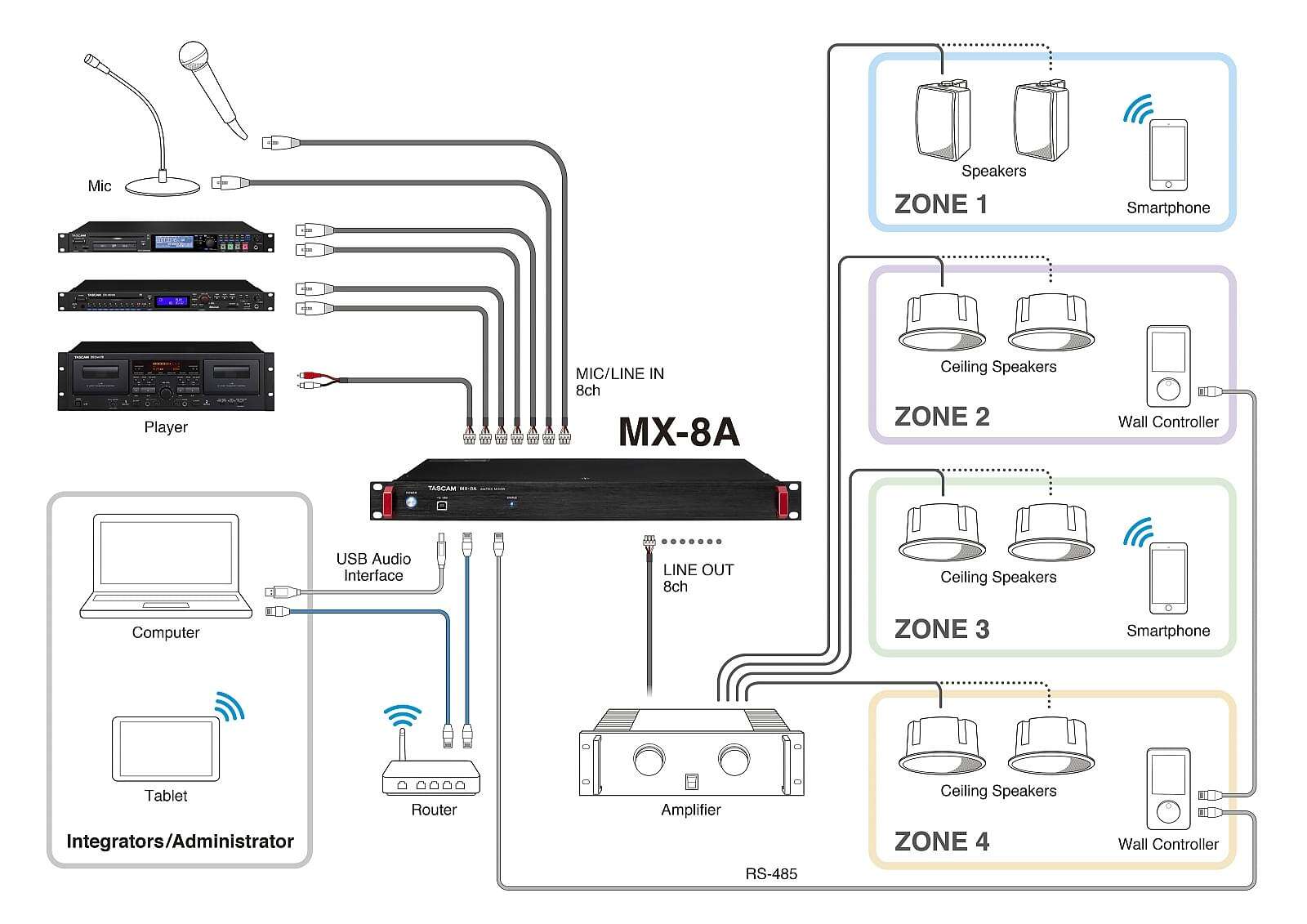

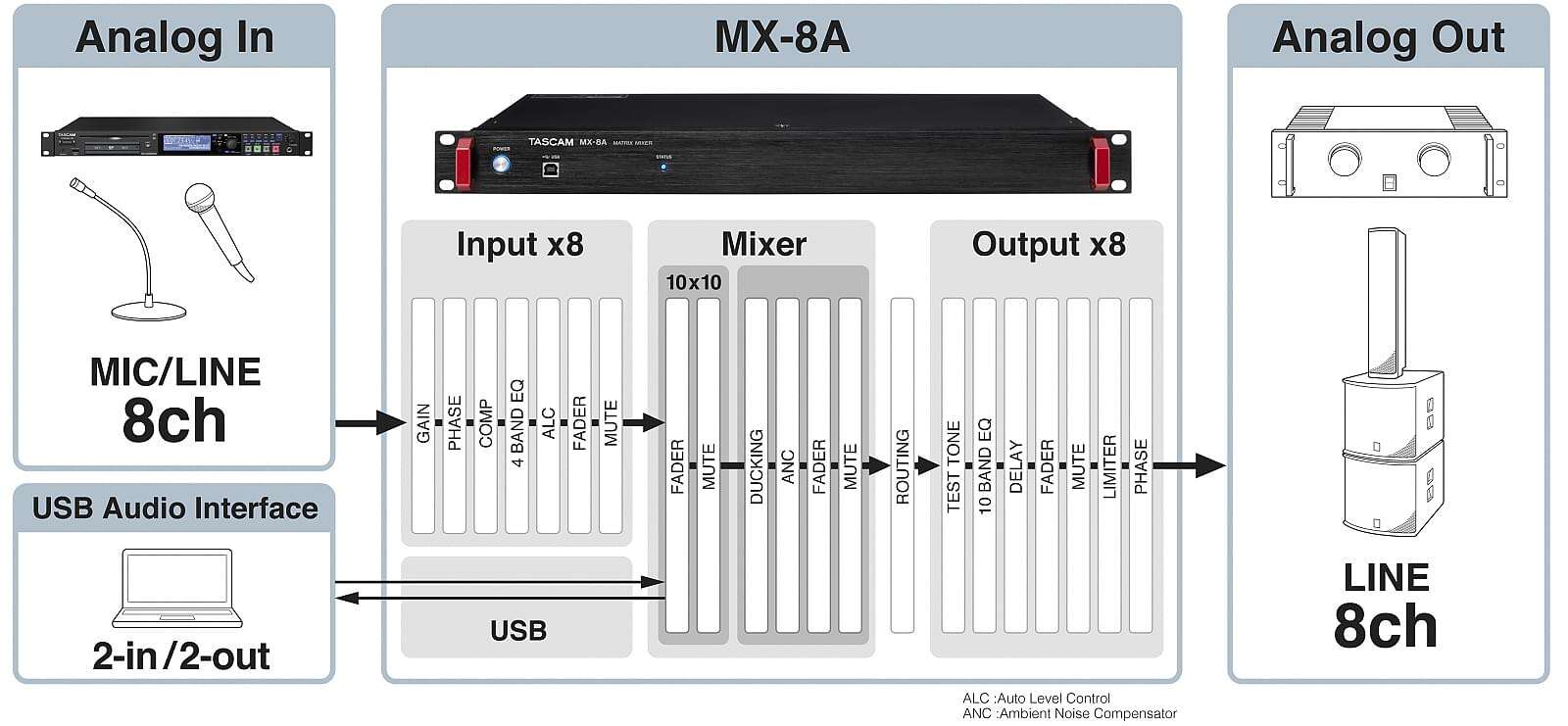

Its internal 10 × 10 matrix allows the eight analogue inputs and two USB channels to be mixed and routed to eight independent analogue output zones and a stereo USB output. This makes it suitable for conference rooms, restaurants, retail stores, hotels, banquet halls, courtrooms, schools, houses of worship and other multi-zone audio systems.

Mixer Type

The TASCAM MX-8A is a digital matrix installation mixer with built-in DSP processing.

It is not a conventional analogue mixer with physical channel faders. Configuration and daily operation are performed through control software, compatible network controllers or third-party control systems.

Channel Configuration

Analogue inputs:

• Eight balanced mic/line input channels

Analogue outputs:

• Eight balanced line-output channels
• Up to eight independently configured analogue output zones

USB audio:

• Two USB input channels
• Two USB output channels

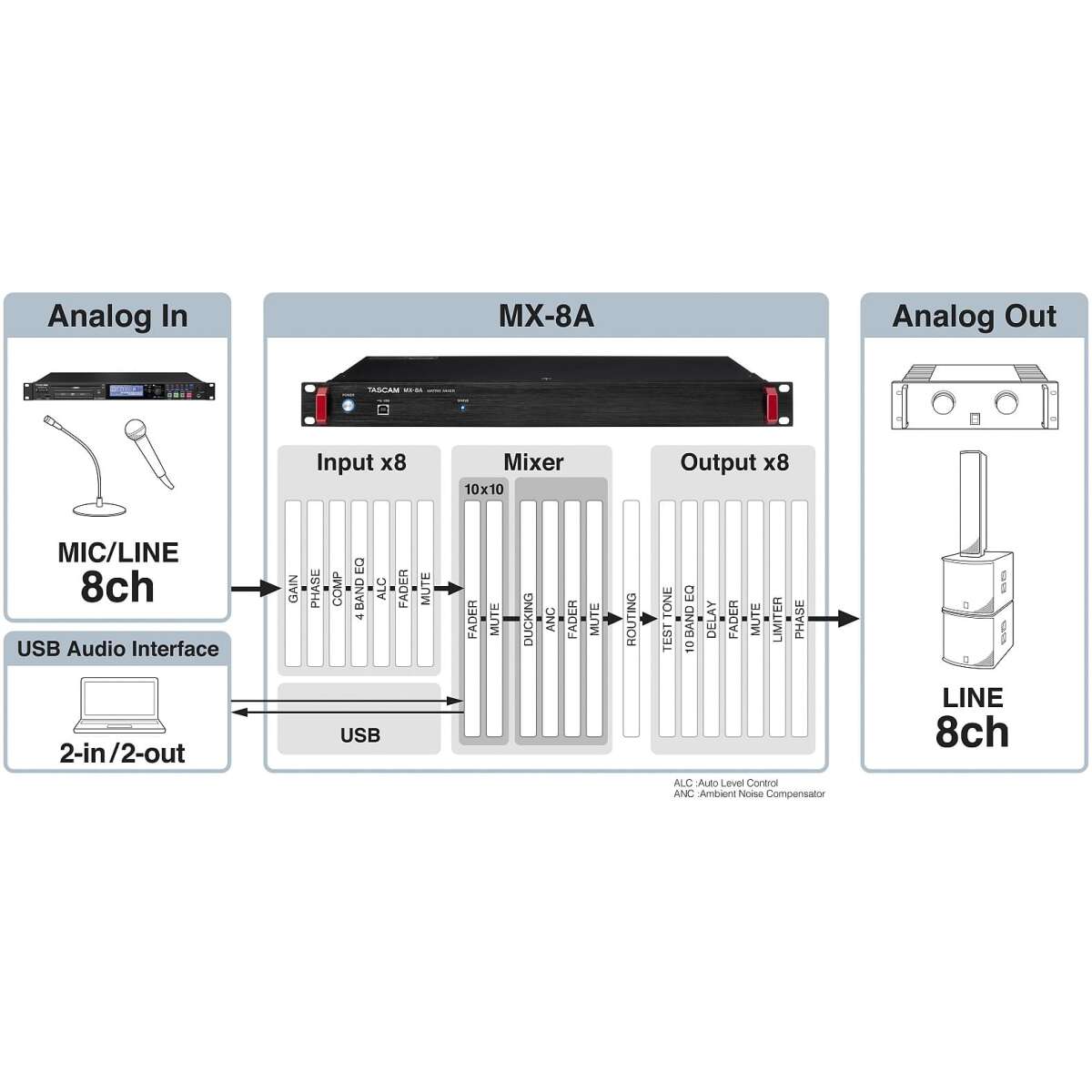

Internal matrix:

• 10 inputs × 10 outputs

The 10 × 10 figure includes the eight analogue channels plus the two-channel USB audio interface.

Key Features

• Eight balanced microphone/line inputs
• Eight balanced line outputs
• 10 × 10 internal matrix mixer
• Eight independently configurable analogue output zones
• Two-input/two-output USB audio interface
• Built-in digital signal processing
• Selectable 48V phantom power on each microphone input
• Remotely adjustable microphone gain
• Four-band input EQ
• Compressor on each input
• Automatic level control
• Ten-band output EQ
• High-pass and low-pass filtering
• Output delay
• Output limiter
• Automatic ducking
• Ambient Noise Compensator
• Phase inversion
• Fader and mute grouping
• Up to 50 scene memories
• Ethernet network control
• RS-232C control
• RS-485 remote-controller support
• Compatible with TASCAM MX Connect
• Compatible with TASCAM EZ Connect
• Supports optional RC-W100 wall controllers

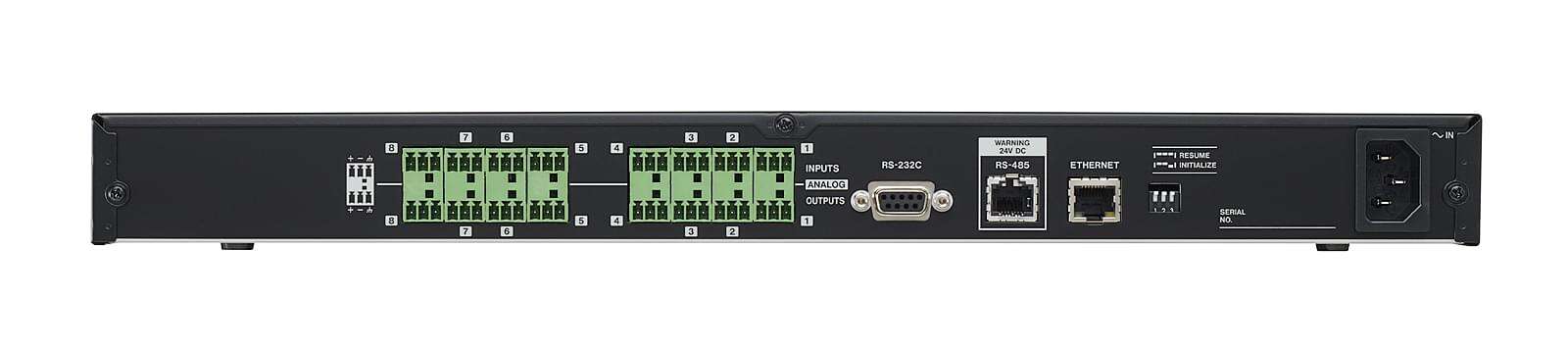

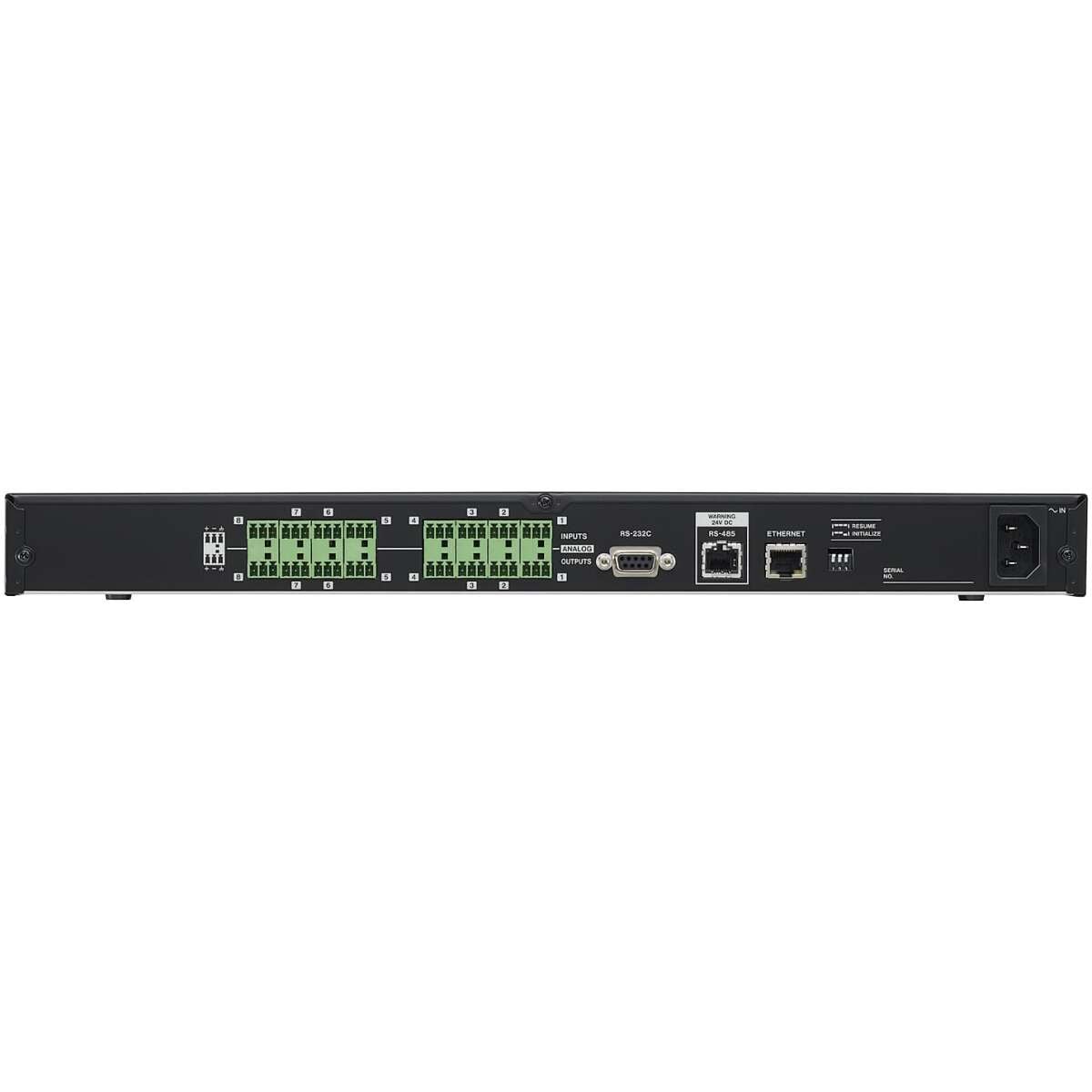

• Balanced Euroblock audio connections
