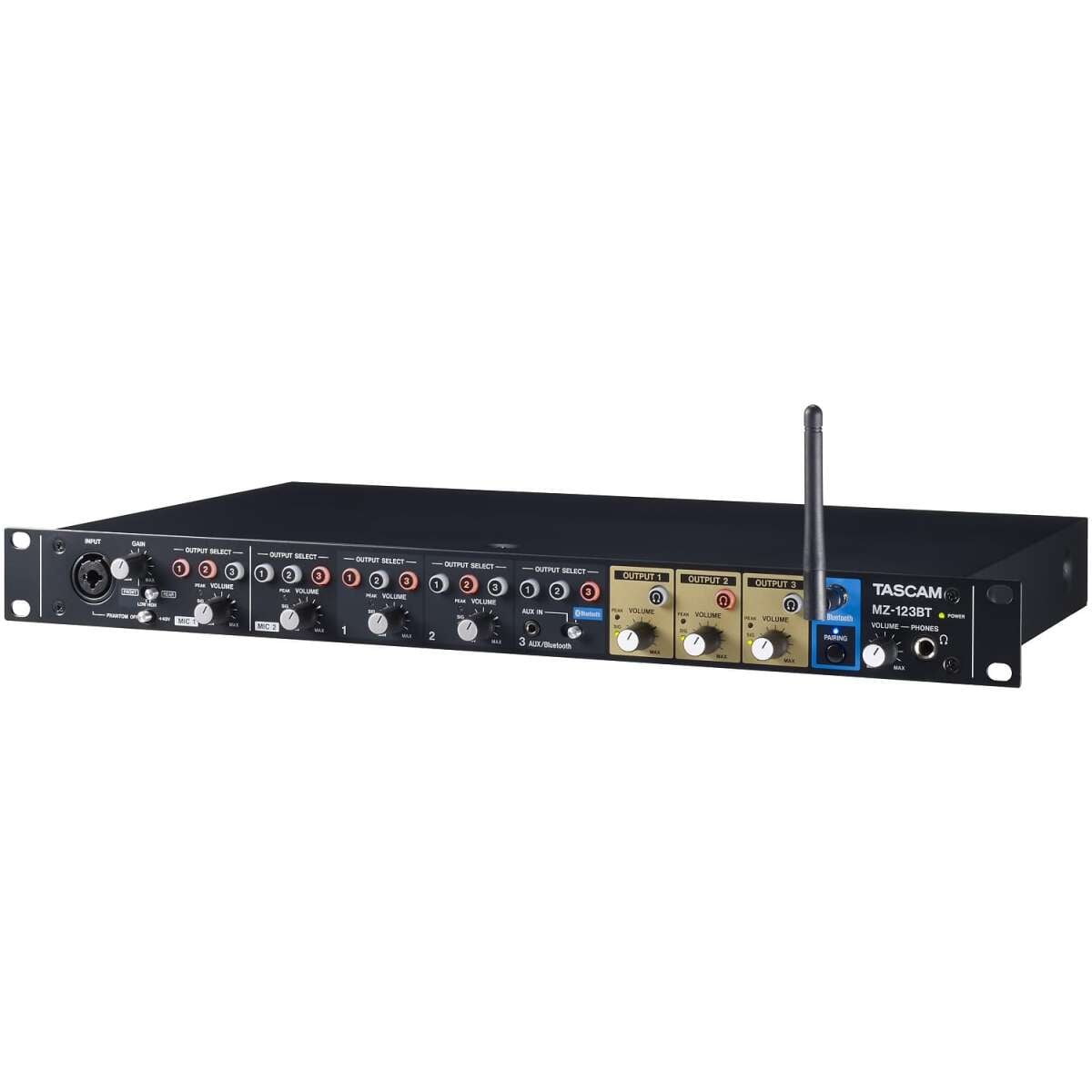

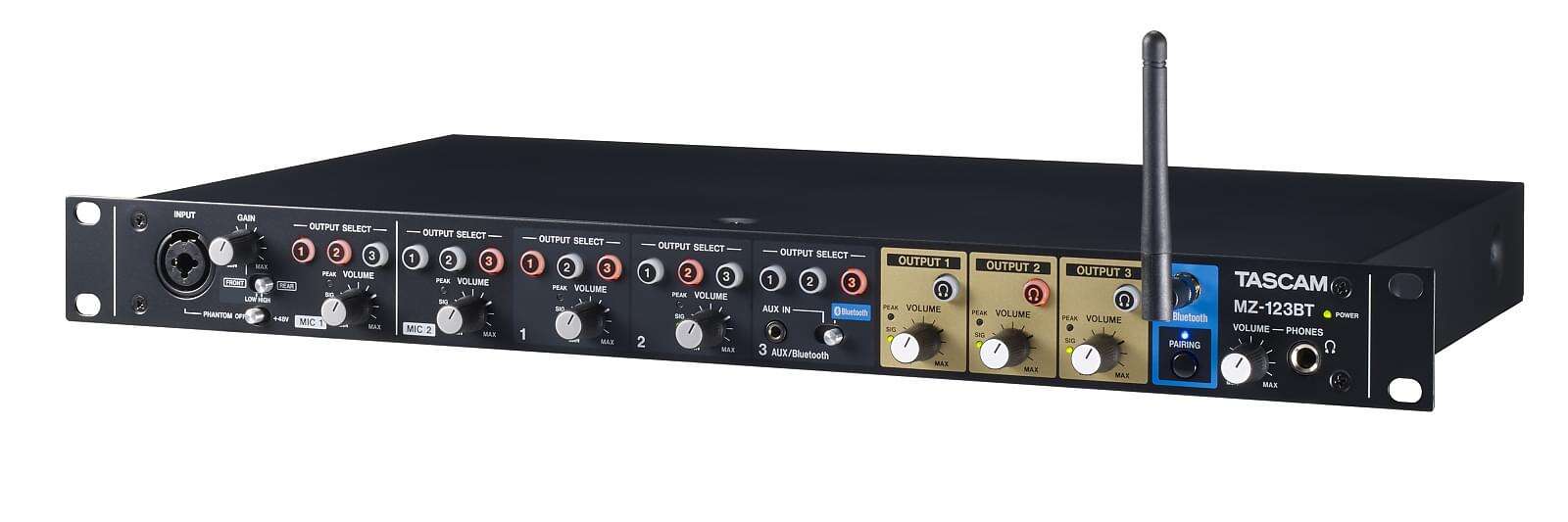

Tascam MZ-123BT Compact Multi-Zone Audio Mixer With Bluetooth

The TASCAM MZ-123BT is a compact analogue multi-zone installation mixer designed to distribute background music and microphone announcements across as many as three separate areas.

It is suitable for restaurants, retail stores, hotels, cafés, bars, conference facilities, schools, houses of worship and other commercial installations that require independent volume and source routing for different rooms or zones.

The mixer provides two microphone channels, three stereo music-input channels and three independently controlled zone outputs. An integrated Bluetooth receiver allows music to be streamed wirelessly from compatible smartphones, tablets and computers.

Key Features

• Compact analogue multi-zone installation mixer
• Three independently controlled output zones
• Three stereo music-input channels
• Two balanced microphone channels
• Built-in Bluetooth audio receiver
• Bluetooth 4.2 with SBC, AAC and aptX codec support

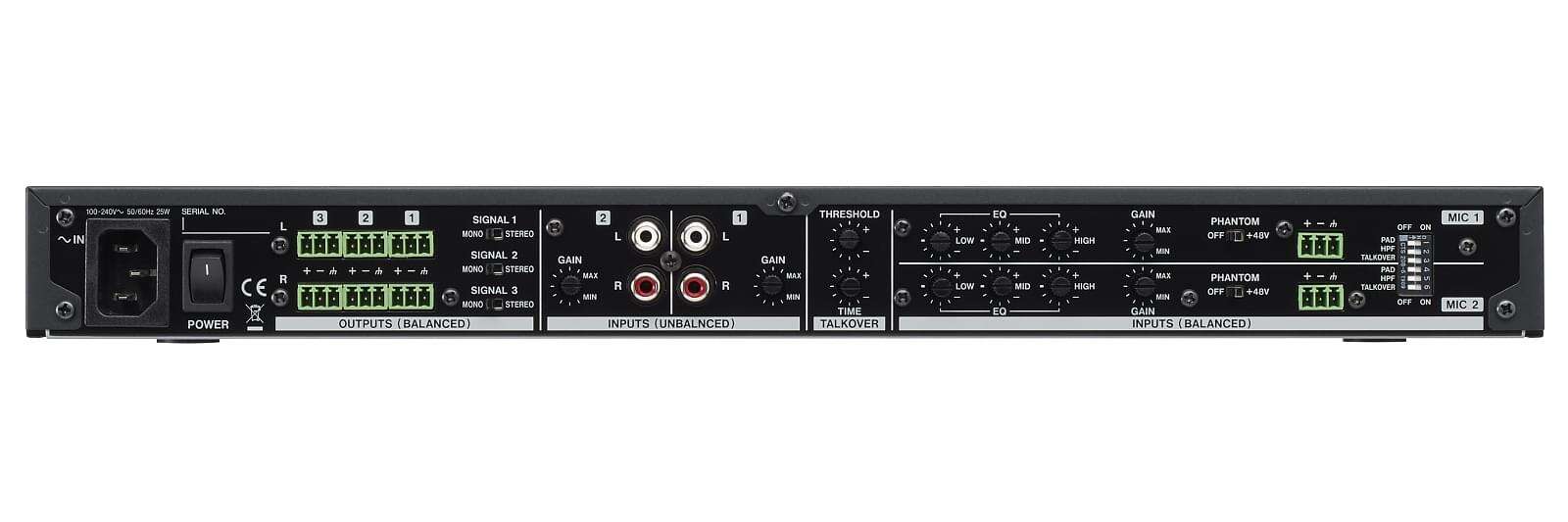

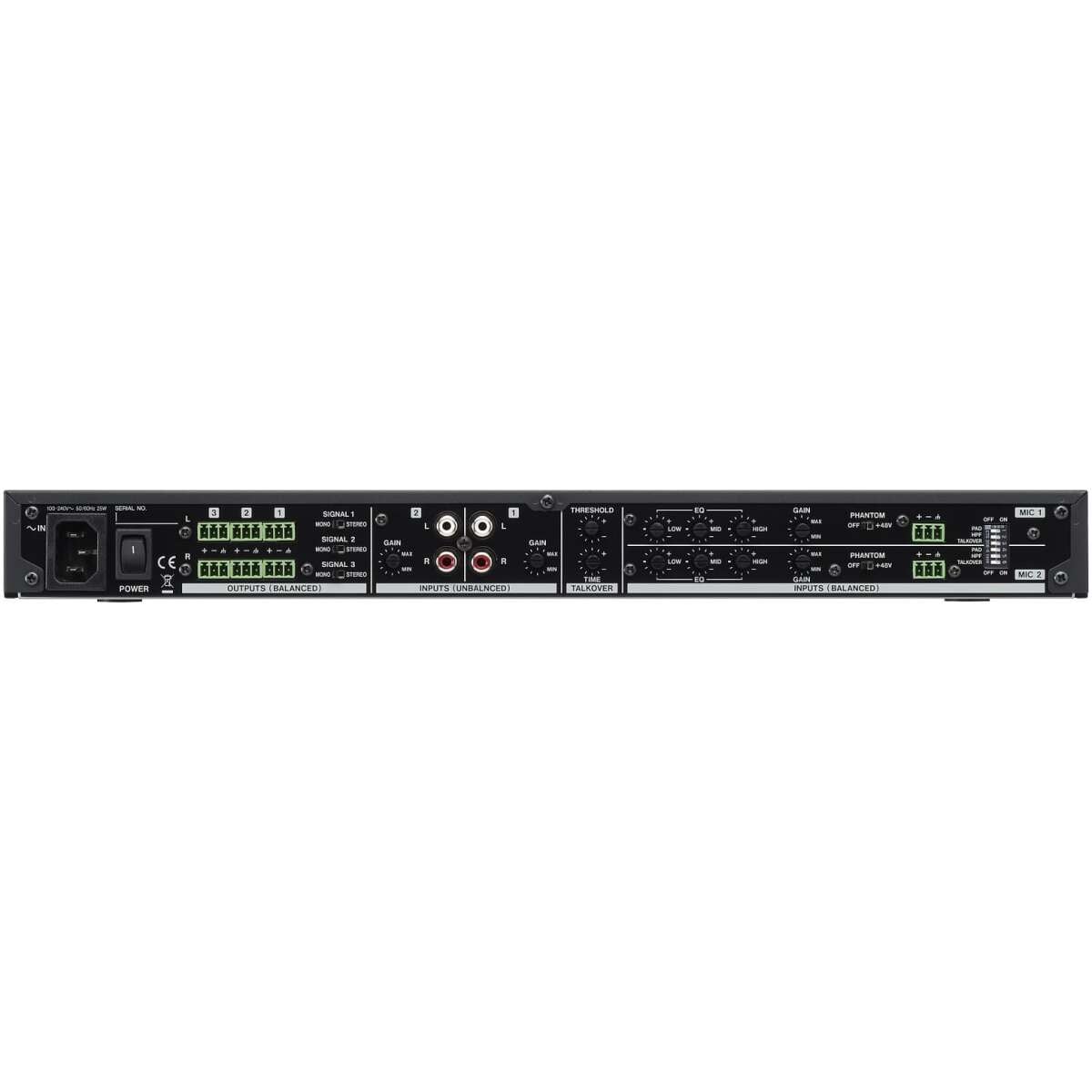

• Two rear-panel RCA stereo line inputs

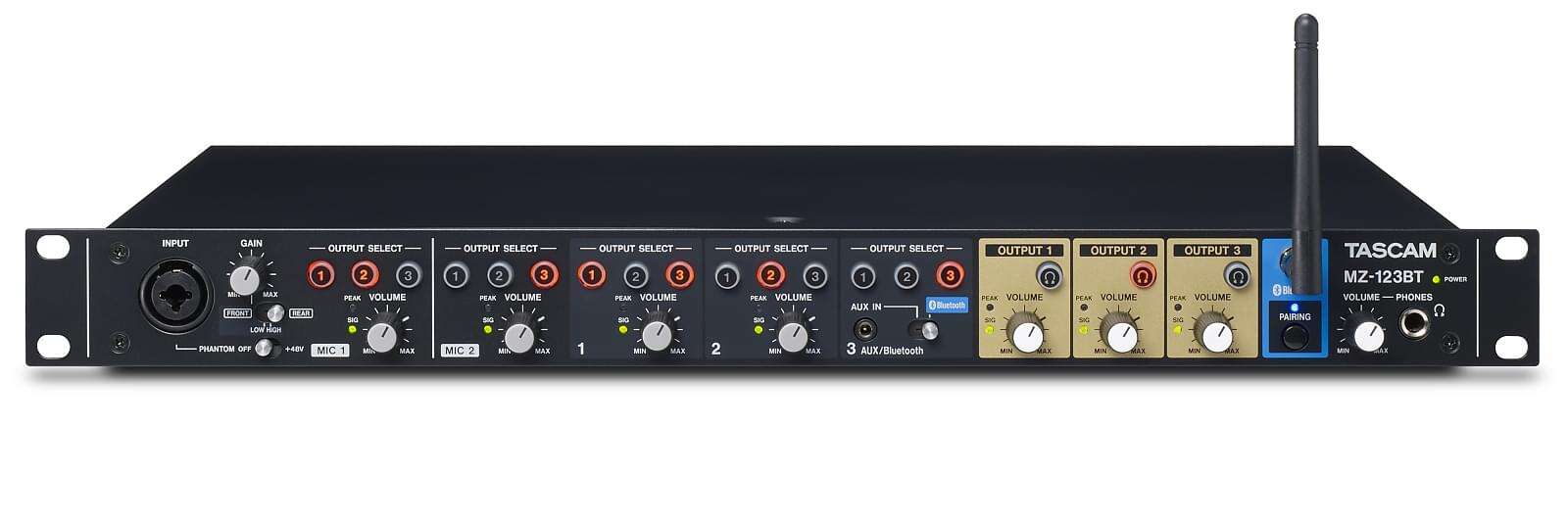

• Front-panel 3.5 mm auxiliary input
• Front-panel XLR/TRS microphone connector
• Two rear-panel balanced Euroblock microphone inputs
• Individually switchable 48V phantom power
• Three-band EQ for each microphone channel
• Switchable microphone high-pass filters
• Adjustable microphone input gain
• Automatic talkover function
• Independent routing of every input to Zones 1, 2 and 3
• Three balanced stereo Euroblock zone outputs
• Each zone can operate in mono or stereo
• Headphone output for monitoring selected zones
• Signal and peak indicators
• External front-mounted Bluetooth antenna
• Universal 100–240V AC power supply
• Compact 1U 19-inch rackmount design

Mixer Type

The MZ-123BT is an analogue installation mixer with a built-in digital Bluetooth receiver.

It does not include:

• USB audio-interface functionality
• Digital recording
• SD-card or USB playback
• Built-in power amplification
• Built-in reverb or effects
• Computer-based mixer control
