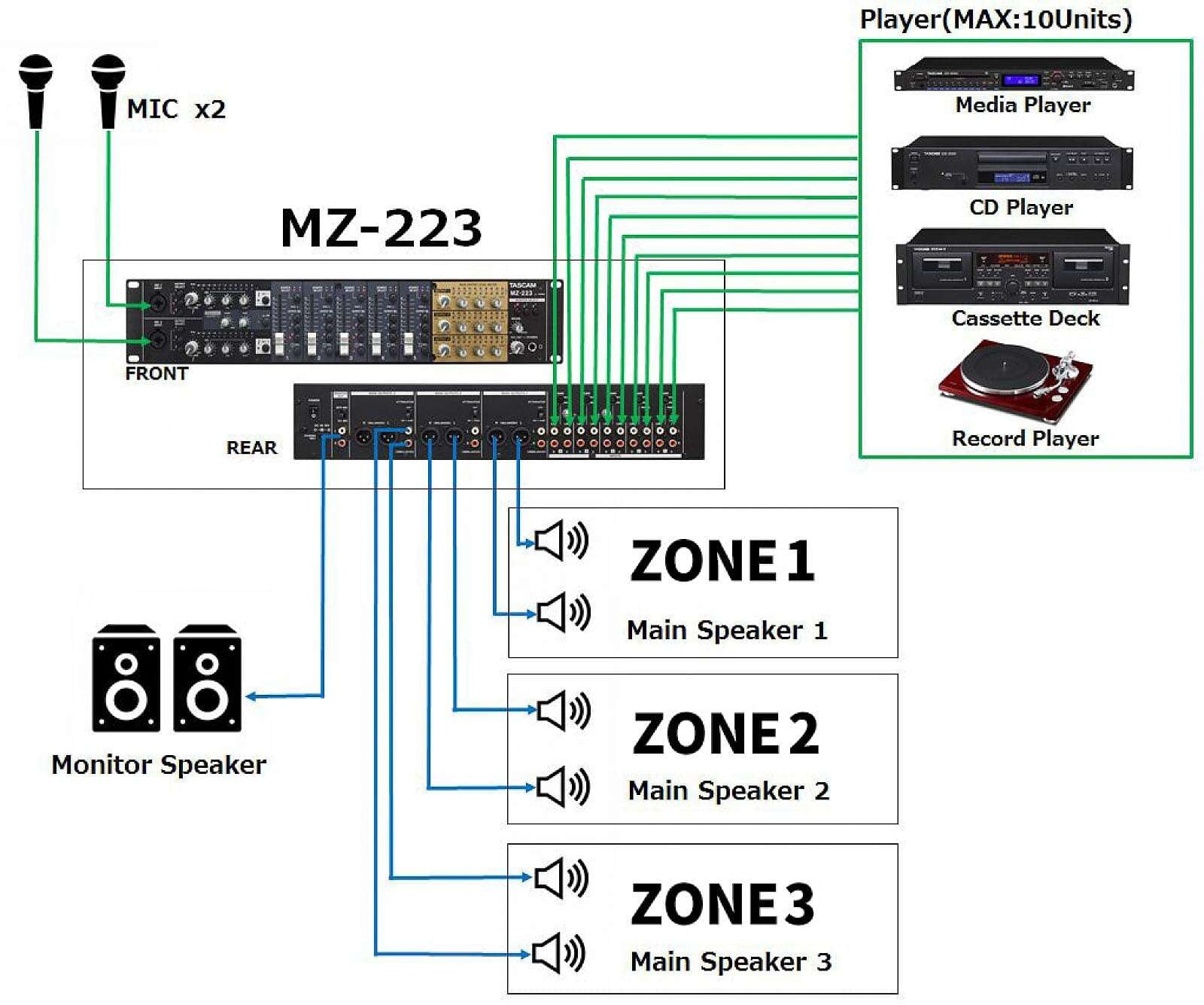

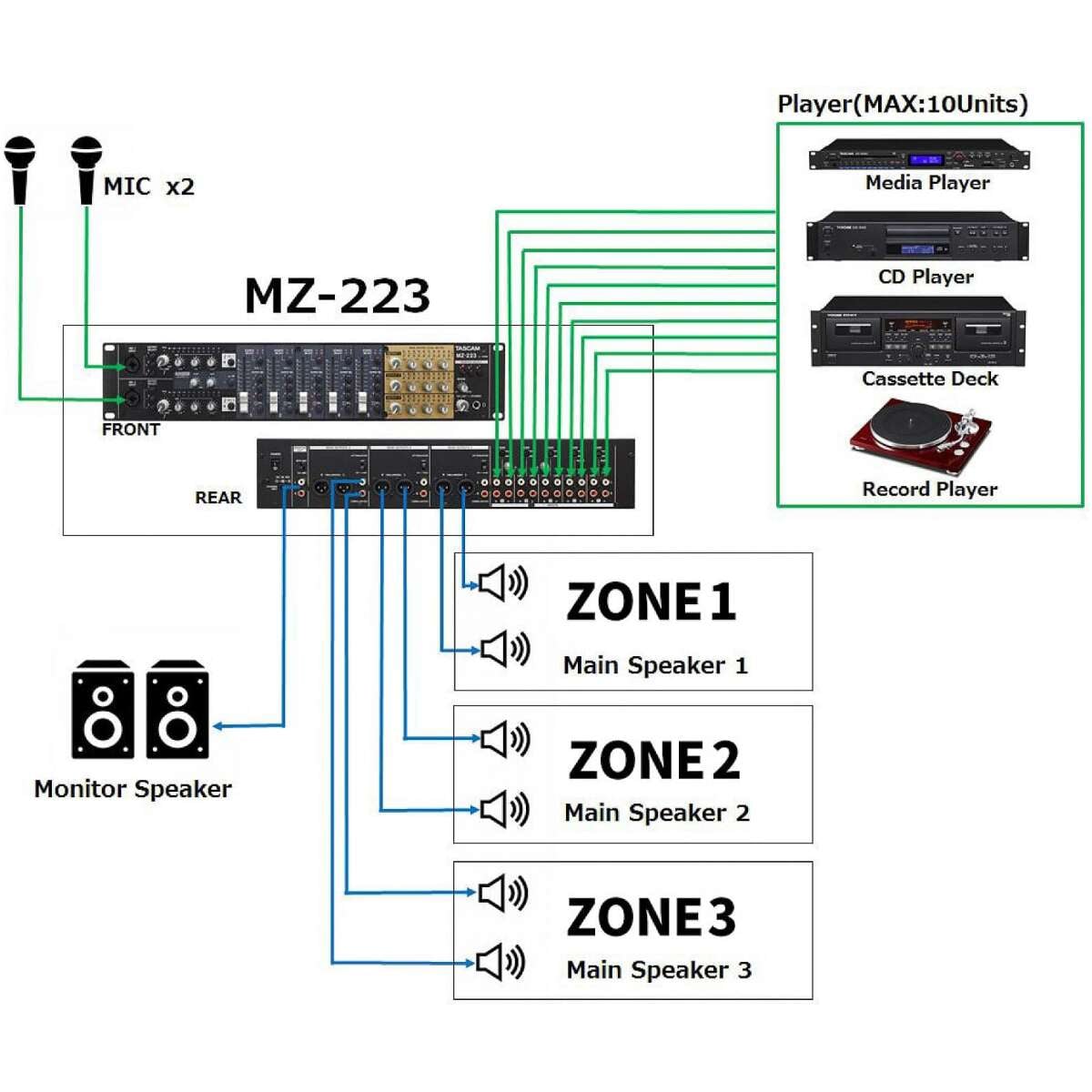

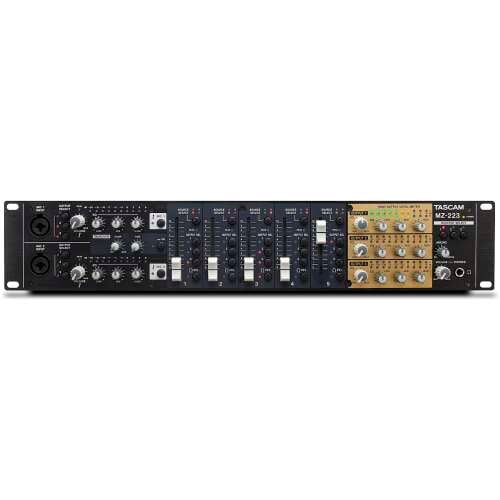

The TASCAM MZ-223 is a professional analogue installation mixer designed to distribute music, microphone announcements and other audio sources to three independently controlled zones.

It provides five stereo music channels and two additional microphone channels. Each channel can be routed to Zone 1, Zone 2, Zone 3 or any combination of the three zones.

The MZ-223 is suitable for restaurants, retail stores, hotels, bars, schools, houses of worship, conference facilities, entertainment venues and other installations requiring different audio sources in separate rooms or areas.

Mixer Type

The TASCAM MZ-223 is an analogue multi-zone installation mixer.

It has:

• Five stereo line/phono channels
• Two mono microphone channels
• Seven input channels in total
• Three independent stereo output zones

It does not include:

• Bluetooth
• USB audio
• Built-in recording
• Digital signal processing
• Built-in effects
• A built-in power amplifier

External power amplifiers or active speakers are required.

Key Features

• Seven input channels in total
• Five stereo line-input channels
• Two additional microphone-input channels
• Three independently controlled stereo output zones
• Every input can be routed to any or all three zones
• Two selectable RCA stereo sources for each line channel
• Twenty RCA input sockets in total
• Channels 1 and 2 switchable between line and phono operation
• Suitable for connecting turntables directly

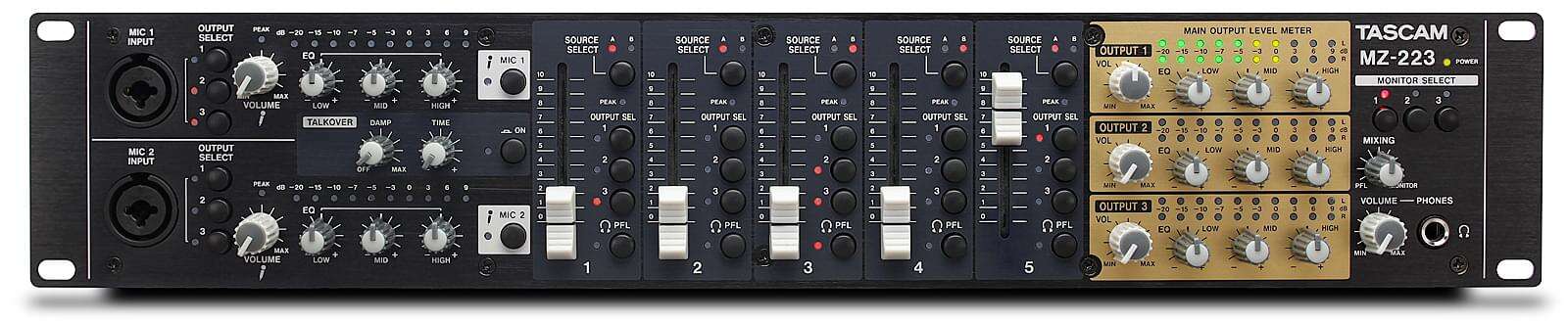

• Two front-panel XLR/6.3 mm microphone inputs
• Three-band EQ for each microphone channel
• Three-band EQ for each zone output
• Automatic talkover function
• Five channel faders
• Input gain controls and peak indicators
• Pre-fader listening function

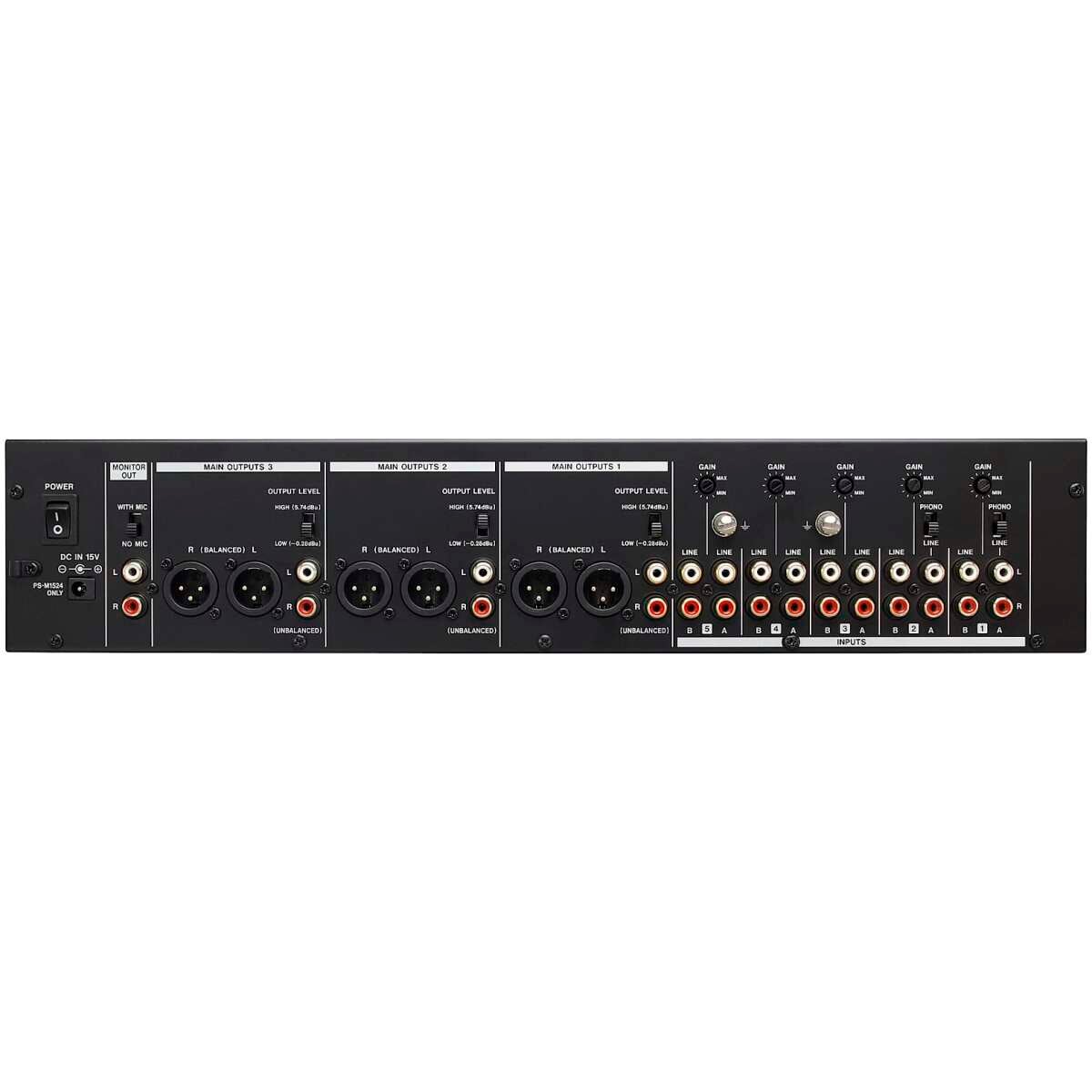

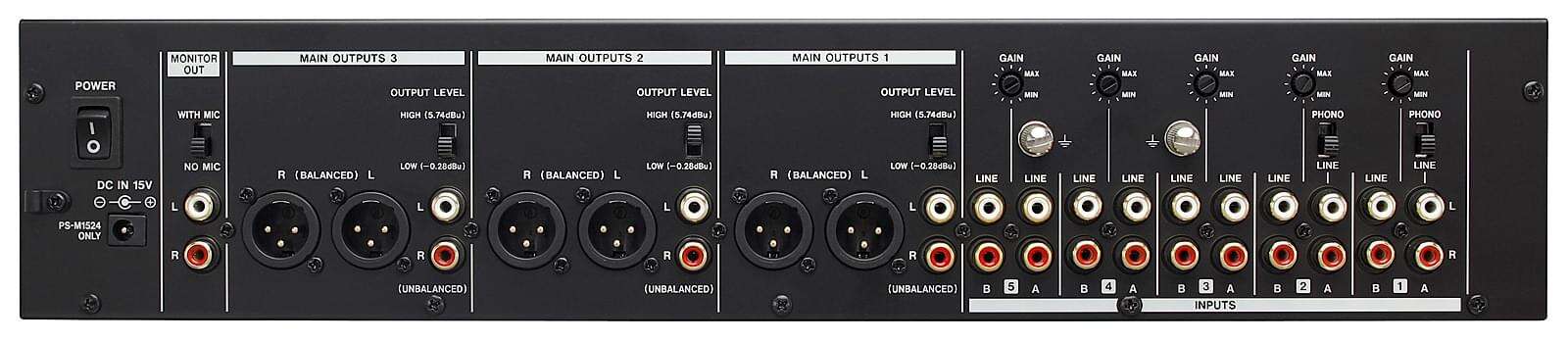

• Balanced XLR zone outputs
• Unbalanced RCA zone outputs
• Independent stereo monitor output
• Headphone monitoring output
• Ten-segment stereo LED meters for each output zone
• Compact 2U rackmount construction
