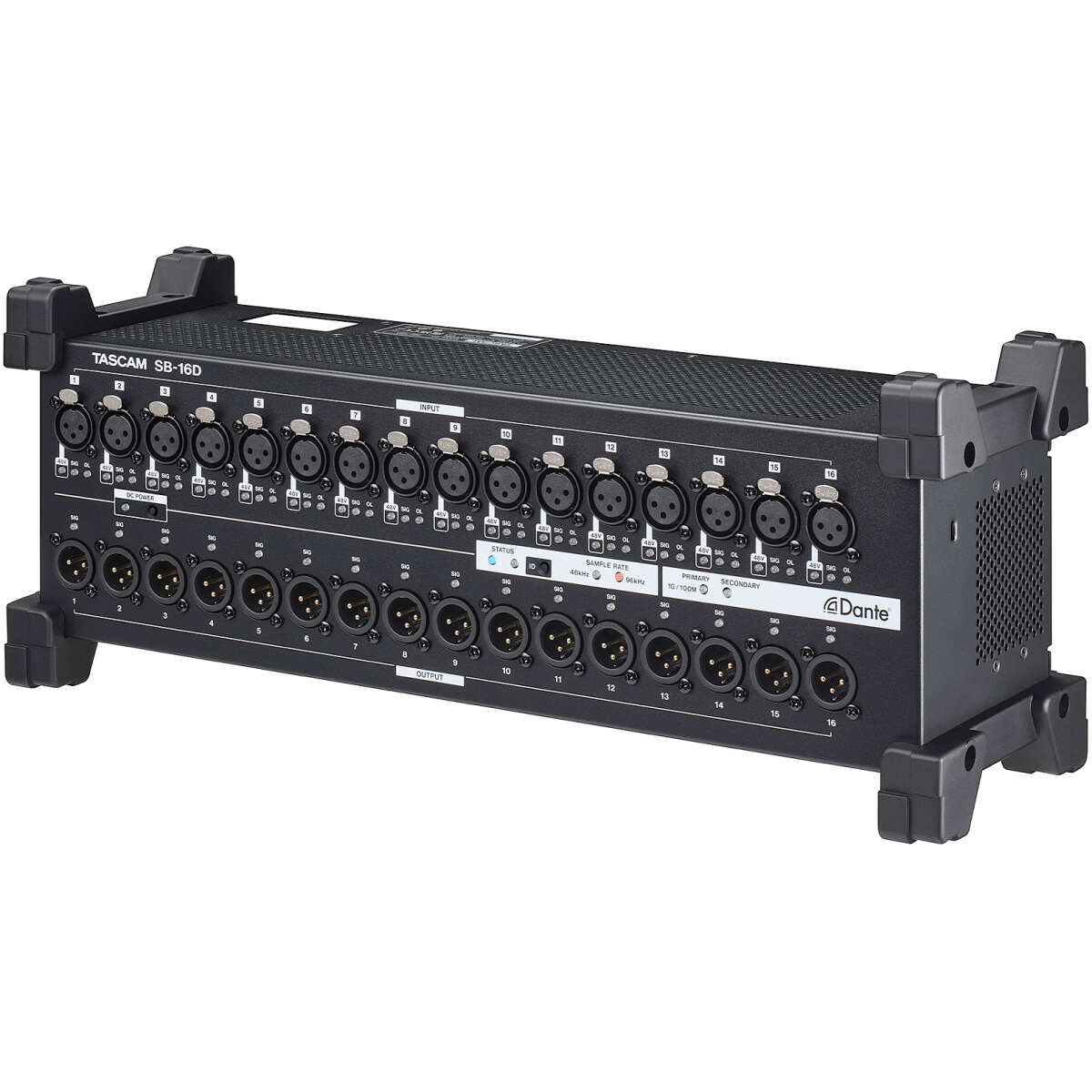

The TASCAM SB-16D is a professional Dante-enabled stage box with 16 balanced analogue microphone/line inputs and 16 balanced analogue line outputs.

It features TASCAM Class 1 HDIA microphone preamps, 32-bit analogue-to-digital conversion, remote preamp control and redundant Dante networking. It can be used with a TASCAM Sonicview mixer or operated independently through TASCAM IO Control software.

Key Features

• 16 balanced XLR microphone/line inputs
• 16 balanced XLR line outputs
• TASCAM Class 1 HDIA microphone preamps
• 32-bit A/D and 24-bit D/A conversion
• Sampling frequency up to 96 kHz
• Individually switchable 48V phantom power
• Input signal and overload indicators
• Output signal indicators

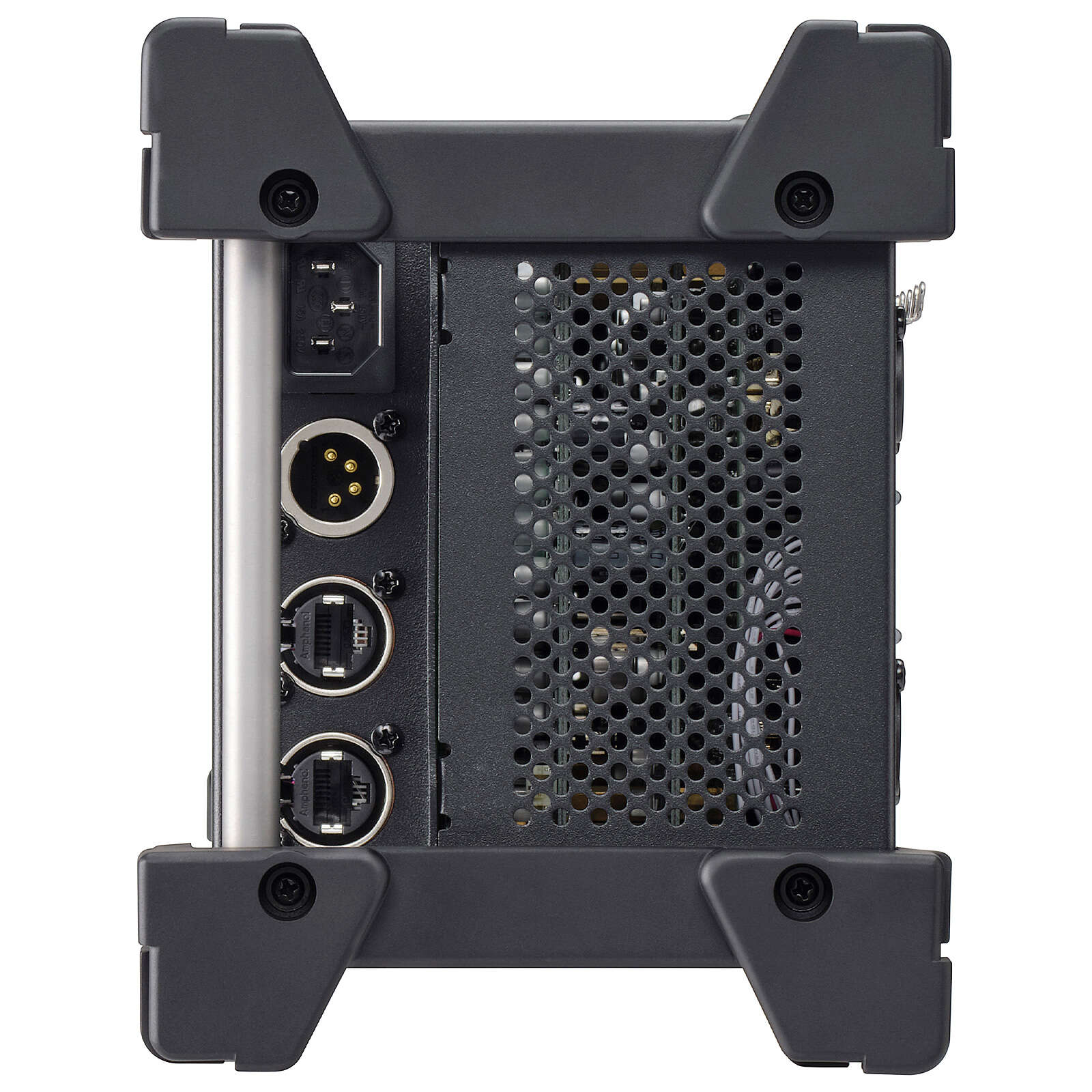

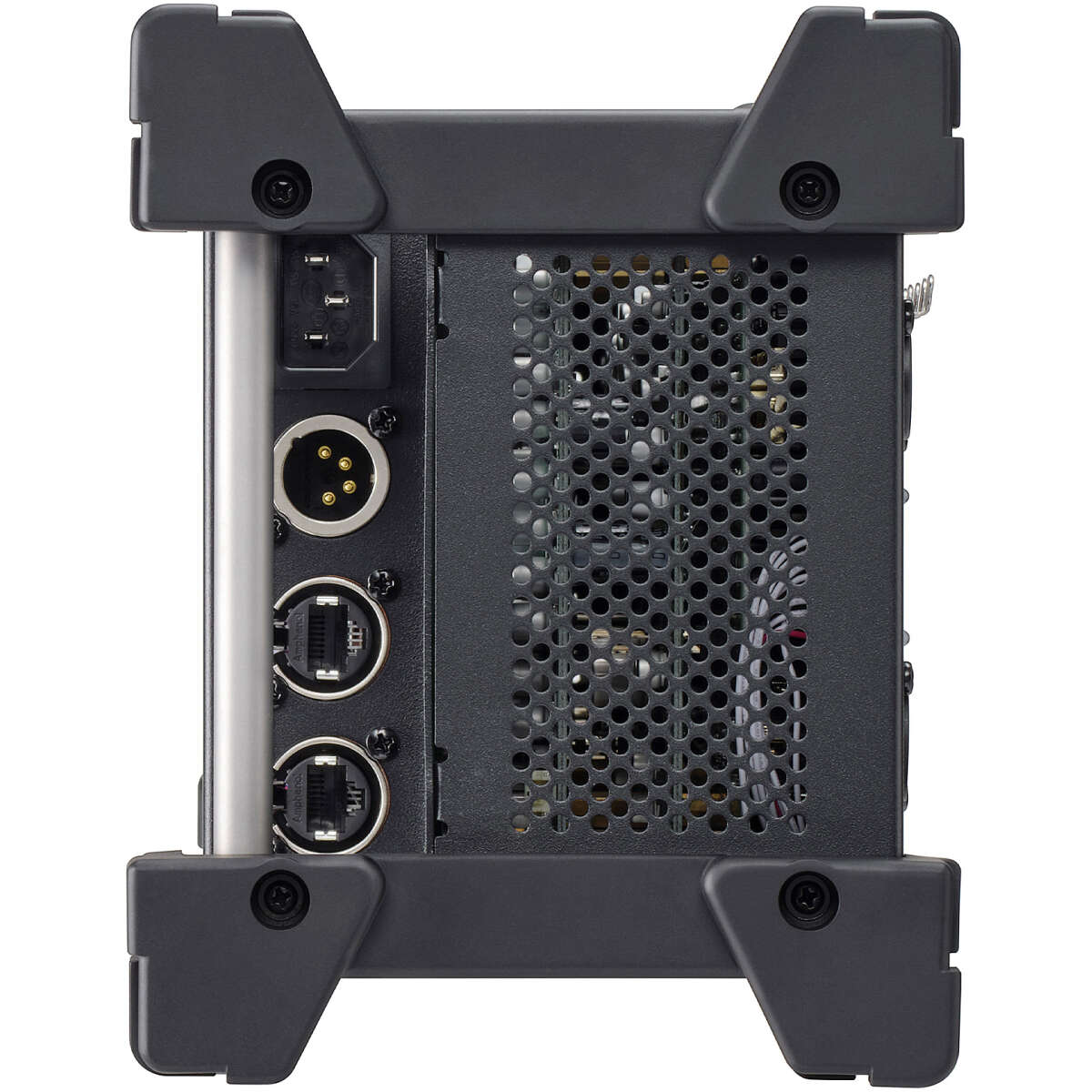

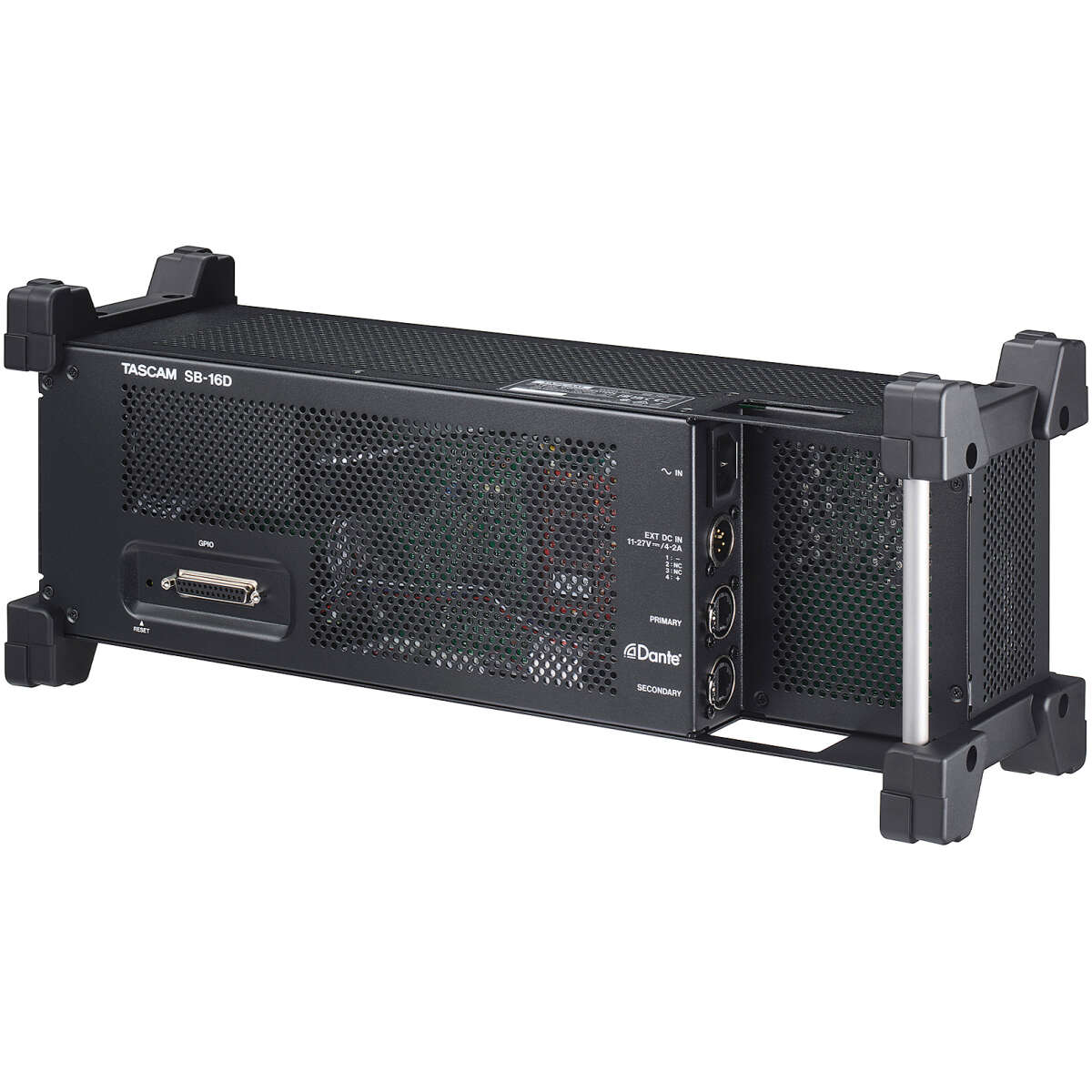

• Primary and Secondary Dante ports
• Redundant and switched Dante-network modes
• etherCON-compatible network connectors
• Dante Domain Manager support
• AES67 interoperability
• SMPTE ST 2110 interoperability
• Remote control from TASCAM Sonicview mixers

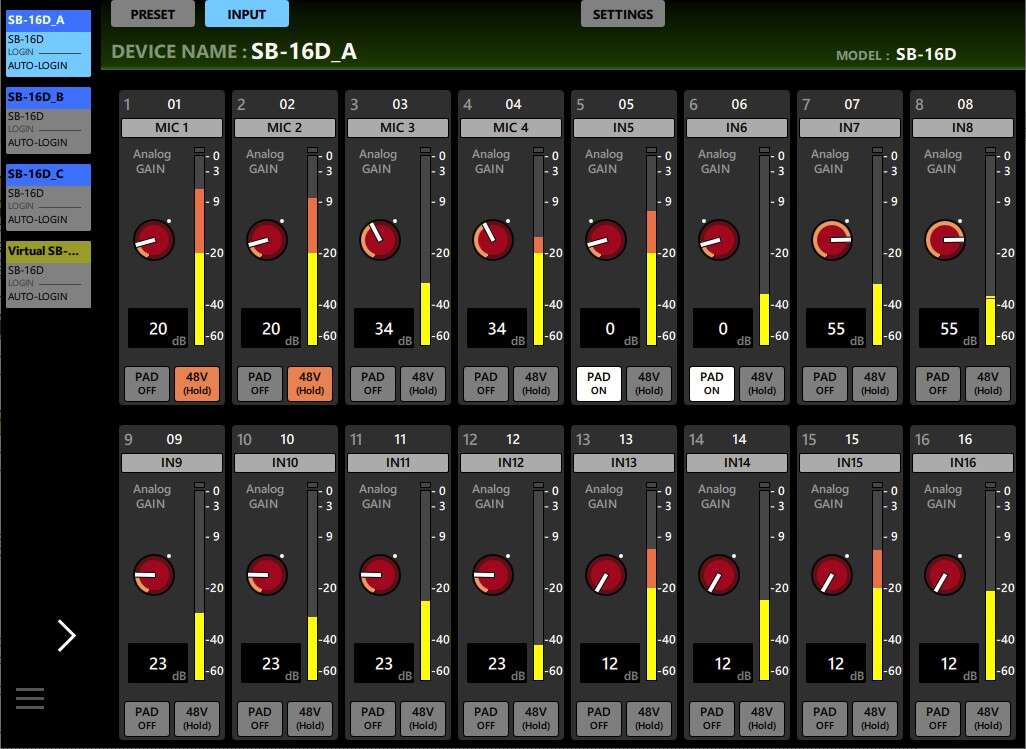

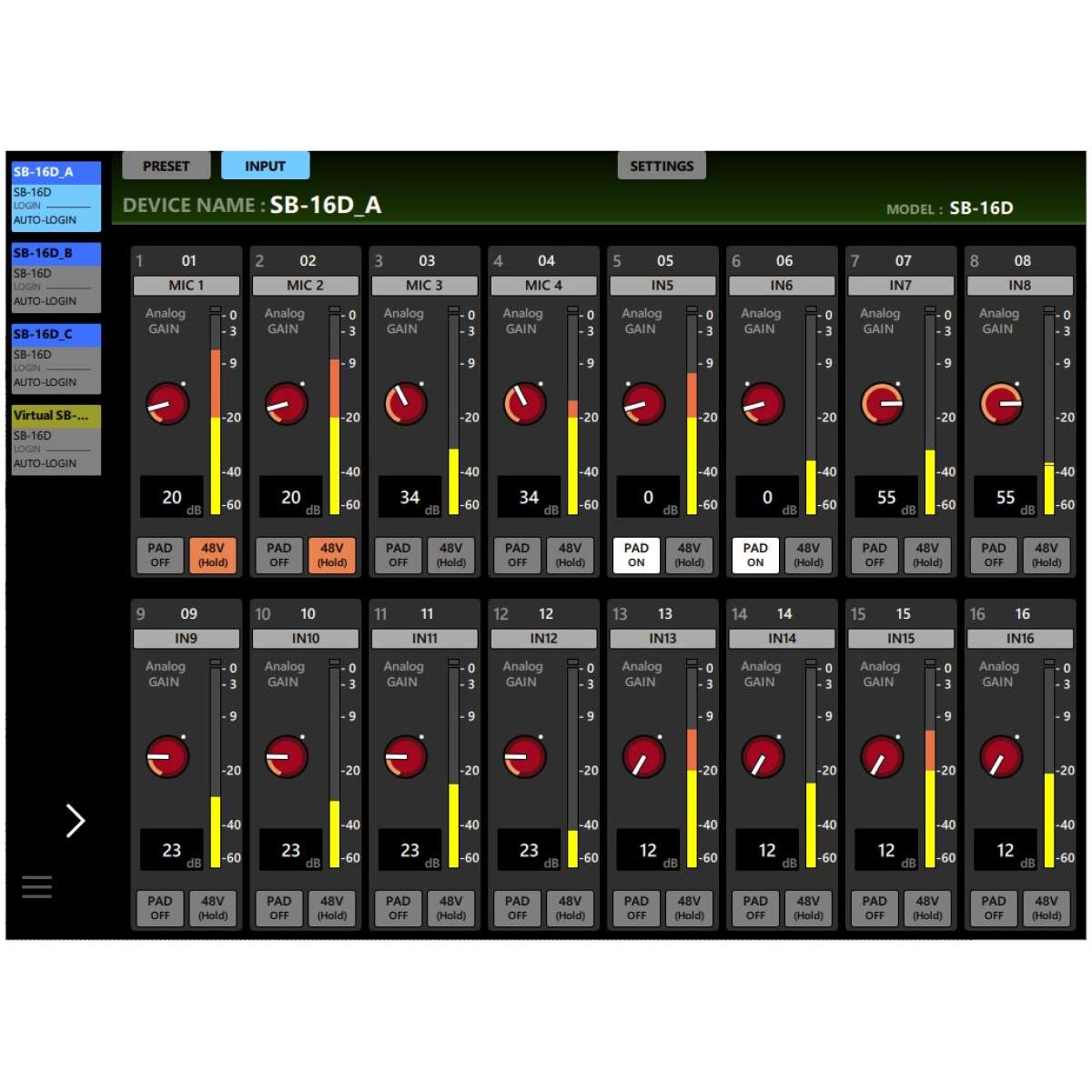

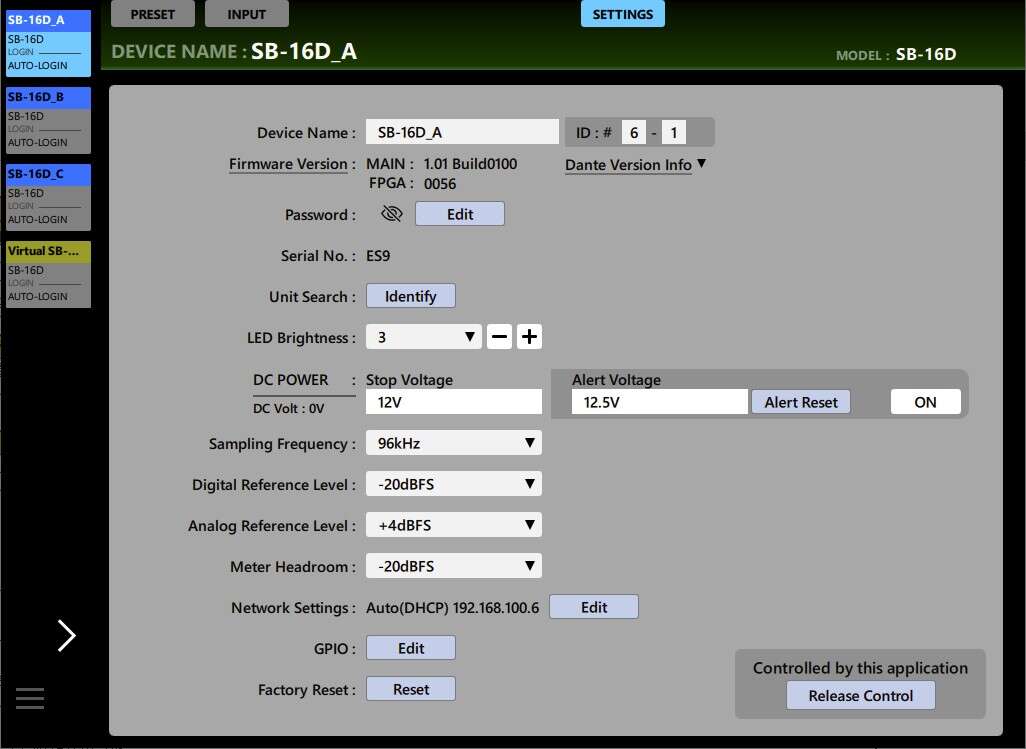

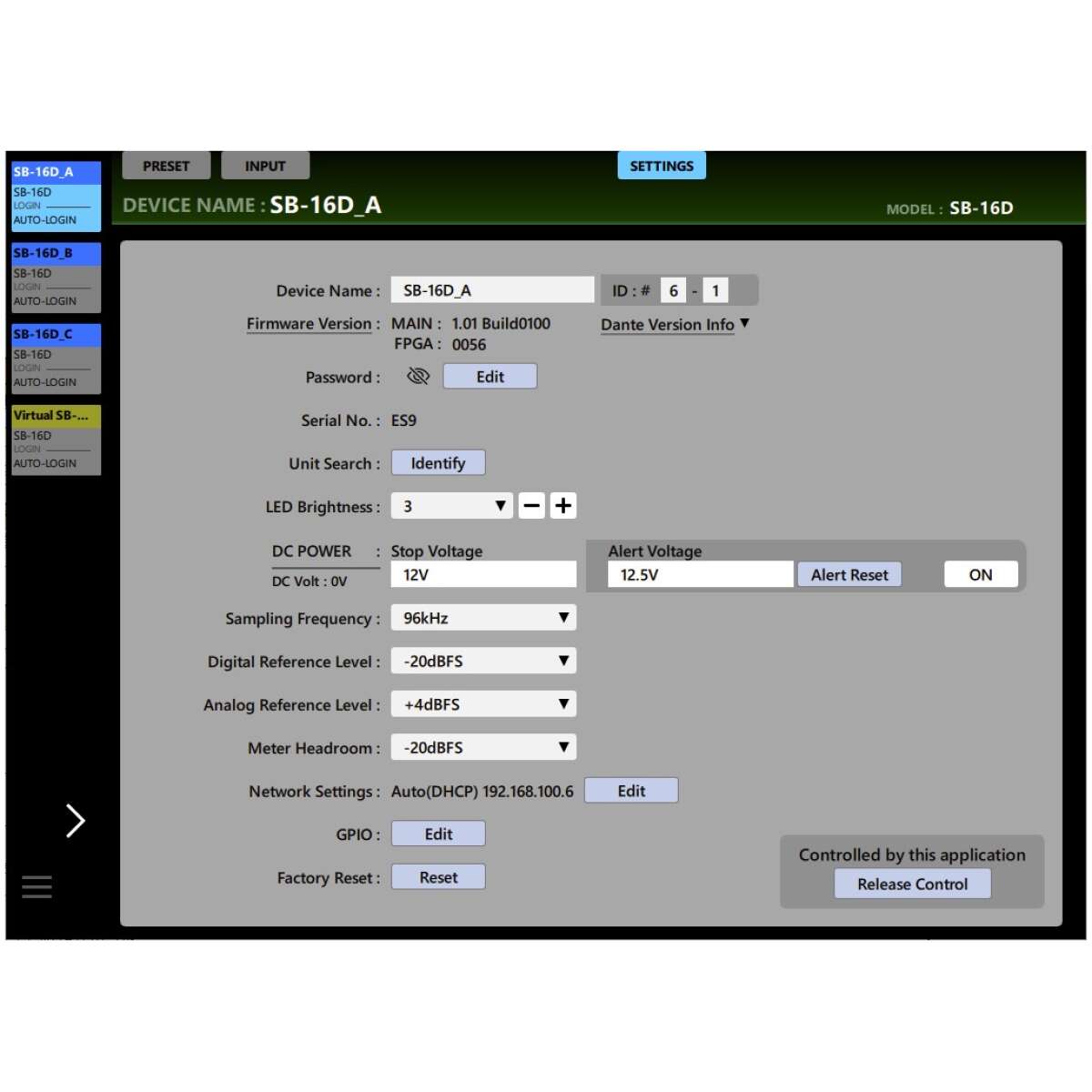

• Remote control and offline editing using TASCAM IO Control

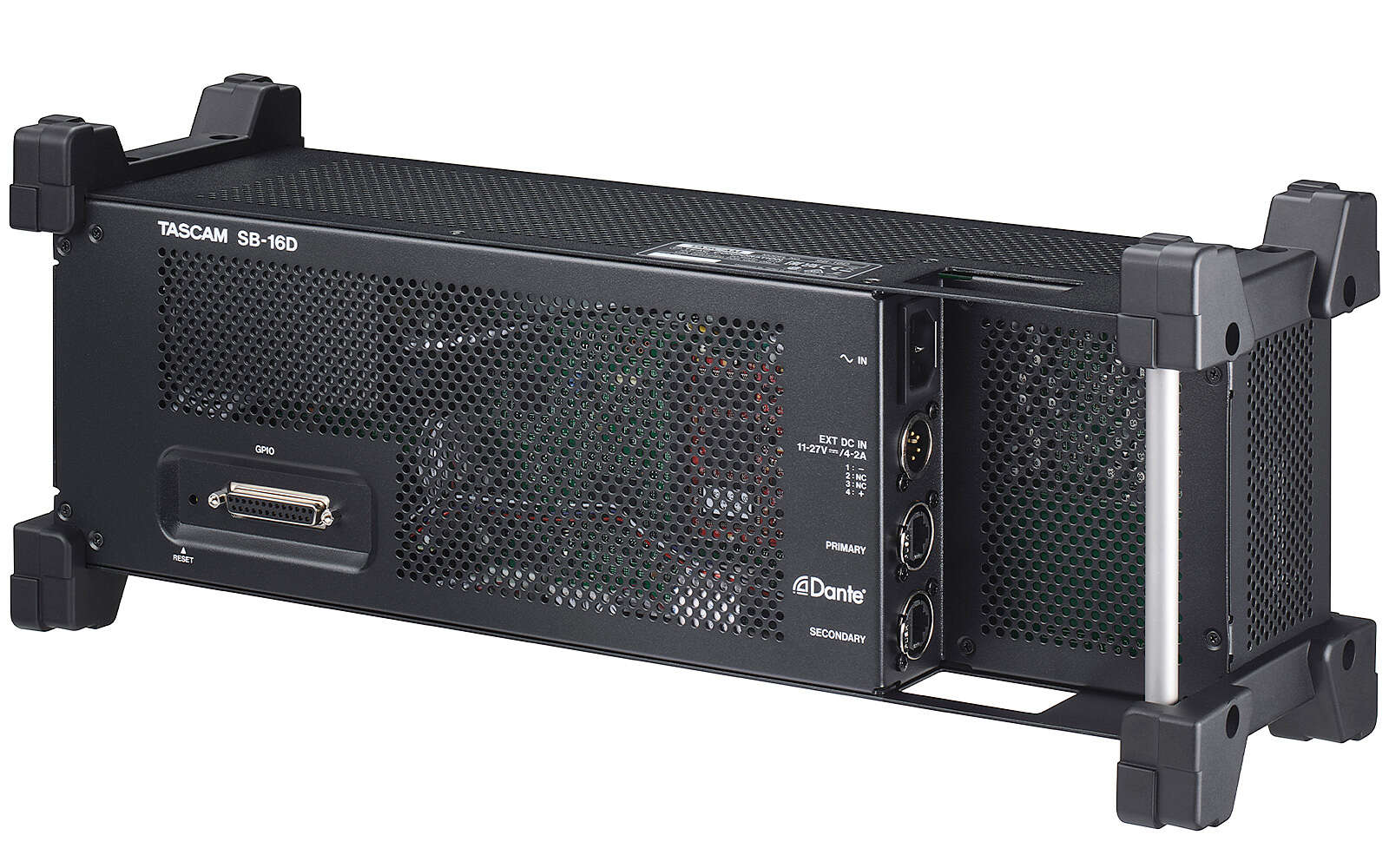

• Eight GPIO inputs and eight GPIO outputs
• Optional redundant DC power supply

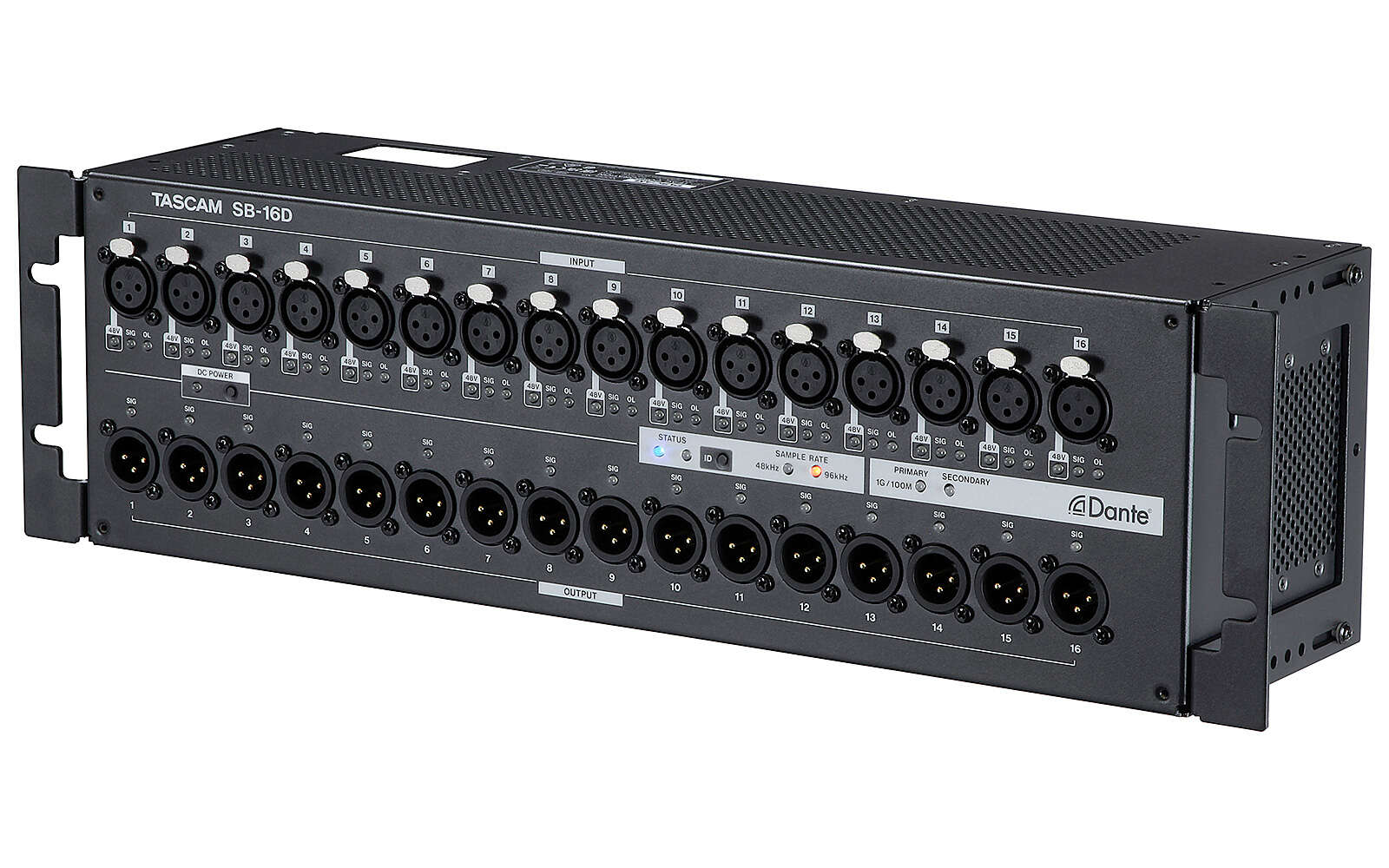

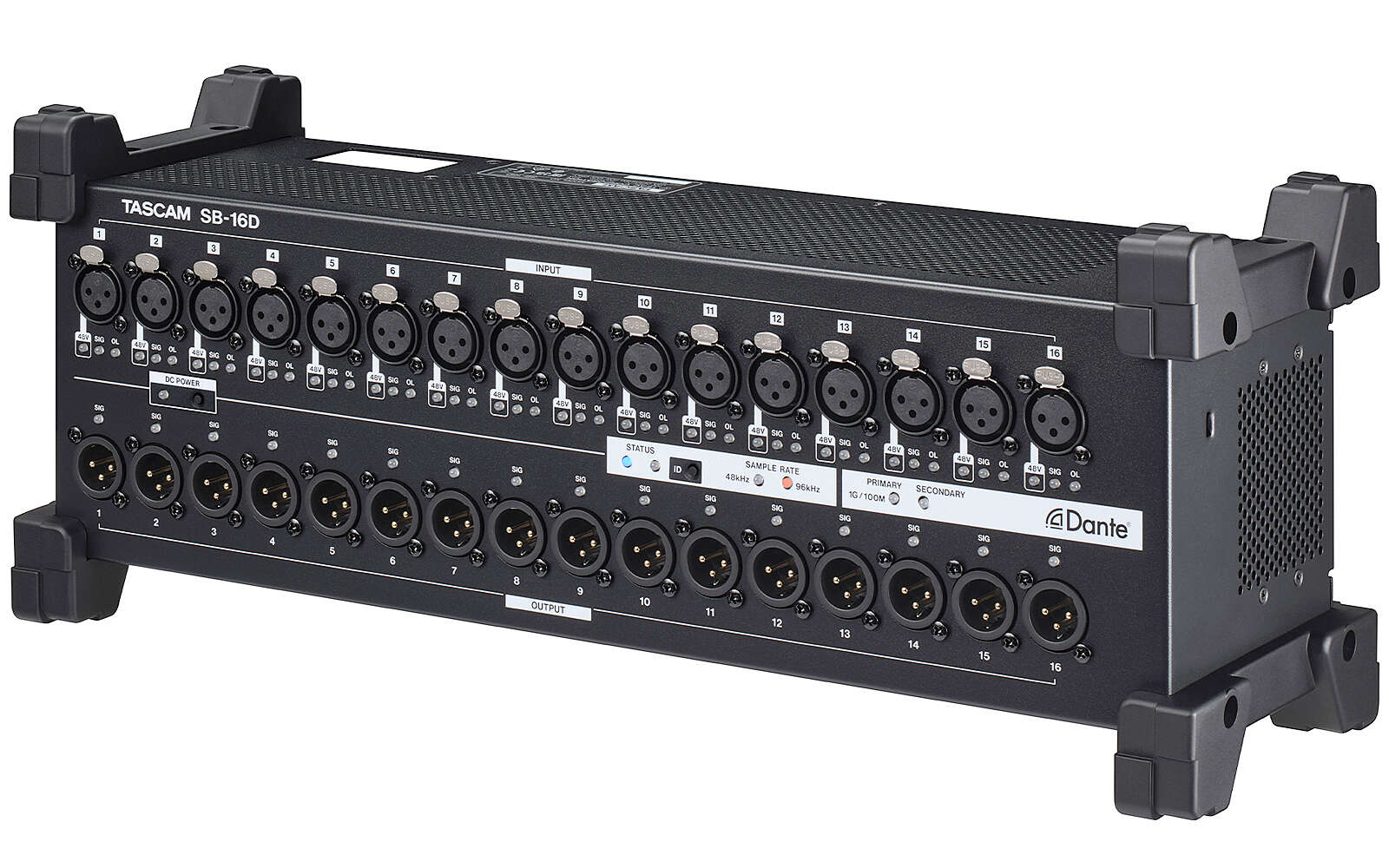

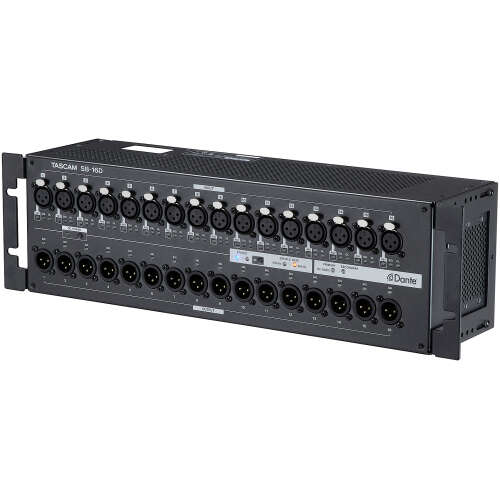

• Floor, stacked or 3U rackmount operation

Physical Audio Channels

Analogue inputs:

• 16 balanced microphone/line inputs

Analogue outputs:

• 16 balanced line outputs

All physical audio connections use individual three-pin XLR connectors, making the SB-16D suitable for direct stage, studio and installation wiring without separate breakout cables.

Dante Network Capacity

At 48 kHz:

• Up to 64 Dante network channels

At 96 kHz:

• Up to 32 Dante network channels

The 64- or 32-channel specification refers to the Dante network-routing capacity. The SB-16D itself provides 16 physical analogue inputs and 16 physical analogue outputs.
