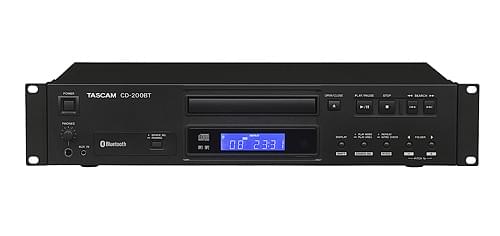

Tascam CD-200BT

The CD-200BT is the next highly anticipated model in the top selling “CD-200” series. It is designed to meet the increasing demand for playback from various audio formats and devices compatible with Bluetooth® technology.

Users can pair up to 8 Bluetooth devices at a time in order for quick switching and playback. Also supported is the use of the aptX® codec to ensure a much higher quality and more reliable audio signal transmitted via Bluetooth. The unit is equipped with controls for fast track/file selection, multiple playback modes, ±14% pitch control and also includes a wireless remote control. Like all models in the signature “CD-200” series, the CD-200BT features Tascam’s esteemed CD-5020A transport to provide quiet playback, smooth loading and longevity while being outfitted with shockproof memory. To ensure easy set-up in any system, there are stereo line RCA, coaxial and optical audio outputs, as well as a headphones output with level control for monitoring.

The CD-200BT is the perfect 2U rack-mountable addition to any commercial or public space audio install. With its wide array of options and playback features the CD-200BT can meet nearly any demands one might encounter for reliable, high-quality audio playback.

Main Features

  • Easy-to-use, affordable CD player with Bluetooth receiver
  • Various playback options:
    • Audio CD playback
    • MP3 and WAV file playback from CD
    • Internet radio or network file playback via a Bluetooth connection with a smartphone or computer
    • Playback from other audio sources via AUX IN connector
  • Bluetooth apt-X codec provides high quality audio transmission with low latency (AAC and SBS are also supported)
  • Up to eight different Bluetooth devices are memorized and can easily be selected with a dedicated button
  • High-quality TEAC audio CD drive (supports CD-R and CD-RW)
  • Folder selection for MP3 and WAV CDs
  • Continuous, Random and Program playback modes
  • Repeat playback (Single, All, Folder)
  • Intro Check feature
  • CD text and ID3 tag support to display artist and track information if available
  • Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
  • ±12.5 % pitch control
  • Anti-shock memory
  • Headphones output with level control
  • Analogue output (RCA)
  • SPDIF digital outputs (coaxial and optical)
  • Wireless remote control included
  • 19-inch rack-mount chassis (2U)

Specifications

General
Supported disc typesCD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text)
Playback file formats
  CD-DA44.1kHz, 16-bit stereo
  MP232/44.1/48kHz, 32–384kbps (data CDs)
  MP332/44.1/48kHz, 32–320kbps, VBR (data CDs)
  WAV8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs)
Analogue audio inputs and outputs
Analogue audio inputAUX IN jack, 3.5-mm stereo mini jack
  Nominal input level–20 dBV
  Maximum input level–4 dBV
  Input impedance22 kΩ
Analogue output (unbalanced)RCA pin jack
  Output impedance200 Ω
  Nominal output level–10 dBV (0.32 Vrms)
  Maximum output level+6 dBV (2.0 Vrms)
Phones output6.3-mm stereo phone jack
  Maximum output power20 mW + 20 mW (THD+N: 0.1%, 32 Ω)
Digital audio outputs
Digital output (coaxial)RCA Pin Jack
  Compatible signal formatIEC-60958-3 (SPDIF)
Digital output (optical)TOS (JEITA RC-5720C)
  Compatible signal formatIEC-60958-3 (SPDIF)
Audio performance
Frequency Response20 Hz – 20 kHz ±1.0 dB (during playback, JEITA)
Signal-to-Noise Ratio (S/N)>90 dB (during playback, JEITA)
Total Harmonic Distortion<0.01% (during playback, JEITA)
Dynamic Range>90 dB (during playback, JEITA)
Channel Separation>90 dB (during playback, JEITA)
BluetoothVersion 3.0, Class 2 (approximate transmission distance: 10m*)
Supported profilesA2DP, AVRCP
Supported A2DP codecsSBC, AAC, aptX
Supported A2DP content protection:SCMS-T
*The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves.
Power supply and other specifications
Power requirementsAC 120 V, 60 Hz (U.S.A./Canada)
AC 230 V, 50 Hz (U.K./Europe)
AC 240 V, 50 Hz (Australia)
Power Consumption8 W (U.S.A./Canada/U.K./Europe)
9 W (Australia)
Dimensions (W x H x D)481 mm x 95 mm x 298 mm
Weight4.5 kg
Operating Temperature5–35 °C
Inclination of installation5° or less
